Sintered Filter Screen Woven Wire Mesh Five Layer Stainless Steel Laminated
| Place of Origin | Anping of China |
|---|---|
| Brand Name | QIANPU |
| Certification | ISO |
| Minimum Order Quantity | 100 Pieces |
| Packaging Details | Inside with plastic film, outside with carton box or wooden box, and then in a pallet. It's also available as your requirements. |
| Delivery Time | For the size we have in stock,5 working days |
| Supply Ability | 200000 piece per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | High Strength And Durability Since High Temperature Sintering. | Product Name | Stainless Steel Sintered Wire Mesh |
|---|---|---|---|
| Material | Standard Material AISI304, AISI316, AISI316L, Alloy Steel Hastelloy, Monel, And Inconel. | Number Of Layers | 5 Layers |
| Filter Rating | 1µm To 200µm | Over Thickness | 2 Mm |
| Standard Size | 500 × 1000 Mm, 600 × 1200 Mm, 1000 × 1000 Mm, 1200 × 1200 Mm, 300 × 1500 Mm. | Fabrication | Easily Formed, Sheared, Welded And Punched. |
| Porosity | 40% | Application | Usually Used For Purification And Filtration |
| Highlight | Woven Sintered Wire Mesh,Stainless Steel Sintered Wire Mesh,Five Layer Sintered Wire Mesh |
||
Product Description

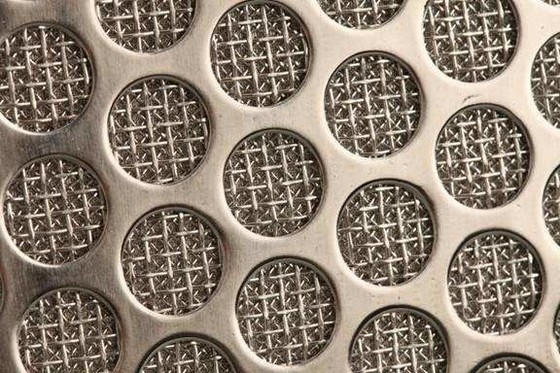

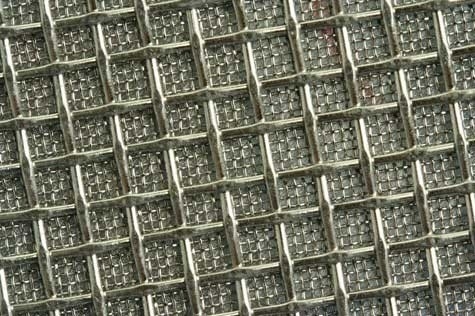

Sintered Mesh Filter Screen Woven Wire Mesh,Five-Layer Stainless Steel Laminated Sintered Wire Mesh
Super Sintered Wire Mesh Characterastics:
1.Wide range of filter rating;
2.Steady filter rating;
3.HIgh mechanical strength;
4.Easy to wash;
5.Heat resistance;
6.Corrosion resistance;
7.Tractability
Material:
AISI316L,or produce according to customer's demand!
Size:
The standard sizes are 500*1000mm and 600*1200mm.Besides,other sizes within the above sizes are available according to your requirement.
Techncial Index:
Type B:
| Model | Structure | Filter rating (u) | Thickness(mm) | Weight(kg/sqm) | Porosity(%) |
| B2-0.5T | Filter layer+60 | 2—100 | 0.5 | 1.6 | 60 |
| B3-0.7T | 60+Filter layer+60 | 2—100 | 0.7 | 2.4 | 56 |
| B3-1.0T | 50+Filter layer+20 | 20—200 | 1.0 | 3.3 | 58 |
| B3-2.0T | Filter layer+20+8.5 | 20—250 | 2.0 | 6.5 | 58 |
| B4-1.0T | 60+Filter layer+40+20 | 2—200 | 1.0 | 4.4 | 44 |
| B4-1.7T | 40+Filter layer+20+16 | 2—200 | 1.7 | 6.2 | 54 |
| B5-1.9T | 30+Filter layer+60+20+16 | 2—200 | 1.9 | 5.3 | 52 |
| B5-2.5T | 80+Filter layer+30+10+8.5 | 2—200 | 2.5 | 8.8 | 55 |
| B7-2.0T | 50+Filter layer+40+20+40+Filter layer+50 | 2—150 | 2.0 | 7.4 | 58 |
Note:
1. The filtration layer is decided by the customer as long as the Filter rating is within our specified range.
2. We can also make the mesh with other special structures requested by the customer.
3. The porosity takes that of 20mesh as criteria.
Advantages
Performance and advantages of steel fiber mesh:
1.High dirt holding capacity,high filtering accuracy,longer on stream lifel.
2.Corrosion resistance of nitric acid,alkali, and organic solvent proof. It can be used for a long period of service in the temperature of 600℃.
3.High porosity and excellent permeability which results in low pressure drop and large flow.
4.Pleatable,provide a large filter area, and can be welded and machined.
5.Cleanable,can be used many times.
Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen
It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.
In order to make an offer,please provide us below wire mesh specification information.
Material
Wire diameter
Mesh size
Wire mesh length
Wire mesh width
If it is possible,please also provide us weight per roll that you required.
