Five Layer Sintered Wire Mesh 1 Micron To 150 Micron

Place of Origin	Anping of China
Brand Name	QIANPU
Certification	ISO
Minimum Order Quantity	100 Pieces
Packaging Details	Inside with plastic film, outside with carton box or wooden box, and then in a pallet. It's also available as your requirements.
Delivery Time	For the size we have in stock,5 working days
Supply Ability	200000 piece per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Features	High Permeability.	Product Name	Sintered Mesh Laminated
Material	Stainless Steel Wire,	Number Of Layers	7
Filter Rating	1 µm To 150 µm	Over Thickness	2 Mm
Standard Size	1000 Mm × 1200 Mm	Porosity	58%.
Structure	50 / Filter Layer / 40 / 20 / 40 / Filter Layer / 50.	Application	Hot Gas Filter Element, Process Filter Element.
Highlight	Five Layer Sintered Wire Mesh , aisi316l 1 Micron Sintered Wire Mesh , 150 Micron stainless steel mesh

Leave a Message

Product Description

Sintered Filter Screen Woven Wire Mesh Five Layer Stainless Steel Laminated

Sintered mesh laminate belongs to high strength porous material. It is made of stainless steel or other alloys. Single layer or multiple layers of woven wire meshes are permanently bonded together by an unique diffusion-bonded technique. Compared with traditional wire mesh, sintered mesh laminate provides more additional benefits such as stability and mechanical strength. Therefore, it is widely constructed as a filter medium in many industries.

Super Sintered Wire Mesh Characterastics:

1.Wide range of filter rating;

2.Steady filter rating;

3.HIgh mechanical strength;

4.Easy to wash;

5.Heat resistance;

6.Corrosion resistance;

7.Tractability

Material:

AISI316L,or produce according to customer's demand!

Size:

The standard sizes are 500*1000mm and 600*1200mm.Besides,other sizes within the above sizes are available according to your requirement.

Specification - two and three layers sintered mesh laminate:

Layer number	Structure	Filter rating (µm)	Overall thickness (mm)	Weight / sq.ft (kg)
2	100 × 0.0045" / 200 × 1400	5	0.2286	0.1135
2	10 × 0.025" / 325 × 0.0014"	44	0.9144	0.2088
2	60 × 0.0075" / 325 × 0.0014"	44	0.36576	0.1271
2	10 × 0.025" / 250 × 0.0016"	55	0.9398	0.2088
2	10 × 0.025" / 200 × 0.0021"	74	0.9525	0.2179
2	30 × 0.012" / 150 × 0.0026"	105	0.4953	0.1680
2	10 × 0.025" / 150 × 0.0026"	105	0.4953	0.2177
2	60 × 0.0075" / 100 × 0.0045"	140	0.51308	0.1725
2	10 × 0.025" / 100 × 0.0045"	140	0.96266	0.2542
2	20 × 0.016" / 20 × 0.016"	864	0.8128	0.3178
3	60 × 0.0075" / 325 × 2300 / 60 × 0.0075"	2	0.56642	0.2633
3	60 × 0.0075" / 200 × 1400 / 60 × 0.0075"	5	0.62738	0.2906
3	60 × 0.0075" / 165 × 1400 / 60 × 0.0075"	10	0.72136	0.2906
3	60 × 0.0075" / 165 × 800 / 60 × 0.0075"	15	0.62738	0.2679
3	60 × 0.0075" / 80 × 700 / 60 × 0.0075"	25	0.86106	0.2838
3	60 × 0.0075" / 325 × 0.0014" / 60 × 0.0075"	44	0.62484	0.2361
3	60 × 0.0075" / 250 × 0.0016" / 60 × 0.0075"	55	0.6223	0.2361
3	60 × 0.0075" / 200 × 0.0021" / 60 × 0.0075"	74	0.64262	0.2452
3	60 × 0.011" / 100 × 0.0045" / 200 × 0.0021"	74	0.72898	0.1998
3	60 × 0.0075" / 150 × 0.0026" / 60 × 0.0075"	105	0.65786	0.2497
3	60 × 0.0075" / 100 × 0.0045" / 60 × 0.0075"	140	0.76708	0.2815

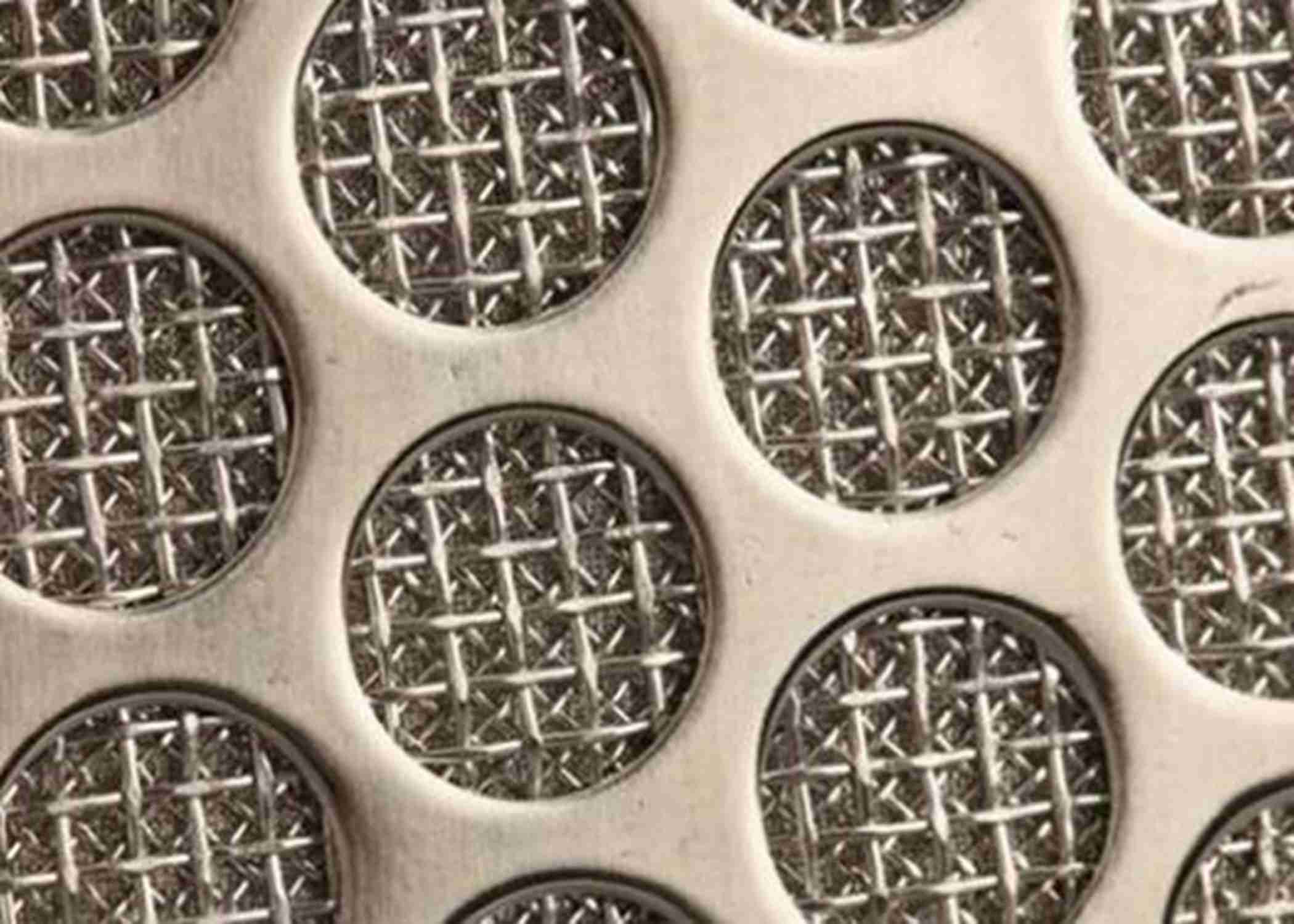

Five Layer Sintered Wire Mesh 1 Micron To 150 Micron 1

Advantages

Performance and advantages of steel fiber mesh:

1.High dirt holding capacity,high filtering accuracy,longer on stream lifel.

2.Corrosion resistance of nitric acid,alkali, and organic solvent proof. It can be used for a long period of service in the temperature of 600℃.

3.High porosity and excellent permeability which results in low pressure drop and large flow.

4.Pleatable,provide a large filter area, and can be welded and machined.

5.Cleanable,can be used many times.

Features:

High mechanical strength and stability.
High permeability.
Stainless steel for corrosion resistance.
Easy to be fabricated into other deep filter media.
Accurate filter ratings.
Easy to clean, it can be reused for many times.

Application:

Filtration: Hot gas filter element, process filter element.
Fluidization: Fluidized beds, air slides, aerators, flow control devices.
Other applications: Acoustic attenuation, foaming in air diffuser, flashing and explosion of flame arrestors prevention.

Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen

It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.

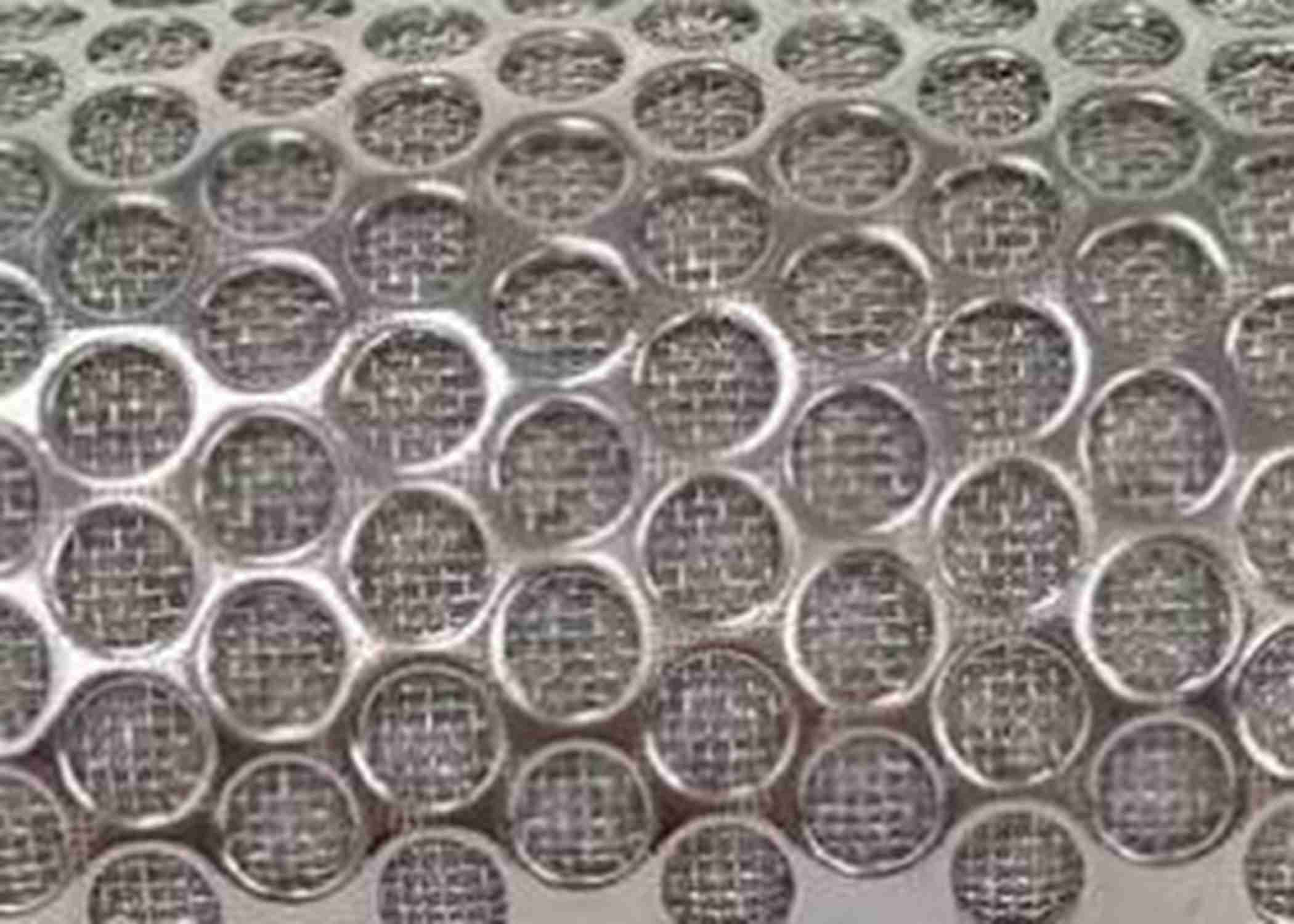

Five Layer Sintered Wire Mesh 1 Micron To 150 Micron 2
