2 To 3 Layer Dutch Woven Sintered SS Wire Mesh 500x1000mm

  • 2 To 3 Layer Dutch Woven Sintered SS Wire Mesh 500x1000mm
  • 2 To 3 Layer Dutch Woven Sintered SS Wire Mesh 500x1000mm
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 100 Pieces
Packaging Details Inside with plastic film, outside with carton box or wooden box, and then in a pallet. It's also available as your requirements.
Delivery Time For the size we have in stock,5 working days
Supply Ability 200000 piece per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Has Evenly Spaced Openings And Steady Air Permeability To Flow, Etc Name Sintered Wire Mesh
Material Stainless Steel Wire Type Weave Wire Mesh
Standard Size 500 × 1000 Mm, 600 × 1200 Mm, 1000 × 1000 Mm, 1200 × 1200 Mm, 1200 × 1500 Mm. Mesh Count 12 × 64, 64 × 12, Etc
Weave Types Plain Dutch, Twill Dutch Application Powder Transport, Laboratory Fluid Bed, Driers, Coolers And Other Solid Materials. Additional, It Is Widely Used For Gas And Liquid Filter, Chemical Filter, Pharmacy Filter And Laboratory Filters.
High Light

Sintered SS Wire Mesh

,

3 Layer ss wire mesh

,

1000mm ss woven wire mesh
Leave a Message
Product Description

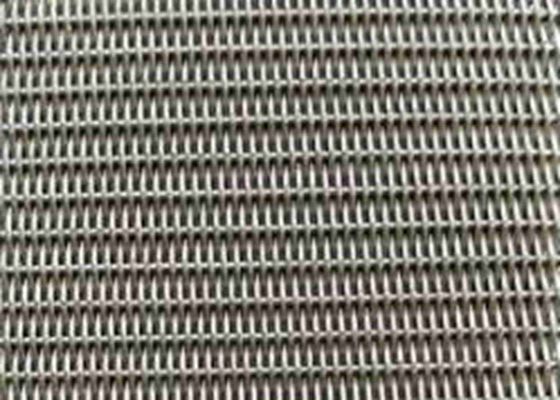

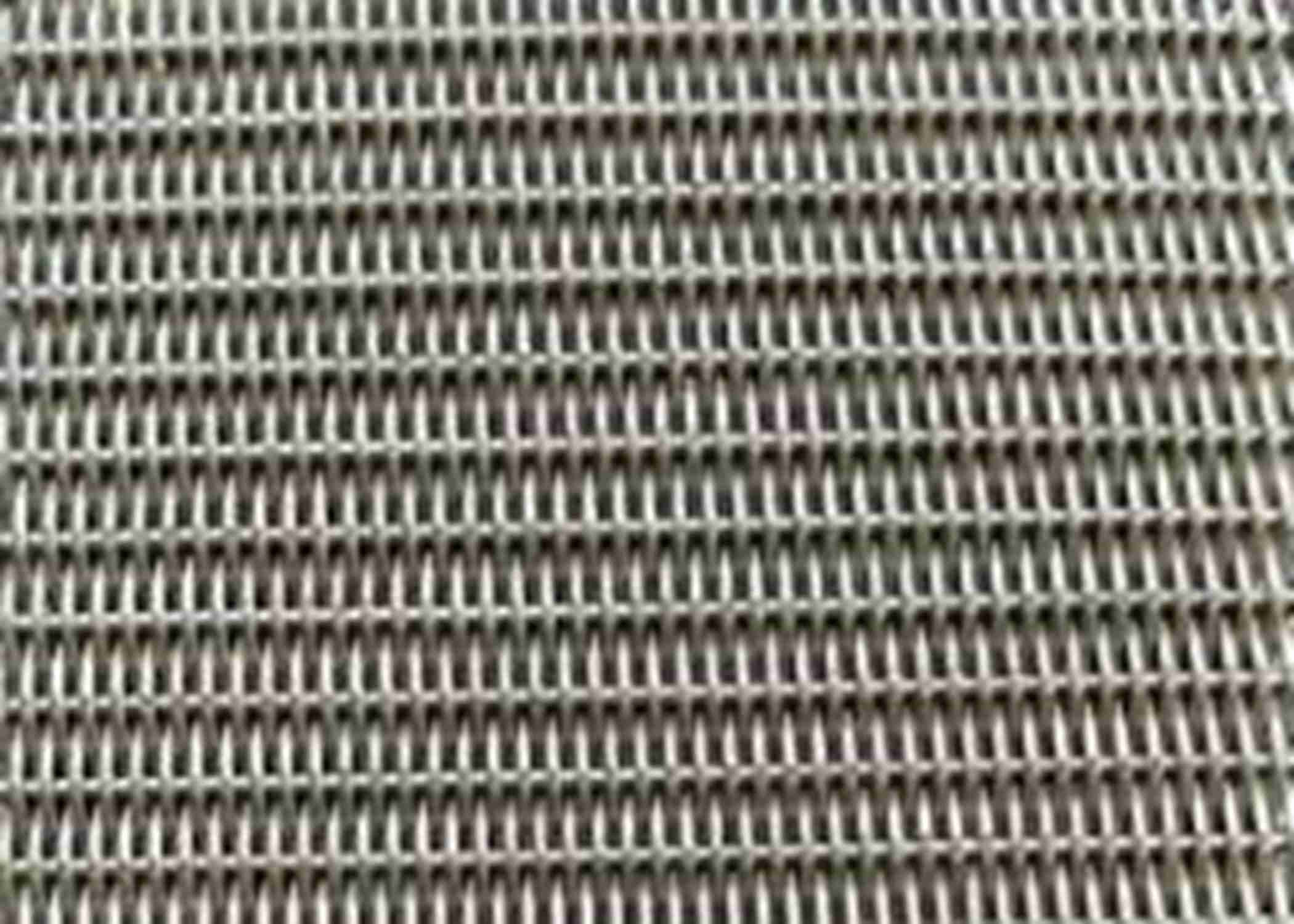

2 To 3 Layer Longlife Dutch Woven Sintered Stainless Steel Sintered Wire Mesh

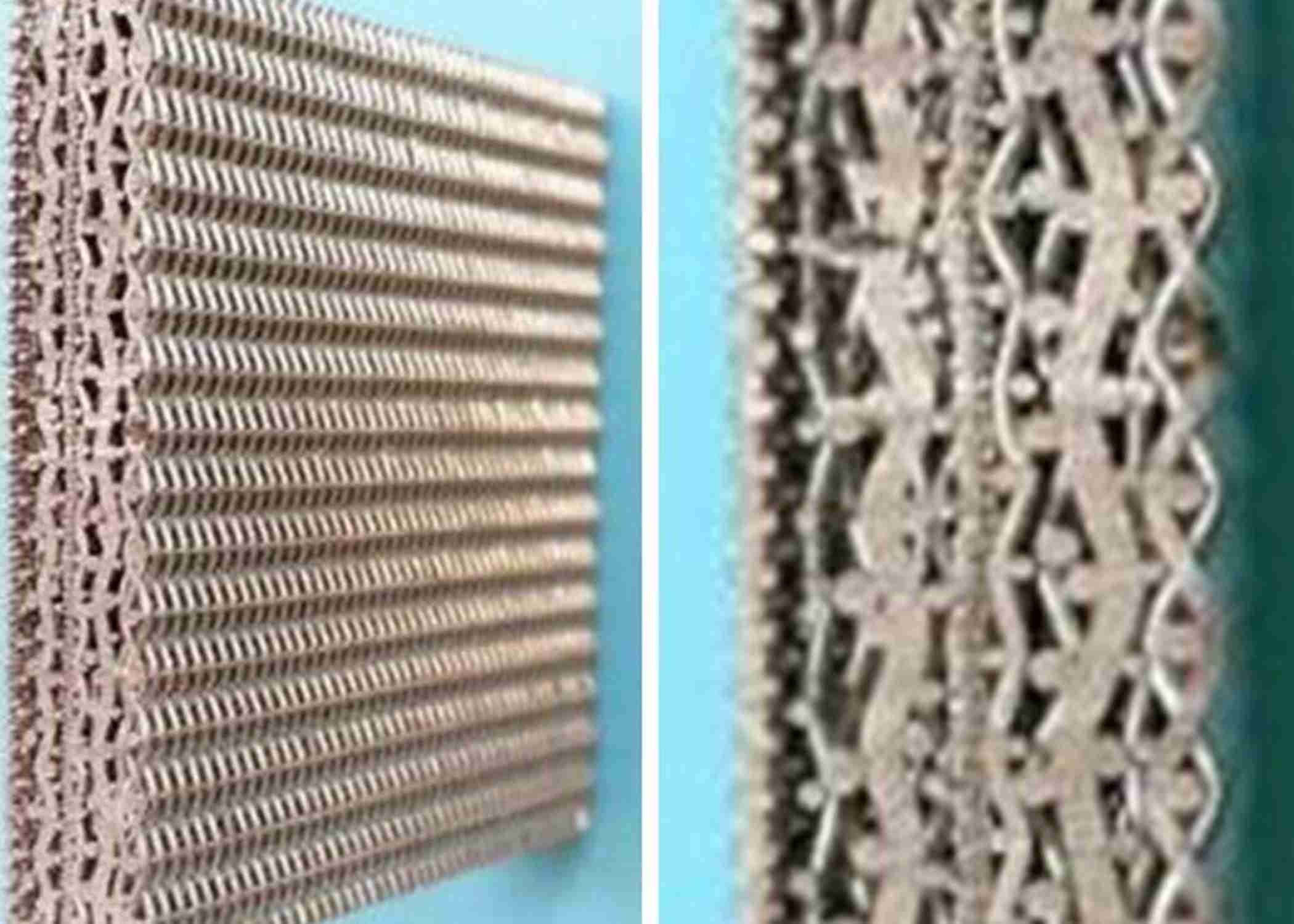

2 to 3 layers of plain dutch woven wire mesh reinforcement layers with equal hole size and 3 or 4 stainless steel mesh fine layers after vacuum sintering, pressurizing and rolling together forms dutch woven sinter wire mesh. Dutch woven sintered mesh is an important and widely used type sintered metal filter. This type of stainless steel sintered wire mesh has evenly spaced openings and steady air permeability to flow, and has very great mechanical strength due to the heavy dutch woven wire mesh layers.



This type of sintered filter plate is commonly used in powder transport, laboratory fluid bed, driers, coolers and other solid materials. Additional, it is widely used for gas and liquid filter, chemical filter, pharmacy filter and laboratory filters.



Stainless Steel Sintered 60 Micron Filter Mesh/Wire Mesh Filter Disc,stainless steel Sintered Wire Mesh

Sintered wire mesh is made form multiple layers of woven wire mesh panel together using a sintering process. This creates a unique material offering excellent mechanical properties. It is ideal material for purification and filtration. It may be from 5, 6 or 7 layers of wire mesh.



Product Name
20 Micron Filter 1 Micron Stainless Steel Sintered Wire Mesh
Material
304, 316, 316L, Alloy Steel Hastelloy, Monel, and Inconel.
Standard Size
500 × 1000mm, 600 × 1200mm, 1000 × 1000mm, 1200 × 1200mm, 300 × 1500mm
Fabrication
easily formed, sheared, welded and punched





Advantages of Sintered Mesh


* High strength and durability since high temperature sintering;
* Anti-corrosion, and heat resistance up to 480℃;
* Steady filter rating from the 1micron to 100 micron;
* Filter mesh not easy to deform because of two protective layers;
* Can used for uniform filtration in high pressure or high viscosity environment;
* Suits for cutting, bending, punching, stretching, and welding.

Main products we provided, 5-Layer / 7-Layer Sintered Wire Mesh, Dutch Woven Sintered Wire Mesh, Perforated Metal Sintered Wire Mesh, Plain Sintered Square Woven Wire Mesh, Sintered Filter Elements, Sintered Mesh Filter Cartridges, Sintered Wire Mesh Filter Disc, Sintered Wire Mesh Laminates, Sintered Wire Mesh filter tube.



Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen



It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.



2 To 3 Layer Dutch Woven Sintered SS Wire Mesh 500x1000mm 0

Our architectural mesh List:



Sintered Mesh
Plain Weave Sintered Mesh
Dutch Woven Sintered Wire Mesh
Perforated Metal Sintered Wire Mesh
Brass Pneumatic Mufflers / Sintered Silencer
Stainless Steel Pneumatic Mufflers / Sintered Silencer
Sintered Filter Elements
Sintered Mesh Filter Cartridges
Sintered Metal Filter Disc
Sintered Wire Mesh Laminates
Sintered Tube Filter
Stainless Steel Sintered Fiber Felt
Iron-Chromium-Aluminum Fiber Felt
Sintered Stainless Steel Powder Filter Element
Titanium Powder Sintered Filter
Sintered Copper Powder Filter Elements
Five-Layer Sintered Mesh
Sintered Mesh Laminate
Sintered Mesh With Perforated Metal
Sintered Metal Filter Cartridge
Pleated Sintered Mesh Filter
Sintered Mesh Cone Filter
Sintered Metal Fiber Felt
