Plain Weave SUS304 AISI316 Stainless Steel Wire Mesh For Filters 1 Micron To 200 Micron

Place of Origin Hengshui,China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 100 Pieces
Packaging Details Inside with plastic film, outside with carton box or wooden box, and then in a pallet. It's also available as your requirements.
Delivery Time For the size we have in stock,5 working days
Supply Ability 200000 piece per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Good Permeability Characteristics And Low Resistance To Flow Name Plain Weave Sintered Mesh
Material SUS304 (AISI304), SUS316 (AISI316), SUS316L (AISI316L). Type Weave Wire Mesh, Filter Disc
Filter Rating 1 Um - 200 Um Weave Types Plain Weave,Twill Weave,Duch Weave
Standard Size 300 × 1000 Mm, 500 × 1000 Mm, 600 × 1200 Mm, 1000 × 1000 Mm, 1200 × 1200 Mm, 1000 × 1500 Mm, 1200 × 1500 Mm. Usage Polymer Production, As Well As A Variety Of Fluid And Air Filtration Applications.
High Light

AISI316 Stainless Steel Wire Mesh

,

SUS304 Stainless Steel Wire Mesh

,

200 Micron stainless steel wire mesh filter

Leave a Message
Product Description



Name Perforated Sheet Sintered Stainless Steel Wire Mesh Filter
Material 304/316/316L
Micron Rate 2-300µm
Pressure Range 1.5-3MPa
Max Temperature 480℃
Feature Higher mechanical strength, Better backwash efficiency, Lower pressure drop loss
Application

Water treatment, Beverage, Food, Metallurgy, Chemical and Pharmaceutical





Table of Plain Weave Sintered Mesh Technical Parameters



Structure Filter rating (u) Thickness (mm) Weight
(kg/ m2)
Porosity (%)
Filter layer + 60 2-100 0.5 1.6 60
60 + Filter layer + 60 2-100 0.7 2.4 56
50 + Filter layer + 20 20-200 1.0 3.3 58
Filter layer + 20 + 8.5 20-250 2.0 6.5 58
60 + Filter layer + 40 + 20 2-200 1.0 4.4 44
40 + Filter layer + 20 + 16 2-200 1.7 6.2 54
30 + Filter layer + 60 + 20 + 16 2-200 1.9 5.3 52
80 + Filter layer + 30 + 10 + 8.5 2-200 2.5 8.8 55
50 + Filter layer + 40 + 20 + 40 + Filter layer + 50 2-150 2.0 7.4 58

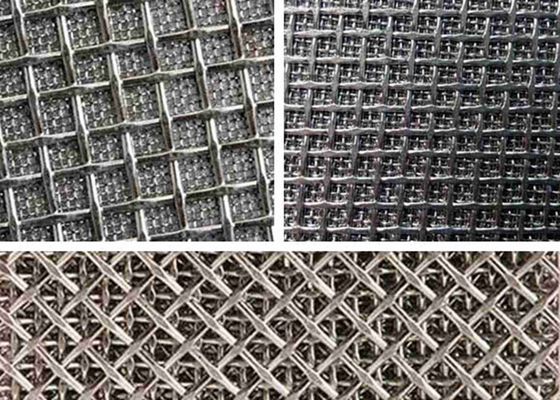

Sintered Wire Mesh Plain Weave For Filters Stainless Steel Sintered Wire Mesh

Introduction:



Plain weave sintered square woven wire mesh is made by sintering multiple layers of plain weave square woven mesh together, and its cross section structure as below picture. Because of the large open area percentages of the square woven wire mesh layers, this type of sintered wire mesh has good permeability characteristics and low resistance to flow. It can be designed with any number and combination of square plain weave wire mesh layers to achieve particular flow and filtration characteristics. It is useful for polymer production, as well as a variety of fluid and air filtration applications.





Material


1.1 air permeability

Under a pressure gradient, fluid passes through the sintered mesh volume per unit area.

1.3 bubble pressure

Forces gas through the first bubbles of liquid impregnated, sintered wire mesh the minimum pressure required.

1.4 strengthening layer

Wire diameter coarse pores larger wire for support, to improve overall strength and stiffness of the sintered wire mesh.

1.5 streaming

Filter media by sintered mesh control, guide to the filter media stream and keep control of micro-hole shape and dimensional stability.

1.6 control layer

Precise wire mesh as a key work of the sintered filter materials, sintered wire mesh filtration accuracy by its control.

1.7 protection layer

On the control layer for protection and protection in the process of maintaining stability in micro-pore shape and size.

2 product categories
2.1 specification (based on the product structure is divided into five series)

Standard sintered wire mesh series, six-layer sintered wire mesh series, flow plate series, punched-plate composite mesh series, special sintered wire mesh series



Stainless steel sintered wire mesh terms and definitions



Advantages



Performance and advantages of steel fiber mesh:

1.High dirt holding capacity,high filtering accuracy,longer on stream lifel.

2.Corrosion resistance of nitric acid,alkali, and organic solvent proof. It can be used for a long period of service in the temperature of 600℃.

3.High porosity and excellent permeability which results in low pressure drop and large flow.

4.Pleatable,provide a large filter area, and can be welded and machined.

5.Cleanable,can be used many times.



Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen



It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.

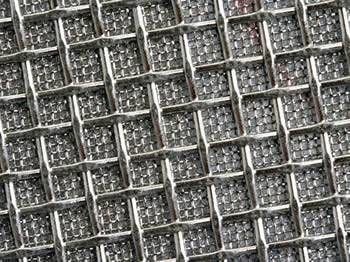

Plain Weave SUS304 AISI316 Stainless Steel Wire Mesh For Filters 1 Micron To 200 Micron 1
