Multi Layer 0.2 To 500 Microns Stainless Screen Mesh For Petrochemical Industry

  • Multi Layer 0.2 To 500 Microns Stainless Screen Mesh For Petrochemical Industry
  • Multi Layer 0.2 To 500 Microns Stainless Screen Mesh For Petrochemical Industry
Place of Origin Hengshui,China
Brand Name QIANPU
Minimum Order Quantity 100 Pieces
Price 0.1-5$ per piece
Packaging Details Inside with plastic film, outside with carton box or wooden box, and then in a pallet. It's also available as your requirements.
Delivery Time For the size we have in stock,5 working days
Supply Ability 200000 piece per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Various Filtration Rating For Different Design Requirements. Product Name Pleated Sintered Mesh
Material Stainless Steel Wire, Color Silver
Sintered Mesh Type Pleated Type Filter Rating 0.2 Microns To 500 Microns.
Cleaning Ultrasonic Cleaning, High Temperature Baking, Cleaning Agent. Working Temperature -200 °C To 600 °C.
Width 1.2m, Etc Applications Chemical And Pharmacy Industry.
Highlight

500 Microns stainless screen mesh

,

0.2 Microns stainless screen mesh

,

Multi Layer stainless steel filter mesh
Leave a Message
Product Description

Pleated Sintered Mesh Multi Layer 0.2 To 500 Microns For Petrochemical Industry



Pleated Sintered Mesh Introduction:


Pleated sintered mesh filter is made of stainless steel wire mesh, or sintered metal fiber felt, which is sintered at each wire contact point to produce a strong surface-sieving porous filter cylinder. Moreover, the filter element is pleated design that further provides large filter area, good dirt holding capacity. Double open-ended or single open-ended is available as per customers' need, threaded end is often equipped with gasket, like o-ring, to reduce the friction of the corrugated filter. Unlike unsintered mesh, pleated sintered mesh filter enables the use of finer wires to produce more pores per unit area for higher contaminant loading capacity. On the other hand, pleated sintered filter cartridge is more preferred to replace the PP filter cartridge with its back washing and reusability advantage, in applications of corrosive liquid filtration, oxidizing liquid filtration, liquid and gas filtration, etc.


Specification



Material: stainless steel, some special alloys are also available.
Filtration rate: 0.2 microns to 500 microns.
Length: 3.9" to 59".
Outer diameter: 1.378" to 3.15".
Working temperature: -200 °C to 600 °C.
Cleaning: ultrasonic cleaning, high temperature baking, cleaning agent.
Packing: wooden case or export case, generally wrapped in plastic bag separately first.


Name
Sintered Wire Mesh
Color
Silver
Port
Tianjin
Applications
1.High polymer industry
2.Petrochemical industry
3.Pharmaceuticals and foodstuffs
4.Machinery and ship 5.Flow controlling for gas industry
6. Air purification,bactericidal filtration for water treatment



1. Material: Stainless Steel wire 304 316 316L



2. Aperture:2-200micron



3. Layers:3-8layers (standard layers 5)



4. Filtration precision:1-300um





Multi Layer 0.2 To 500 Microns Stainless Screen Mesh For Petrochemical Industry 0


Advantages



Pleated design for high dirt holding capacity.
All stainless steel construction for corrosion resistance.
High strength and stability, resistant to high pressure and harsh operating conditions.
Various filtration rating for different design requirements.
Easy to backwash, it prolongs service life.



Application:



Mining industry.
Textile industry.
Food industry.
Chemical and pharmacy industry.
Automotive industry.
Insulation industry.

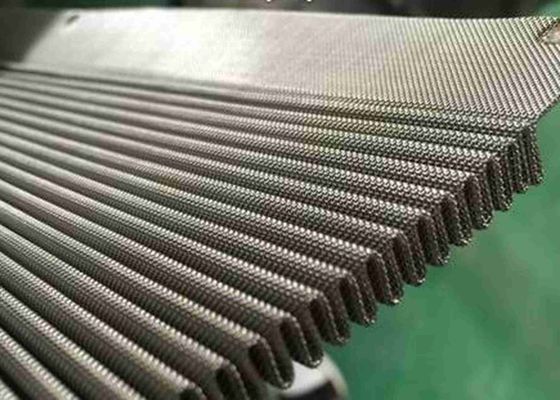

Multi Layer 0.2 To 500 Microns Stainless Screen Mesh For Petrochemical Industry 1

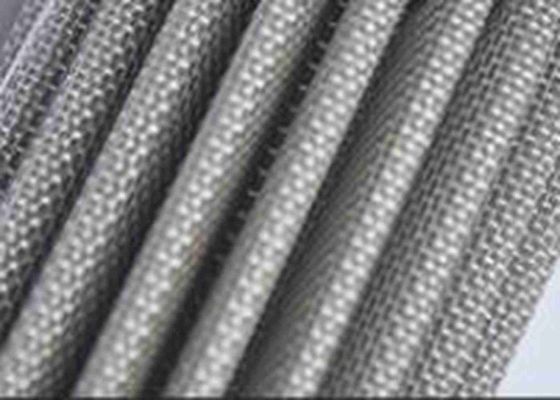

Multi Layer 0.2 To 500 Microns Stainless Screen Mesh For Petrochemical Industry 2





Our architectural mesh List:



Sintered Mesh
Plain Weave Sintered Mesh
Dutch Woven Sintered Wire Mesh
Perforated Metal Sintered Wire Mesh
Brass Pneumatic Mufflers / Sintered Silencer
Stainless Steel Pneumatic Mufflers / Sintered Silencer
Sintered Filter Elements
Sintered Mesh Filter Cartridges
Sintered Metal Filter Disc
Sintered Wire Mesh Laminates
Sintered Tube Filter
Stainless Steel Sintered Fiber Felt
Iron-Chromium-Aluminum Fiber Felt
Sintered Stainless Steel Powder Filter Element
Titanium Powder Sintered Filter
Sintered Copper Powder Filter Elements
Five-Layer Sintered Mesh
Sintered Mesh Laminate
Sintered Mesh With Perforated Metal
Sintered Metal Filter Cartridge
Pleated Sintered Mesh Filter
Sintered Mesh Cone Filter
Sintered Metal Fiber Felt
