1 Micron To 300 Micron Sintered Wire Mesh With Punching Plate ISO
| Place of Origin | Anping of China |
|---|---|
| Brand Name | QIANPU |
| Certification | ISO |
| Minimum Order Quantity | 100 Pieces |
| Packaging Details | Inside with plastic film, outside with carton box or wooden box, and then in a pallet. It's also available as your requirements. |
| Delivery Time | For the size we have in stock,5 working days |
| Supply Ability | 200000 piece per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Outstanding Permeability And Great Strength | Product Name | Sintered Mesh With Perforated Metal |
|---|---|---|---|
| Material | Stainless Steel Wire | Type | Weave Wire Mesh, Filter Disc |
| Punched Metal | Round, Diamond, Etc | Standard Size | 500 Mm × 1000 Mm, 600 Mm × 1200 Mm, 1000 Mm × 1000 Mm, 1200 Mm × 1200 Mm, 1180 Mm × 1450 Mm, 1200 Mm × 1500 Mm, |
| Fuilter Rating | 1 Micron To 300 Micron | Mesh Count | 635 X 635 |
| Dutch Mesh Count | 325 X 2300 | Weave Types | Plain Weave, Twill Weave, Duch Weave |
| High Light | aisi316l 300 Micron Sintered Wire Mesh,300 Micron aisi316l Sintered Wire Mesh,ISO stainless steel wire mesh screen |
||
Product Description
Sintered Mesh With Punching Plate High Mechanical Strength Sintered Wire Mesh

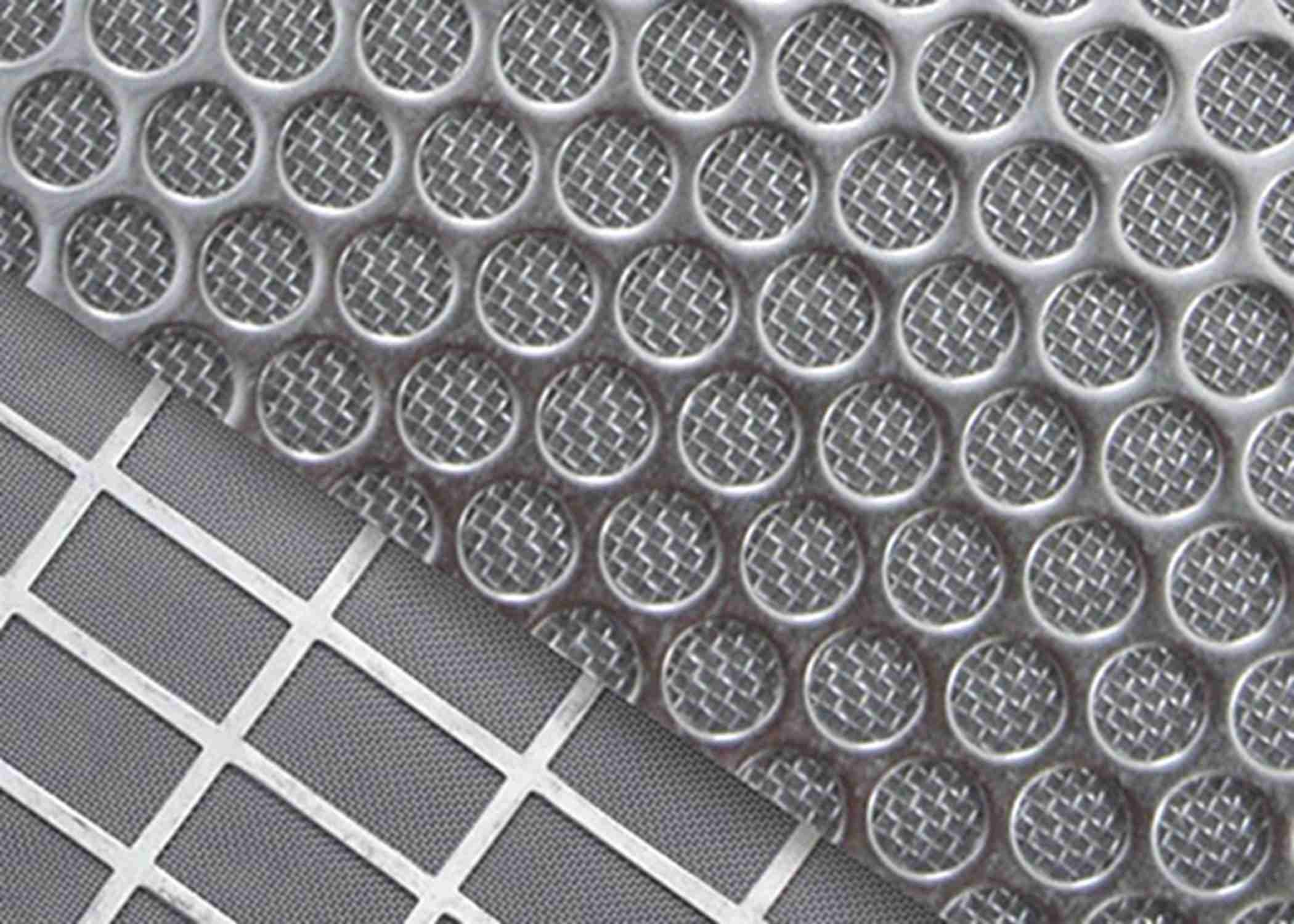

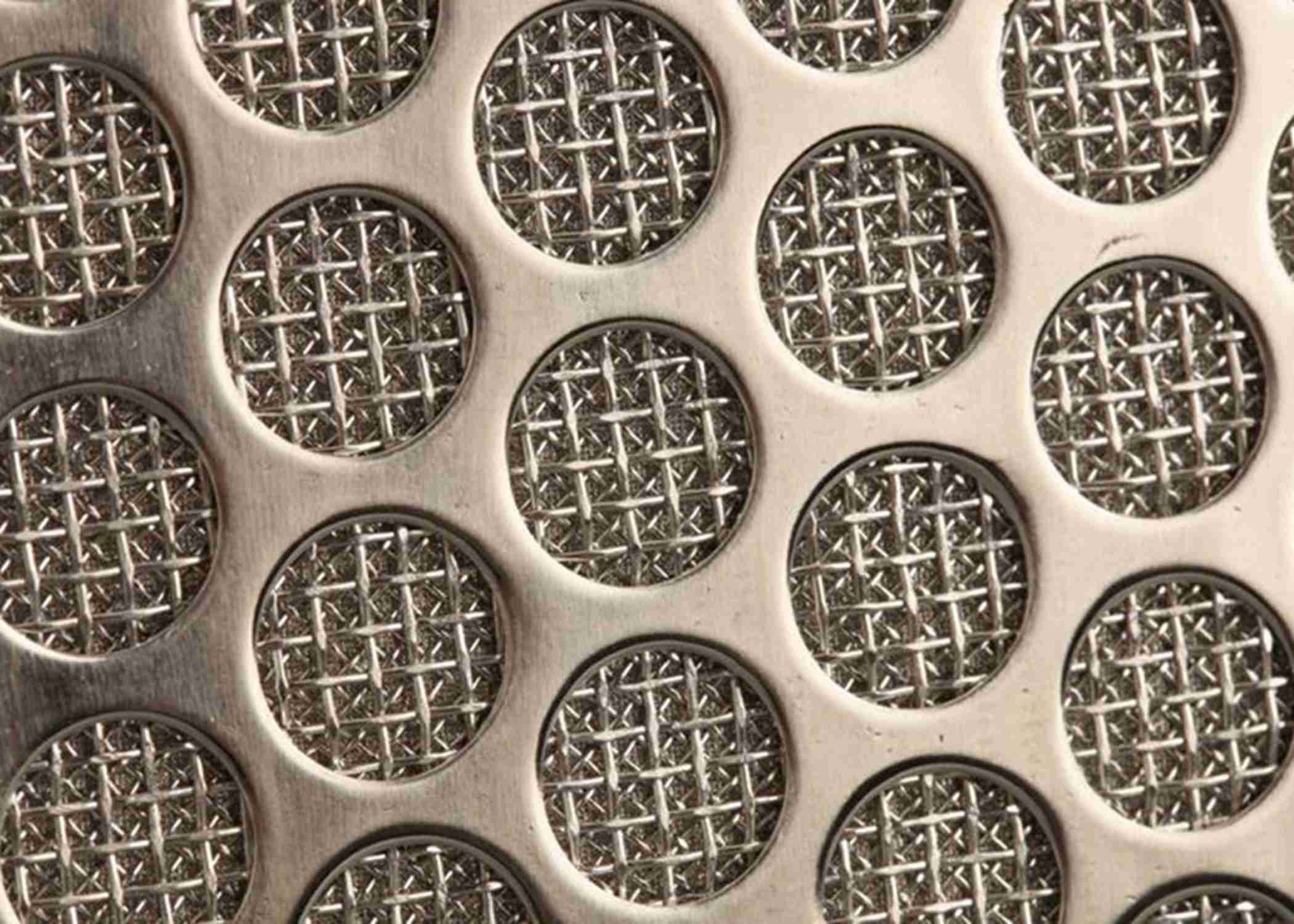

Sintered mesh with perforated metal
Sintered mesh with perforated metal, also named perforated metal sintered wire mesh, is a kind of compound sintered mesh which fits precise filtration and the need to protect the filtration layer. It is produced by combing several layers of stainless steel woven wire meshes and then sintering them to one piece of perforated metal. The support of a perforated metal sheet makes the sintered mesh extremely resistant to pressure and offers high compressive and mechanical strength. The perforated metal laminate varies in thickness and the opening of the hole size, the woven wire mesh can be one or more layers, which all fit the need of real application. Perforated metal sintered wire mesh can also be processed into different shapes, like chip, conical, cylinders, disc and tube. Owing to its outstanding permeability and great strength, it plays an important role in diverse filtration applications such as gas and liquid separation, recycle of solid particles, etc.
Material:
The standard materials are SUS316(AISI316),SUS316L(AISI316L)
This type of mesh is sintered together by punching plate and muti-layer stainless steel wire mesh. Duo to the support of punching plate, it has higher compressive and mechanical strength.
Mainly used in food, beverage, water treatment, dust removing, pharmaceutical, polymer, etc
Specification:
|
Model |
Structure |
Filter Rating(μ) |
Thinkness(mm) |
Weight(kg/m²) |
Porosity(%) |
|
PL-2.0T |
30+filter layer+30+Φ4x5Px1.0t |
2-200 |
2.0 |
6.7 |
57 |
|
PL-2.5T |
30+filter layer+30+Φ5x7Px1.5t |
2-200 |
2.5 |
9.8 |
50 |
|
PL-1.5T |
60+filter layer+30+Φ1.5x3Px1.0t |
2-100 |
1.5 |
8.2 |
30 |
|
PL-3.0T |
60+filter layer+60+20+Φ6x8Px2.0t |
2-200 |
3.0 |
11.8 |
50 |
|
PL-4.0T |
20+ filter layer+20+10+Φ8x10Px2.5t |
2-200 |
4.0 |
14.2 |
55 |
|
PL-4.3T |
20+ filter layer+20+10+Φ10x13Px3.0t |
5-200 |
4.3 |
16.9 |
50 |
Features:
High mechanical strength makes the sintered mesh full of rigidity.
High corrosion and abrasion resistance prolongs its service life.
Easy for cutting, bending, welding or other processes.
Precise filtration for great permeability.
Continuous operating temperature ranges from -20 °C to 600 °C.
Easy to be back washed.
Advantages
Performance and advantages of steel fiber mesh:
1.High dirt holding capacity,high filtering accuracy,longer on stream lifel.
2.Corrosion resistance of nitric acid,alkali, and organic solvent proof. It can be used for a long period of service in the temperature of 600℃.
3.High porosity and excellent permeability which results in low pressure drop and large flow.
4.Pleatable,provide a large filter area, and can be welded and machined.
5.Cleanable,can be used many times.
Application:
Perforated metal sintered filter is widely used in many industries where fine particles need to be filtered under extremely high pressure environment. These industries involves chemistry, pharmacy, petroleum, aviation, food, metallurgy, etc.
