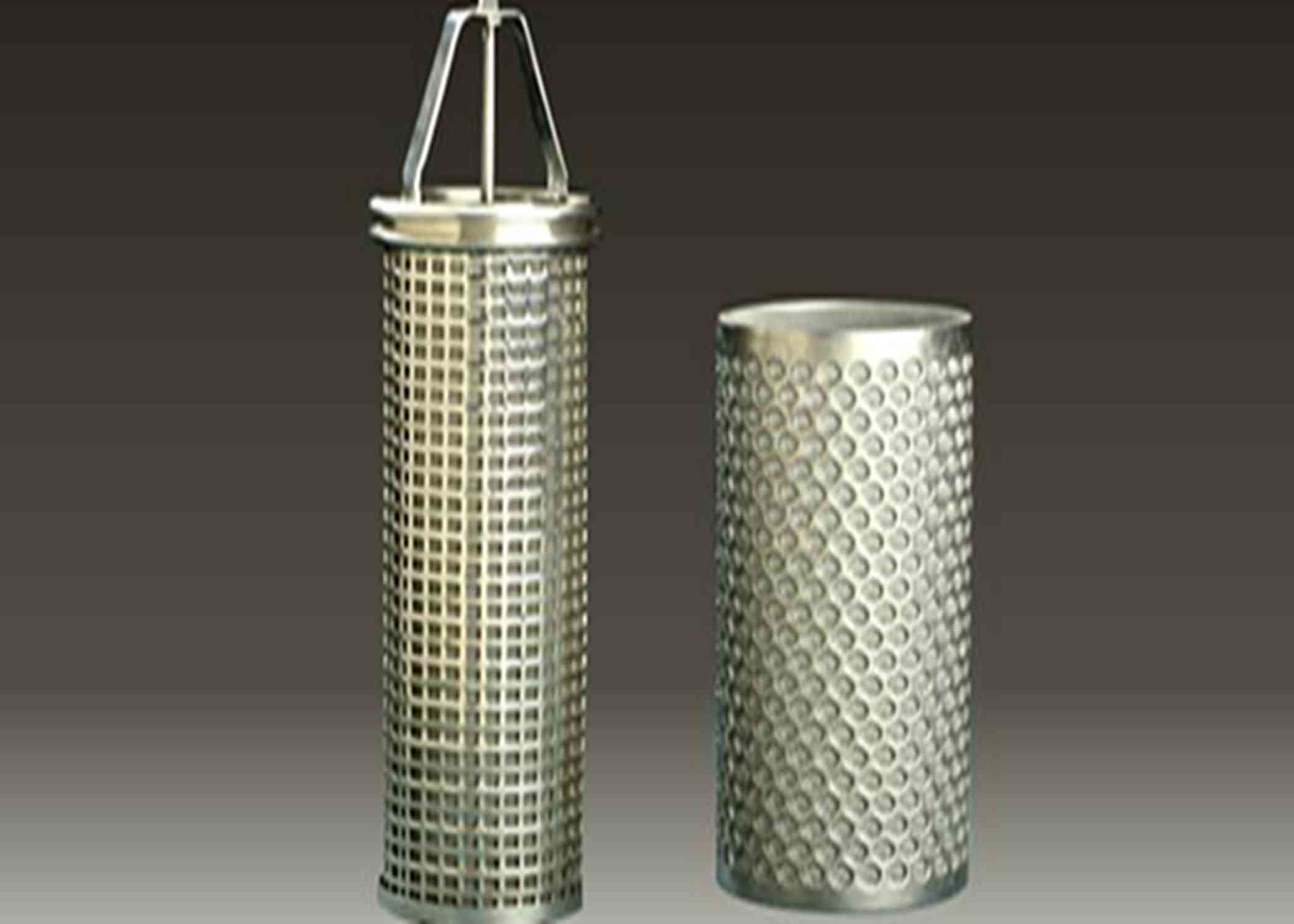

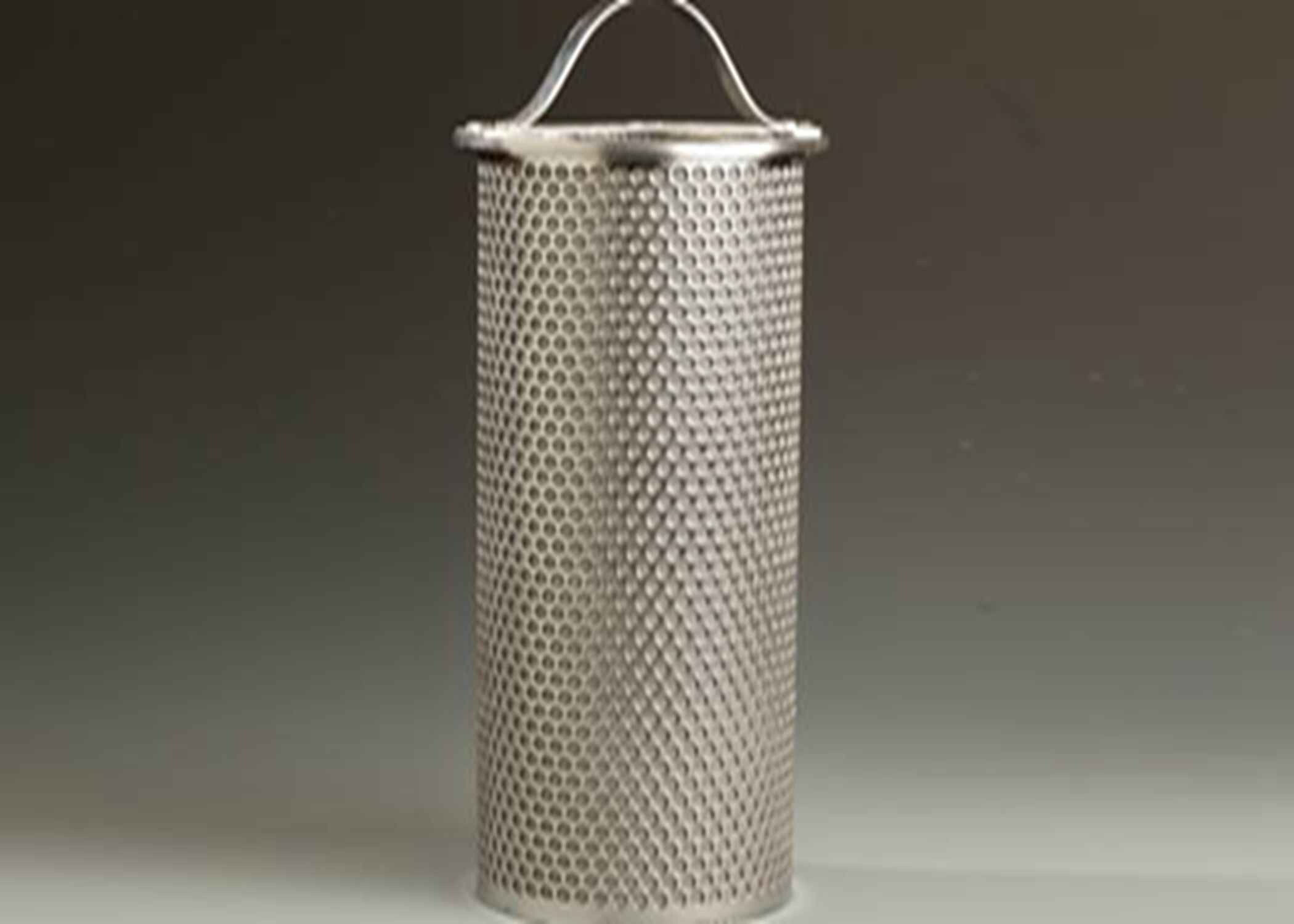

High Tensile Strength Sintered Stainless Steel Tube 5 Layers For Filtration Material
Place of Origin | Anping of China |
---|---|
Brand Name | QIANPU |
Certification | ISO |
Minimum Order Quantity | 100 Pieces |
Packaging Details | Inside with plastic film, outside with carton box or wooden box, and then in a pallet. It's also available as your requirements. |
Delivery Time | For the size we have in stock,5 working days |
Supply Ability | 200000 piece per month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | Excellent Strength And High Flow Rates | Product Name | Sintered Filter Mesh |
---|---|---|---|
Material | Stainless Steel Wire. Copper Wire. Brass Wire. Monel Wire. Inconel Wire. | Type | Filter Disc. Filter Tube. Filter Element. Filter Plate. |
Number Of Layers | 3 - 8 Layers. Standard Is 5 Layers | Thickness | 0.08mm - 8mm. Standard Is 1.7mm |
Weave | Plain Weave, Twill Weave And Dutch Weave. | Production | Woven/ Perforated, Vacuum Sintering |
Working Temperature | -200°C - 1000°C. | Application | Widely Used For Gas And Liquid Filter, Chemical Filter, Pharmacy Filter And Laboratory Filters. |
Highlight | 5 layers sintered stainless steel tube,filtration material sintered stainless steel tube,high tensile strength sintered filter tube |
Sintered Filter Mesh Filter Disc Or Filter Tube High Tensile Strength Widely Used Filtration Material
Introduction
Sintered filter mesh is a kind of most widely used filtration material. It has 3 layers to 8 layers in total. The commonly is 5 layers. The material of sintered filter mesh can be stainless steel wire, monel wire, inconel and other wires. The materials are woven or perforated into meshes and then the meshes will be vacuum sintered into sintered filter mesh.
The five layers of sintered filter mesh are cover layer, filtration control layer, dispersion layer, support skeleton layer and skeleton layer. Sintered filter mesh can be filter discs, filter tube or other filter types.
Material:
Stainless steel wire. 304, 304L, 316, 316L.
Copper wire.
Brass wire.
Monel wire.
Inconel wire.
Specifications:
Woven weaving type: plain weave, twill weave and dutch weave.
Layer: 3 - 8 layers. Standard is 5 layers.
Thickness: 0.08mm - 8mm. Standard is 1.7mm.
Type:
Filter disc.
Filter tube.
Filter element.
Filter plate.
Table of Plain Weave Sintered Mesh Technical Parameters | |||||
Model | Structure | Filter rating (u) | Thickness (mm) | Weight | Porosity (%) |
(kg/ m2) | |||||
PS2-0.5T | Filter layer + 60 | 2-100 | 0.5 | 1.6 | 60 |
PS3-0.7T | 60 + Filter layer + 60 | 2-100 | 0.7 | 2.4 | 56 |
PS3-1.0T | 50 + Filter layer + 20 | 20-200 | 1 | 3.3 | 58 |
PS3-2.0T | Filter layer + 20 + 8.5 | 20-250 | 2 | 6.5 | 58 |
PS4-1.0T | 60 + Filter layer + 40 + 20 | 2-200 | 1 | 4.4 | 44 |
PS4-1.7T | 40 + Filter layer + 20 + 16 | 2-200 | 1.7 | 6.2 | 54 |
PS5-1.9T | 30 + Filter layer + 60 + 20 + 16 | 2-200 | 1.9 | 5.3 | 52 |
PS5-2.5T | 80 + Filter layer + 30 + 10 + 8.5 | 2-200 | 2.5 | 8.8 | 55 |
PS7-2.0T | 50 + Filter layer + 40 + 20 + 40 + Filter layer + 50 | 2-150 | 2 | 7.4 | 58 |
Key Features:
Corrosion resistance.
Acid and alkali resistance.
High temperature resistance.
High tensile strength.
High filtering efficiency.
Long service life.
Advantages:
Defined smallest aperture size and uniform opening
Highly robust, resistance to mechanical and thermal stress
Prolong service
High flow rates, customizable flow resistance
Optimal backwash potential, great reliability corresponding backwash pressure
Minimum loading of the filter medium in pulsation
Regular product quality, assured corrosion resistance by using special alloys and stainless steel grades
An endless set of combinations using around 1000 layers as feasible.
Application:
The sintered filter mesh is widely used as the filtration material for liquid, gas and other media in various fields.
Food and beverage industry.
Chemical industry.
Pharmaceutical industry.
Chemical industry.
Petroleum industry.
Water treatment industry.
Aerospace industry.
Power and nuclear industry.
Structure
Packing: warped with waterproof paper or plastic film, then in the wooden cases/ pallets. Or as your requests.
