5 Layer Sintered Wire Mesh 0.5 To 300μM Withstand -200°C-600°C

Place of Origin ANPING
Brand Name QIANPU

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features High Strength, Corrosion Resistance, Etc. Shape Roll, Sheet, Plate, Etc.
Wire Diameter 0.02-2.03mm Application Filtration, Sieving, Grading, Etc.
Aperture 0.02-20mm Thickness 0.02-2.03mm
Length 10-100m Mesh Count 2-635 Mesh
High Light

5 layer sintered wire mesh

,

0.5um sintered wire mesh

,

high temp sintered mesh

Leave a Message
Product Description

Product Description:

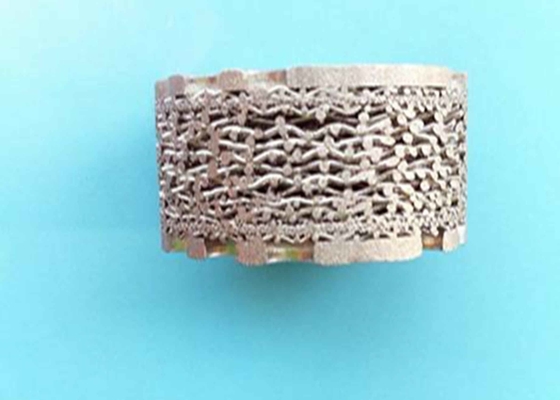

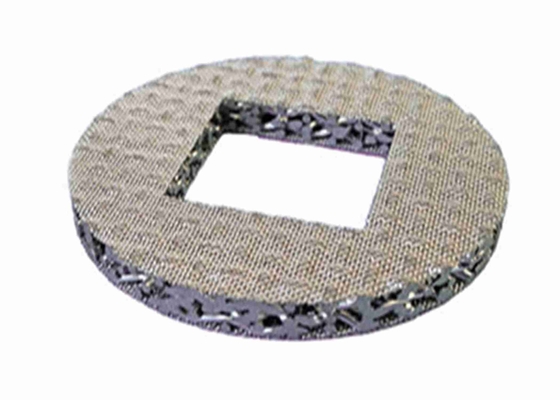

5-layer sintered wire mesh is produced by pressing, rolling , and vacuum sintering process, which makes it with high pressure resistance, uniform filtration pore size and excellent corrosion resistance.

Raw materials: SS304, SS316L, SS904L, bronze, Hastelloy, Monel, Inconel, Alloy 20…
Porosity: 37%
Thickness: 1.7mm
Filtration accuracy: from 0.5 to 300μm
Temperature: withstand -200°C-600°C
Mesh size: 600*1200mm, 1200*1200mmas standard



Features:

The 5-layer sintered wire mesh does not rust due to its anti-corrosion properties
Flexible usages, since it is suitable for stretching, bending, welding, punching, and cutting
The 5-layer sintered mesh has a durable life span due to its high strength. Hence you use it for a long time.
High viscosity and pressure environment does not limit the filtration performance of the 5-layer sintered wire mesh
Consistent and reliable filtration accuracy since its filtration granularity ranges from 1-100μm
Since it has two protective layers, its filter mesh cannot lose shape(i.e., deform)
The 5-layer sintered wire mesh is very easy to clean
Resist high temperatures
You can easily customize the 5-layer sintered wire mesh to suit several operations
The 5-layer sintered wire mesh is very economical

Technical Parameters:

5-layer Sintered Mesh Micron Filter rating Thickness in Inches Air Flow Weight Porosity(%)
5LA -1 1 0.067 0.41 1.72 37
5LA -2 2 0.067 0.54 1.72 37
5LA -5 5 0.067 0.55 1.72 37
5LA -10 10 0.067 0.68 1.72 37
5LA -15 15 0.067 0.78 1.72 37
5LA -20 20 0.067 1.03 1.72 37
5LA -25 25 0.067 1.39 1.72 37
5LA -30 30 0.067 1.48 1.72 37
5LA -40 40 0.067 1.56 1.72 37
5LA -50 50 0.067 1.92 1.72 37
5LA -75 75 0.067 1.98 1.72 37
5LA -100 100 0.067 2.07 1.72 37


Applications:

Filtration and purification of polymer melts
Filtration of water
Filtration of chemicals
Production of sulfur plates
Gas homogenization
Filtration of hydraulic fuels
Sound splitters fabrication
Drying of several materials
Fluidization of aggregate materials in driers, storage silos, conveyors, coolers, and wagons
Breather vents
Solid particles separation
Transpiration cooling in high-temperature situations
Used to limit current



Customization:

QIANPU sintered wire mesh offers superior quality, durability and reliability. It is made of high-strength, corrosion-resistant material and is available in a variety of sizes and shapes. Our sintered wire mesh is available in square weave, sintered woven wire mesh and plain weave and can be customized according to your requirements. It also features a variety of edge treatments, including cutting, rolling, and more. Our sintered wire mesh also features a variety of surface treatments, such as polished, galvanized, anodized, and more. The wire diameter ranges from 0.02-2.03mm. This product is ideal for a variety of applications, including filtration, sieving, grading, and more. All our sintered wire mesh products come with a brand name of QIANPU and are made in Anping.



Support and Services:

Sintered Wire Mesh Technical Support & Services

We provide comprehensive technical support and services for our Sintered Wire Mesh products. Our professional team of engineers and technicians are available to help you with any questions and inquiries you may have about our products. We offer a wide range of services, including:

  • Guidance and advice on product selection and usage
  • Installation and troubleshooting support
  • Product testing and evaluation
  • Product customization and optimization
  • Reliability and durability testing
  • On-site training and technical seminars

Our technical support and services are designed to ensure that our customers have a positive and enjoyable experience using our products. We are committed to providing the highest quality products and support to our customers.



Packing and Shipping:

Packaging and Shipping of Sintered Wire Mesh

Sintered Wire Mesh products are packaged in cardboard boxes or wooden cases for transport. The size of the package depends on the size of the product and the quantity of the product. The cardboard box or wooden case must be sealed to ensure the safety of the product during transportation. The products will then be delivered to the customer by air, land, or sea transportation.

FAQ:

Sintered Wire Mesh

A1: Sintered Wire Mesh is a wire mesh product that is produced by sintering multiple layers of stainless steel wire mesh together at high temperature. It is developed and produced by QIANPU, a well-known brand from ANPING.
A2: Sintered Wire Mesh has many advantages, such as high precision, good corrosion resistance, good heat resistance, good pressure resistance, high strength, and long service life.
A3: Sintered Wire Mesh is mainly made of stainless steel, but other materials such as aluminum, copper, etc. can also be used to produce it.
A4: Sintered Wire Mesh produced by QIANPU is widely used in various industries, such as filtration, aerospace, electronics, etc.
A5: Sintered Wire Mesh is produced by QIANPU, which is a well-known brand located in ANPING, China.
