0.018-2.0mm Sintered Metal Filter Cartridge Ensures Fine Filtration High Strength

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 1 roll
Price 0.1-5 us dollar per piece
Packaging Details wooden carton
Delivery Time 14 working days
Supply Ability 100000 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Sintered Wire Mesh Material Stainless Steel Wire
Type Sintered Wire Mesh Application Filtration
Wire Diameter 0.018-2.0mm Layers 2, 3, 5, 8, 10, 12 Layers Or Other
Feature High Strength And Durability
High Light

2.0mm Sintered Metal Filter Cartridge

,

Sintered Metal Filter Cartridge High strength

,

2.0mm metal porous filter cartridge

Leave a Message
Product Description

Sintered Metal Filter Cartridge Ensures Fine Filtration stainless steel





Product introduction



Sintered metal filter cartridge, is made of stainless steel woven wire mesh, or stainless steel fiber felt. It is constructed by using multi-layered wire mesh overlapped and then sintered together in vacuum furnace, rolled into a cylinder shape with two ends welded together. Rolling seam welding process is added for roundness and flatness of entire structure. Its interlaced mesh forms a rigid structure which overcomes the disadvantages of ordinary wire mesh, such as low strength, unstable hole shapes, also beats sintered powder filter, ceramic filters, etc. Above all, this stainless steel filter cartridge wins great favor with prominent features like high temperature resistance, smooth wire pores, good permeability, high dirt holding capacity, in many industries such as food, environmental protection, chemical, aerospace.

Specification:

Standard material: SUS 316 L, SUS 304, 316, 304, 317 L, 904 L, 321, titanium, other alloys are also available.
Filter rating: 0.2 micron to 300 microns.
Standard outer diameter: 64 mm.
Other outer diameter: 30 mm, 40 mm, 50 mm, 60 mm, 64 mm, 70 mm, 80 mm, 350 mm.
Standard inner diameter: 28 mm.
Length: 10" (254 mm), 20" (508 mm), 30" (762 mm), 40" (1016 mm), 60" (1524 mm).
Fittings: Double open end, single open end, double O-rings.


Advantages of Sintered Mesh


* High strength and durability since high temperature sintering;
* Anti-corrosion, and heat resistance up to 480℃;
* Steady filter rating from the 1micron to 100 micron;
* Filter mesh not easy to deform because of two protective layers;
* Can used for uniform filtration in high pressure or high viscosity environment;
* Suits for cutting, bending, punching, stretching, and welding.

Main products we provided, 5-Layer / 7-Layer Sintered Wire Mesh, Dutch Woven Sintered Wire Mesh, Perforated Metal Sintered Wire Mesh, Plain Sintered Square Woven Wire Mesh, Sintered Filter Elements, Sintered Mesh Filter Cartridges, Sintered Wire Mesh Filter Disc, Sintered Wire Mesh Laminates, Sintered Wire Mesh filter tube.


Features:



High mechanical strength and pressure tolerance.
Good corrosion resistance, excellent durability.
Stable pore shapes, high permeability.
High dirt-holding capacity.
Wide service temperature, ranging from -200 °C to 1000 °C.
It can be back washed easily, which prolongs service life.



Product application



Sintered filter cartridge is widely used for liquid, gas, solid filtration, gas sample collection, sound attenuation in many industries such as aerospace, petroleum, food, metallurgy, etc.

Used for gas distribution in the fluidized bed.
Used for washing and drying in pharmaceutical industry.
Used in water treatment and filtration of gas in the field of food and beverage.
Used for fine filtration of hydraulic oil or lubricating oil in machinery industry.
Polymer filtration in chemical industry.

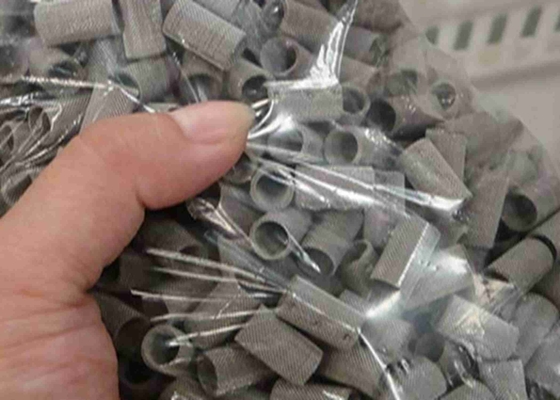

0.018-2.0mm Sintered Metal Filter Cartridge Ensures Fine Filtration High Strength 0

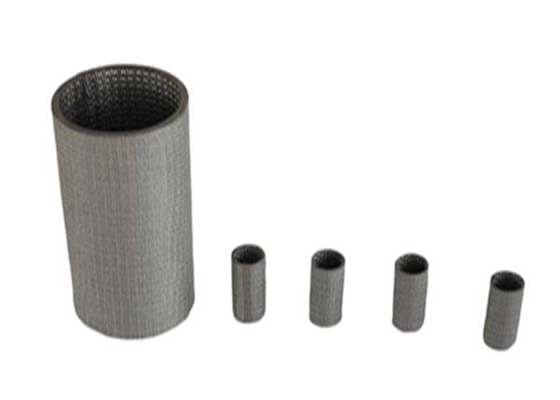

0.018-2.0mm Sintered Metal Filter Cartridge Ensures Fine Filtration High Strength 1
