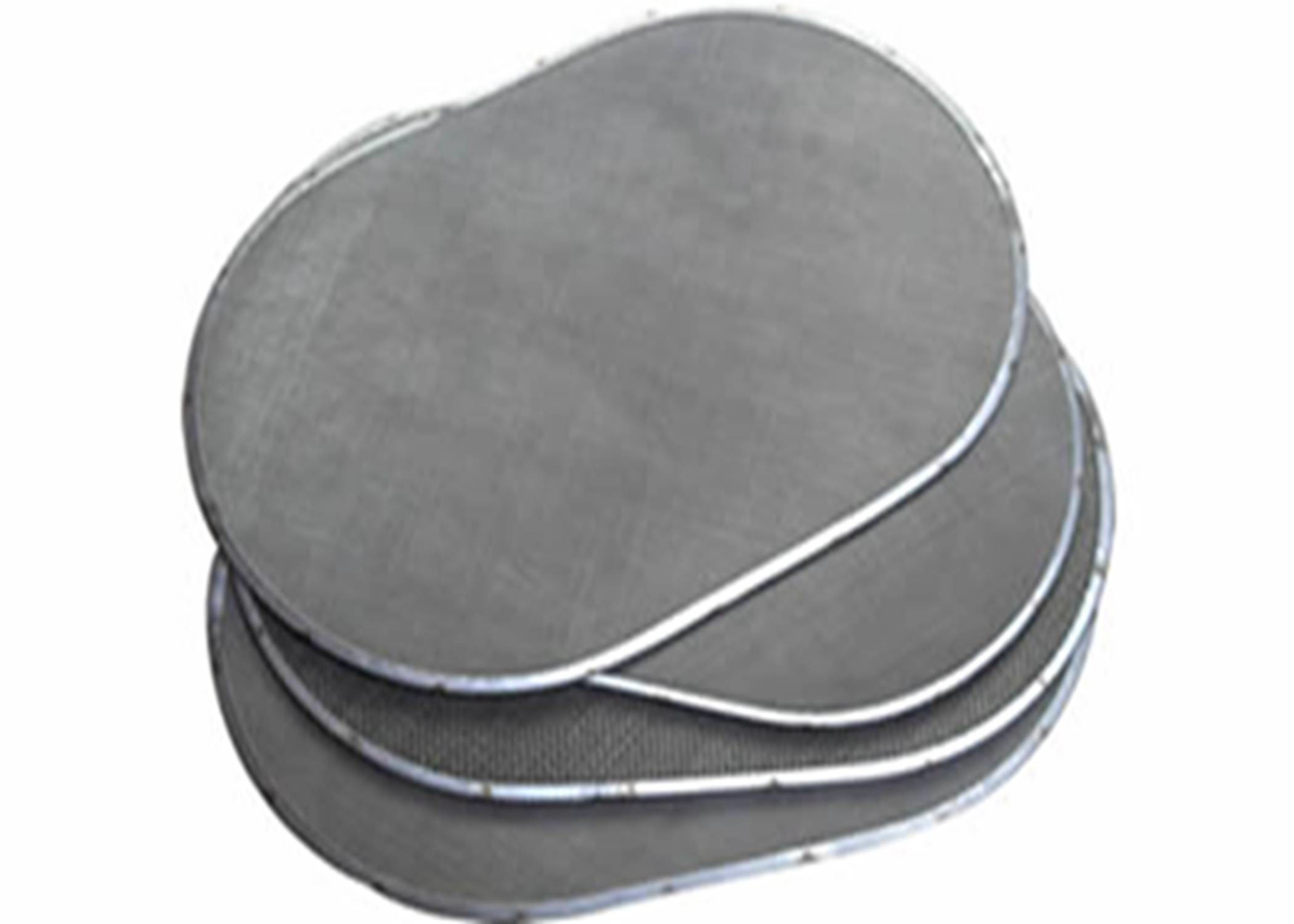

Single and Multiple Layer Sintered Wire Mesh Laminates 0.018mm-2.0mm

  • Single and Multiple Layer Sintered Wire Mesh Laminates 0.018mm-2.0mm
  • Single and Multiple Layer Sintered Wire Mesh Laminates 0.018mm-2.0mm
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 1 roll
Price 0.1-5 us dollar per piece
Packaging Details wooden carton
Delivery Time 14 working days
Supply Ability 100000 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Sintered Wire Mesh Material Stainless Steel Wire
Type Sintered Wire Mesh Application Filtration
Wire Diameter 0.018-2.0mm Layers 2, 3, 5, 8, 10, 12 Layers Or Other
Feature High Strength And Durability
Highlight

Sintered Wire Mesh 0.018mm

,

sintered Wire Mesh Laminates

,

sintered metal mesh 0.018mm
Leave a Message
Product Description

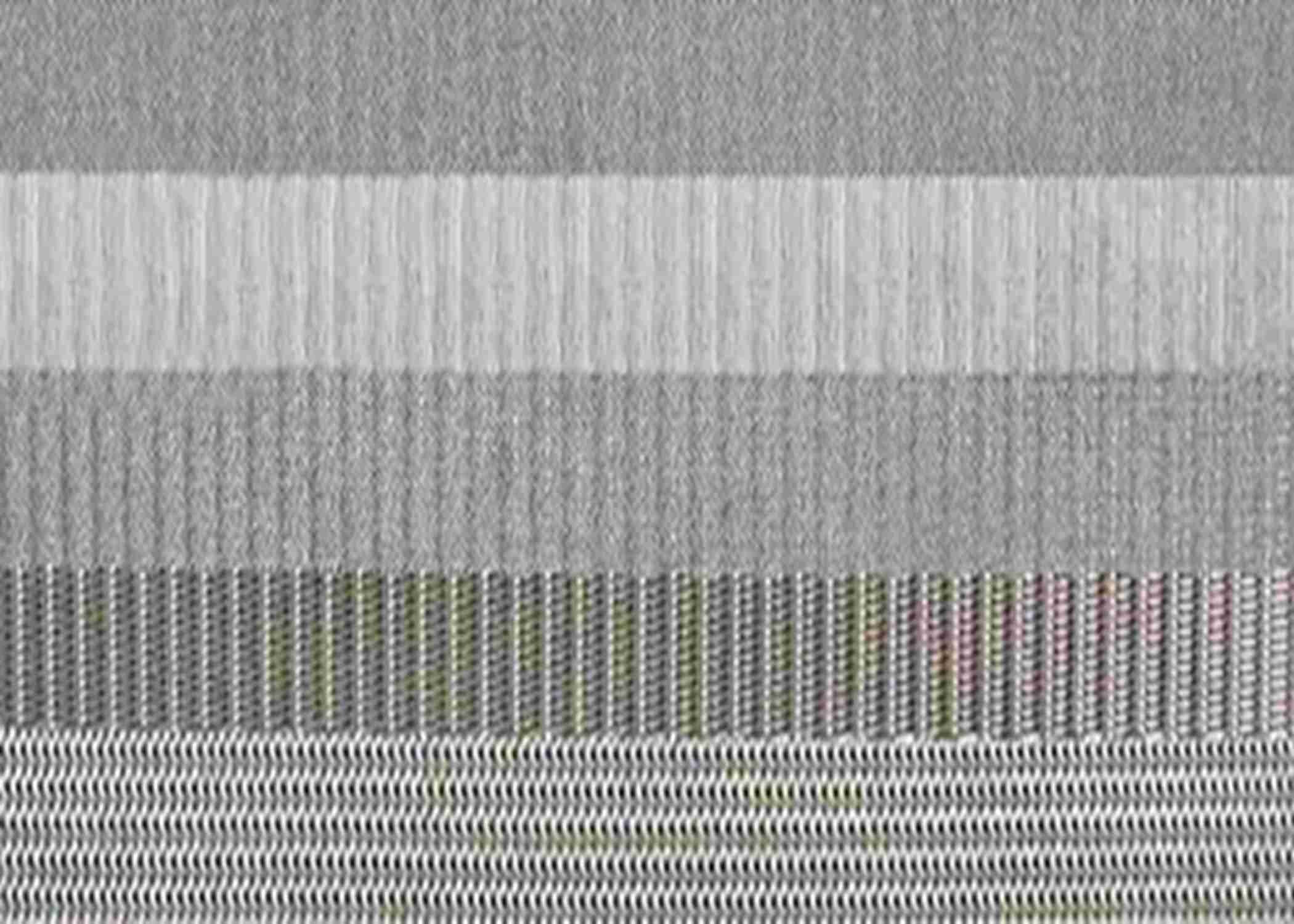

Single and Multiple Layer of Sintered Mesh Laminates stainless steel





Product introduction



Sintered mesh laminate belongs to high strength porous material. It is made of stainless steel or other alloys. Single layer or multiple layers of woven wire meshes are permanently bonded together by an unique diffusion-bonded technique. Compared with traditional wire mesh, sintered mesh laminate provides more additional benefits such as stability and mechanical strength. Therefore, it is widely constructed as a filter medium in many industries.



According to the number of layers, sintered mesh laminate can be divided into two series: single layer sintered mesh laminate and multiple layer sintered mesh laminate.



As is known to us all, a single layer woven wire mesh has some shortcomings although it is used in a wide range of applications, the mesh has a tendency to fray at the edges, and wires may shift within the weave, which in turn changes the whole structure, also effects the filter rating because its pore size has been compromised.



The sintering process, combination of heat and pressure, creates molecular diffusion-welds at each and every "intersection" in the wire mesh where the wires cross over and under one-another, so as to make the wire mesh full of enhanced mechanical and filtration properties.

Specification:



Specification - single layer sintered mesh laminate
Filter rating (µm) Structure Wire diameter (inch) Overall thickness (inch) Weight / sq.ft (kg)
5 200 × 1400 0.0028 0.0058 0.1135
178 80 × 0.0055" 0.0055 0.0088 0.0772
234 60 × 0.0075" 0.0075 0.0125 0.109
279 50 × 0.009" 0.009 0.0144 0.1317
380 40 × 0.01" 0.01 0.0147 0.1271
540 30 × 0.012" 0.012 0.0155 0.1362
860 20 × 0.016" 0.016 0.0238 0.1589
2460 8 × 0.028" 0.028 0.0397 0.1907



Specification - two and three layers sintered mesh laminate
Layer number Structure Filter rating (µm) Overall thickness (mm) Weight / sq.ft (kg)
2 100 × 0.0045" / 200 × 1400 5 0.2286 0.1135
2 10 × 0.025" / 325 × 0.0014" 44 0.9144 0.2088
2 60 × 0.0075" / 325 × 0.0014" 44 0.36576 0.1271
2 10 × 0.025" / 250 × 0.0016" 55 0.9398 0.2088
2 10 × 0.025" / 200 × 0.0021" 74 0.9525 0.2179
2 30 × 0.012" / 150 × 0.0026" 105 0.4953 0.168
2 10 × 0.025" / 150 × 0.0026" 105 0.4953 0.2177
2 60 × 0.0075" / 100 × 0.0045" 140 0.51308 0.1725
2 10 × 0.025" / 100 × 0.0045" 140 0.96266 0.2542
2 20 × 0.016" / 20 × 0.016" 864 0.8128 0.3178
3 60 × 0.0075" / 325 × 2300 / 60 × 0.0075" 2 0.56642 0.2633
3 60 × 0.0075" / 200 × 1400 / 60 × 0.0075" 5 0.62738 0.2906
3 60 × 0.0075" / 165 × 1400 / 60 × 0.0075" 10 0.72136 0.2906
3 60 × 0.0075" / 165 × 800 / 60 × 0.0075" 15 0.62738 0.2679
3 60 × 0.0075" / 80 × 700 / 60 × 0.0075" 25 0.86106 0.2838
3 60 × 0.0075" / 325 × 0.0014" / 60 × 0.0075" 44 0.62484 0.2361
3 60 × 0.0075" / 250 × 0.0016" / 60 × 0.0075" 55 0.6223 0.2361
3 60 × 0.0075" / 200 × 0.0021" / 60 × 0.0075" 74 0.64262 0.2452
3 60 × 0.011" / 100 × 0.0045" / 200 × 0.0021" 74 0.72898 0.1998
3 60 × 0.0075" / 150 × 0.0026" / 60 × 0.0075" 105 0.65786 0.2497
3 60 × 0.0075" / 100 × 0.0045" / 60 × 0.0075" 140 0.76708 0.2815


Advantages of Sintered Mesh


* High strength and durability since high temperature sintering;
* Anti-corrosion, and heat resistance up to 480℃;
* Steady filter rating from the 1micron to 100 micron;
* Filter mesh not easy to deform because of two protective layers;
* Can used for uniform filtration in high pressure or high viscosity environment;
* Suits for cutting, bending, punching, stretching, and welding.

Main products we provided, 5-Layer / 7-Layer Sintered Wire Mesh, Dutch Woven Sintered Wire Mesh, Perforated Metal Sintered Wire Mesh, Plain Sintered Square Woven Wire Mesh, Sintered Filter Elements, Sintered Mesh Filter Cartridges, Sintered Wire Mesh Filter Disc, Sintered Wire Mesh Laminates, Sintered Wire Mesh filter tube.


Features:



High mechanical strength and stability.
High permeability.
Stainless steel for corrosion resistance.
Easy to be fabricated into other deep filter media.
Accurate filter ratings.
Easy to clean, it can be reused for many times.



Product application



Typical applications of five-layer sintered mesh include filtration of polymer, food, water, cosmetic, pharmacy, chemicals and hydraulic fuels. It is also used for fluidization of bulk materials in wagons, conveyors, driers, coolers and storage silos.
