Five Layers Stainless Steel Sintered Mesh 1.7mm Square And Dutch Woven

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 1 roll
Price 0.1-5 us dollar per piece
Packaging Details wooden carton
Delivery Time 14 working days
Supply Ability 100000 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Sintered Wire Mesh Material Stainless Steel Wire
Type Sintered Wire Mesh Application Filtration
Wire Diameter 0.018-2.0mm Layers 2, 3, 5, 8, 10, 12 Layers Or Other
Feature High Strength And Durability
High Light

Five Layers Stainless Steel Sintered Mesh

,

Five Layers sintered metal mesh

,

Stainless Steel Sintered Mesh 1.7mm

Leave a Message
Product Description

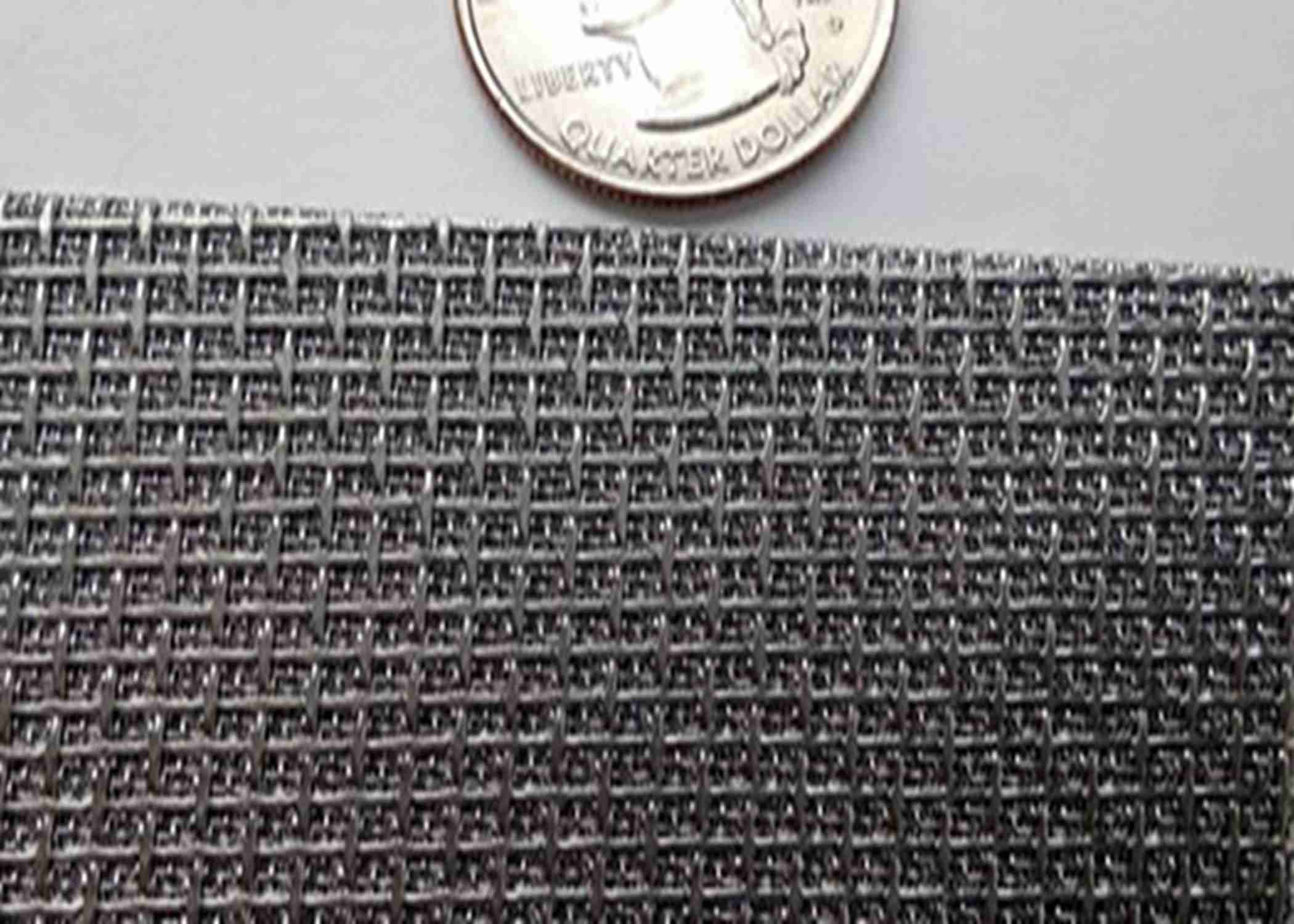

Five Layers Sintered Square And Dutch Woven Mesh Stainless Steel





Product introduction



Five-layer sintered mesh is a standard combination of five layers wire meshes with different openings and diameters through sintering (diffusion-bonding) in vacuum, which improves the characteristics of stainless steel woven wire mesh. By bonding the contact points of different wire meshes together, five-layer sintered mesh has become an integrated porous material with enhanced mechanical strength, high permeability and better structural integrity, because the sintering process remains the good filtration rating of the finest mesh layer, also the mechanical strength of the coarser support layers. Besides all of that, heat and pressure are combined to create molecular diffusion-welds at every intersection of the wire mesh where the wires cross over and under one-another, which in turn enhances the temperature and pressure resistance of the sintered mesh. For its distinct features, five-layer sintered mesh is widely used for diffusing, breather vents, filters in many areas such as gas distribution, polyester filtration, water treatment, etc.



Our sintered meshes are mostly produced using stainless steel, Aisi 304, 316(L) and are available with a permeability of 1 to 100 micron. Plates are available in standard dimensions of 500×1.000mm. and 600×1.200mm. If larger dimensions are required, plates can be connected to each other by welding.



Specification:



Material: Stainless steel 316 L, stainless steel 304, 304 L, 316, other materials can be made to order.
Filtration accuracy: 1 micron to 200 microns.
Heat resistance: 600 °C.
Standard thickness: 1.7 mm.
Standard size: 480 mm × 480 mm, 480 mm × 980 mm, 500 mm × 1000 mm, 600 mm × 1200 mm, 610 mm × 1219 mm, 610 mm × 1250 mm, 1000 mm × 1000 mm, 1200 mm × 1200 mm, other sizes can be designed as per customers' demand.
Maximum size: 1219 mm × 1219 mm.
Type classification: Sintered dutch woven wire mesh and sintered square woven wire mesh.





Five-layer sintered dutch woven wire mesh specification
Nominal filter rating (µm) Structure Overall thickness (mm) Weight / sq.ft (kg)
1 200 / 400 × 2800 / 200 / 12 × 64 / 64 × 12 100 / 400 × 2800 / 100 / 12 × 64 / 64 × 12 1.69926 1.1804
2 100 / 325 × 2300 / 100 / 12 × 64 / 64 × 12 1.69926 1.1804
5 100 / 200 × 1400 / 100 / 12 × 64 / 64 × 12 1.69926 0.2838
10 100 / 165 × 1400 / 100 / 12 × 64 / 64 × 12 1.69926 0.2838
15 100 / 165 × 1200 / 100 / 12 × 64 / 64 × 12 1.69926 1.1804
20 100 / 165 × 800 / 100 / 12 × 64 / 64 × 12 1.69926 1.1804
25 100 / 165 × 600 / 100 / 12 × 64 / 64 × 12 1.69926 0.2838
30 100 / 400 / 100 / 12 × 64 / 64 × 12 100 / 450 / 100 / 12 × 64 / 64 × 12 1.69926 1.1804
40 100 / 325 / 100 / 12 × 64 / 64 × 12 1.69926 0.2838
50 100 / 250 / 100 / 12 × 64 / 64 × 12 1.69926 1.1804
75 100 / 200 / 100 / 12 × 64 / 64 × 12 1.69926 0.2838
100 100 / 150 / 100 / 12 × 64 / 64 × 12 1.69926 0.2838
120 100 / 120 / 100 / 12 × 64 / 64 × 12 1.69926 0.2838


Advantages of Sintered Mesh


* High strength and durability since high temperature sintering;
* Anti-corrosion, and heat resistance up to 480℃;
* Steady filter rating from the 1micron to 100 micron;
* Filter mesh not easy to deform because of two protective layers;
* Can used for uniform filtration in high pressure or high viscosity environment;
* Suits for cutting, bending, punching, stretching, and welding.

Main products we provided, 5-Layer / 7-Layer Sintered Wire Mesh, Dutch Woven Sintered Wire Mesh, Perforated Metal Sintered Wire Mesh, Plain Sintered Square Woven Wire Mesh, Sintered Filter Elements, Sintered Mesh Filter Cartridges, Sintered Wire Mesh Filter Disc, Sintered Wire Mesh Laminates, Sintered Wire Mesh filter tube.


Features:



Steady filter rating under high pressure.
High mechanical strength.
Easy to be welded, sheared, punched into various shapes.
Good capability of corrosion and abrasion resistance.
Easy to wash, it can be reused for many times.



Product application



Typical applications of five-layer sintered mesh include filtration of polymer, food, water, cosmetic, pharmacy, chemicals and hydraulic fuels. It is also used for fluidization of bulk materials in wagons, conveyors, driers, coolers and storage silos.

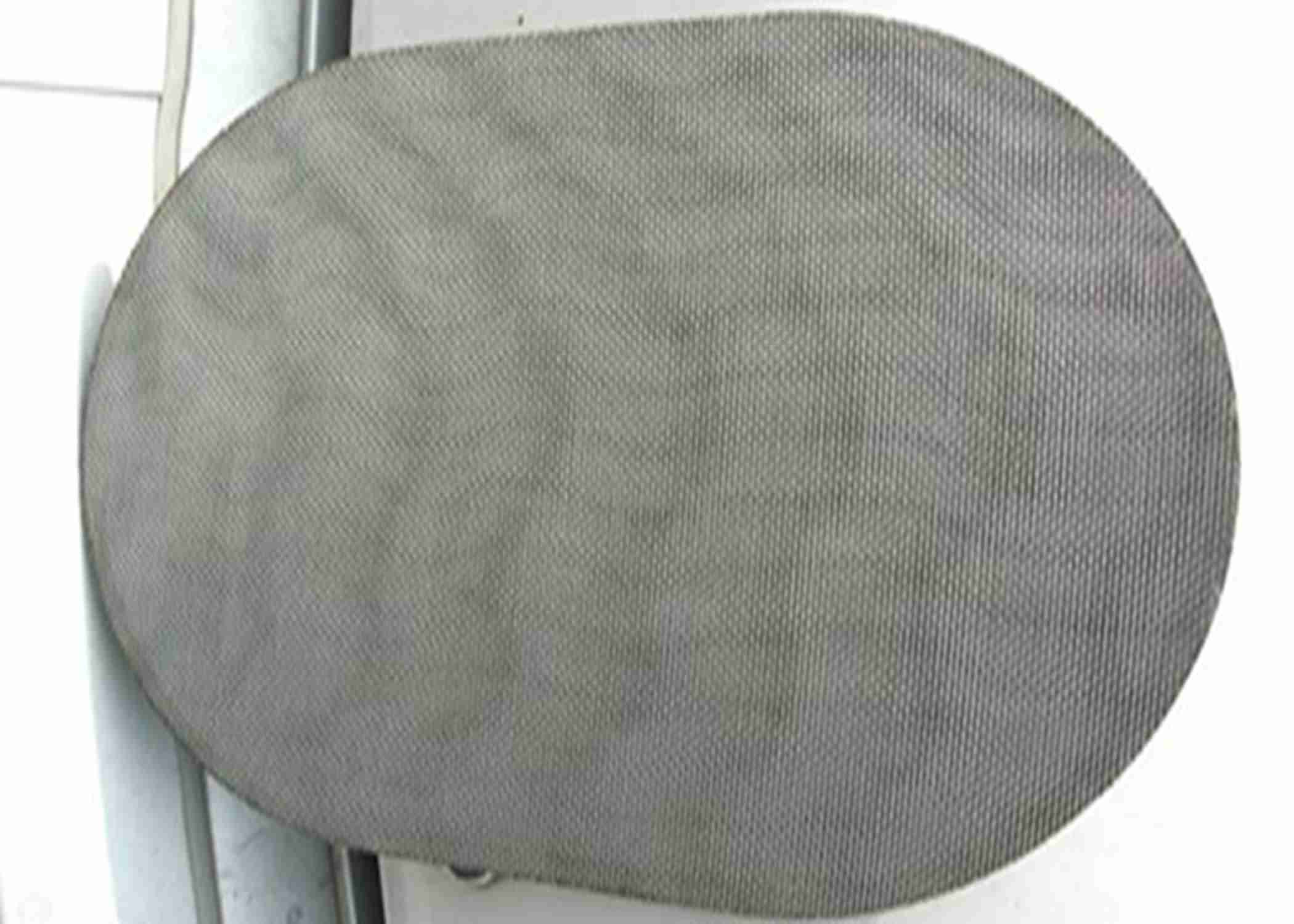

Five Layers Stainless Steel Sintered Mesh 1.7mm Square And Dutch Woven 0





1.Q: You are a factory, trading company or a third party?
A: We are a factory, and we start our factory & production from 2010.



2.Q: What is your minimum quantity, can you send me sample?
A: We are honored to offer you samples. Our minimum ordered quantity is 1 piece.



3.Q:What are your generally modes of transportation ?

A:Generally by air, sea or Express.
