317 L Sintered Metal Mesh Filter Tube Ensures Fine Filtration 0.2 Micron

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 100 Pieces
Packaging Details Inside with plastic film, outside with carton box or wooden box, and then in a pallet. It's also available as your requirements.
Delivery Time For the size we have in stock,5 working days
Supply Ability 200000 piece per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Resistant Corrosion And High Temperature Product Name Sintered Metal Mesh Tube Filter
Material SUS 316 L, SUS 304, 316, 304, 317 L, 904 L, 321, Titanium, Other Alloys Are Also Available. Standard Outer Diameter 64 Mm
Other Outer Diameter 30 Mm, 40 Mm, 50 Mm, 60 Mm, 64 Mm, 70 Mm, 80 Mm, 350 Mm. Fittings Double Open End, Single Open End, Double O-rings.
Filter Rating 0.2 Micron To 300 Microns. Standard Inner Diameter 28 Mm
Length 10" (254 Mm), 20" (508 Mm), 30" (762 Mm), 40" (1016 Mm), 60" (1524 Mm). Application Widely Used For Liquid, Gas, Solid Filtration, Gas Sample Collection, Sound Attenuation In Many Industries Such As Aerospace, Petroleum, Food, Metallurgy, Etc.
High Light

317 l sintered metal mesh filter

,

0.2 micron sintered metal mesh filter

,

fine sintered stainless steel filter tube

Leave a Message
Product Description

Sintered Metal Mesh Filter Tube Ensures Fine Filtration With Excellent Durability



Introduction



Stainless steel sintered metal mesh filter are several multilayer woven or perforated stainless steel wire mesh overlapped together, and then sintered in the vacuum sintering furnace. We can roll the sintered filer into tube shape and welding the seam forming sintered tube filer. Due to the stainless steel material, the sintered metal mesh tube filters has excellent properties of resistance corrosion and resistance high-temperature. It is a common use industrial filtration tube for liquid and gas filtration, used in petroleum, polyester, pharmacy, chemical fiber, food and beverage, and water treatment.



Sintered metal filter cartridge, is made of stainless steel woven wire mesh, or stainless steel fiber felt. It is constructed by using multi-layered wire mesh overlapped and then sintered together in vacuum furnace, rolled into a cylinder shape with two ends welded together. Rolling seam welding process is added for roundness and flatness of entire structure. Its interlaced mesh forms a rigid structure which overcomes the disadvantages of ordinary wire mesh, such as low strength, unstable hole shapes, also beats sintered powder filter, ceramic filters, etc. Above all, this stainless steel filter cartridge wins great favor with prominent features like high temperature resistance, smooth wire pores, good permeability, high dirt holding capacity, in many industries such as food, environmental protection, chemical, aerospace.

Types of sinter mesh filters we supply:


standard combination of 5-layer sintered wire mesh.
sintered together by many layers of plain-woven square mesh.
sintered together by many layers of dutch-woven square mesh.
sintered by perforated plate and multi-layer stainless steel wire mesh.
Our sintered mesh panels may be formed into filter elements such as filter discs, cartridges, cones, cylinders, and tube.



Specifications:



Standard material: SUS 316 L, SUS 304, 316, 304, 317 L, 904 L, 321, titanium, other alloys are also available.
Filter rating: 0.2 micron to 300 microns.
Standard outer diameter: 64 mm.
Other outer diameter: 30 mm, 40 mm, 50 mm, 60 mm, 64 mm, 70 mm, 80 mm, 350 mm.
Standard inner diameter: 28 mm.
Length: 10" (254 mm), 20" (508 mm), 30" (762 mm), 40" (1016 mm), 60" (1524 mm).
Fittings: Double open end, single open end, double O-rings.



Technical Parameters
Model Structure Filter rating (u) Thickness (mm) Weight Porosity (%)
(kg/ m2)
PS2-0.5T Filter layer + 60 2-100 0.5 1.6 60
PS3-0.7T 60 + Filter layer + 60 2-100 0.7 2.4 56
PS3-1.0T 50 + Filter layer + 20 20-200 1 3.3 58
PS3-2.0T Filter layer + 20 + 8.5 20-250 2 6.5 58
PS4-1.0T 60 + Filter layer + 40 + 20 2-200 1 4.4 44
PS4-1.7T 40 + Filter layer + 20 + 16 2-200 1.7 6.2 54
PS5-1.9T 30 + Filter layer + 60 + 20 + 16 2-200 1.9 5.3 52
PS5-2.5T 80 + Filter layer + 30 + 10 + 8.5 2-200 2.5 8.8 55
PS7-2.0T 50 + Filter layer + 40 + 20 + 40 + Filter layer + 50 2-150 2 7.4 58


Features:

Filtration rating from 1 µm to 250 µm.
The minimum outer diameter can be as small as 10 mm.
High mechanical strength, and can maintain a steady filtration performance under high pressure.
This type of cylindrical sintered filter element is easy to clean, especially for backwashing.

High mechanical strength and pressure tolerance.
Good corrosion resistance, excellent durability.
Stable pore shapes, high permeability.
High dirt-holding capacity.
Wide service temperature, ranging from -200 °C to 1000 °C.
It can be back washed easily, which prolongs service life.





Advantage:



Resistant heat and corrosion, high mechanical strength.
with the ability to maintain a steady filter rating under high pressure.
Easy to clean with a variety of filter cleaning techniques and reuse.
Easy to fabricate, weld, punch, shear, or otherwise form into various parts.



Application:



Used for gas distribution in the fluidized bed.
Used for washing and drying in pharmaceutical industry.
Used in water treatment and filtration of gas in the field of food and beverage.
Used for fine filtration of hydraulic oil or lubricating oil in machinery industry.
Polymer filtration in chemical industry.

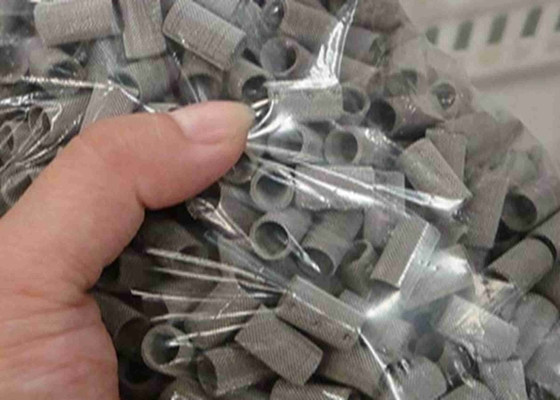

317 L Sintered Metal Mesh Filter Tube Ensures Fine Filtration 0.2 Micron 0

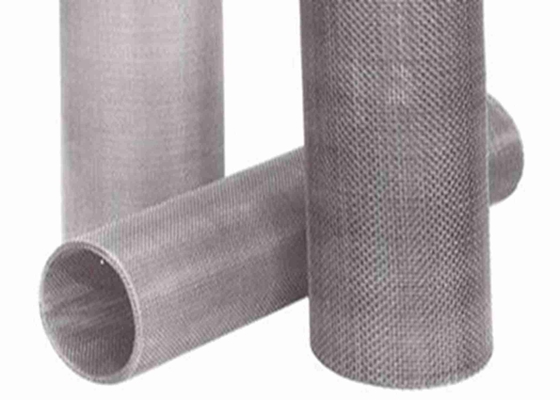

317 L Sintered Metal Mesh Filter Tube Ensures Fine Filtration 0.2 Micron 1



Packing: warped with waterproof paper or plastic film, then in the wooden cases/ pallets. Or as your requests.

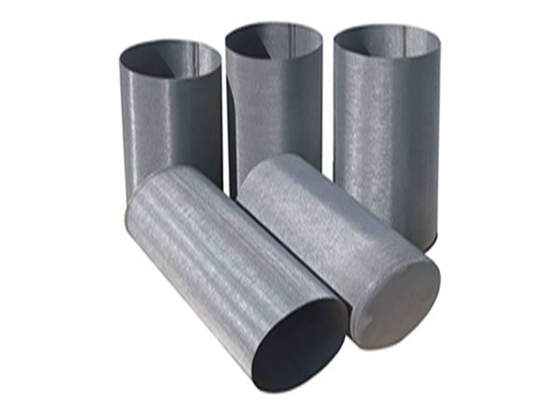

317 L Sintered Metal Mesh Filter Tube Ensures Fine Filtration 0.2 Micron 2





Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen



It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.
