1um Sintered Wire Mesh Laminates Single Layer Or 5 To 7 Multiple Layers

  • 1um Sintered Wire Mesh Laminates Single Layer Or 5 To 7 Multiple Layers
  • 1um Sintered Wire Mesh Laminates Single Layer Or 5 To 7 Multiple Layers
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 100 Pieces
Packaging Details Inside with plastic film, outside with carton box or wooden box, and then in a pallet. It's also available as your requirements.
Delivery Time For the size we have in stock,5 working days
Supply Ability 200000 piece per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Resistant Corrosion And High Temperature Product Name Sintered Stainless Steel Wire Mesh Laminates
Material Monel 400 Alloy, AISI 304, 316, AISI 316L. Max Size 1200mm × 1500 Mm
Standard Size 600 × 1200 Mm, 500 × 1000 Mm, 1000 × 1000 Mm, 1200 × 1200 Mm, 1200 × 1500 Mm Layers 1 Layer, Or Usually 5 - 7 Layers.
Filter Rating 1 µm To 200 µm Shape Round, Oval, Rectangular, Other Shapes
Heat Resistance -200 °c - 600 °c Continuous Filtration Application Widely Used In Water Treatment, Liquid And Gas Filtration, Drink, Medical, Chemical Processing, Food And Beverage, Pharmaceuticals And Transportation Industry.
Highlight

1um sintered wire mesh

,

laminates single layer sintered wire mesh

,

multiple layers sintered stainless steel mesh
Leave a Message
Product Description

Sintered Stainless Steel Wire Mesh Laminates Single Layer Or 5 To 7 Multiple Layers



Introduction



Sintered mesh laminate belongs to high strength porous material. It is made of stainless steel or other alloys. Single layer or multiple layers of woven wire meshes are permanently bonded together by an unique diffusion-bonded technique. Compared with traditional wire mesh, sintered mesh laminate provides more additional benefits such as stability and mechanical strength. Therefore, it is widely constructed as a filter medium in many industries.



Our Sintered Wire Mesh Laminates made of perforated metal (perforated metal as support layer make the sintered filter easy backwash), stainless steel square wire mesh and plain dutch sintered wire cloth are the fine materials for filtration, usually 5 - 7 layers. Sintered mesh laminates can be welded to filter elements as tube, cylinders, disc and conical shapes. Different mesh size and thickness are available according to different filter purpose.

Types of sinter mesh filters we supply:


standard combination of 5-layer sintered wire mesh.
sintered together by many layers of plain-woven square mesh.
sintered together by many layers of dutch-woven square mesh.
sintered by perforated plate and multi-layer stainless steel wire mesh.
Our sintered mesh panels may be formed into filter elements such as filter discs, cartridges, cones, cylinders, and tube.



Specifications:



Common Materials: Monel 400 alloy, AISI 304, 316, AISI 316L.
Filter accuracy from 1 µm to 200 µm.
Max size: 1200 × 1500 mm.
Standard size: 600 × 1200 mm, 500 × 1000 mm, 1000 × 1000 mm, 1200 × 1200 mm, 1200 × 1500 mm.















Specification - single layer sintered mesh laminate

Product code

Filter rating (µm)

Structure

Wire diameter (inch)

Overall thickness (inch)

Weight / sq.ft (kg)

SLSM-01

5

200 × 1400

0.0028

0.0058

0.1135

SLSM-02

178

80 × 0.0055"

0.0055

0.0088

0.0772

SLSM-03

234

60 × 0.0075"

0.0075

0.0125

0.109

SLSM-04

279

50 × 0.009"

0.009

0.0144

0.1317

SLSM-05

380

40 × 0.01"

0.01

0.0147

0.1271

SLSM-06

540

30 × 0.012"

0.012

0.0155

0.1362

SLSM-07

860

20 × 0.016"

0.016

0.0238

0.1589

SLSM-08

2460

8 × 0.028"

0.028

0.0397

0.1907



two and three layers sintered mesh laminate

Layer number

Structure

Filter rating (µm)

Overall thickness (mm)

Weight / sq.ft (kg)

2

100 × 0.0045" / 200 × 1400

5

0.2286

0.1135

2

10 × 0.025" / 325 × 0.0014"

44

0.9144

0.2088

2

60 × 0.0075" / 325 × 0.0014"

44

0.36576

0.1271

2

10 × 0.025" / 250 × 0.0016"

55

0.9398

0.2088

2

10 × 0.025" / 200 × 0.0021"

74

0.9525

0.2179

2

30 × 0.012" / 150 × 0.0026"

105

0.4953

0.168

2

10 × 0.025" / 150 × 0.0026"

105

0.4953

0.2177

2

60 × 0.0075" / 100 × 0.0045"

140

0.51308

0.1725

2

10 × 0.025" / 100 × 0.0045"

140

0.96266

0.2542

2

20 × 0.016" / 20 × 0.016"

864

0.8128

0.3178

3

60 × 0.0075" / 325 × 2300 / 60 × 0.0075"

2

0.56642

0.2633

3

60 × 0.0075" / 200 × 1400 / 60 × 0.0075"

5

0.62738

0.2906

3

60 × 0.0075" / 165 × 1400 / 60 × 0.0075"

10

0.72136

0.2906

3

60 × 0.0075" / 165 × 800 / 60 × 0.0075"

15

0.62738

0.2679

3

60 × 0.0075" / 80 × 700 / 60 × 0.0075"

25

0.86106

0.2838

3

60 × 0.0075" / 325 × 0.0014" / 60 × 0.0075"

44

0.62484

0.2361

3

60 × 0.0075" / 250 × 0.0016" / 60 × 0.0075"

55

0.6223

0.2361

3

60 × 0.0075" / 200 × 0.0021" / 60 × 0.0075"

74

0.64262

0.2452

3

60 × 0.011" / 100 × 0.0045" / 200 × 0.0021"

74

0.72898

0.1998

3

60 × 0.0075" / 150 × 0.0026" / 60 × 0.0075"

105

0.65786

0.2497

3

60 × 0.0075" / 100 × 0.0045" / 60 × 0.0075"

140

0.76708

0.2815



Four-layer sintered mesh laminate

Structure

Filter rating (µm)

Thickness (mm)

Weight (kg/m2)

Porosity (%)

60 / filter layer / 40 / 20

2 - 200

1

4.4

44

40 / filter layer / 20 / 16

2 - 200

1.7

6.2

54


Features:

High mechanical strength and stability.
High permeability.
Stainless steel for corrosion resistance.
Easy to be fabricated into other deep filter media.
Accurate filter ratings.
Easy to clean, it can be reused for many times.





Advantage:



Resistant heat and corrosion, high mechanical strength.
with the ability to maintain a steady filter rating under high pressure.
Easy to clean with a variety of filter cleaning techniques and reuse.
Easy to fabricate, weld, punch, shear, or otherwise form into various parts.



Application:



stainless steel sintered mesh laminates are widely used in water treatment, liquid and gas filtration, drink, medical, chemical processing, food and beverage, pharmaceuticals and transportation industry.



Filtration: Hot gas filter element, process filter element.
Fluidization: Fluidized beds, air slides, aerators, flow control devices.
Other applications: Acoustic attenuation, foaming in air diffuser, flashing and explosion of flame arrestors prevention.



Six-layer sintered mesh laminate



Filter rating: 1 µm to 100 µm.
Overall thickness: 3.5 mm.
Standard size: 1000 mm × 1200 mm.

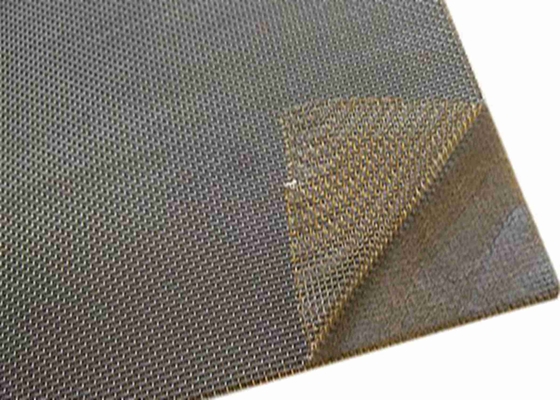

1um Sintered Wire Mesh Laminates Single Layer Or 5 To 7 Multiple Layers 0

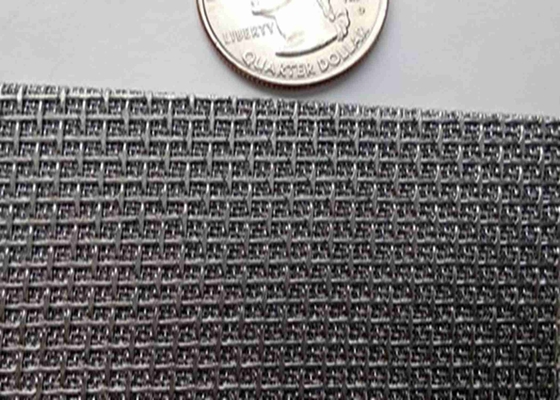

1um Sintered Wire Mesh Laminates Single Layer Or 5 To 7 Multiple Layers 1



Packing: warped with waterproof paper or plastic film, then in the wooden cases/ pallets. Or as your requests.



1um Sintered Wire Mesh Laminates Single Layer Or 5 To 7 Multiple Layers 2
