2 Microns To 300 Microns Sintered Metal Filter Disc Various Shapes

  • 2 Microns To 300 Microns Sintered Metal Filter Disc Various Shapes
  • 2 Microns To 300 Microns Sintered Metal Filter Disc Various Shapes
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 100 Pieces
Packaging Details Inside with plastic film, outside with carton box or wooden box, and then in a pallet. It's also available as your requirements.
Delivery Time For the size we have in stock,5 working days
Supply Ability 200000 piece per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Resistant Corrosion And High Temperature Product Name Sintered Metal Filter Disc
Material Monel Wire And Stainless Steel AISI304, AISI316, AISI316L. Diameter 10 Mm To 3000 Mm.
Wire Mesh Material Stainless Steel 316 L Or Stainless Steel 316. Thickness 1 Mm To 5 Mm.
Filter Rating 2 Microns To 300 Microns Shape Round, Oval, Rectangular, Other Shapes
Heat Resistance -200 °c - 600 °c Continuous Filtration Application Well Used In Oil Wells, Where Fine Particles Need To Be Filtered Under Extremely High Pressure Conditions.
High Light

2 microns sintered metal filter disc

,

monel sintered metal filter disc

,

sintered metal 316l stainless steel filter disc
Leave a Message
Product Description

2 Microns To 300 Microns Sintered Metal Filter Disc With Various Shapes



Introduction



Stainless steel sintered wire mesh filter disc is made of multi-layer sintered woven mesh - plain dutch weave and plain weave type. As an important type of sintered metal filter mesh, our sintered filter discs can be manufactured in split and integral type used for drying and filtering. Sintered filter disc plate with long service life for drying, gas and liquid filtering in the pharmaceutical, petrochemical, food industry and chemical fiber industry.



Sintered metal filter disc, is an ideal filter element for accurate filtration. It is made from sintered wire mesh through laser-cutting. Sintering is a process which produces fusion bonds at all contact points of the woven wire mesh in the vacuum environment with high temperature. Sintering maintains the uniformity of the original weave and fixes the hole size, shape and micron rating of the mesh. The sintered wire mesh can be monolayer or multi-layered, whichever is full of high strength and rigidity. For various purposes, sintered metal filter discs can be processed into different shapes, like round, toroidal, square, oval or fan-shaped. According to customers' demand, sintered metal filter discs can also be added outer rings. Sintered mesh filter disc is widely used in filtration process in many industries, it works as gas-liquid separation, oil and fuel filtration.

Types of sinter mesh filters we supply:


standard combination of 5-layer sintered wire mesh.
sintered together by many layers of plain-woven square mesh.
sintered together by many layers of dutch-woven square mesh.
sintered by perforated plate and multi-layer stainless steel wire mesh.
Our sintered mesh panels may be formed into filter elements such as filter discs, cartridges, cones, cylinders, and tube.





Material:



Standard material AISI304, AISI316, AISI316L, Alloy Steel Hastelloy, Monel, and Inconel.



Specifications:



Material: Monel wire and stainless steel AISI304, AISI316, AISI316L.
Diameter: 10 mm to 3000 mm.
Filter Rate: 2 microns to 300 microns.
Thickness: 1 mm to 5 mm.
Heat resistance: -200 °c - 600 °c continuous filtration.



Specifications of Perforated Metal Sintered Wire Mesh
Model Filter Rating Structure Thickness (mm) Weight (kg/m2) Porosity (%)
(um)
PES4-2.0T 2 - 200 30+Filter layer+30+φ4 × 5P × 1.0T 2 6.7 57
PES4-2.5T 2 - 200 30+Filter layer+30+φ5 × 7P × 1.5T 2.5 9.8 50
PES5-3.0T 2 - 200 60+Filter layer+60+20+φ6 × 8P × 2.0T 3 11.8 50
PES5-3.5T 2 - 200 20+Filter layer+20+10+φ8 × 10P × 2.0T 3.5 12.6 54
PES5-4.0T 2 - 200 20+Filter layer+20+10+φ8 × 10P × 2.5T 4 14.2 55
PES5-4.3T 5 - 200 20+Filter layer+20+10+φ10 × 13P × 3.0T 4.3 16.9 50
PES5-5.3T 5 - 200 20+Filter layer+20+10+φ10 × 13P × 4.0T 5.3 20.6 51

Features:



Resistance to high temperature, high pressure, corrosion, acid, and alkali.
High strength, high filter rating, good dirt holding capacity, repeated washing.
High rigidity and stability for long service life.
Excellent resistance to corrosion, acid, alkali and abrasion.
High heat resistance, it can be used under the temperature ranging from -200 °C to 600 °C.
Various filter ratings to choose and great filter precision for different uses.
Good dirt holding capacity.
Easy to clean and reusable, therefore reduce downtime.



Application:



Petrochemical and chemical industry.
Pharmaceutical industry.
Plastic industry.
Automotive industry.
Food and beverage industry.
Metallurgic industry.
Environmental area.
Aviation industry.







Photos:

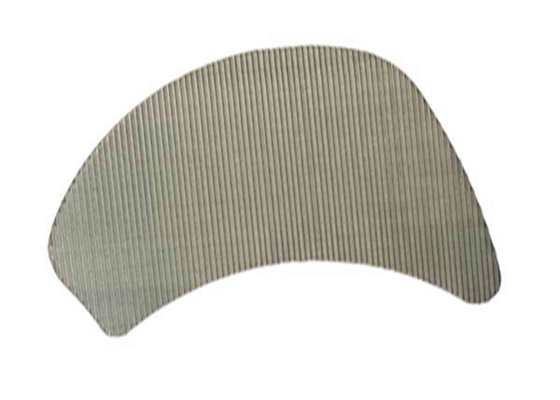

2 Microns To 300 Microns Sintered Metal Filter Disc Various Shapes 0

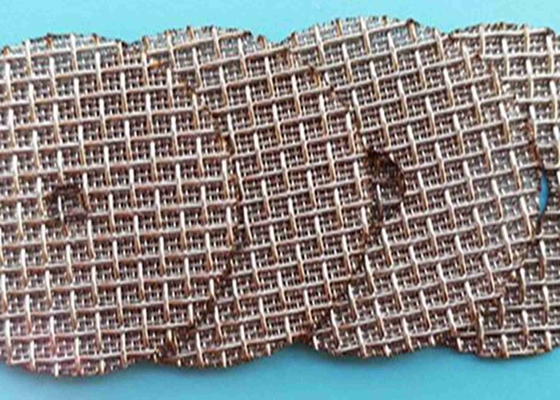

2 Microns To 300 Microns Sintered Metal Filter Disc Various Shapes 1

2 Microns To 300 Microns Sintered Metal Filter Disc Various Shapes 2

2 Microns To 300 Microns Sintered Metal Filter Disc Various Shapes 3



Packing: warped with waterproof paper or plastic film, then in the wooden cases/ pallets. Or as your requests.



2 Microns To 300 Microns Sintered Metal Filter Disc Various Shapes 4
