Dutch Woven AISI304 Sintered Mesh Filter Excellent Strength High Flow Rates

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 100 Pieces
Packaging Details Inside with plastic film, outside with carton box or wooden box, and then in a pallet. It's also available as your requirements.
Delivery Time For the size we have in stock,5 working days
Supply Ability 200000 piece per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Excellent Strength And High Flow Rates Product Name Sintered Dutch Woven Mesh
Material Standard Material AISI304, AISI316, AISI316L, Alloy Steel Hastelloy, Monel, And Inconel. Number Of Layers 2 To 3 Layers
Standard Size 500 × 1000 Mm, 600 × 1200 Mm, 1000 × 1000 Mm, 1200 × 1200 Mm, 1200 × 1500 Mm. Fabrication Easily Formed, Sheared, Welded And Punched.
Dutch Woven Mesh Type 12 × 64 / 64 × 12. Application Widely Used For Gas And Liquid Filter, Chemical Filter, Pharmacy Filter And Laboratory Filters.
High Light

dutch woven sintered mesh filter

,

high flow rates sintered mesh filter

,

aisi304 sintered wire mesh filter

Leave a Message
Product Description

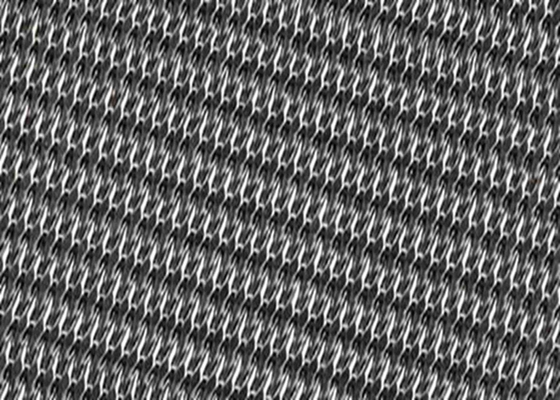

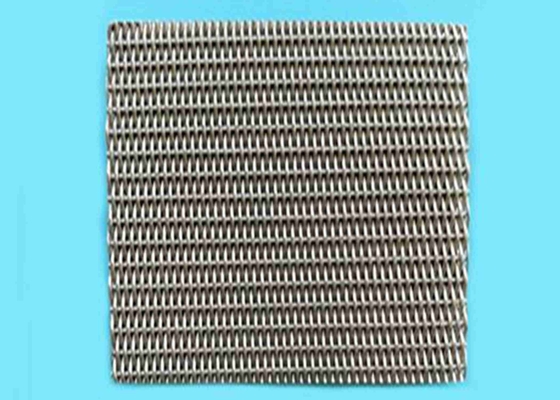

Sintered Dutch Woven Mesh Excellent Strength And High Flow Rates



Sintered Dutch Woven Mesh Introduction



Sintered Dutch Woven Mesh consists of double to triple layers of plain Dutch woven mesh strengthening layers fused by vacuum sintering, pressurizing and rolling. Such mesh design offers uniformly spaced openings and consistent air permeability to flow. Great mechanical strength. This kind of sintered plate is widely utilized in powder shipping, lab fluid bed, driers, coolers and other dry solid materials.



Sintered Dutch Woven Mesh offers the finest filtration as well as firm mesh structure with great resistance to physical loading. The smooth surface is also advantageous for cleaning process while backwashing.



The mesh delivers the outstanding quality Dutch weave wire mesh to our valuable customers. The layers of mesh are mutually sintered to produce a uniform and fine filtering structure, not just to overcome the small strength of general metal wire, poor firmness, mesh switch unstable inadequate, even also to provide the desired material’s pore size, permeability and strength features for a suitable match in order to offer a fine and precision filtration, filtered impedance, mechanical strength, heat and abrasion resistance, workability and good apparent functionality.

Types of sinter mesh filters we supply:


standard combination of 5-layer sintered wire mesh.
sintered together by many layers of plain-woven square mesh.
sintered together by many layers of dutch-woven square mesh.
sintered by perforated plate and multi-layer stainless steel wire mesh.
Our sintered mesh panels may be formed into filter elements such as filter discs, cartridges, cones, cylinders, and tube.





Material:



Standard material AISI304, AISI316, AISI316L, Alloy Steel Hastelloy, Monel, and Inconel.



Specifications:



Filter Rating: 1 um - 200 um.
Materials: SUS304 (AISI304), SUS316 (AISI316), SUS316L (AISI316L).
Size: 300 × 1000 mm, 500 × 1000 mm, 600 × 1200 mm, 1000 × 1000 mm, 1200 × 1200 mm, 1000 × 1500 mm, 1200 × 1500 mm.
This type sinter mesh be cut and fabricated into various discs, tubes, filter cartridges, and flat panels.



Table of Plain Weave Sintered Mesh Technical Parameters
Model Structure Filter rating (u) Thickness (mm) Weight Porosity (%)
(kg/ m2)
PS2-0.5T Filter layer + 60 2-100 0.5 1.6 60
PS3-0.7T 60 + Filter layer + 60 2-100 0.7 2.4 56
PS3-1.0T 50 + Filter layer + 20 20-200 1 3.3 58
PS3-2.0T Filter layer + 20 + 8.5 20-250 2 6.5 58
PS4-1.0T 60 + Filter layer + 40 + 20 2-200 1 4.4 44
PS4-1.7T 40 + Filter layer + 20 + 16 2-200 1.7 6.2 54
PS5-1.9T 30 + Filter layer + 60 + 20 + 16 2-200 1.9 5.3 52
PS5-2.5T 80 + Filter layer + 30 + 10 + 8.5 2-200 2.5 8.8 55
PS7-2.0T 50 + Filter layer + 40 + 20 + 40 + Filter layer + 50 2-150 2 7.4 58



Key Features:



1. Excellent strength and high flow rates
2. Suitable backwash strength
3. Outstanding chemical resistance

Advantages:



Defined smallest aperture size and uniform opening
Highly robust, resistance to mechanical and thermal stress
Prolong service
High flow rates, customizable flow resistance
Optimal backwash potential, great reliability corresponding backwash pressure
Minimum loading of the filter medium in pulsation
Regular product quality, assured corrosion resistance by using special alloys and stainless steel grades
An endless set of combinations using around 1000 layers as feasible.



Application:



This type of sintered filter plate is commonly used in powder transport, laboratory fluid bed, driers, coolers and other solid materials. Additional, it is widely used for gas and liquid filter, chemical filter, pharmacy filter and laboratory filters.



Structure

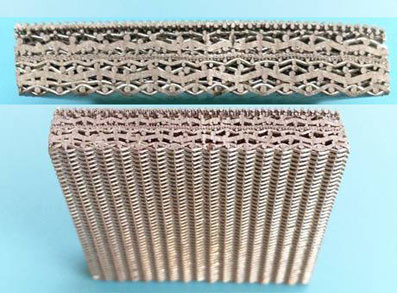

Dutch Woven Sintered Wire MeshCross section structure of sintered mesh, plain square woven mesh as its reinforcement layer











Packing: warped with waterproof paper or plastic film, then in the wooden cases/ pallets. Or as your requests.



Dutch Woven AISI304 Sintered Mesh Filter Excellent Strength High Flow Rates 2





Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen



It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.
