5 Layers Sintered Metal Mesh For Purification And Filtration
Place of Origin | Anping of China |
---|---|
Brand Name | QIANPU |
Certification | ISO |
Minimum Order Quantity | 100 Pieces |
Packaging Details | Inside with plastic film, outside with carton box or wooden box, and then in a pallet. It's also available as your requirements. |
Delivery Time | For the size we have in stock,5 working days |
Supply Ability | 200000 piece per month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | High Strength And Durability Since High Temperature Sintering. | Product Name | Stainless Steel Sintered Wire Mesh |
---|---|---|---|
Material | Standard Material AISI304, AISI316, AISI316L, Alloy Steel Hastelloy, Monel, And Inconel. | Number Of Layers | 5 Layers |
Filter Rating | 1µm To 200µm | Over Thickness | 2 Mm |
Standard Size | 500 × 1000 Mm, 600 × 1200 Mm, 1000 × 1000 Mm, 1200 × 1200 Mm, 300 × 1500 Mm. | Fabrication | Easily Formed, Sheared, Welded And Punched. |
Porosity | 40% | Application | Usually Used For Purification And Filtration |
Highlight | 5 layers sintered metal mesh,purification sintered metal mesh,5 layers stainless steel sintered mesh |
Sintered Wire Mesh With Excellent Mechanical Properties Used For Purification And Filtration
Sintered wire mesh Introduction
Sintered wire mesh is made form multiple layers of woven wire mesh panel together using a sintering process. This process combines heat and pressure to permanently bond multi-layers of mesh together. The same physical process used to fuse individual wires together within a layer of wire mesh is also be used to fuse adjacent layers of mesh together. This creates a unique material offering excellent mechanical properties. It is ideal material for purification and filtration. It may be from 5, 6 or 7 layers of wire mesh.

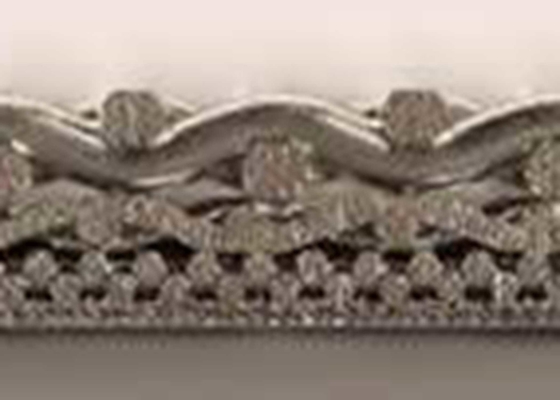

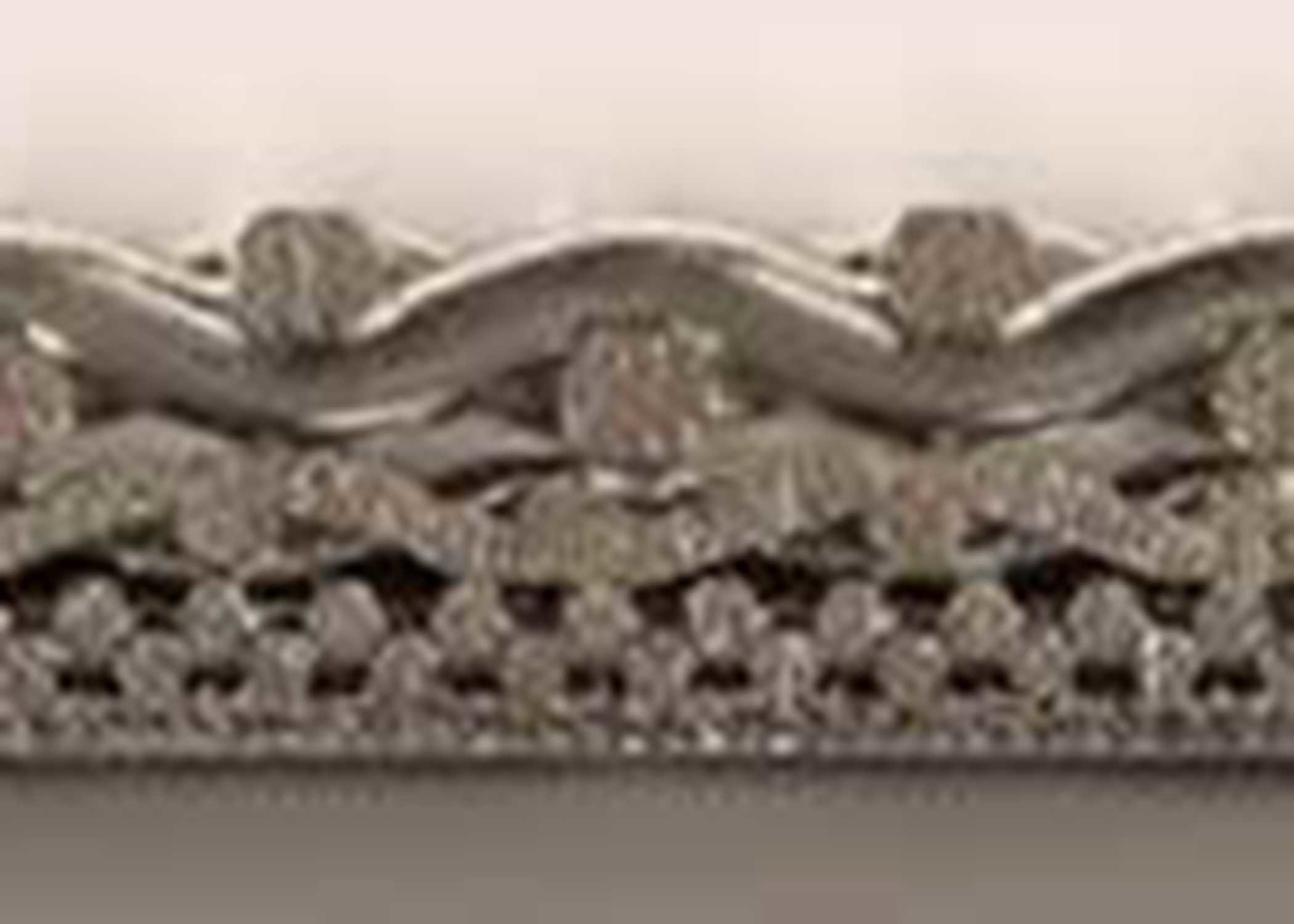

The follow picture shows a sintered stainless steel wire mesh panel made form five different layers of stainless steel wire mesh combined and sintered together through vacuum sintering, compressing, and rolling, forming a porous sinter mesh.
Types of sinter mesh filters we supply:
standard combination of 5-layer sintered wire mesh.
sintered together by many layers of plain-woven square mesh.
sintered together by many layers of dutch-woven square mesh.
sintered by perforated plate and multi-layer stainless steel wire mesh.
Our sintered mesh panels may be formed into filter elements such as filter discs, cartridges, cones, cylinders, and tube.
Super Sintered Wire Mesh Characterastics:
1.Wide range of filter rating;
2.Steady filter rating;
3.HIgh mechanical strength;
4.Easy to wash;
5.Heat resistance;
6.Corrosion resistance;
7.Tractability
Material:
Standard material AISI304, AISI316, AISI316L, Alloy Steel Hastelloy, Monel, and Inconel.
Specifications:
Material: Standard material SUS304 (AISI304), SUS316 (AISI316), SUS316L (AISI316L), Alloy Steel Hastelloy, Monel, and Inconel.
Standard Size: 500 × 1000 mm, 600 × 1200 mm, 1000 × 1000 mm, 1200 × 1200 mm, 300 × 1500 mm.
Fabrication: easily formed, sheared, welded and punched.
Layer number | Structure | Filter rating (µm) | Overall thickness (mm) | Weight / sq.ft (kg) |
---|---|---|---|---|
2 | 100 × 0.0045" / 200 × 1400 | 5 | 0.2286 | 0.1135 |
2 | 10 × 0.025" / 325 × 0.0014" | 44 | 0.9144 | 0.2088 |
2 | 60 × 0.0075" / 325 × 0.0014" | 44 | 0.36576 | 0.1271 |
2 | 10 × 0.025" / 250 × 0.0016" | 55 | 0.9398 | 0.2088 |
2 | 10 × 0.025" / 200 × 0.0021" | 74 | 0.9525 | 0.2179 |
2 | 30 × 0.012" / 150 × 0.0026" | 105 | 0.4953 | 0.1680 |
2 | 10 × 0.025" / 150 × 0.0026" | 105 | 0.4953 | 0.2177 |
2 | 60 × 0.0075" / 100 × 0.0045" | 140 | 0.51308 | 0.1725 |
2 | 10 × 0.025" / 100 × 0.0045" | 140 | 0.96266 | 0.2542 |
2 | 20 × 0.016" / 20 × 0.016" | 864 | 0.8128 | 0.3178 |
3 | 60 × 0.0075" / 325 × 2300 / 60 × 0.0075" | 2 | 0.56642 | 0.2633 |
3 | 60 × 0.0075" / 200 × 1400 / 60 × 0.0075" | 5 | 0.62738 | 0.2906 |
3 | 60 × 0.0075" / 165 × 1400 / 60 × 0.0075" | 10 | 0.72136 | 0.2906 |
3 | 60 × 0.0075" / 165 × 800 / 60 × 0.0075" | 15 | 0.62738 | 0.2679 |
3 | 60 × 0.0075" / 80 × 700 / 60 × 0.0075" | 25 | 0.86106 | 0.2838 |
3 | 60 × 0.0075" / 325 × 0.0014" / 60 × 0.0075" | 44 | 0.62484 | 0.2361 |
3 | 60 × 0.0075" / 250 × 0.0016" / 60 × 0.0075" | 55 | 0.6223 | 0.2361 |
3 | 60 × 0.0075" / 200 × 0.0021" / 60 × 0.0075" | 74 | 0.64262 | 0.2452 |
3 | 60 × 0.011" / 100 × 0.0045" / 200 × 0.0021" | 74 | 0.72898 | 0.1998 |
3 | 60 × 0.0075" / 150 × 0.0026" / 60 × 0.0075" | 105 | 0.65786 | 0.2497 |
3 | 60 × 0.0075" / 100 × 0.0045" / 60 × 0.0075" | 140 | 0.76708 | 0.2815 |

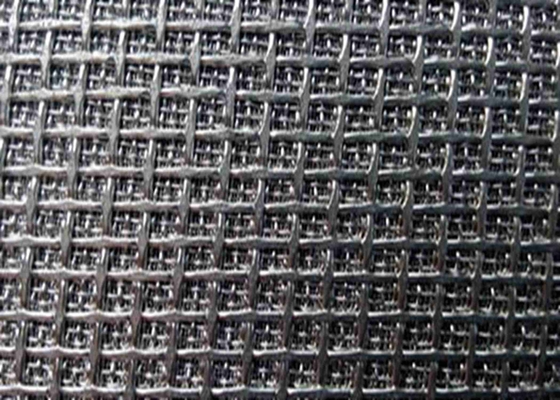

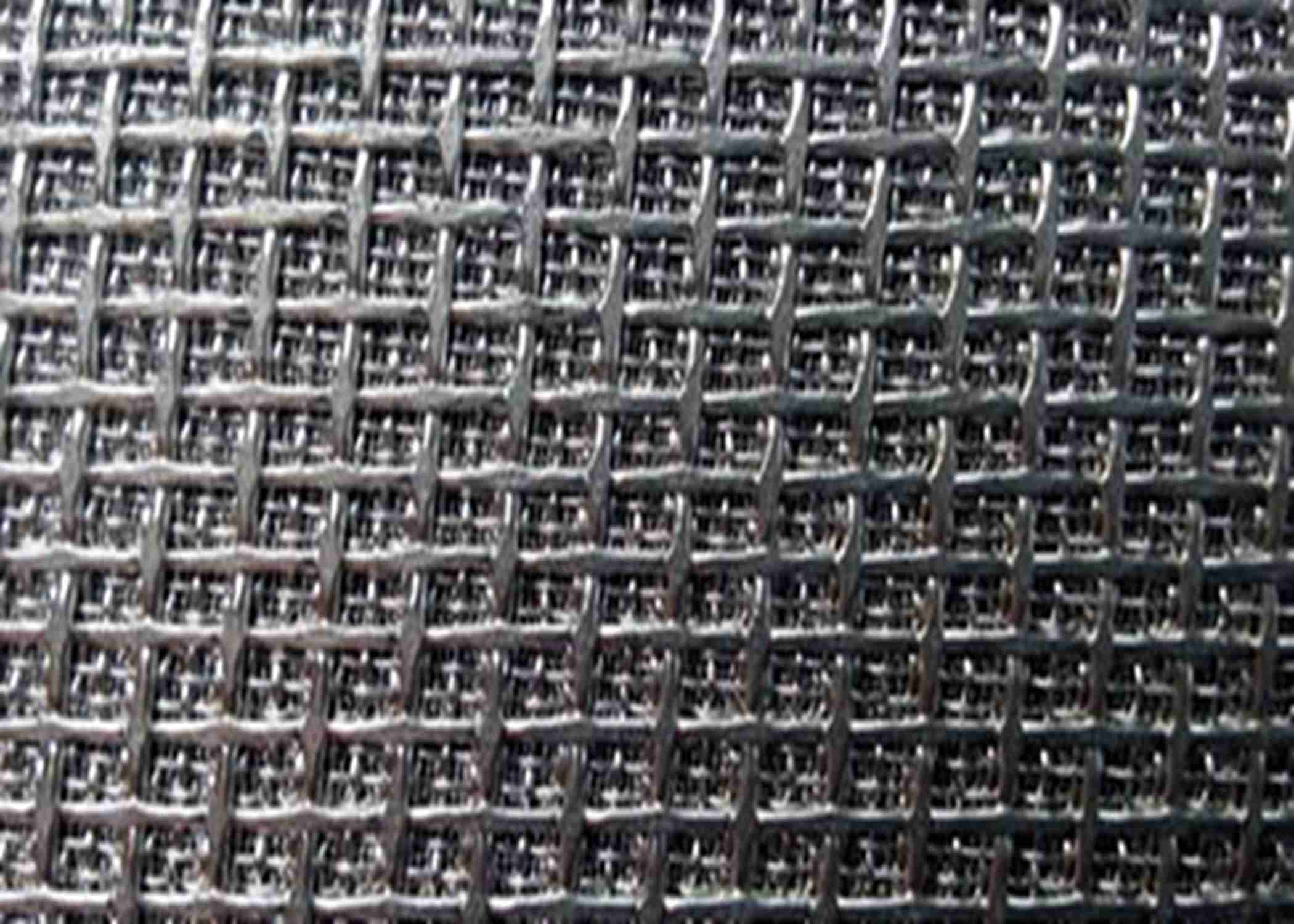

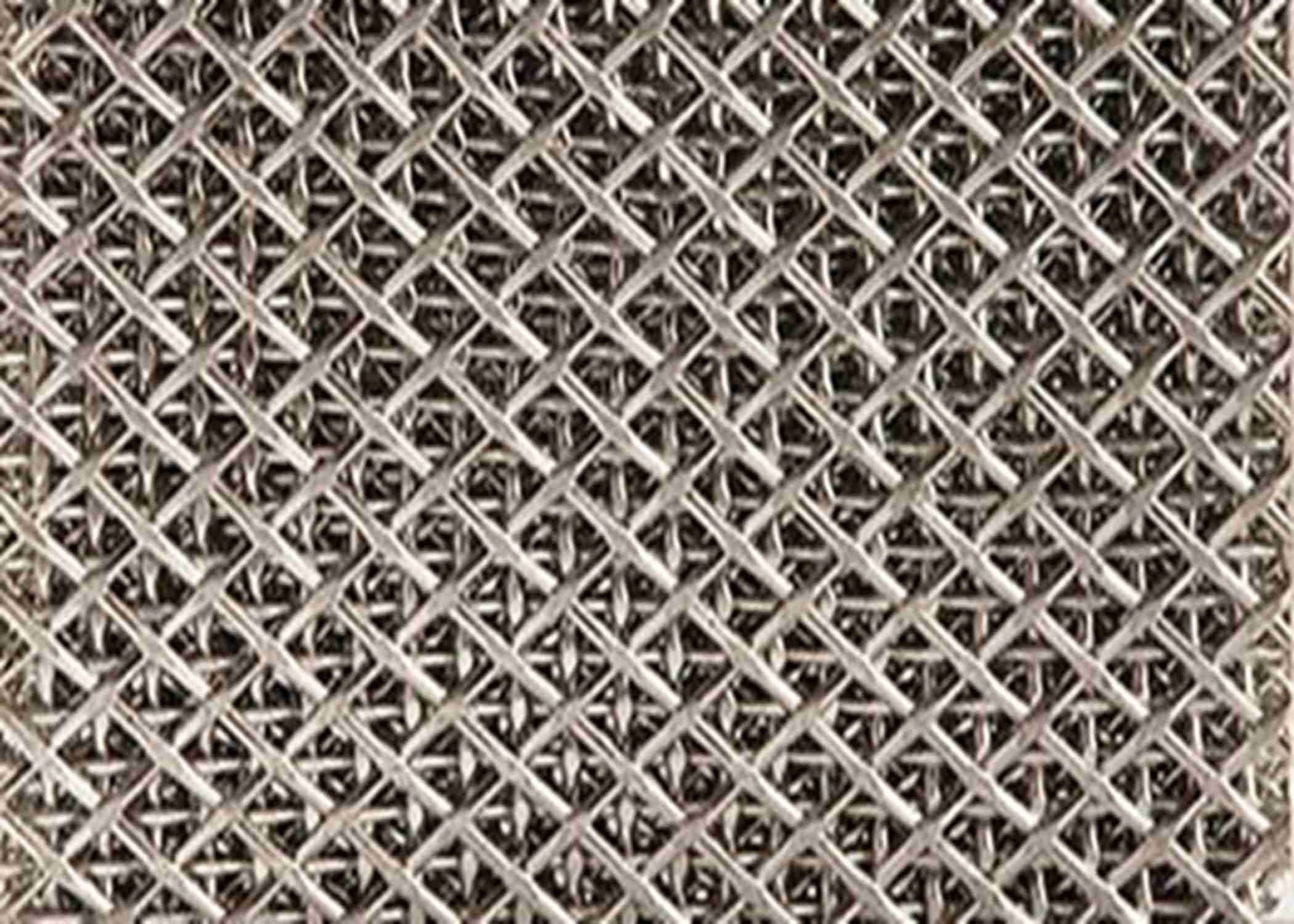

The five layers of sintered wire mesh filter
Advantages:
High strength and durability since high temperature sintering.
Anti-corrosion, and heat resistance up to 480 °C.
Steady filter rating from the 1micron to 100 micron.
Filter mesh not easy to deform because of two protective layers.
Can used for uniform filtration in high pressure or high viscosity environment.
Suits for cutting, bending, punching, stretching, and welding.
Application:
Sinter wire mesh filters are usually used for purification and filtration of liquid and gas, separation and recovery of solid particle, transpiration cooling under extremity high temperature, control air flow distribution, enhancement of heat and mass transfer, noise reduction, current limitation, and wildly used in aerospace, petrochemical industry, pharmaceutical industry, environmental protection industry.
Packing: warped with waterproof paper or plastic film, then in the wooden cases/ pallets. Or as your requests.
