500x1000mm Sintered Wire Mesh

Place of Origin Hengshui,China
Brand Name QIANPU
Minimum Order Quantity 100 Pieces
Packaging Details Inside with plastic film, outside with carton box or wooden box, and then in a pallet. It's also available as your requirements.
Delivery Time For the size we have in stock,5 working days
Supply Ability 200000 piece per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features High Filter Precision Name Sintered Wire Mesh
Material Stainless Steel Wire Fabrication Easily Formed, Sheared, Welded And Punched.
Standard Size 500 × 1000 Mm, 600 × 1200 Mm, 1000 × 1000 Mm, 1200 × 1200 Mm, 300 × 1500 Mm Mesh Count 635, 325 X 2300
Weave Types Plain Weave, Twill Weave, Duch Weave Application Purification And Filtration Of Liquid And Gas, Etc
High Light

1000mm Sintered Wire Mesh

,

500mm Sintered Wire Mesh

,

600mm stainless steel wire screen

Leave a Message
Product Description

Stainless Steel Sintered with Woven Mesh And Perforated Metal Mesh Sintered Wire Mesh



Introduction:

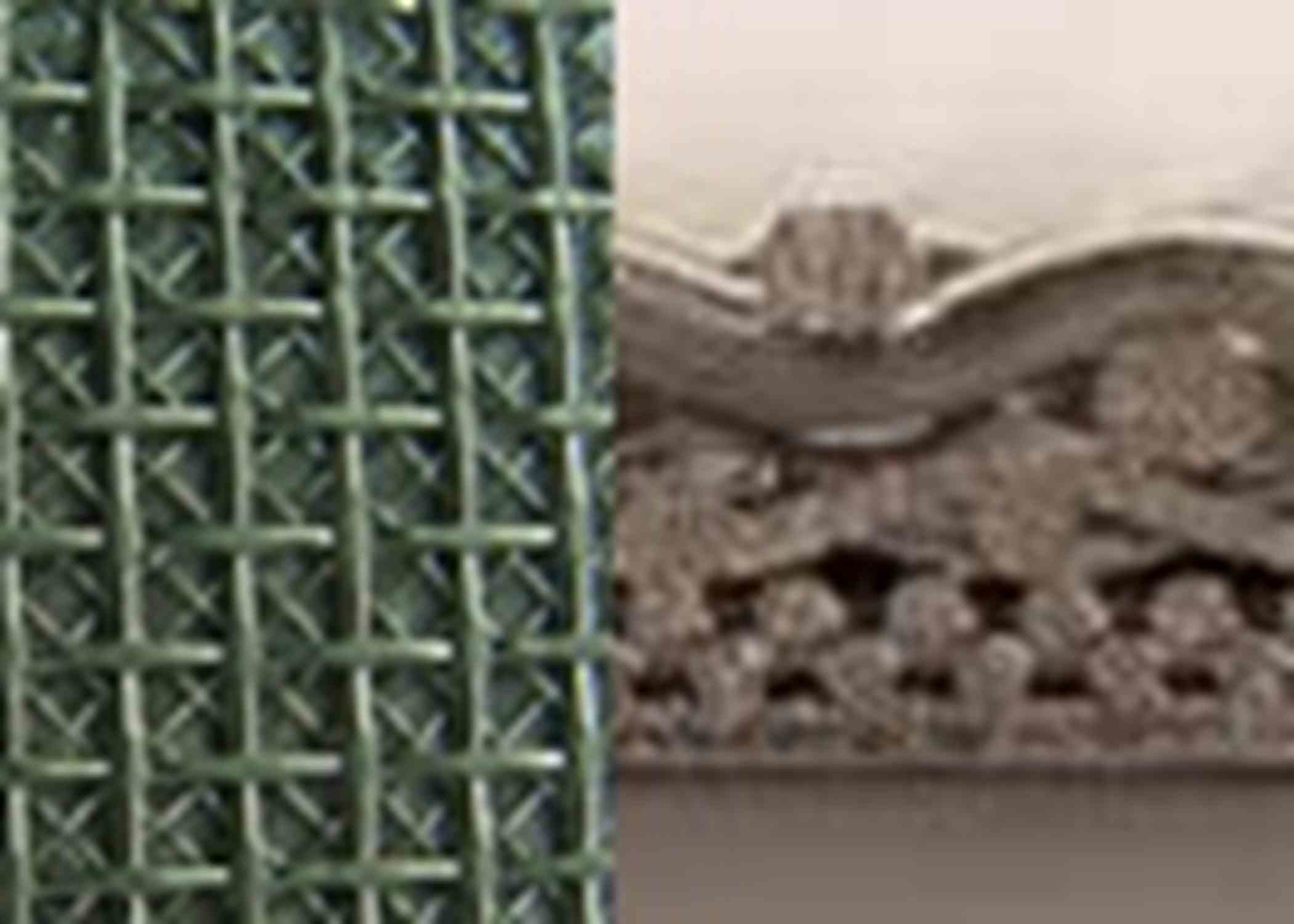

Sintered wire mesh is made form multiple layers of woven wire mesh panel together using a sintering process. This process combines heat and pressure to permanently bond multi-layers of mesh together. The same physical process used to fuse individual wires together within a layer of wire mesh is also be used to fuse adjacent layers of mesh together. This creates a unique material offering excellent mechanical properties. It is ideal material for purification and filtration. It may be from 5, 6 or 7 layers of wire mesh (5 layers sintered filter mesh structure drawing as right picture).



Steel fiber mesh is composed of steel fiber mesh sintering together.Then it still have feature of web and porous construction, high strength,high stable construction in high temperature vacuum oven,it also has higher porosity,large specific area,and uniform distruction.These advantages make it ideal material of heat-resistant,corrosion-resiatant and high precision.These reusable,high quality filters are ideal for filtration and gas filter application.





Material: 302,304,304L,316,316L

Mesh Count: 1×635 mesh/inch

Weave Types: Plain Weave,Twill Weave,Duch Weave

Standard Width: 0.9m-1.6m in stock, 1.6-8m can produce as customer order!

Standard Length: 100' or by request

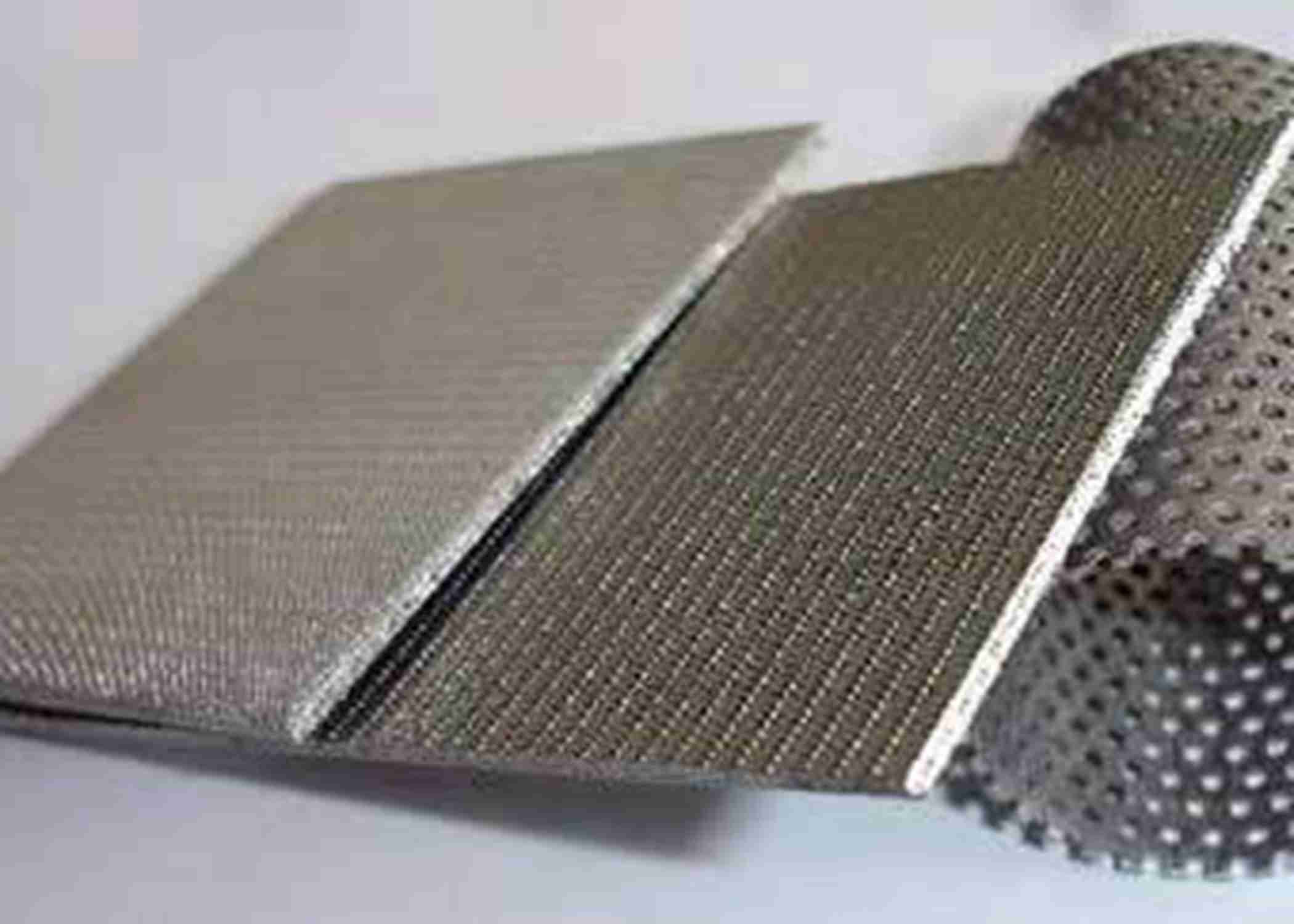

Perforated sintered mesh has perforated metal as reinforcement layer support the sintered filter structure. So, it has very high compressive and mechanical strength. Perforated metal sintered filters are well used in oil wells, where fine particles need to be filtered under extremely high pressure conditions.

The sintered metal filter panels mentioned above may be formed into filter elements such as filter discs, filter cartridge, filter laminate, and filter tube. Sintered filter elements are made by moulds through high temperature sintering process forming different shape filters such as filter baskets and cone-shape filter, cup filters, cap filters, and filter plate.



Product Name Perforated Metal Mesh Sheet Screen Sintered Filters Material
Material Iron, Stainless Steel Plate,Stainless Steel Honeycomb Panels,Copper, Aluminum,Galvanized Sheet,Cold Rolled, Sintered Sheet
Hole Size 0.5mm-200mm or customized
Thickness 0.4mm-14mm or customized
Sizes 1000*2000mm 1250*1250mm 1220*2440mm or customized
Shape Round, Square, Hexagonal, Triangle or customized
Application Decorative, Sieving, Filtering, Medical, Noise Control, Store Fixture Display, Security Ceilings, Filters Bone
Samples Available
Types Sheets, Tubes, Cartridges





Nominal Filter Rating (um) Structure Protective Layer + Control Layer + Dispersion Layer + Reinforce Layer + Reinforce Layer Thickness
(mm)
Bubble Pressure (mm H2O) Porosity (%)
1 100 + 400 × 2800 + 100 + 12 × 64 + 64 × 12 1.7 360-600 40%
2 100 + 325 × 2300 + 100 + 12 × 64 + 64 × 12 1.7 300-590
5 100 + 200 × 1400 + 100 + 12 × 64 + 64 × 12 1.7 260-550
10 100 + 165 × 1400 + 100 + 12 × 64 + 64 × 12 1.7 220-500
15 100 + 165 × 1200 + 100 + 12 × 64 + 64 × 12 1.7 200-480
20 100 + 165 × 800 + 100 + 12 × 64 + 64 × 12 1.7 170-450
25 100 + 165 × 600 + 100 + 12 × 64 + 64 × 12 1.7 150-410
30 100 + 450 + 100 + 12 × 64 + 64 × 12 1.7 120-390
40 100 + 325 + 100 + 12 × 64 + 64 × 12 1.7 100-350
50 100 + 250 + 100 + 12 × 64 + 64 × 12 1.7 90-300
75 100 + 200 + 100 + 12 × 64 + 64 × 12 1.7 80-250
100 100 + 150 + 100 + 12 × 64 + 64 × 12 1.7 70-190
150 50 + 100 + 50 + 30 × 30 + 100 × 50 2.0 50-150
200 40 + 80 + 40 + 20 × 40 + 80 × 40 2.0 50-150



Note: The 6-layer sintered wire mesh is to add one layer of 12 mesh to the 5-layer sintered wire mesh. Its thickness is 3.5 mm. And it has the higher anti-pressure ability.



500x1000mm Sintered Wire Mesh 0





Advantages



Performance and advantages of steel fiber mesh:

1. High dirt holding capacity,high filtering accuracy,longer on stream lifel.

2. Corrosion resistance of nitric acid,alkali, and organic solvent proof. It can be used for a long period of service in the temperature of 600℃.

3. High porosity and excellent permeability which results in low pressure drop and large flow.

4. Pleatable,provide a large filter area, and can be welded and machined.

5. Cleanable,can be used many times.



Features:



Sintered wire mesh is made form multiple layers of woven wire mesh panel together using a sintering process. This process combines heat and pressure to permanently bond multi-layers of mesh together. The same physical process used to fuse individual wires together within a layer of wire mesh is also be used to fuse adjacent layers of mesh together. This creates a unique material offering excellent mechanical properties. It is ideal material for purification and filtration. It may be from 5, 6 or 7 layers of wire mesh (5 layers sintered filter mesh structure drawing as right picture).



Application:



Sinter wire mesh filters are usually used for purification and filtration of liquid and gas, separation and recovery of solid particle, transpiration cooling under extremity high temperature, control air flow distribution, enhancement of heat and mass transfer, noise reduction, current limitation, and wildly used in aerospace, petrochemical industry, pharmaceutical industry, environmental protection industry.







Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen



It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.



In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.
