AISI316L 2 To 300 Micron Stainless Steel Mesh Filter Discs
| Place of Origin | Hengshui,China |
|---|---|
| Brand Name | QIANPU |
| Minimum Order Quantity | 100 Pieces |
| Price | 0.1-5$ per piece |
| Packaging Details | Inside with plastic film, outside with carton box or wooden box, and then in a pallet. It's also available as your requirements. |
| Delivery Time | For the size we have in stock,5 working days |
| Supply Ability | 200000 piece per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Stainless Steel Wire | Type | Weave Wire Mesh, Filter Disc |
|---|---|---|---|
| Width | 1CM - 100CM | Length | 1CM To 100CM |
| High Light | AISI316L 300 Micron Stainless Steel Mesh Filter Discs,AISI316L 2 Micron Stainless Steel Mesh Filter Discs,AISI316L wire mesh filter disc |
||
Product Description

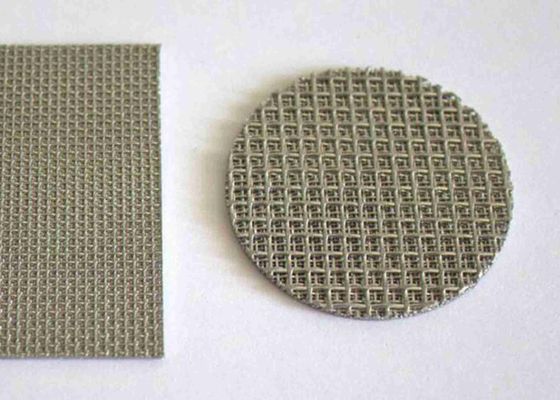

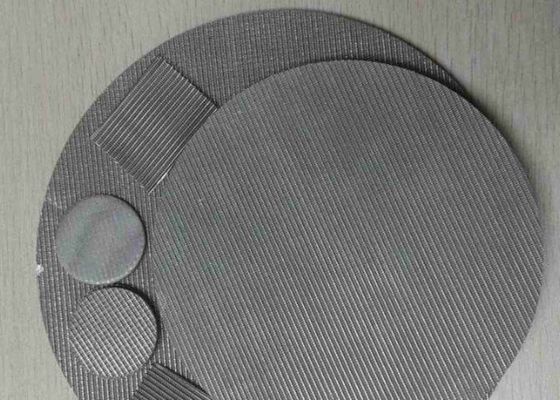

2 To 300 Micron High Filter Rating Stainless Steel Sintered Filter Disc
Introduction:
Stainless steel sintered wire mesh filter disc is made of multi-layer sintered woven mesh - plain dutch weave and plain weave type. As an important type of sintered metal filter mesh, our sintered filter discs can be manufactured in split and integral type used for drying and filtering. Sintered filter disc plate with long service life for drying, gas and liquid filtering in the pharmaceutical, petrochemical, food industry and chemical fiber industry.
Material :Stainless Steel ,Plain Steel ,Galvanized Steel,Aluminum, Brass (Copper) ,Phosphor or Bronze
Features: also named Punched Mesh, It can be supplied in folded or flat panels. From various metal plates, punched openings can be round, square, triangle, diamond, hexagonal, cross, etc.
Specifications:
Material: Monel wire and stainless steel AISI304, AISI316, AISI316L.
Diameter: 10 mm to 3000 mm.
Filter Rate: 2 microns to 300 microns.
Thickness: 1 mm to 5 mm.
Heat resistance: -200 °c - 600 °c continuous filtration.
| ROUND HOLES STAGGERED PATTERN | |||
| HOLE | CENTERS |
GAUGE / PLATE THICK. |
OPEN AREA |
| .020" RD | .045" Stag | 26 | 18% |
| 1/32" RD | 1/16" Stag | 22 | 23% |
| 3/64" RD | 5/64" Stag | 24 | 33% |
| 3/64" RD | 3/32" Stag | 22 thru 18 | 23% |
| 1/16" RD | 3/32"Stag | 22 thru 16 | 40% |
| 1/16" RD | 7/64" Stag | 20 thru 16 | 30% |
| 1/16" RD | 1/8" Stag | 26 thru 16 | 23% |
| 5/64" RD | 1/8" Stag | 22 thru 14 | 35% |
| 3/32" RD | 5/32" Stag | 24 thru 14 | 33% |
| 3/32" RD | 3/16" Stag | 24 | 23% |
| .117 RD | 5/32" Stag | 18 | 51% |
| 1/8" RD | 3/16" Stag | 24 thru 11 | 40% |
| 1/8" RD | 7/32" Stag | 14 thru 12 | 30% |
| 1/8" RD | 1/4" Stag | 14, 13 | 23% |
| 9/64" RD | 3/16" Stag | 18 | 51% |
| 5/32" RD | 3/16" Stag | 22 thru 16 | 63% |
| 5/32" RD | 1/4" Stag | 20 thru 10 | 35% |
| 3/16" RD | 7/32" Stag | 22 thru 16 | 67% |
| 3/16" RD | 1/4" Stag | 24 thru 12 | 51% |
| 3/16" RD | 5/16" Stag | 10, 3/16" | 33% |
| 3/16" RD | 3/8" Stag | 14 thru 10 | 23% |
| 1/4" RD | 5/16" Stag | 20 thru 16 | 58% |
| 1/4" RD | 3/8" Stag | 26 thru 1/4" | 40% |
| 17/64" RD | 5/16" Stag | 20 | 66% |
| 5/16"RD | 7/16" Stag | 20 thru 1/4" | 46% |
| 3/8" RD | 9/16" Stag | 20 thru 1/4" | 40% |
| 1/2" RD | 11/16" Stag | 20 thru 1/4" | 48% |
| 1/2" RD | 3/4" Stag | 16 | 40% |
| 5/8" RD | 7/8" Stag | 10 thru 1/4" | 46% |
| 3/4" RD | 1" Stag | 16 thru 1/4" | 51% |
| 1" RD | 1-3/8" Stag | 10 thru 1/4" | 48% |
| 1-1/4" RD | 1-5/8" Stag | 1/4" | 54% |
| 1-1/2" RD | 2" Stag | 1/4" | 51% |
| 2" RD | 2-1/2" Stag | 1/4" | 58% |
| 2-1/2" RD | 3" Stag | 3/16" | 63% |
| 3" RD | 3-1/2" Stag | 3/16" | 67% |
| 4" RD | 4-1/2" Stag | 10 | 72% |
Features:
Resistance to high temperature, high pressure, corrosion, acid, and alkali. High strength, high filter rating, good dirt holding capacity, repeated washing.
Applications: The opening size, density and forms of distribution can bring different functions in separation, sifting, filtration, drying, cooling, cleaning, etc.
Advantages
Performance and advantages of steel fiber mesh:
1.High dirt holding capacity,high filtering accuracy,longer on stream lifel.
2.Corrosion resistance of nitric acid,alkali, and organic solvent proof. It can be used for a long period of service in the temperature of 600℃.
3.High porosity and excellent permeability which results in low pressure drop and large flow.
4.Pleatable,provide a large filter area, and can be welded and machined.
5.Cleanable,can be used many times.
