5 Layers 1 To 200 Micron Stainless Steel Metal Mesh High Filtering Accuracy

  • 5 Layers 1 To 200 Micron Stainless Steel Metal Mesh High Filtering Accuracy
  • 5 Layers 1 To 200 Micron Stainless Steel Metal Mesh High Filtering Accuracy
  • 5 Layers 1 To 200 Micron Stainless Steel Metal Mesh High Filtering Accuracy
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Model Number TL S01
Minimum Order Quantity 100 Pieces
Price 0.1-5$ per piece
Packaging Details Inside with plastic film, outside with carton box or wooden box, and then in a pallet. It's also available as your requirements.
Delivery Time For the size we have in stock,5 working days
Supply Ability 200000 piece per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Steady Filter Rating Under High Pressure. Product Name 5 Layer Sintered Mesh
Material Stainless Steel Heat Resistance 600 ℃
Standard Size 480 Mm × 480 Mm, 480 Mm × 980 Mm, 500 Mm × 1000 Mm, 600 Mm × 1200 Mm, 610 Mm × 1219 Mm, 610 Mm × 1250 Mm, 1000 Mm × 1000 Mm, 1200 Mm × 1200 Mm, Etc Max Size 1.22m X 1.22m
Standard Thickness 1.7 Mm Filtration Accuracy 1 Micron To 200 Microns
Type Classification Sintered Dutch Woven Wire Mesh And Sintered Square Woven Wire Mesh Application Filtration Of Polymer, Food, Water, Cosmetic, Pharmacy, Chemicals And Hydraulic Fuels.
Highlight

200 Micron stainless wire mesh

,

1 micron sintered mesh screen

,

5 Layers stainless steel wire screen
Leave a Message
Product Description

5 Layers Sintered Mesh 1 to 200micron Filter Screen High Filtering Accuracy


Introduction:


Five-layer sintered mesh is a standard combination of five layers wire meshes with different openings and diameters through sintering (diffusion-bonding) in vacuum, which improves the characteristics of stainless steel woven wire mesh. By bonding the contact points of different wire meshes together, five-layer sintered mesh has become an integrated porous material with enhanced mechanical strength, high permeability and better structural integrity, because the sintering process remains the good filtration rating of the finest mesh layer, also the mechanical strength of the coarser support layers. Besides all of that, heat and pressure are combined to create molecular diffusion-welds at every intersection of the wire mesh where the wires cross over and under one-another, which in turn enhances the temperature and pressure resistance of the sintered mesh. For its distinct features, five-layer sintered mesh is widely used for diffusing, breather vents, filters in many areas such as gas distribution, polyester filtration, water treatment, etc.



Steel fiber mesh is composed of steel fiber mesh sintering together. Then it still have feature of web and porous construction, high strength,high stable construction in high temperature vacuum oven,it also has higher porosity,large specific area,and uniform distruction.These advantages make it ideal material of heat-resistant,corrosion-resiatant and high precision.These reusable,high quality filters are ideal for filtration and gas filter application.



Advantages

Performance and advantages of steel fiber mesh:
1. High dirt holding capacity,high filtering accuracy,longer on stream lifel.
2. Corrosion resistance of nitric acid,alkali, and organic solvent proof. It can be used for a long period of service in the temperature of 600℃.
3. High porosity and excellent permeability which results in low pressure drop and large flow.
4. Pleatable,provide a large filter area, and can be welded and machined.
5. Cleanable,can be used many times.

Specifications:



Material: Stainless steel 316 L, stainless steel 304, 304 L, 316, other materials can be made to order.
Filtration accuracy: 1 micron to 200 microns.
Heat resistance: 600 °C.
Standard thickness: 1.7 mm.
Standard size: 480 mm × 480 mm, 480 mm × 980 mm, 500 mm × 1000 mm, 600 mm × 1200 mm, 610 mm × 1219 mm, 610 mm × 1250 mm, 1000 mm × 1000 mm, 1200 mm × 1200 mm, other sizes can be designed as per customers' demand.
Maximum size: 1219 mm × 1219 mm.
Type classification: Sintered dutch woven wire mesh and sintered square woven wire mesh.


Nominal filter rating (µm) Structure
1 200 / 400 × 2800 / 200 / 12 × 64 / 64 × 12 100 / 400 × 2800 / 100 / 12 × 64 / 64 × 12
2 100 / 325 × 2300 / 100 / 12 × 64 / 64 × 12
5 100 / 200 × 1400 / 100 / 12 × 64 / 64 × 12
10 100 / 165 × 1400 / 100 / 12 × 64 / 64 × 12
15 100 / 165 × 1200 / 100 / 12 × 64 / 64 × 12
20 100 / 165 × 800 / 100 / 12 × 64 / 64 × 12
25 100 / 165 × 600 / 100 / 12 × 64 / 64 × 12
30 100 / 400 / 100 / 12 × 64 / 64 × 12 100 / 450 / 100 / 12 × 64 / 64 × 12
40 100 / 325 / 100 / 12 × 64 / 64 × 12
50 100 / 250 / 100 / 12 × 64 / 64 × 12
75 100 / 200 / 100 / 12 × 64 / 64 × 12
100 100 / 150 / 100 / 12 × 64 / 64 × 12
120 100 / 120 / 100 / 12 × 64 / 64 × 12
Note: 1. Porosity: 37%. 2. MIC: micron, L: layer.



Filtration property of five-layer sintered mesh


Air permeability L/min.dm2 Rating micron (µm) Bubble point pressure (Pa) 8%
200 2.5 - 7.5 5000
250 7.5 - 12.5 3700
350 12.5 - 17.5 2600
450 17.5 - 22.5 1950
550 27.5 - 35 1230
650 35 - 45 1020
750 45 - 60 860
900 60 - 80 690
950 80 - 120 630



Following is our product feature and applications:


Features:
• High precision of the mesh openings
• Uniform weave (no mesh striping)
• Exceptionally high yield point
• Very narrow thickness tolerances
• Large open area
• Firm mesh binding
• Easy to use (flat lying, no curl)
• No static charge		 Applications:
• Printed circuit boards
• Multilayers
• Thick film
• Soldering pastes for SMT
• Keypads
• Scales
• Glass printing
• Ceramic printing



• Optimum aperture precision
• Extremely tight thickness tolerances
• Firm mesh binding
• Large open area
• Uniform weave (no mesh striping)
• Exceptionally high yield point
• Optimum resistance to abrasion
• No static charge		 • Clean
• Easy to useApplications
• Bottles
• Flacons
• Drinking glasses
• Decorative glasses
• High value ceramic fittings
• Vases
• Crockery



 Layer Structure:

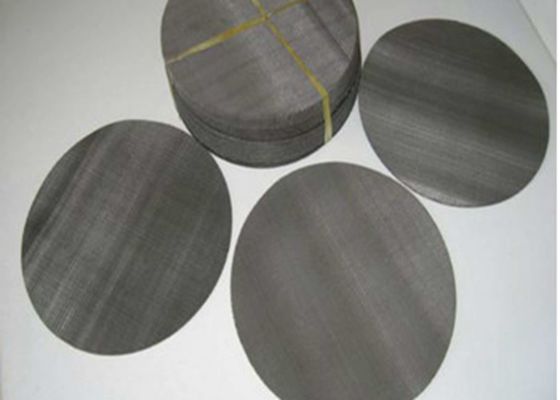

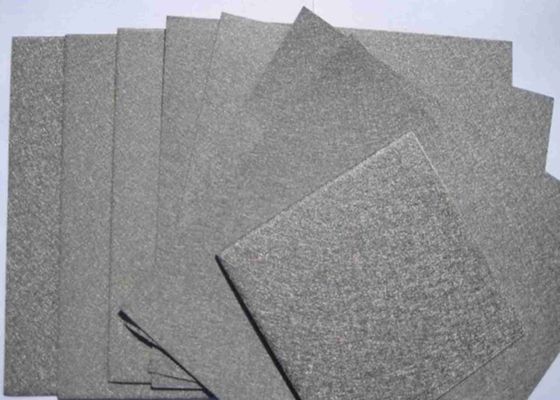

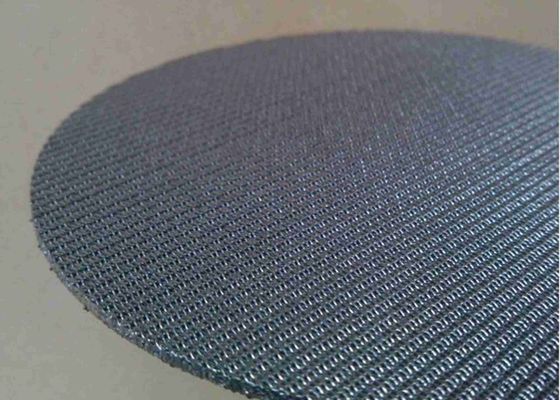

5 Layers 1 To 200 Micron Stainless Steel Metal Mesh High Filtering Accuracy 0




5 Layers 1 To 200 Micron Stainless Steel Metal Mesh High Filtering Accuracy 1



5 Layers 1 To 200 Micron Stainless Steel Metal Mesh High Filtering Accuracy 25 Layers 1 To 200 Micron Stainless Steel Metal Mesh High Filtering Accuracy 3
