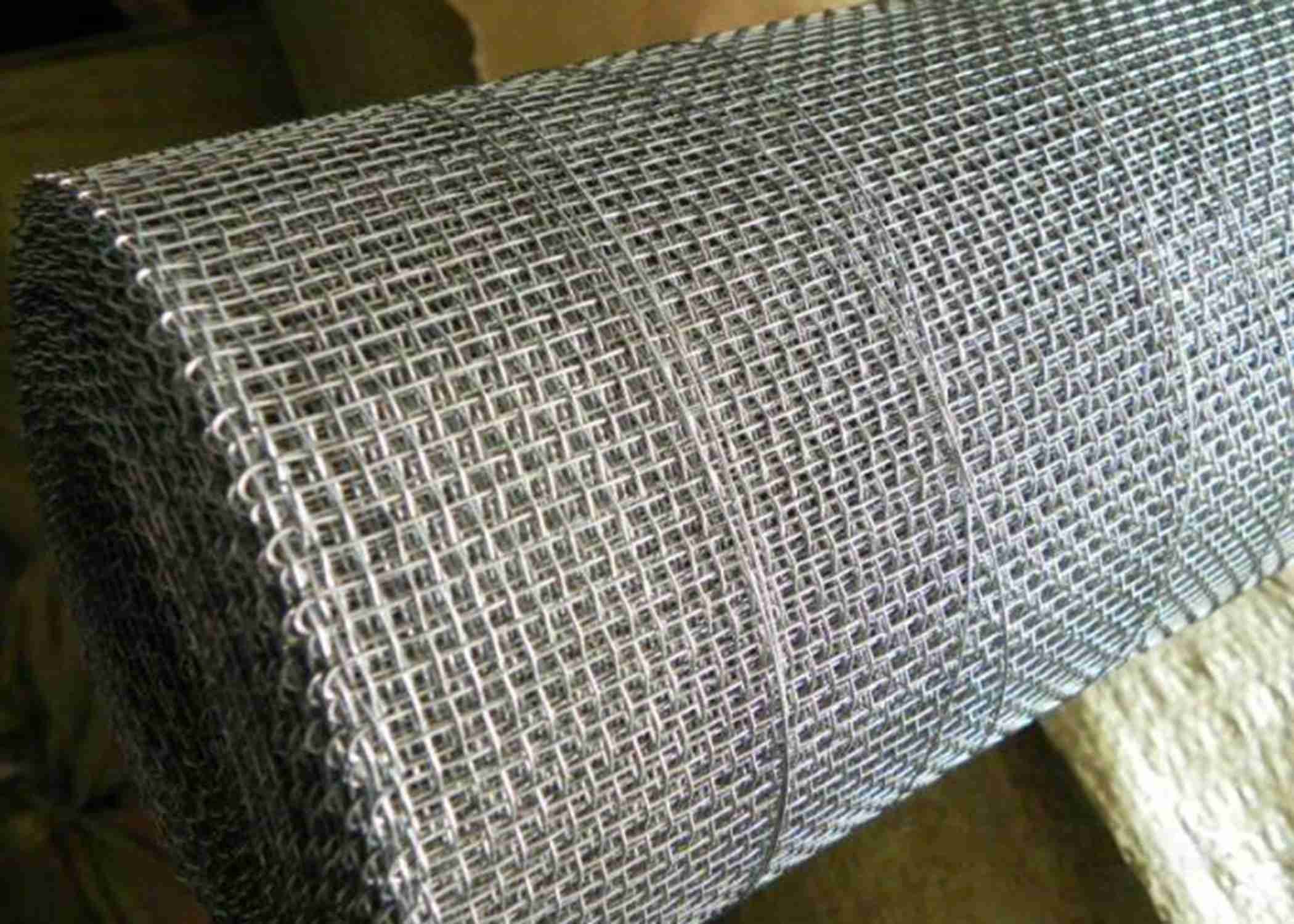

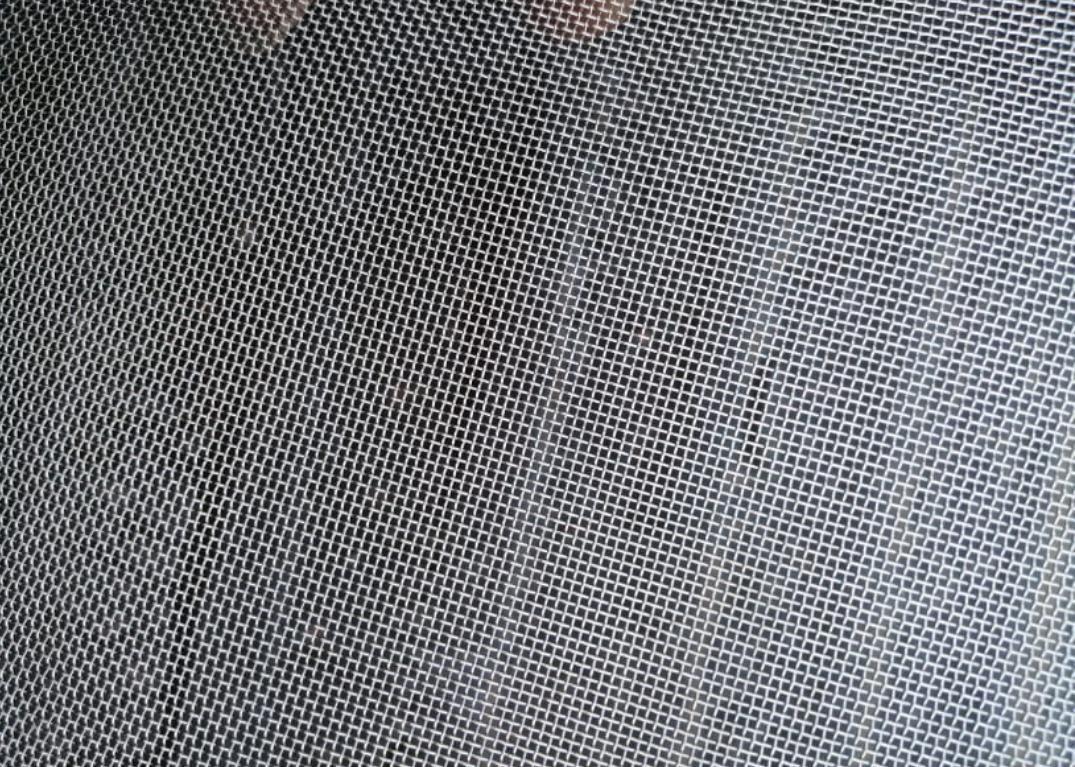

321 Ss Woven Mesh Scaling Resistance High Temperature

  • 321 Ss Woven Mesh Scaling Resistance High Temperature
  • 321 Ss Woven Mesh Scaling Resistance High Temperature
  • 321 Ss Woven Mesh Scaling Resistance High Temperature
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5 Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Scaling Resistance Product Name SS Woven Wire Mesh
Material SS321 Surface Bright Silver
Aperture Shape Square Mesh Size 2mesh/inch To 500mesh/inch
Weaving Type Plain Weave Wire Diameter 0.03mm To 8.0mm
Width 0.1 To 1.5m Application Widely Used In The High Temperature Applications Such As In Exhausts That Have Temperature Above 800of And Moderate Corrosive Conditions.
High Light

321 ss woven mesh

,

high temperature ss woven mesh

,

321 stainless steel woven wire mesh
Leave a Message
Product Description

Stainless Steel 321 Mesh With Scaling Resistance Used In The High Temperature



Introduction



Stainless Steel 321 Mesh is widely used in the high temperature applications such as in exhausts that have temperature above 800of and moderate corrosive conditions. It is resistant to scaling and vibration fatigue. Stainless steel 321 grade consists of titanium by 5 times of carbon concentration. This decreases or prevents chromium carbide precipitation allowing welding or exposure at the elevated temperatures. Stainless steel 321 mesh is a stabilized austenitic stainless steel with high creeping strength. The complete stabilization is received by annealing up to 1850oF.



Stainless steel 321 is insensitive to intergranular attack when heated within the precipitation limit of 425oC to 850oC. It is a recommended choice for applications where temperature goes high up to 900oC. It has high strength, scaling resistance and phase stability and prevents aqueous corrosion attack.




321Stainless Steel Mesh Chemistry:



C

Mn

Cr

Ni

Ti

P

S

Si

N

0.08

2

17 – 19

9 to 12

0.70

0.040

0.030

0.75 %

0.1

Specifications:



Woven Style: Plain and Twill Weave
Mesh Counts: 3-500Mesh
Diameter: 0.025mm-2.2mm
Roll Width: 0.1-1.5m
Roll Length: 10-100m



Mesh Inch SWG

Wire Diameter

(mm)

Aperture

(mm)

Effective

(%)
3mesh 14 2.2 6.27 62
3mesh 18 1.219 7.25 70
3.5mesh 20 0.914 6.34 66
4mesh 16 1.63 4.72 58
4mesh 20 0.914 5.45 76
4.5mesh 22 0.711 4.93 71
5mesh 18 1.22 3.86 57
5mesh 22 0.711 4.36 76
6mesh 18 1.22 3.04 50
6mesh 22 0.711 3.52 63
8mesh 20 0.91 2.26 43
8mesh 24 0.559 2.5 67
10mesh 20 0.91 1.63 41
10mesh 26 0.46 2.08 67
12mesh 22 0.71 1.41 43
12mesh 26 0.457 1.74 68
14mesh 26 0.46 1.36 57
16mesh 28 0.376 1.21 55
18mesh 30 0.315 1.1 60
20mesh 30 0.315 0.95 58
22mesh 32 0.274 0.88 57
24mesh 32 0.274 0.78 55
26mesh 32 0.274 0.74 51
28mesh 34 0.234 0.67 50
30mesh 34 0.234 0.61 48
32mesh 34 0.234 0.56 50
36mesh 34 0.234 0.47 45
38mesh 36 0.193 0.48 46
40mesh 36 0.193 0.44 50
50mesh 38 0.152 0.36 46
60mesh 40 0.122 0.3 50
80mesh 40 0.12 0.198 44
100mesh 42 0.1 0.154 37
120mesh 44 0.081 0.13 40
130mesh 45 0.07 0.125 41
140mesh 45 0.07 0.111 38
150mesh 46.5 0.055 0.115 48
160mesh 46 0.61 0.097 32
170mesh 47 0.05 0.09 41
180mesh 47 0.051 0.09 410
190mesh 47 0.051 0.083 40
200mesh 48 0.041 0.086 46
220mesh 48 0.041 0.074 41
240mesh 48 0.041 0.065 39
250mesh 48 0.041 0.061 38
260mesh 48 0.041 0.057 34
280mesh 49 0.031 0.06 31
300mesh 49 0.031 0.054 40
320mesh 49 0.031 0.048 39
350mesh 49 0.031 0.042 36
400mesh 50 0.025 0.0385 39
450mesh 50 0.025 0.0314 37
500mesh 50 0.025 0.0258 35


Other specifications according to your request.

321 Ss Woven Mesh Scaling Resistance High Temperature 0





321 Stainless Steel Mesh Available Types:



321 Ss Woven Mesh Scaling Resistance High Temperature 1

2205 Duplex Stainless Steel Mesh Property Data:



Tensile strength

Yield strength

Elongation %

Hardness, Rockwell B

Hardness, Brinell HB

515

205

40

95

217



SS 321 Mesh Corrosion Resistance:



SS 321 is resistant to pitting and crevice corrosion in the hot chloride conditions and to stress corrosion cracking above 60oC. It offers good resistance to potable water with about 200 mg/l chlorides at ambient temperatures.



Great oxidation resistance in the intermittent applications up to 900oC and in regular service up to 925oC. Grade 321 offers good performance in the range of 425oC to 900oC and specifically in aqueous media. It has high hot strength and is used in the elevated temperature structural applications.



Applications:



T-321 stainless steel wire cloth is principally used in oil field & refinery, mining & quarrying, and aerospace industries. T-321 wire cloth is also commonly used in the chemical processing industry. Additional industries and applications which commonly use T-321 stainless steel wire cloth include:

SUBMIT RFQ
Food Processing
Liquid Filtration & Particle Separation
Pressure Vessels
Waste Treatment



Packing:



321 Ss Woven Mesh Scaling Resistance High Temperature 2
