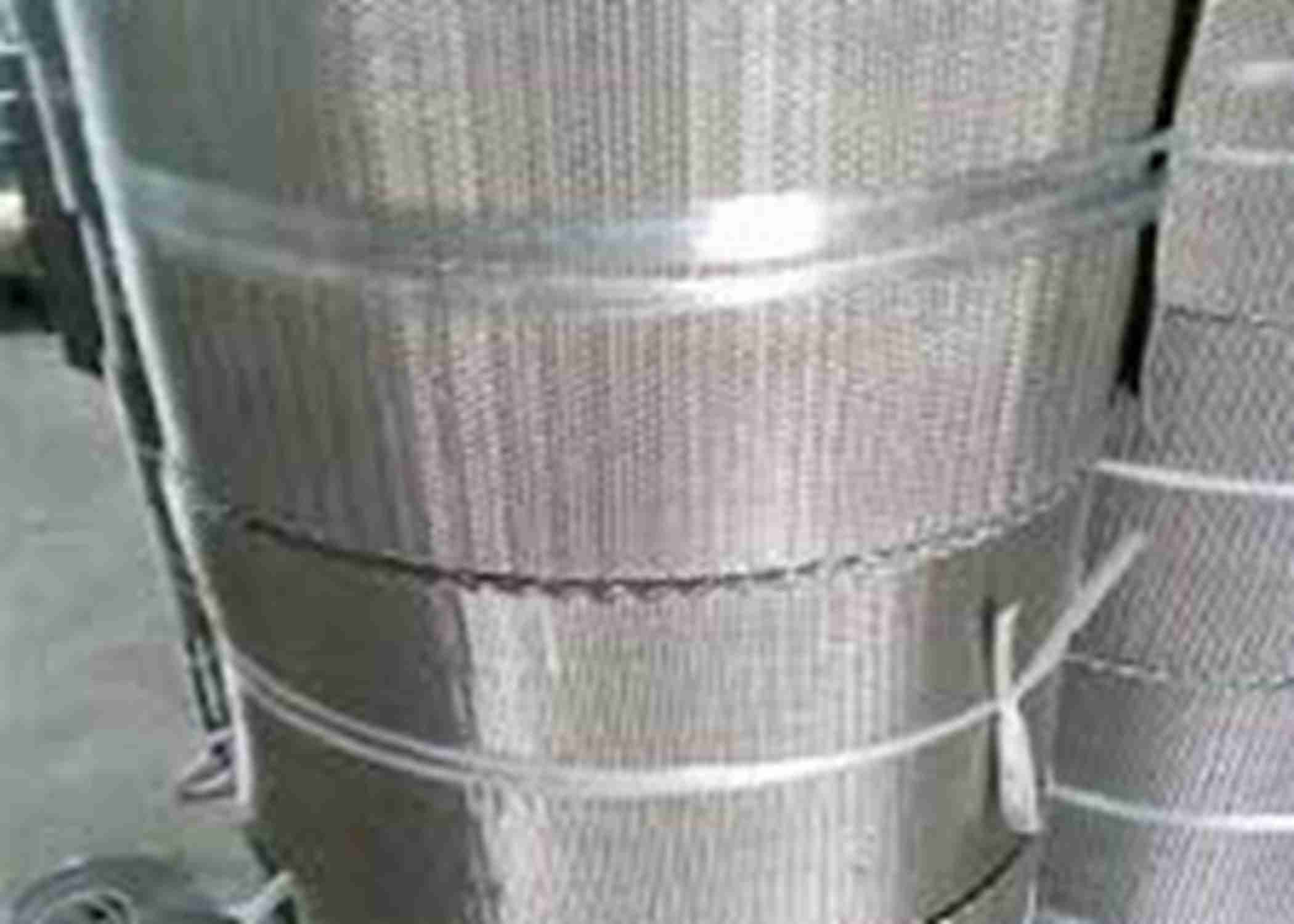

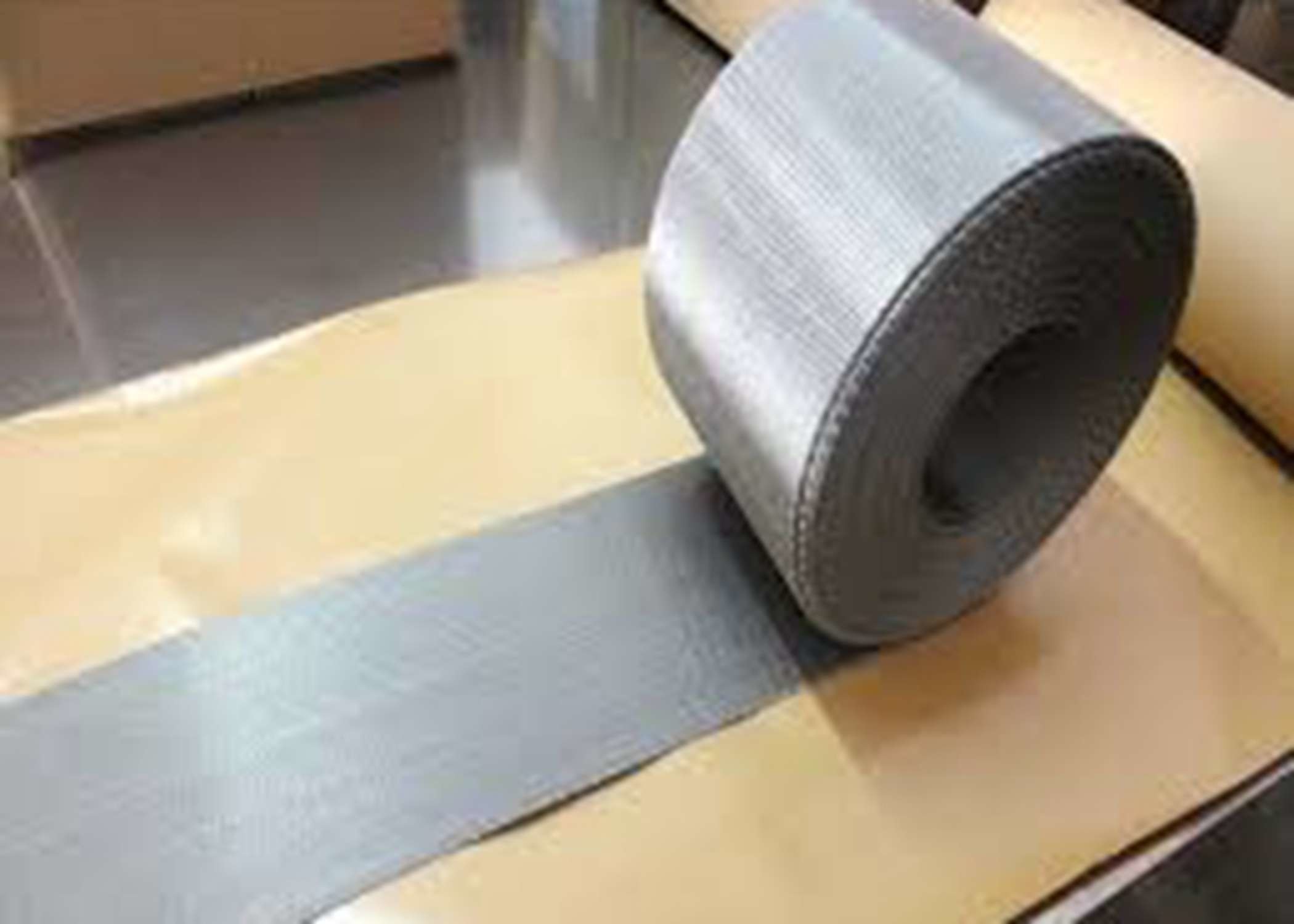

SS316 Stainless Steel Filter Mesh

  • SS316 Stainless Steel Filter Mesh
  • SS316 Stainless Steel Filter Mesh
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5 Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name SS Woven Wire Mesh Material Stainless Steel 304 316
Surface Bright Silver Hole Shape Square Hole
Weaving Type Plain Dutch Weave Mesh Counts 50 X 250
Wire Diameter 0.14mm × 0.112mm Roll Width 48" Or 1.22m
Length 100' Or 30.5m Application Filtration Industry
High Light

SS316 Stainless Steel Filter Mesh

,

ss304 Stainless Steel Filter Mesh

,

0.14mm stainless wire mesh
Leave a Message
Product Description

Plain Dutch Weave 50 × 250Mesh SS304 and SS316 SS Woven Wire Mesh



Stainless Steel Plain Dutch Weave Wire Mesh



In a Plain Dutch Weave, the diameter of the warp wire is larger than the weft, and the mesh is formed by weaving a limited number of warps with the maximum number of weft wires woven tightly together, producing a cloth with no readily visible apertures. This mesh is strong and stable, easy to clean and with a good flow rate suitable for high pressure liquid/solid separation.



50X250 mesh plain dutch weave stainless steel wire mesh. Using 0.14X0.112mm diameter wire, by plain dutch weaving, woven 50X250 mesh opening for 53μm liquid or gas filter material. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.





Specifications



Roll Width: 0.2m-1.6m

Roll Length: 10m, 20m, 30m; 100ft

Mesh Counts Wire Diameter Aperture Weight
mm Inch um kgs/㎡ lbs/㎡
50×250 0.14 X 0.112 0.0055×0.0044 53 1.03 2.26



Common Specifications of Plain Dutch Wire Mesh



Mesh Counts

warp×weft

(Mesh/Inch)

Wire Diameter

warp×weft

(mm)

Aperture Size

(μm)

Weight

(kg/㎡)

Thickness

(mm)
7×40 0.9×0.71 347 6.65 2.32
7×44 0.71×0.63 319 5.55 1.97
8×45 0.8×0.6 310 5.7 2.00
8.5×60 0.63×0.45 296 4.16 1.53
8×85 0.45×0.315 275 2.73 1.08
10×90 0.45×0.28 249 2.57 1.01
10×76 0.5×0.355 248 3.24 1.21
12×86 0.45×0.315 211 2.93 1.08
12×64 0.56×0.4 3.89 1.36
12.5×76 0.45×0.355 192 3.26 1.16
14×100 0.40×0.28 182 2.62 0.96
14×110 0.355×.0.25 177 2.28 0.855
14×76 0.45×.0.355 173 3.33 1.16
16×100 0.4×0.28 160 2.7 0.96
17×120 0.355×0.224 155 2.19 0.803
16×120 0.28×0.224 145 1.97 0.728
20×140 0.315×0.20 133 0.715
20×170 0.25×0.16 130 1.56 0.57
20×110 0.355×0.25 126 2.47 0.855
22×120 0.315×0.224 115 2.20 0.763
25×140 0.28×0.2 100 1.96 0.68
24×110 0.355×0.25 97 2.60 0.855
28×150 0.28×0.18 92 1.87 0.64
30×150 0.25×0.18 82 1.79 0.61
30×140 0.315×0.20 77 2.21 0.715
35×190 0.224×0.14 74 1.47 0.504
35×170 0.224×0.16 69 1.62 0.544
40×200 0.18×0.135 63 1.24 0.43
45×250 0.16×0.11 56 1.11 0.384
50×300 0.16×0.09 55 0.98 0.34
60×500 0.14×0.055 51 0.70 0.252
50×270 0.14×0.10 50 0.98 0.34
70×930 0.10×0.03 30 0.39 0.16
65×390 0.125×0.071 42 0.78 0.267
60×300 0.14×0.09 41 0.96 0.32
80×700 0.125×0.04 40 0.60 0.205
60×270 0.14×0.1 39 1.03 0.34
77×560 0.14×0.05 38 0.74 0.24
80×600 0.1×0.045 37 0.53 0.19
70×390 0.112×0.071 0.74 0.254
65×750 0.10×0.036 36 0.43 0.172
70×340 0.125×0.08 35 0.86 0.285
80×430 0.125×0.063 32 0.77 0.251
100×1200 0.063×0.023 23 0.27 0.109
118×750 0.063×0.036 0.38 0.135



Characteristics:



1. Warp wire has bigger dia than shute wire
2. Shute wires are possibly bound close to each other
3. High accuracy
4. Nominal or no pressure loss while filtration
5. Supreme filtration surface
6. More stable than square and rectangular wire mesh



Features:



Stainless Steel Dutch Plain Weave Filter Mesh Screen is made of high quality, high strength stainless steel wire. The mesh has so many advantages,such as advanced equipment and production technology, smooth surface, high hardness,constant mesh, no deformation, high temperature resistance, corrosion resistance, flexible network, with excellent filtration performance.



Material: SS304, SS304L, SS316, SS316L



Weaving Methods:



Plain Dutch Weave("Warp×Weft" same meaning to "Warp×Shute")

AISI/SUS/DIN/JIS Standard, SS304 & SS316 Filter Cloth, (PDW) 50*250Mesh



Application:



Mining, chemical, food, petroleum, medicine, etc. Mainly used in gas, liquid filtration and other media separation.
1. Petroleum industry
2. Pharmaceutical industry
3. Food industry
4. Water treatment industry
5. Chemical industry
6. Paper making industry
7. Plastic recycling industry



AISI/SUS/DIN/JIS Standard, SS304 & SS316 Filter Cloth, (PDW) 50*250Mesh


Fine Stainless Steel 316 316L Wire Cloth, 400Mesh Plain Weave 0.001" Wire 48" Wide


Packing:

SS316 Stainless Steel Filter Mesh 3
