650 Mesh SS Woven Wire Mesh
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | SS Woven Wire Mesh | Material | SS316L |
---|---|---|---|
Surface | Bright Silver | Hole Shape | Square Hole |
Weaving Type | Twill Dutch | Mesh Counts | 650 |
Roll Width | 48" Or 1.22m | Length | 100' Or 30.5m |
Properity | Low Internal Resistance | Application | Oil Fine Filter, Screening Chemical Additives, Gas Flow Control, Etc |
High Light | SS316L 650 Mesh SS Woven Wire Mesh,SS316L SS Woven Wire Mesh,TENGLU SS316L 48" metal woven wire mesh |

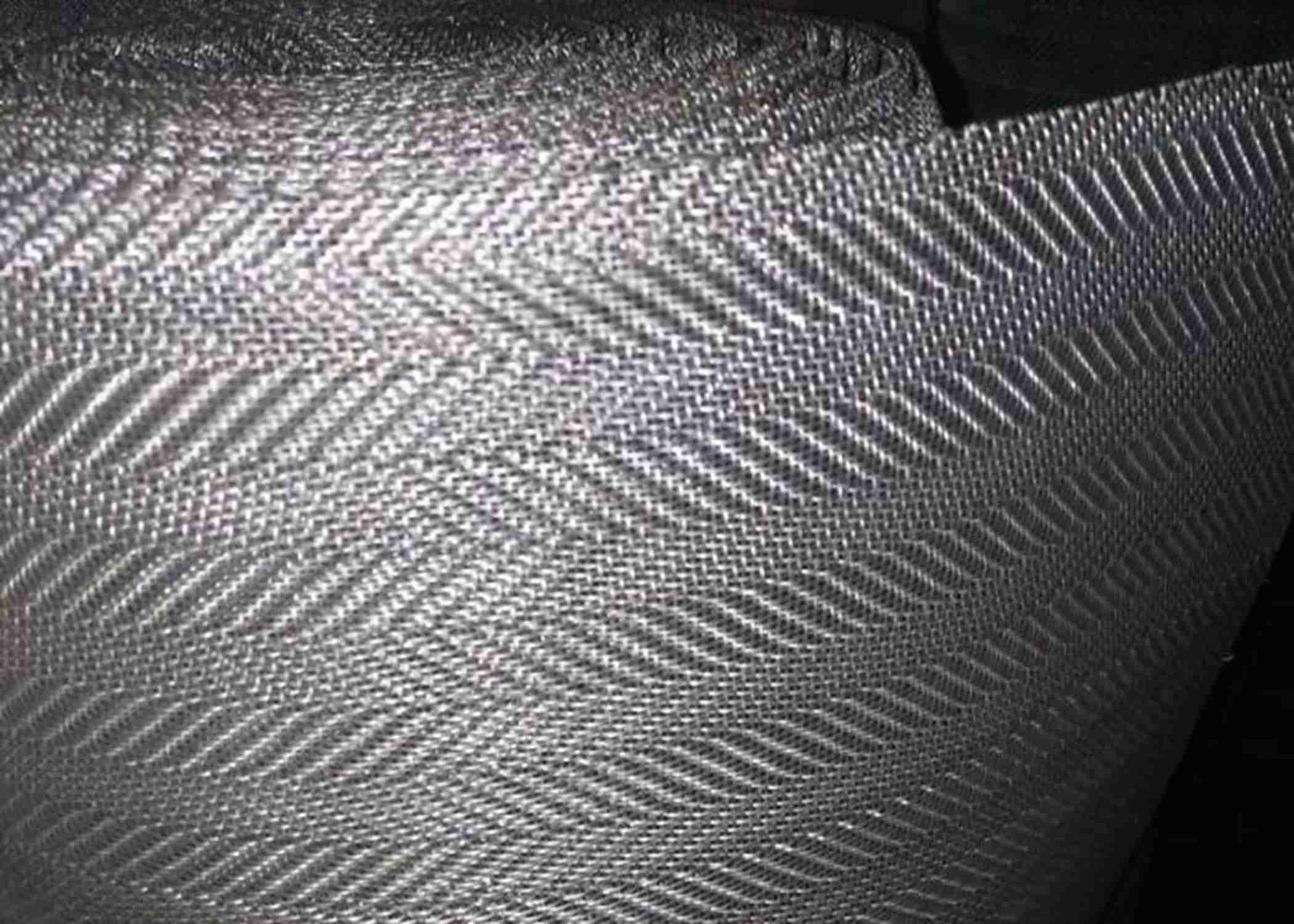

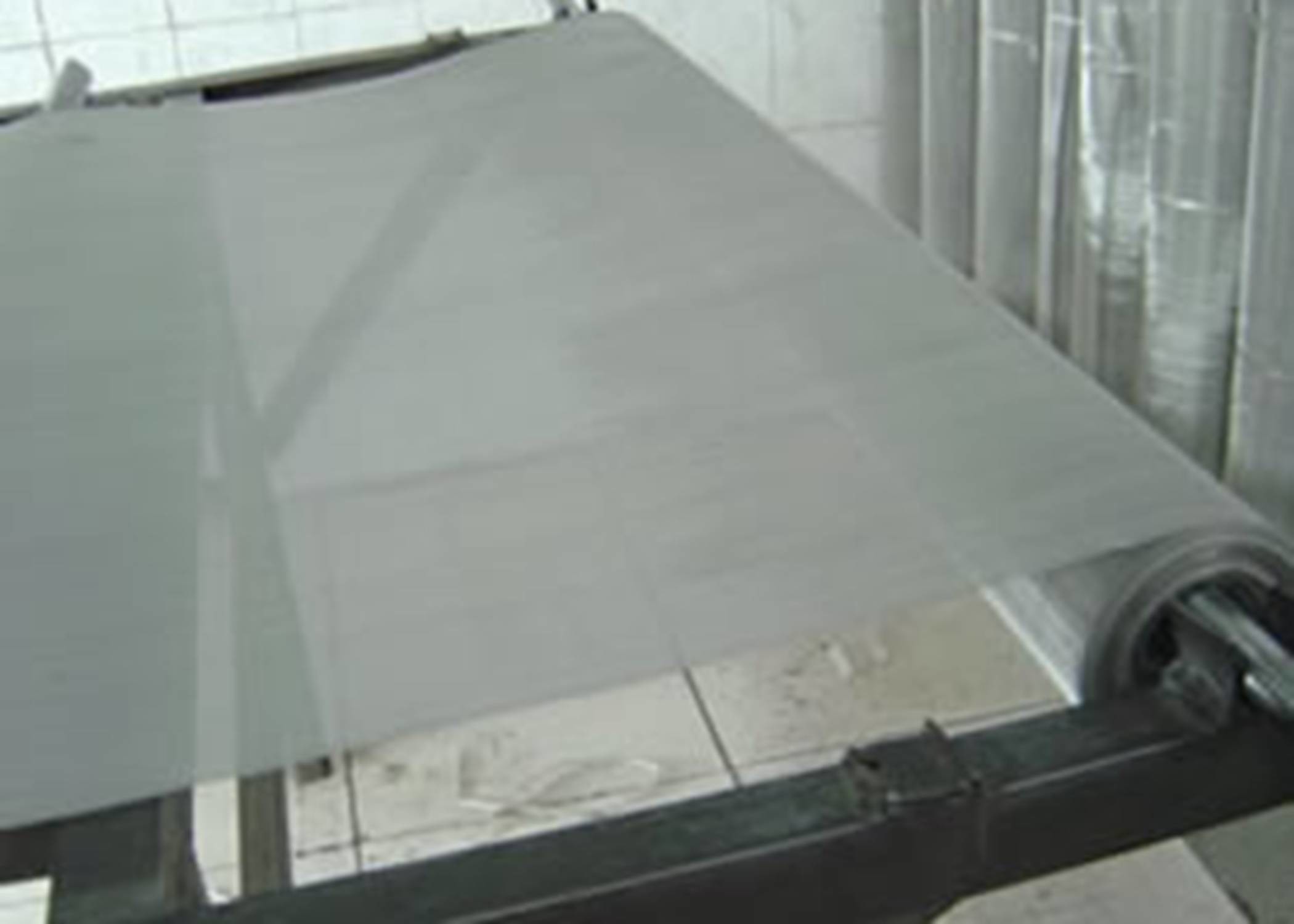

650Mesh Twilled Weave Square Hole High Rating 316LSS Woven Wire Mesh
650mesh counts wire mesh Introduction:
Twilled weave square wire mesh:
In cases where increased wire thickness is required in relation to the aperture size, which yield in the weaving process cannot withstand, this style of weave is chosen. At least two wires are woven in pairs, subsequently displacing a single wire. Mesh stability is controlled by a combination of aperture size and wire strength, and displays a slight diagonal trend.
650 mesh twill weave stainless steel wire mesh including 650 wires and openings per inch. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. 650mesh is the biggest hole number per inch we can weave.
Materials: SS316L.
Material | Description | AISI/UNS |
DIN1.4404 | X2 Cr Ni Mo 17 12 2 | 316L |
Specifications:
MESH Count | Diameter of Wire | Width of Opening | Open Area | Weight | ||
% per | Pounds | |||||
per Inch | Inches | mm | Inches | mm | 100 Sq. Ft. | per 100Sq.Ft |
12 x 12 | 0.032 | 0.81 | 0.051 | 1.3 | 37.9 | 78.8 |
14 x 14 | 0.028 | 0.71 | 0.043 | 1.1 | 37 | 70.4 |
16 x 16 | 0.023 | 0.58 | 0.04 | 1 | 39.9 | 54.3 |
20 x 20 | 0.021 | 0.53 | 0.029 | 0.74 | 33.6 | 56.6 |
30 x 30 | 0.015 | 0.38 | 0.018 | 0.47 | 30.3 | 43.3 |
35 x 35 | 0.014 | 0.36 | 0.015 | 0.37 | 26 | 44 |
40 x 40 | 0.012 | 0.31 | 0.013 | 0.33 | 27 | 36.9 |
50 x 50 | 0.011 | 0.28 | 0.009 | 0.229 | 20.3 | 38.8 |
50 x 50 | 0.0055 | 0.14 | 0.015 | 0.37 | 52.6 | 9.7 |
60 x 60 | 0.011 | 0.28 | 0.0057 | 0.144 | 11.6 | 46.6 |
60 x 60 | 0.0045 | 0.114 | 0.012 | 0.31 | 53.3 | 7.8 |
80 x 80 | 0.007 | 0.178 | 0.0055 | 0.14 | 19.4 | 25.1 |
100 x 100 | 0.005 | 0.127 | 0.005 | 0.127 | 25 | 16 |
120 x 120 | 0.0042 | 0.107 | 0.0041 | 0.105 | 24.6 | 13.6 |
120 x 120 | 0.004 | 0.102 | 0.0043 | 0.11 | 27 | 12.3 |
150 x 150 | 0.003 | 0.076 | 0.0037 | 0.093 | 30.3 | 8.7 |
180 x 180 | 0.0025 | 0.064 | 0.0031 | 0.078 | 30.3 | 7.2 |
200 x 200 | 0.0025 | 0.064 | 0.0025 | 0.064 | 25 | 8 |
200 x 200 | 0.0023 | 0.058 | 0.0027 | 0.069 | 29.2 | 6.8 |
270 x 270 | 0.0016 | 0.041 | 0.0021 | 0.053 | 32.3 | 4.4 |
300 x 300 | 0.0015 | 0.038 | 0.0018 | 0.047 | 30.3 | 4.3 |
325 x 325 | 0.0014 | 0.036 | 0.0017 | 0.043 | 29.7 | 4.1 |
400 x 400 | 0.001 | 0.025 | 0.0015 | 0.038 | 36 | 2.6 |
Weaving Type:
Twilled weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.
Features:
Durability with good abrasion resistance.
Smooth surface.
Square mesh.
Good chemical resistance, especially against solvents.
Excellent mechanical strength.
Easy to cut to size with wire cutters, tin snips or metal shears.
Applications:
Filters and Laboratories
Electronic Ciggaretts for Wicking Material
Seiving and Straining of the Fines Powders
Injection Powders
Dusts Selection
Screening Chemical Additives
Oil Fine Filter
Gas Flow Control
