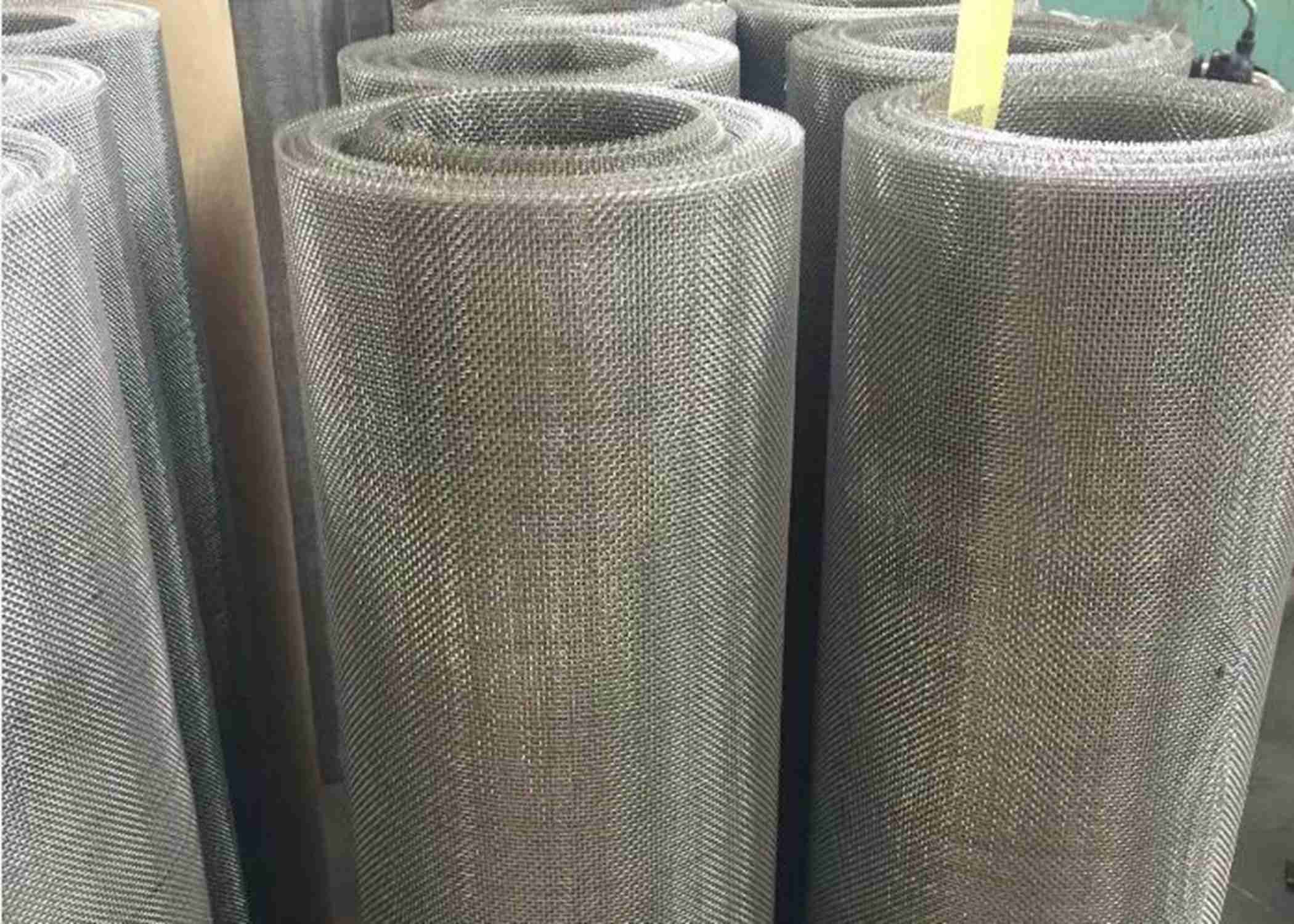

12 To 80 Mesh 304 Stainless Steel Mesh Screen Medium Plain
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | SS Woven Wire Mesh | Material | Stainless Steel |
---|---|---|---|
Surface | Bright Silver | Aperture Shape | Square |
Mesh Counts | 12 To 80 Mesh | Corase Or Medium Or Fine | Medium Type Mesh |
Roll Width | Customized | Standard Length | Customized |
Properity | Superior Corrosion Resistance | Application | Filtration |
High Light | 80 Mesh 304 stainless steel mesh screen,304 stainless steel mesh screen,12 mesh plain weave mesh |
12 to 80 Mesh Medium Mesh Stainless Steel Plain SS Woven Wire Mesh
Medium Woven Mesh Introduction
We are specialized in producing and distributing stainless steel wire mesh, stainless steel wire cloth, stainless steel woven mesh, stainless steel filter mesh, stainless steel hardare cloth, stainless steel window screening,woven hardare cloth,stainless steel screen. Materials commonly with SUS201, SUS302, SUS304, 304L, SUS316, SUS316L, 310, 310S, etc.
12Mesh Specifications:
Specifications | US | Metric |
Mesh Size | 12/Inch | 12/2.54cm |
Wire Diameter | 0.023” | 0.584mm |
Width | 48” | 1.22m |
Length | 100ft | 30.5m |
Packing: Water-proof paper first then plastic film, in wooden case or pallets. | ||
Nearest Port: Tianjin(By Sea); Beijing(By Air). |
Medium Standard Specifications:
Mesh/Inch | Wire Diameter | Aperture | Open Area | Weight(LB) /100 Square Foot | ||
Inch | MM | Inch | MM | |||
12X12 | 0.023 | 0.584 | 0.06 | 1.52 | 51.8 | 42.2 |
12X12 | 0.02 | 0.508 | 0.063 | 1.6 | 57.2 | 31.6 |
14X14 | 0.023 | 0.584 | 0.048 | 1.22 | 45.2 | 49.8 |
14X14 | 0.02 | 0.508 | 0.051 | 1.3 | 51 | 37.2 |
16X16 | 0.018 | 0.457 | 0.0445 | 1.13 | 50.7 | 34.5 |
18X18 | 0.017 | 0.432 | 0.0386 | 0.98 | 48.3 | 34.8 |
20X20 | 0.02 | 0.508 | 0.03 | 0.76 | 36 | 55.2 |
20X20 | 0.016 | 0.406 | 0.034 | 0.86 | 46.2 | 34.4 |
24X24 | 0.014 | 0.356 | 0.0277 | 0.7 | 44.2 | 31.8 |
30X30 | 0.013 | 0.33 | 0.0203 | 0.52 | 37.1 | 34.8 |
30X30 | 0.012 | 0.305 | 0.0213 | 0.54 | 40.8 | 29.4 |
30X30 | 0.009 | 0.229 | 0.0243 | 0.62 | 53.1 | 16.1 |
35X35 | 0.011 | 0.279 | 0.0176 | 0.45 | 37.9 | 29 |
40X40 | 0.01 | 0.254 | 0.015 | 0.38 | 36 | 27.6 |
50X50 | 0.009 | 0.229 | 0.011 | 0.28 | 30.3 | 28.4 |
50X50 | 0.008 | 0.203 | 0.012 | 0.31 | 36 | 22.1 |
60X60 | 0.0075 | 0.191 | 0.0092 | 0.23 | 30.5 | 23.7 |
60X60 | 0.007 | 0.178 | 0.0097 | 0.25 | 33.9 | 20.4 |
70X70 | 0.0065 | 0.165 | 0.0078 | 0.2 | 29.8 | 20.8 |
80X80 | 0.0065 | 0.165 | 0.006 | 0.15 | 23 | 23.2 |
80X80 | 0.0055 | 0.14 | 0.007 | 0.18 | 31.4 | 16.9 |
Other specifications according to your requirements.

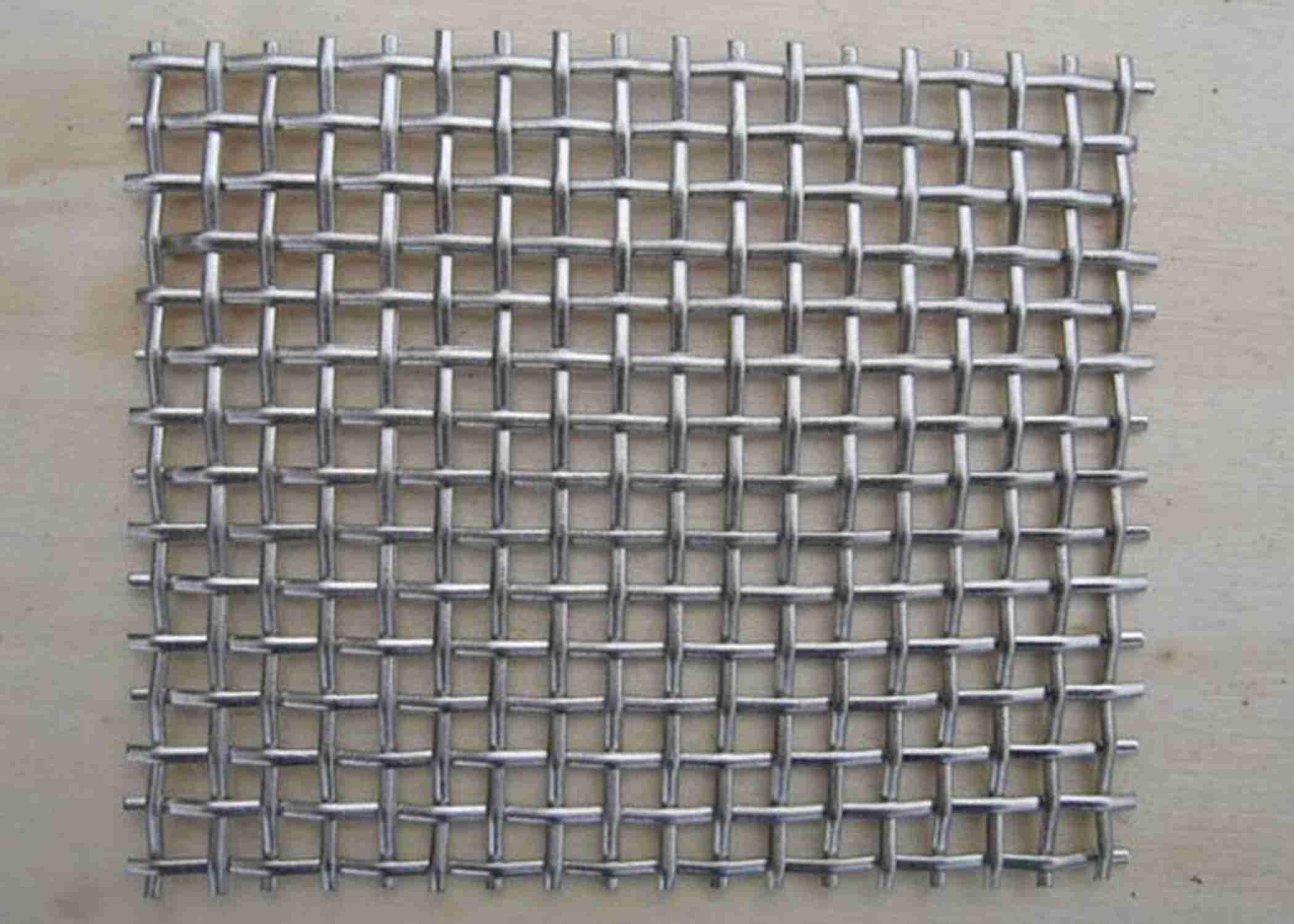

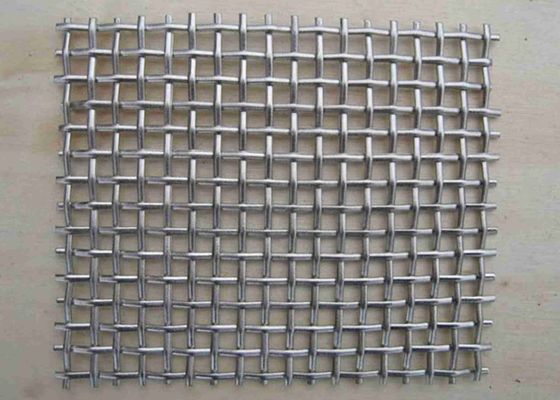

Plain Weave:
also called tabby weave, linen weave or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.
Characteristics:
Square Wire Mesh made of selected plain steel wire offers precise construction, uniform opening, excellent corrosion resistance and rust resistance resistance.
Square aperture, high flow through and relative high open area, as result less pressure drop during filtration.
Meantime stainless steel square mesh also has the features of acid resistance , alkaline-resisting property, heat-resisting feature, wear-resistant and high temperature property.
Applications:
This kind of stainless steel wire mesh are widely used in such fields as environmental protection, pharmaceutical industry, chemical industry, food industry, mechanical industry, smelting industry, mining, paper making, cement, construction industry, decoration, aeronautics and astronautics and so on.
Packing:
