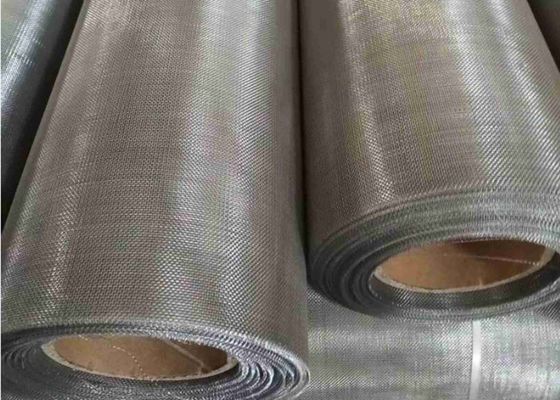

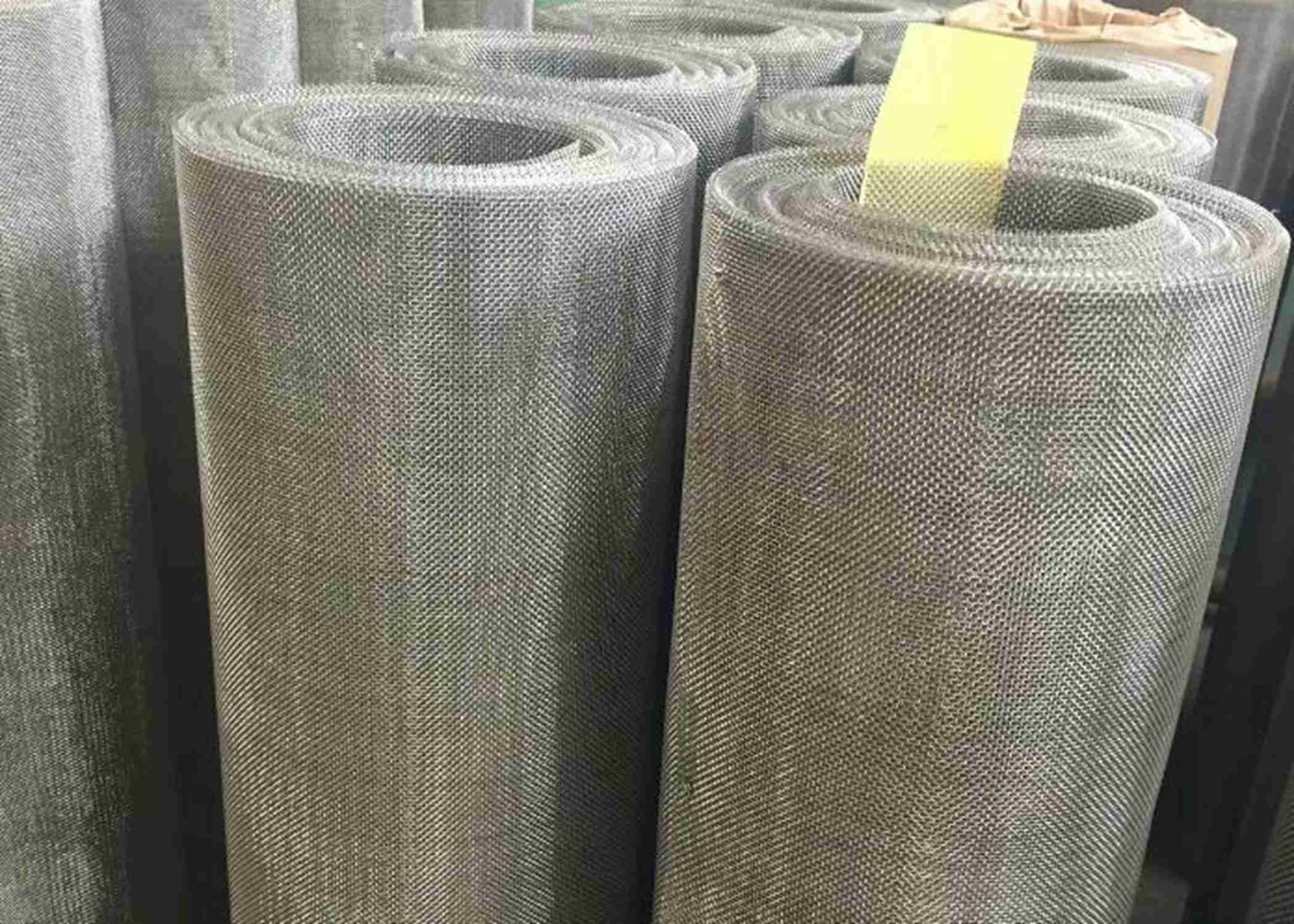

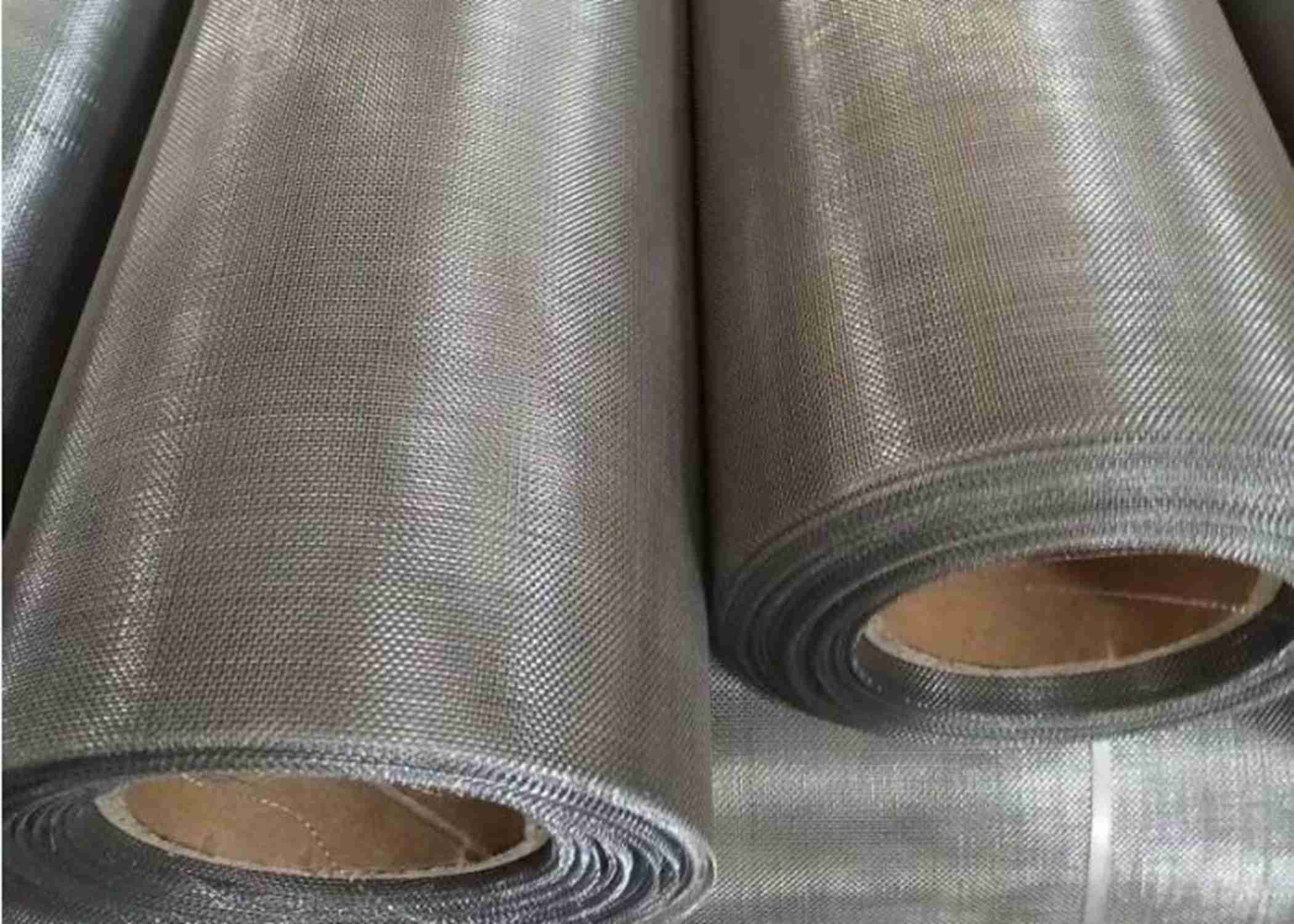

Plain Weave 201 302 SS Woven Wire Mesh 120×110 Mesh

  • Plain Weave 201 302 SS Woven Wire Mesh 120×110 Mesh
  • Plain Weave 201 302 SS Woven Wire Mesh 120×110 Mesh
  • Plain Weave 201 302 SS Woven Wire Mesh 120×110 Mesh
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5 Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name SS Woven Wire Mesh Stainless Steel 200, 300, 400 Series
Surface Bright Silver Aperture Shape Rectangle Aperture
Mesh Counts 120*110, Etc Wire Diameter 0.08mm, Etc
Roll Width Customized Standard Length Customized
Properity Anti Rust Application Filtration
Highlight

302 SS Woven Wire Mesh

,

201 SS Woven Wire Mesh

,

110 Mesh ss steel mesh
Leave a Message
Product Description

Stainless Steel Rectangle Aperture Plain Weave SS Woven Wire Mesh



Rectangle Aperture Wire Mesh Introductioin



The Plain Wire Cloth Weave is the most common wire cloth used and it is one of the simplest wire cloths. The plain wire cloths are not crimped before weaving, and each warp wire passes over / under the wires running through the cloth at 90 degree angles.



Warp and weft wire diameters are generally the same, sizes of aperture are not the same . Used for the majority of commercial applications and for filtration where a high flow rate is required.



Standard Specifications:



Mesh Counts

Warp×weft

 Wire Diameter(mm)

Apertures(mm)

Warp×weft
120×110 0.08 0.13×0.17
110×100 0.09 0.14×0.16
100×90 0.10 0.15×0.18
90×80 0.10 0.18×0.15
80×70 0.12 0.20×0.24
70×60 0.15 0.21×0.27
60×50 0.18 0.24×0.33
30×26 0.34 0.51×0.64
… … …



Other specifications according to your requirements.



Plain Weave 201 302 SS Woven Wire Mesh 120×110 Mesh 0


Materials:



200 series : 201, 202, 205
300 series : 301, 302, 304, 304L, 309, 309S, 310, 310S, 316, 316L, 321
400 series : 410, 420, 430

" " means most common stainless steel grade.



Copper alloy, aluminum alloy, nickel alloy, carbon steel... are available.


Features:



High abrasion resistance – longer life;
Resistance to chemical and atmospheric corrosion;
Mechanical strength unaffected by high heat;
Easily cleaned and ideal for food industry, etc.


Applications:


Used in mining, petroleum, chemical, food, medicine, machinery manufacturing another industries.
Used in conditions of acid, alkali environment for screening and filter, oil industry as mud nets,
chemical fiber industry, as a sieve mesh, insect screen for window/doors, plating industry as pickling nets. Our factory can design and product various types of products according to uyour needs.



Simple Drawing of Rectangle Hole



S.S. 200/300/400 Series Wire Mesh, Rectangle Aperture With Plain Weave







Packing:

Plain Weave 201 302 SS Woven Wire Mesh 120×110 Mesh 2
