AISI Ultra Thin 0.018mm To 0.12mm SS 304 Wire Mesh 80 To 400 Mesh

  • AISI Ultra Thin 0.018mm To 0.12mm SS 304 Wire Mesh 80 To 400 Mesh
  • AISI Ultra Thin 0.018mm To 0.12mm SS 304 Wire Mesh 80 To 400 Mesh
  • AISI Ultra Thin 0.018mm To 0.12mm SS 304 Wire Mesh 80 To 400 Mesh
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5 Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name SS Woven Wire Mesh Material Stainless Steel
Surface Bright Silver Hole Shape Square Hole
Mesh Counts 80 To 400 Per Inch Wire Diameter 0.018mm-0.12mm
Roll Width Customized Standard Length 100'
Properity High Accuracy Application LEP Shielding Mesh; Micro-circuit Manufacturing; Textile Printing; Ceramics Printing; Glass Printing.
Highlight

0.12mm SS 304 Wire Mesh

,

0.018mm SS 304 Wire Mesh

,

AISI steel filter mesh
Leave a Message
Product Description

AISI Standard Ultra Thin for Printing Screen SS Woven Wire Mesh



Printing screen Brief Introduction



Printing screen is made of stainless steel wire mesh. Compared with the polyester, the stainless steel mesh for printing has high tension, low elongation and excellent corrosion resistance against the chemicals, so it can use a long time. The weaving method of printing screen is plain weave, twill weave and dutch weave. Plain weave printing screen is the most commonly used type.



We use the best raw materials to weave the mesh. The dimensional stability and durability of stainless steel wire mesh can enhance the screen printing process. The number of threads per inch will determine how fine the screen is, and this helps in precise ink deposit control. The stainless steel printing screen can be standard stainless steel mesh and ultra thin stainless steel mesh.





Stainless Steel Printing Screen Specifications:



Mesh/Inch Wire Dia.
(μm)		 Opening (μm) Open Area
(%)		 Thickness
(μm)		 Through Ink
(cm³/m²)		 Calender Thickness
(μm)
80 × 80 90 228 52 198–207 103.0 168–170
80 × 80 120 198 39 276–288 92.9 228–230
100 × 100 100 154 36.8 230–240 77.2 188–190
120 × 120 80 132 39 184–192 65.8 148–150
150 × 150 60 109 41.7 138–144 50.0 138–142
165 × 165 45 109 50.1 95–104 45.1 78–80
165 × 165 50 104 45.6 110–115 45.6 88–90
180 × 180 45 96 46.4 99–104 41.5 78–80
180 × 180 50 91 42 115–120 41.7 88–90
200 × 200 40 87 46.9 81–82 43.0 68–70
200 × 200 50 77 37 115–120 42.0 88–90
230 × 230 35 75 46.7 72–76 37.0 50–67
250 × 250 30 72 49.7 63–64 30.0 48–49
250 × 250 35 67 43 76–78 32.0 59–61
250 × 250 40 62 49.7 82–86 34.0 50–80
270 × 270 35 59 39.4 76–80 30.0 58–70
290 × 290 20 68 41.7 43–44 18.4 29–30
300 × 300 30 55 38 66–68 28.0 40–59
325 × 325 23 55 49.8 49–53 25.4 38–39
325 × 325 28 50 41.2 63–64 26.4 50–51
325 × 325 30 48 38 66–68 24.0 40–59
350 × 350 25 48 43 52–54 18.7 41–50
400 × 400 18 46 51.3 36–40 20.0 28–30
400 × 400 23 41 40.7 50–54 19.0 35–48



Materials:



SS304, SS304L, SS316, SS316L.



Weaving Type: Plain weave.


Stainless Steel Woven Mesh for Printing Screen With Standard & Ultra Thin



Characteristics:


Uniform wire diameter;
Consistent mesh thickness;
Evenly tension weaves;
High tension;
Super precision, fine wire diameter and even mesh opening ensures high precision;
High flexibility, the printing mesh will not lose elasticity at extreme tension;
Low elongation, very small elongation of printing screen at high tension;
High corrosion resistance, stainless steel printing mesh has better corrosion resistance than the polyester fiber;
Good heat-melting resistance, stainless steel printing mesh is suitable for heat-melting ink;
Great solvent resistance, It can prevent various solvents from corroding printing mesh and ensure the ety of printing screen.


Applications:



We produce wide range of stainless steel wire mesh that is widely used in printed circuit boards,solar cell, glass bottles, membrane switch, electro luminescent, thick film technology, key pads,dash boards, liquid crystal displays etc.

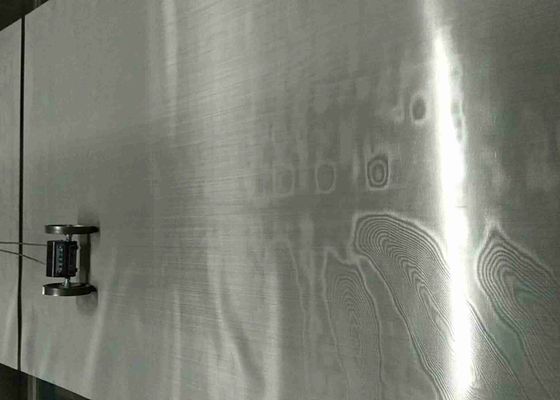

AISI Ultra Thin 0.018mm To 0.12mm SS 304 Wire Mesh 80 To 400 Mesh 1



Packing:

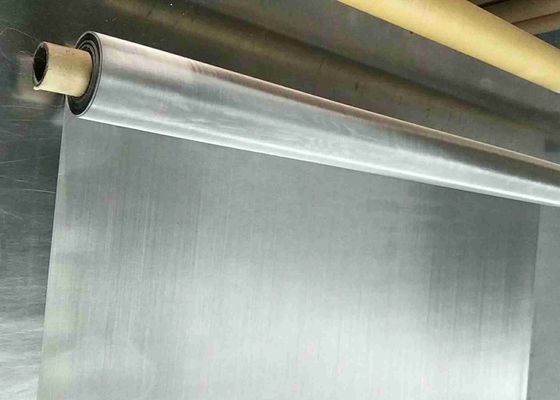

AISI Ultra Thin 0.018mm To 0.12mm SS 304 Wire Mesh 80 To 400 Mesh 2
