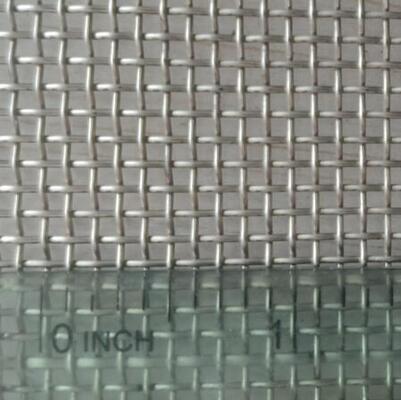

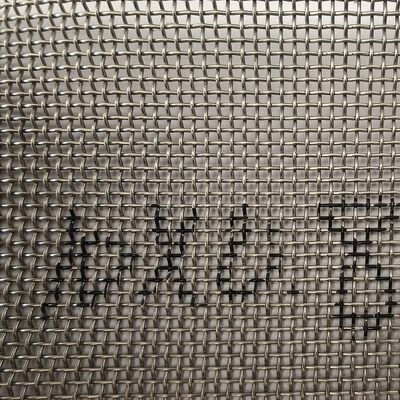

10 Mesh Per Inch Stainless Steel Wire Mesh with 0.8mm Wire Diameter and Corrosion Resistant SS Woven Wire Mesh
Product Details
| Features | Excellent Mechanical Features | Weaving Process | Plain Weave, Crimped Weave |
|---|---|---|---|
| Length | 30m To 300m | Weave Type | Twill Weave, Plain Weave |
| Roll Width | Customized | Applications | Filtration, Screening, Sieving, Separation |
| Wire | 0.5mm | Tensilestrength | High |
| Technique | Woven | Productname | SS Woven Wire Mesh |
| Cert | ISO | Width | 48" (1.22m) |
| Mesh Counts | 10 | Hole Shape | Square Hole |
Product Description
Stainless Steel Wire Mesh 10mesh Per Inch 0.8mm Wire Diameter Ss304 Ss316
Product Overview
This stainless steel woven wire mesh features 10 meshes per inch with a uniform 0.8mm wire diameter, precision plain woven structure for consistent square openings. Manufactured from premium stainless steel (304/316 optional), it delivers outstanding corrosion resistance, high tensile strength and long service life for filtration, separation, screening and architectural applications.
Core Technical Specifications
| Specification | Details |
|---|---|
| Mesh Count | 10 meshes per linear inch |
| Wire Diameter | 0.8 mm |
| Weaving Method | Plain weave (standard balanced weave, stable grid structure) |
| Material Grade | SUS304 / SUS316 stainless steel (customizable) |
| Surface Finish | Polished bright metal surface, anti-rust & anti-oxidation |
Key Advantages
- Superior anti-corrosion performance: Resists rust, acid, alkali, salt water and chemical liquid erosion
- High mechanical strength: 0.8mm thick steel wire brings strong load-bearing capacity
- Precise & uniform filtration: Consistent 10-mesh openings ensure stable screening accuracy
- Easy to process & install: Can be cut, bent, welded, rolled into rolls or cut into sheets
- Food & industry safe: Non-toxic, hygienic, compliant with food contact standards
Application Fields
- Industrial filtration: Liquid & solid separation, chemical liquid filtering, wastewater treatment
- Particle screening: Grain, mineral powder, plastic particle grading & sifting
- Food processing: Flour sieve, beverage filtration, food machinery protective mesh
- Construction & decoration: Facade metal screen, partition mesh, anti-theft window mesh
- Mechanical protection: Equipment safety guard, ventilation grille, machinery shielding mesh
- Aquaculture & environmental protection: Water filter mesh, fish tank separation net
Customization Services
- Material: Switch between 304 stainless steel for general use, 316 for heavy corrosive environments
- Size: Custom roll width/length, pre-cut sheets, frame-mounted mesh panels available
- Processing: Edge trimming, welding, bending, punching, deep processing supported
- Packing: Waterproof paper + plastic film + wooden pallet export packing
10 Mesh Stainless Steel Wire Mesh | 0.8mm Wire Diameter
Made of high-quality SUS304/SUS316 stainless steel, plain woven 10 mesh wire mesh with 0.8mm thick wire. Uniform square apertures, flat smooth surface, excellent rust and acid resistance. Ideal for industrial screening, liquid filtration, food processing, architectural decoration and machinery protection. Custom sizes and deep processing available.
