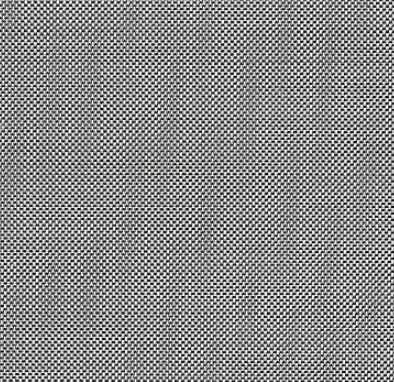

Stainless Steel Woven Wire Mesh with 100mesh
Product Details
| Material | Stainless Steel 304,316,etc | Mesh Number | 100mesh |
|---|---|---|---|
| Wire Diameter | 0.05mm, 0.09mm,0.1mm | Size | 1mx30m In Usual |
Product Description
Stainless Steel Woven Wire Mesh with 100mesh
100 Mesh Stainless Steel Woven Mesh is a practical, mid-to-high precision fine filter material widely adopted in commercial and industrial fields. With a standard 0.10-0.12mm aperture, it perfectly bridges the gap between low-precision 90-mesh mesh and easily clogged 120+ ultra-fine mesh.
Woven with premium SUS304/SUS316 stainless steel via plain weave, it features uniform hole size, stable air/liquid permeability, corrosion resistance and reusable properties. Unlike disposable filter materials, this woven mesh supports repeated cleaning and long-cycle operation. It is most suitable for scenarios requiring fine impurity removal, powder particle classification and medium-precision purification, covering food production, industrial fluid filtration, environmental water treatment and daily precision filtration.
Detailed Product Specifications
All specifications comply with international inch standard (25.4mm), with precise and unified parameters, suitable for equipment matching, engineering supporting and bulk procurement:
| Specification | Details |
|---|---|
| Mesh Count | 100 meshes per linear inch, uniform mesh arrangement, no missing holes, no deformed mesh |
| Available Material | SUS304, SUS304L, SUS316, SUS316L (food-grade and industrial-grade optional) |
| Standard Wire Diameter | 0.10mm - 0.12mm |
| Aperture Size | 0.10mm - 0.12mm, accurate fine interception of tiny suspended particles and fine powder impurities |
| Weaving Process | Standard plain weave, compact structure, uniform stress, strong overall stability |
| Open Area | 35% - 40%, balances high-precision filtration and smooth fluid permeability |
| Surface Treatment | Electrolytic polishing treatment, smooth and burr-free surface, oxidation-resistant, easy to clean and reuse |
| Custom Service | Custom cutting, rolling, punching, framing and size customization according to customer requirements |
Product Advantages & Limitations
Core Advantages
- Higher Filtration Accuracy: Compared with 90-mesh and lower coarse mesh, 100-mesh woven mesh has smaller aperture, which can effectively intercept finer tiny particles and impurities
- Optimized Permeability & Anti-clogging Performance: Retains better air and liquid fluidity, is not easy to accumulate impurities and block holes during continuous use
- Strong Environmental Adaptability: 304/316 stainless steel material has excellent corrosion resistance, oxidation resistance and high temperature resistance
- Food & Medical Hygiene Grade: The mesh surface is smooth, non-toxic, odorless, free of harmful precipitation, compliant with food contact and medical production hygiene standards
- Durable & Reusable: High tensile strength and wear resistance, not easy to break. Supports repeated cleaning and reuse
- Easy Processing & Wide Compatibility: Soft and uniform texture, support arbitrary cutting, bending and forming
Product Limitations
- Not Suitable for Ultra-Micron Filtration: Cannot intercept ultra-fine micron-level powder particles
- Limited High-pressure Resistance: The thin wire diameter results in weaker pressure resistance than coarse mesh
- Regular Maintenance Required: When filtering high-viscosity liquid and ultra-fine wet powder, slight clogging may occur
Main Application Fields
Verified by massive real-world industrial and civilian usage, 100 mesh stainless steel woven mesh delivers balanced precision and flow performance, making it one of the most cost-effective fine filter screens.
Food & Beverage Industry
Widely used for fine filtration of edible oil, fruit juice, brewing beer, syrup and dairy products to remove fine pulp, yeast residue and suspended impurities. Also serves for sieving flour, sugar powder and spice powder.
Chemical & Petrochemical Industry
Used for circulating filtration and impurity removal of industrial lubricating oil, hydraulic oil, cutting fluid and chemical solvents. Effectively filters fine metal scraps, dust and precipitate impurities.
Pharmaceutical & Cosmetic Industry
Applied for precision sieving of pharmaceutical granular raw materials and fine filtration of liquid medicines, as well as impurity removal of cosmetic powders and essence raw liquids.
Precision Industrial Sieving
Ideal for medium-precision classification of metal powder, mineral powder, coating powder and plastic powder. Screens out coarse particle impurities in raw materials.
Air Purification & Ventilation Filtration
Used for secondary fine filtration of air purifiers, ventilation systems and industrial dust removal equipment. Intercepts floating fine dust and fiber impurities in the air.
Water Treatment & Environmental Protection
Suitable for fine filtration of domestic purified water, aquaculture water and industrial circulating water. Removes fine suspended solids, tiny sediments and organic impurities.
Daily Hardware & Precision Protection
Commonly made into kitchen strainers, soup filters, oil filters and high-precision anti-dust screens for household appliances. Features fine filtration, easy cleaning and no rust.
Real-World Application Case
Brewery Cold Filtration Case Study
A medium-sized craft brewery in Oregon, USA, adopts 100 mesh 304 stainless steel woven mesh for beer cold filtration process. The mesh accurately intercepts residual yeast cells and tiny protein suspended solids in fermented beer without blocking liquid flow, solving the turbidity problem of finished beer.
Compared with traditional disposable filter paper, the reusable stainless steel mesh reduces monthly filtration material costs by 40%, features no fiber residue pollution, and ensures stable beer clarity and consistent product quality in long-term batch production.
