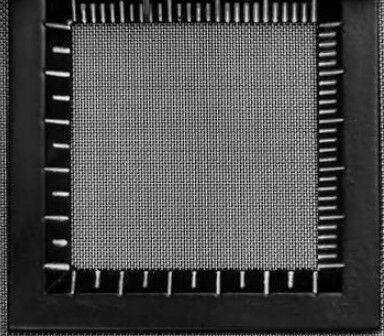

Stainless Steel Woven Wire Mesh with 80mesh
Product Details
| Material | Stainless Steel 304,316,etc | Mesh Number | 80mesh |
|---|---|---|---|
| Wire Diameter | 0.12mm,0.14mm | Size | 1mx30m In Usual |
Product Description
Stainless Steel Woven Wire Mesh with 80mesh
Product Overview
80 mesh stainless steel woven mesh is a high-precision fine filtration medium woven with thin stainless steel wires by plain weave. It has 80 uniform holes per linear inch, delivering finer aperture than 60 mesh and 70 mesh screens with ultra-fine impurity interception capacity.
Balancing filtration precision and fluid permeability, this mesh is widely adopted in industries requiring strict particle separation, micro-impurity removal and high hygiene standards. It serves as the mainstream fine sieve material for food, pharmaceutical, chemical, lab and precision water treatment projects.
Technical Specifications
| Specification | Details |
|---|---|
| Mesh Count | 80 mesh (80 openings per linear inch) |
| Aperture | 150 ~ 180 microns (0.15-0.18 mm) |
| Standard Wire Diameter | 0.09mm - 0.16mm |
| Weaving Method | Plain weave, uniform hole layout, stable tension |
| Material Options |
|
| Open Area | Approx 50% |
| Weight | Around 0.32 kg per square meter |
| Standard Roll Size | 1m×30m, 1.2m×30m; custom width, length & cut sheets supported |
| Core Properties | Rust-proof, high temperature resistant, acid & alkali resistant, easy to clean, reusable, non-toxic food safe |
Performance Characteristics
Main Advantages
Higher Filtration Precision
Much finer holes than 60/70 mesh, efficiently traps micro suspended particles, fine powder residues and tiny sediments that coarser mesh cannot intercept.
Much finer holes than 60/70 mesh, efficiently traps micro suspended particles, fine powder residues and tiny sediments that coarser mesh cannot intercept.
Stable Permeability
Compared with 100/120 mesh ultra-fine screens, 80 mesh owns larger open area, less prone to complete blockage during continuous working.
Compared with 100/120 mesh ultra-fine screens, 80 mesh owns larger open area, less prone to complete blockage during continuous working.
Outstanding Corrosion Resistance
304/316 stainless steel avoids rust in humid, weak acid and weak alkali environments; no metal contamination to liquids or powders.
304/316 stainless steel avoids rust in humid, weak acid and weak alkali environments; no metal contamination to liquids or powders.
Solid Woven Structure
Tight plain weave offers strong tensile strength, not easy to deform, loosen or warp under long-term pressure, flushing and vibration sieving.
Tight plain weave offers strong tensile strength, not easy to deform, loosen or warp under long-term pressure, flushing and vibration sieving.
Reusable & Cost-Saving
Smooth wire surface prevents material adhesion; cleanable with water or ultrasonic washer, reusable dozens of times.
Smooth wire surface prevents material adhesion; cleanable with water or ultrasonic washer, reusable dozens of times.
Food & Medical Compliance
Non-toxic, odorless, high-temperature resistant, conforms to global food processing and pharmaceutical hygiene regulations.
Non-toxic, odorless, high-temperature resistant, conforms to global food processing and pharmaceutical hygiene regulations.
Limitations
- Not applicable for ultra-micro purification below 150μm - For nano or ultra-fine particle separation requiring 120 mesh and above, 80 mesh cannot reach the precision standard.
- Vulnerable to blockage by large particles - Finer aperture makes it easier to clog with coarse debris; pre-filter must be equipped for raw materials containing big impurities.
- 430 grade limited application - Economical 430 mesh lacks anti-corrosion performance, forbidden for long-term use in chemical liquid, salt water and acid environments.
Application Fields
Food & Beverage Fine Filtration
The top choice for high-standard food processing including liquid filtration (edible oil, fruit juice, honey, wine, milk) and powder grading (cocoa powder, milk powder, spice powder). Food-grade 304 material ensures zero contamination for edible products.
Pharmaceutical Industry
Fine sieving of medicinal raw powder and filtration of herbal liquid, injection intermediate liquid. 316 stainless steel mesh resists mild medicinal solvents and meets pharmaceutical production purity standards.
Water Treatment & Liquid Purification
Household high-precision water filters, industrial circulating water, boiler water, wastewater advanced treatment. Removes fine silt, algae fragments, tiny organic suspended solids.
Chemical & New Material Industry
Sieving pigments, coatings, abrasive powder, ceramic raw materials, battery materials. Filtering weak acid & weak alkali chemical solutions; 316 version works for moderately corrosive liquid separation.
Laboratory Analysis
Standard sieve mesh for lab particle size testing, sample liquid filtration, chemical experiment impurity separation. High uniform aperture guarantees accurate test data.
Machinery & Oil Filtration
Fine filtration of hydraulic oil, lubricating oil, cutting fluid to trap tiny metal wear debris; also made into dust-proof protective mesh for precision instruments and electrical equipment.
Daily & Agricultural Screening
Fine screening of tea, fine grain, seed cleaning, gardening soil medium separation; household kitchen strainer for fine liquid filtering.
Key Benefits Summary
80 mesh ultra-fine uniform apertures, higher filtering accuracy than 60/70 mesh wire cloth
Two premium grades: 304 food safe & 316 anti-corrosion stainless steel
Balanced flow rate & anti-clogging performance for continuous production
Washable & reusable, greatly lower long-term operation cost
Rust, acid and alkali resistant, durable for harsh working conditions
Custom rolls, sheets and cut sizes available, fast bulk delivery
High tensile strength, anti-deformation, stable long-term service
