Stainless Steel Woven Wire Mesh with 70mesh
Product Details
| Material | Stainless Steel 304,316,etc | Mesh Number | 70mesh |
|---|---|---|---|
| Wire Diameter | 0.076mm,0.165mm | Size | 1mx30m In Usual |
Product Description

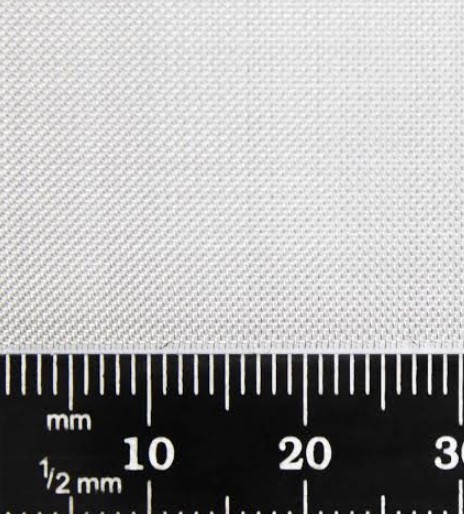

Stainless Steel Woven Wire Mesh with 70mesh
70 Mesh Stainless Steel Woven Mesh is a high-precision fine metal filtering material crafted with high-quality stainless steel wires via professional plain weave technology. With 70 uniform mesh openings per linear inch, it features finer filtration accuracy than 60-mesh mesh and better anti-clogging performance than 80-mesh ultra-fine mesh. This mesh achieves a perfect balance of ultra-fine impurity interception and unobstructed fluid flow, serving as a mainstream precision sieving and filtration solution for medium and high-standard industrial, commercial, food and medical scenarios.
Product Specifications
All technical parameters comply with international industrial standards, featuring stable structure, uniform mesh holes and consistent batch quality, supporting bulk order procurement and personalized customized processing.
- Mesh Count: 70 mesh (70 uniform openings per linear inch)
- Aperture Size: 180-210 microns (0.18-0.21 mm)
- Standard Wire Diameter: 0.10mm-0.18mm
- Weaving Type: Plain weave (compact structure, stable tension, no deformation, uniform hole distribution)
- Available Material Grades: 304 stainless steel (universal food/industrial grade), 316 stainless steel (enhanced corrosion resistance for marine/chemical use), 430 stainless steel (economic civil grade)
- Open Area: Approximately 52% (excellent permeability)
- Mesh Weight: About 0.34kg/㎡
- Standard Roll Size: 1m*30m, 1.2m*30m (custom width, length and sheet cutting available)
- Core Performance Features: Rust-proof, acid & alkali resistant, high temperature tolerant, wear-resistant, easy to clean, reusable, non-toxic and hygienic
Product Advantages & Limitations
Core Advantages
Higher Precision Filtration
Compared with 60-mesh mesh, the 70-mesh version delivers finer filtration accuracy, effectively intercepting tiny suspended particles and fine impurities that cannot be filtered by medium-coarse mesh, meeting higher-standard purification requirements.
Excellent Anti-Clogging & Flow Balance
Different from 80/100-mesh ultra-fine mesh that is prone to blockage, 70-mesh woven mesh maintains proper aperture size, ensuring stable fluid and powder passing speed while guaranteeing filtration precision, with high working efficiency and low maintenance frequency.
Superior Corrosion & Oxidation Resistance
Adopting 304/316 food-grade stainless steel raw materials, the mesh resists water oxidation, weak acid, weak alkali and conventional chemical corrosion. It will not rust or produce harmful precipitates in humid and corrosive environments, ensuring pure filtration effect.
Ultra-Stable Structural Performance
Adopting precise plain weaving craftsmanship, the steel wires are tightly arranged with uniform tension. The whole mesh sheet features strong tensile strength, not easy to warp, loose or deform under long-term sieving, flushing and pressure working conditions, with stable and durable performance.
Reusable & Cost-Effective
The smooth and flat mesh surface is not easy to adhere to impurities, convenient for water washing and ultrasonic cleaning. It can be reused multiple times, greatly reducing the long-term use cost compared with disposable filter materials.
Safe & Hygienic
Food-grade stainless steel material is non-toxic, odorless, high-temperature resistant and harmless, fully compliant with food processing, pharmaceutical and medical hygiene standards, with wide safe application range.
Product Limitations
Not Suitable for Ultra-Fine Purification
It cannot effectively filter micro impurities below 180μm, so it is not applicable for high-precision purification scenarios such as ultra-pure liquid filtration that require 100 mesh and above ultra-fine mesh.
Strict Raw Material Preprocessing Required
Compared with 60-mesh coarse mesh, the aperture is finer, and it is easy to be blocked by large granular impurities. It is necessary to configure pre-filtration procedures for raw materials containing large particles or sundries.
Economic Grade Environmental Restriction
430 stainless steel mesh has poor corrosion resistance and is only suitable for conventional dry sieving and domestic water filtration, not for long-term use in strong acid, strong alkali and high-corrosion industrial environments.
Main Application Scenarios
70 mesh stainless steel woven mesh is a high-cost-performance precision fine filter mesh, filling the precision gap between 60-mesh and 80-mesh mesh. It is widely used in scenarios requiring fine filtration and accurate particle grading, covering food processing, water treatment, chemical industry, pharmacy, machinery and laboratory fields.
-
Food & Beverage Precision FiltrationPreferred mesh for fine food processing. Used for fine filtration of edible oil, fruit juice, milk, wine, syrup and other liquids to remove tiny suspended solids, pulp residues and undissolved fine particles. Also suitable for precise grading of flour, cocoa powder, spice powder, and protein powder.
-
Water Treatment & Liquid PurificationWidely used in domestic water fine filtration, industrial circulating water purification, boiler water filtration, wastewater advanced pretreatment and cooling liquid purification. Protects water pumps, precision valves, nozzles and pipeline systems from clogging and abrasion.
-
Chemical & Pharmaceutical IndustryApplied for fine sieving of chemical raw material powders and filtration of conventional acid-base chemical solutions. 316 stainless steel mesh adapts to moderately corrosive chemical working conditions. Used for fine grading of medicinal powder and impurity removal of medicinal liquid.
-
Mechanical Equipment & Oil FiltrationUsed for precision filtration of industrial lubricating oil, hydraulic oil, fuel oil and petroleum mud, effectively removing fine metal debris and oil dirt impurities. Can be made into equipment protective mesh for precision machinery and electrical equipment.
-
Laboratory & Fine Industrial SievingIdeal for laboratory particle analysis, fine powder grading and sample filtration experiments. Widely used in new materials, coating, pigment, abrasive and other industries for fine powder sieving and impurity removal.
-
Daily & Agricultural Fine ScreeningSuitable for fine cleaning and impurity removal of grain, seeds and tea leaves, as well as fine screening of horticultural soil and culture medium. Commonly used in kitchen fine filtration and daily small-scale fine separation work.
