Stainless Steel Woven Wire Mesh with 60mesh
Product Details
| Material | Stainless Steel 304,316,etc | Mesh Number | 60mesh |
|---|---|---|---|
| Wire Diameter | 0.17mm,0.11mm | Size | 1mx30m In Usual |
Product Description

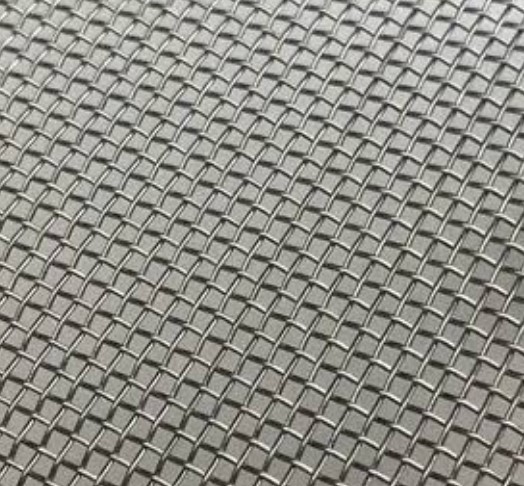

Stainless Steel Woven Wire Mesh with 60mesh
60 Mesh Stainless Steel Woven Mesh is a high-precision fine metal screen woven with premium stainless steel wires via standard plain weave technology. Featuring 60 uniform openings per linear inch, this mesh balances accurate fine particle filtration and smooth fluid flow, making it one of the most versatile medium-fine filtering and sieving materials for commercial and industrial use. It is widely adopted for liquid-solid separation, gas filtration, particle grading and equipment protection across multiple industries.
Product Specifications
| Parameter | Specification |
|---|---|
| Mesh Count | 60 mesh (60 openings per linear inch) |
| Aperture Size | 200-250 microns (0.20-0.25 mm) |
| Standard Wire Diameter | 0.11mm-0.20mm |
| Weaving Type | Plain weave (uniform structure, stable tension, no deformation) |
| Common Material Grade | 304 stainless steel (standard), 316 stainless steel (marine/chemical enhanced corrosion resistance), 430 stainless steel (economic type) |
| Open Area | About 55% (high permeability) |
| Weight | Approx 0.36kg/㎡ |
| Regular Size | 1m*30m, 1.2m*30m rolls (custom width/length available) |
| Core Feature | Anti-rust, acid & alkali resistant, high temperature resistant, easy to clean and reusable |
Product Advantages
- Balanced Filtration & Flow Performance: Compared with 40-mesh coarse mesh, it filters finer impurities effectively; compared with 80/100-mesh ultra-fine mesh, it avoids clogging and ensures high fluid permeability, achieving optimal balance of filtration accuracy and flow rate.
- Excellent Corrosion & Rust Resistance: 304/316 food-grade stainless steel material resists acid, alkali, water oxidation and chemical corrosion, suitable for harsh wet and chemical working environments, no rust contamination.
- High Structural Stability: Standard plain weaving process ensures uniform mesh holes, tight wire arrangement, strong tensile strength, not easy to warp, deform or loose during long-term sieving and filtration work.
- Reusable & Low Maintenance Cost: Smooth surface is easy to clean and washable, can be reused repeatedly, effectively reducing long-term replacement cost compared with disposable filter materials.
- High Temperature & Wear Resistant: It withstands normal high-temperature working conditions, resistant to friction and abrasion, with a long service life.
- Food & Medical Safety Compliance: Food-grade stainless steel is non-toxic, odorless, and meets hygiene standards for food, beverage and pharmaceutical processing.
Limitations
- Not for Ultra-Fine Filtration: Cannot filter micro-particles below 200μm, not applicable for high-precision purification scenarios requiring 100+ mesh.
- Not for Large Particle Blocking: Compared with coarse mesh, it is easier to be blocked by large impurities, requiring pre-filtration for raw materials with large particulate matter.
- Economic Grade Limitation: 430 stainless steel version has weaker corrosion resistance than 304/316, not suitable for strong acid and alkali long-term working environment.
Main Applications
60 mesh stainless steel woven mesh is a universal medium-fine filter mesh, covering civil, commercial and industrial mainstream scenarios, which is the most cost-effective choice for conventional fine sieving and filtration.
Food & Beverage Industry
Ideal for food liquid filtration and powder sieving. It filters pulp, seeds, undissolved particles in juice, milk, syrup and edible oil, and grades flour, baking powder and spice powder.
Water Treatment & Liquid Filtration
Widely used in domestic water filtration, industrial circulating water, wastewater pretreatment, cooling liquid filtration. Effectively traps sediment, suspended solids and fine debris.
Chemical & Pharmaceutical Industry
Suitable for sieving chemical powder, filtering chemical solvent and acid-base liquid. 316 grade mesh adapts to corrosive chemical environments.
Oil & Industrial Machinery
Used as petroleum mud filter mesh, fuel impurity filtration mesh, and mechanical equipment protective mesh. Filters fine impurities in industrial oil and lubricants.
Agriculture & Daily Sieving
Applied for seed cleaning, grain impurity removal and soil fine screening. Also used for kitchen fine screening, laboratory particle grading.
Construction & Protective Screening
Used for fine sand screening in construction, and can be made into protective mesh, isolation mesh for equipment ventilation and dust-proof filtration.
