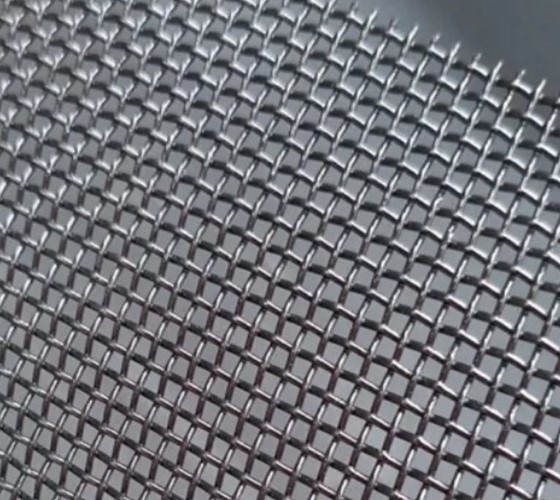

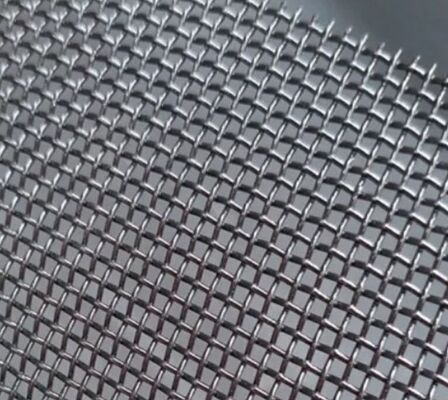

Stainless Steel Woven Wire Mesh with 17mesh
Product Details
| Material | Stainless Steel | Hole Size | 1.14mm |
|---|---|---|---|
| Wire Diameter | 0.35mm | Size | 1mx30m |
| 原产地 | China |
Product Description
Stainless Steel Woven Wire Mesh with 17 Mesh
17 Mesh Stainless Steel Woven Mesh is a high-quality industrial mesh produced by precision plain weave technology, interlacing premium stainless steel wires. Featuring 17 uniform openings per linear inch, it strikes an ideal balance between filtration precision and material flow efficiency.
Product Specifications
| Material | SUS 304 (cost-effective, suitable for general use with good rust and corrosion resistance), SUS 316/316L (marine-grade, with molybdenum for enhanced resistance to saltwater and harsh chemicals); SUS 201 available for economic requirements |
|---|---|
| Mesh Count | 17 mesh (17 openings per linear inch / 6.7 openings per linear centimeter) |
| Aperture | Standard: 1.15mm (matching 0.35mm wire diameter); adjustable range: 1.05mm-1.20mm |
| Wire Diameter | Standard: 0.35mm; optional range: 0.228mm-0.55mm |
| Size | Standard: 0.914m-1.22m width, 30m per coil; custom sizes available (width up to 2000mm, length on demand) |
Applications
- Industrial Filtration & Sieving: Chemical processing, petroleum mud filtration, mining, food and pharmaceutical processing
- Protection & Ventilation: Machine safety guards, pest-proof screens, air vents
- Commercial & Architectural Uses: Building facades, decorative elements, sound baffles, construction sand/aggregate screening
- Other Scenarios: Electroplating pickling mesh, wastewater treatment filters, household filtration, agricultural screening
Product Advantages
- Durable & Sturdy: High tensile strength, wear-resistant and impact-resistant, maintains structural integrity during long-term continuous use
- Strong Corrosion Resistance: Rust-proof, acid and alkali resistant, adaptable to harsh environments; SUS 316 grade for extreme corrosion conditions
- Uniform & Reliable: Precision plain weave ensures consistent mesh openings, guaranteeing stable filtration and screening effects
- Easy to Use & Maintain: Smooth surface, easy to clean and maintain; flexible cutting, bending and installation capabilities
- Customizable & Cost-Effective: Supports customization of material, wire diameter, size and weave pattern; reduces long-term replacement and maintenance costs
