Stainless Steel Woven Wire Mesh with 16mesh

  • Stainless Steel Woven Wire Mesh with 16mesh
Place of Origin China
Certification ISO
Minimum Order Quantity 1 roll
Price Based on quantity
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Payment Terms T/T
Product Details
Material Stainless Steel Wire Mesh Number 16mesh
Hole Size 1.23mm Wire Diameter 0.35mm
Size 1mx30m 原产地 China
Leave a Message
Product Description

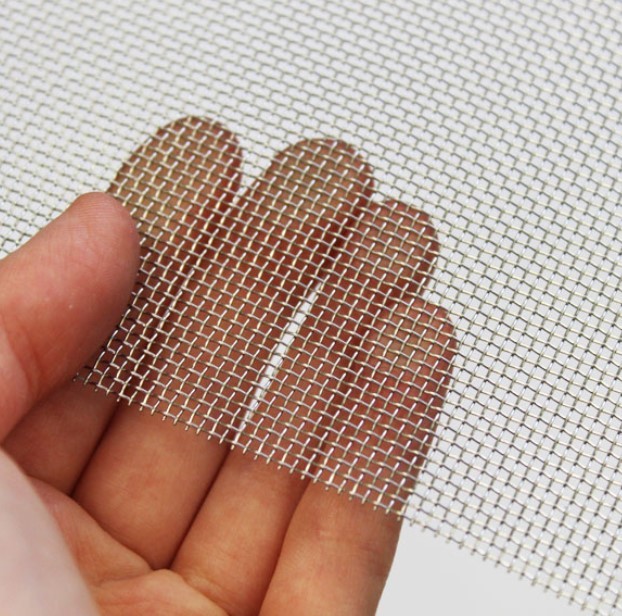

Stainless Steel Woven Wire Mesh with 16mesh

1. Product Introduction

16 Mesh Stainless Steel Woven Mesh is a cost-effective and widely used metal mesh, crafted with high-quality stainless steel wire through standard plain weaving technology. It features uniform mesh openings, a sturdy structure, and an ideal balance between air permeability and basic insect prevention. With excellent rust resistance, weather resistance and durability, this mesh is mainly designed for daily insect-proof and ventilation needs, becoming the preferred choice for ordinary household window screens, civil engineering and simple protective scenarios.

2. Product Specifications

  • Material: SUS304 (mainstream, cost-effective, good rust and corrosion resistance for daily use), SUS316/SUS316L (optional, for harsh environments), SUS201 (economic option for general protection)
  • Mesh Count: 16 mesh (16 openings per linear inch / 6.3 openings per linear centimeter), uniform mesh distribution for stable performance
  • Aperture: Standard aperture 1.23mm (matching 0.35mm wire diameter), adjustable within 1.18mm-1.35mm according to wire diameter
  • Wire Diameter: Standard 0.35mm; optional range 0.28mm-0.40mm, customizable based on strength and usage needs
  • Size: Standard specification: width 0.914m / 1.22m, length 30m per roll; custom sizes (width up to 2000mm, length on demand) and cut-to-size sheets are available for different window and project requirements

3. Product Applications

  • Household Window Screens: The most cost-effective basic option for residential windows, doors and balconies, effectively blocking mosquitoes and large flying insects while ensuring good ventilation
  • Civil Engineering & Construction: Used for window screens in residential buildings, commercial buildings, rural self-built houses and temporary construction sites
  • Simple Protection & Ventilation: Ventilation nets for workshops, warehouses, machine vents, and basic isolation for gardens and courtyards
  • Light-duty Screening: Coarse screening of debris, grains and agricultural products, and simple filtration in daily scenarios

4. Product Advantages

  • Cost-Effective: High cost performance, suitable for large-area use, ideal for mass procurement and civil engineering projects
  • Excellent Ventilation & Insect Prevention: Reasonable mesh size balances air circulation and light transmission, effectively blocking mosquitoes and large flying insects
  • Durable & Rust-Proof: High-quality stainless steel material, anti-rust, anti-corrosion and weather-resistant, not easy to age or deform in outdoor and indoor environments
  • Easy to Use: Smooth surface, easy to cut, bend and install, suitable for various window frames and installation scenarios
  • Versatile: Widely applicable to household, civil and light industrial scenarios, supporting customization to meet diverse needs
