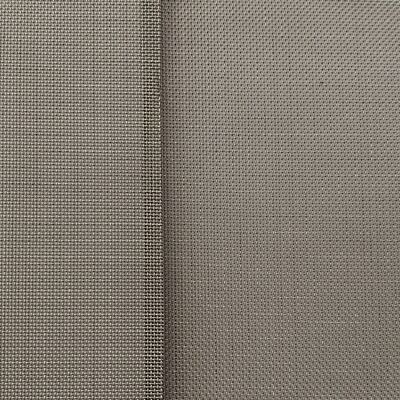

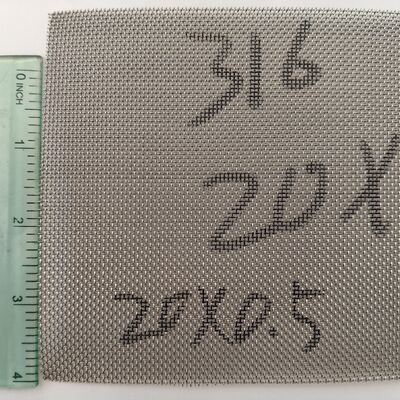

20Mesh 0.50mm Stainless Steel Wire Mesh SS316 Plain Weave For Filtration Stable Screening And Filtration Accuracy

  • 20Mesh 0.50mm Stainless Steel Wire Mesh SS316 Plain Weave For Filtration Stable Screening And Filtration Accuracy
  • 20Mesh 0.50mm Stainless Steel Wire Mesh SS316 Plain Weave For Filtration Stable Screening And Filtration Accuracy
  • 20Mesh 0.50mm Stainless Steel Wire Mesh SS316 Plain Weave For Filtration Stable Screening And Filtration Accuracy
Place of Origin Hengshui,China
Brand Name QIANPU
Minimum Order Quantity 1 roll
Price Negotiable according to quantity of order
Packaging Details 1. inside use carton pipe for support+wire mesh layer+water proof paper 2. outside use plastic wooden bags+wooden case/carton pipes/wooden pallets. 3. also we can as per your requirements.
Delivery Time 2weeks
Supply Ability 3000 rolls per month
Product Details
Features For Filtration Stable Screening And Filtration Accuracy Product Name Stainless Steel Dutch Wire Mesh
Material Stainless Steel 316 Mesh Counts 20 X 20
Width 1.2m,1.5m Or Customized Length 30m Or Customized
Technique Woven Color Bright Silver
Wire Diameter 0.50mm X 0.50mm Application Filtration
Highlight

20Mesh stainless steel wire mesh

,

SS316 plain weave wire mesh

,

0.50mm filtration wire mesh
Leave a Message
Product Description

20Mesh 0.50mm Stainless Steel Wire Mesh SS316 Plain Weave For Filtration Stable Screening And Filtration Accuracy



Product Introduction



1. Basic Parameters


  • Mesh: 20 Mesh (20 openings per linear inch)
  • Wire Diameter: 0.5 mm
  • Material: SS316 (AISI 316 / 1.4401) stainless steel
  • Weave Type: Plain Weave
  • Nominal Aperture: Approx. 0.77 mm
  • Open Area: Approx. 36.8%


2. Material Performance


  • Excellent corrosion resistance: Superior to 304, with strong resistance to chloride, seawater, acid, alkali and chemical corrosion.
  • High temperature & oxidation resistance: Stable performance in high-temperature and harsh environments.
  • Hygienic & non-toxic: Suitable for food, pharmaceutical, seawater treatment and sanitary working conditions.
  • High strength & durability: Good rigidity, wear resistance, long service life, not easy to deform.


3. Product Features


  • Uniform square mesh openings, stable screening and filtration accuracy.
  • Thick wire diameter ensures high tensile strength and impact resistance.
  • Smooth surface, not easy to hang material, easy to clean and reuse.
  • Good structural stability, firm weaving, not easy to loose or damage.
  • Can be cut, punched, welded and deep processed into various mesh parts.


4. Typical Applications


  • Filtration & separation: Coarse filtration of industrial liquids, oils, chemical solutions, sewage treatment.
  • Screening & grading: Granular materials, plastic pellets, food particles, powder classification.
  • Marine & coastal facilities: Seawater filtration, marine equipment protective mesh, coastal ventilation mesh.
  • Industrial protection: Safety guard mesh, particle isolation, exhaust gas pretreatment filtration.
  • Machinery & equipment: Plastic extruder screens, filter discs, protective covers.


5. Product Advantage


This 20Mesh 0.5mm 316 plain weave wire mesh combines moderate opening size with strong structural strength and excellent corrosion resistance, making it widely used in industrial screening, coarse filtration and harsh environment protection, especially suitable for occasions requiring both strength and corrosion resistance.





20Mesh 0.50mm Stainless Steel Wire Mesh SS316 Plain Weave For Filtration Stable Screening And Filtration Accuracy 0



Plain Weave

Mesh Wire D Aperture L Open
openings/inch mm inch mm inch %
3 1.60 0.0629 6.866 0.2703 65.77
3 0.70 0.0275 7.766 0.3057 84.14
4 1.20 0.0472 5.15 0.2027 65.77
4 0.60 0.0236 5.75 0.2263 81.99
5 1.00 0.0393 4.08 0.1606 64.50
5 0.50 0.0196 4.58 0.1803 81.28
6 0.90 0.0354 3.333 0.1312 62.00
6 0.50 0.0196 3.733 0.1469 77.77
8 0.90 0.0354 2.275 0.0895 51.34
8 0.50 0.0196 2675 0.1053 70.98
10 0.90 0.0354 1.640 0.0645 41.68
12 0.80 0.0314 1.316 0.0518 38.69
14 0.70 0.0275 1.114 0.0438 37.72
16 0.60 0.0236 0.987 0.0388 38.69
18 0.50 0.0196 0.911 0.0358 41.68
20 0.50 0.0196 0.770 0.0303 36.75
30 0.35 0.0137 0.496 0.0195 34.41
40 0.30 0.0118 0.335 0.0131 27.83
50 0.25 0.0098 0.258 0.0101 25.79
60 0.23 0.0090 0.193 0.0076 20.85
80 0.13 0.0051 0.187 0.0073 34.87
100 0.10 0.0039 0.154 0.0060 36.75
100 0.08 0.0031 0.174 0.0068 46.92
120 0.09 0.0035 0.121 0.0047 33.03
120 0.08 0.0031 0.131 0.0051 38.69
120 0.07 0.0027 0.141 0.0055 44.79
120 0.06 0.0023 0.151 0.0059 51.34
120 0.05 0.0019 0.161 0.0063 58.33
150 0.06 0.0023 0.109 0.0043 41.68
150 0.065 0.0025 0.104 0.0041 37.96
165 0.063 0.0024 0.090 0.0035 34.89
165 0.06 0.0023 0.093 0.0036 37.23
165 0.05 0.0019 0.103 0.0040 45.58
180 0.05 0.0019 0.091 0.0035 41.68
200 0.05 0.0019 0.077 0.0030 36.75
200 0.04 0.0015 0.087 0.0034 46.93
250 0.04 0.0015 0.061 0.0024 36.75
300 0.04 0.0015 0.044 0.0017 27.83



It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.



In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.
