Stainless Steel Woven Wire Mesh with 7Mesh

  • Stainless Steel Woven Wire Mesh with 7Mesh
Place of Origin China
Minimum Order Quantity 1 roll
Price Based on quantity
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T
Product Details
Material Stainless Steel Size 1mx30m
Mesh Number 7mesh 原产地 China
Highlight

stainless steel woven wire mesh

,

7mesh stainless steel mesh

,

SS woven wire mesh with warranty
Leave a Message
Product Description

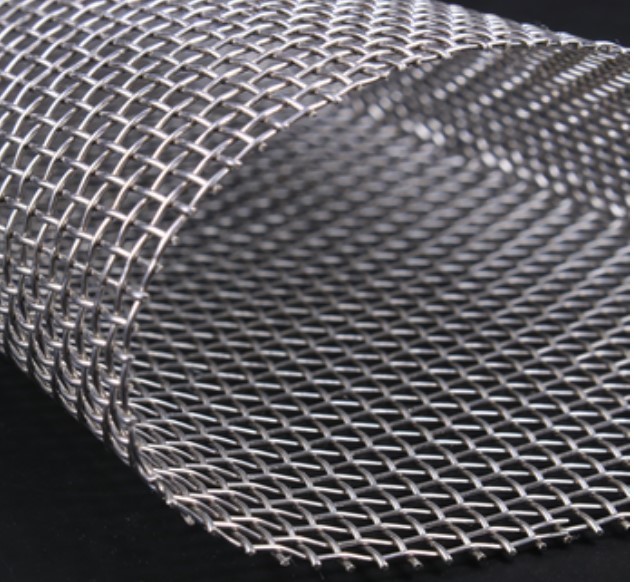

Stainless Steel Woven Wire Mesh with 7Mesh
Premium Quality for Industrial & Commercial Applications
7 mesh stainless steel woven wire mesh is a versatile, high-performance product engineered for a wide range of industrial, filtration, and screening tasks. Crafted from top-grade stainless steel (including 304, 316, and 316L grades), this mesh delivers exceptional corrosion resistance, durability, and structural stability, making it suitable for both indoor and harsh outdoor environments.
Key Specifications
Mesh Count: 7 mesh (7 openings per linear inch)
Aperture Size: Approximately 3.0mm (varies slightly by wire diameter)
Wire Diameter Options: Customizable from 0.5mm to 1.2mm to meet specific strength and filtration needs
Material Grades: 304 (general purpose, food-safe), 316/316L (enhanced corrosion resistance for marine, chemical, and acidic environments)
Standard Sizes: 1m×2m, 1.22m×2.44m, or custom-cut dimensions available
Weave Type: Plain weave (uniform aperture, easy cleaning) or twill weave (higher strength for heavy-duty use)
Core Advantages
Superior Durability: Resists rust, oxidation, and chemical erosion, ensuring a long service life even in demanding conditions.
Precise Screening Performance: Uniform mesh openings enable accurate separation of particles, making it ideal for grading, sifting, and filtration projects.
Versatile Applications: Compatible with machining processes like cutting, bending, and welding to create custom components.
Food-Grade Compliance: 304 grade meets FDA standards, suitable for food processing, beverage filtration, and pharmaceutical production.
Typical Applications
Industrial screening and grading of aggregates, minerals, and grain
Filtration systems for water treatment, oil purification, and chemical processing
Protective guards for machinery, vents, and security fencing
Architectural and decorative elements (e.g., facade cladding, interior partitions)
Agriculture and aquaculture (e.g., fish pond nets, seed separation)





1) Plain Weave Wire Mesh

Mesh Wire D Aperture L Open
openings/inch mm inch mm inch %
3 1.60 0.0629 6.866 0.2703 65.77
3 0.70 0.0275 7.766 0.3057 84.14
4 1.20 0.0472 5.15 0.2027 65.77
4 0.60 0.0236 5.75 0.2263 81.99
5 1.00 0.0393 4.08 0.1606 64.50
5 0.50 0.0196 4.58 0.1803 81.28
6 0.90 0.0354 3.333 0.1312 62.00
6 0.50 0.0196 3.733 0.1469 77.77
8 0.90 0.0354 2.275 0.0895 51.34
8 0.50 0.0196 2675 0.1053 70.98
10 0.90 0.0354 1.640 0.0645 41.68
12 0.80 0.0314 1.316 0.0518 38.69
14 0.70 0.0275 1.114 0.0438 37.72
16 0.60 0.0236 0.987 0.0388 38.69
18 0.50 0.0196 0.911 0.0358 41.68
20 0.50 0.0196 0.770 0.0303 36.75
30 0.35 0.0137 0.496 0.0195 34.41
40 0.30 0.0118 0.335 0.0131 27.83
50 0.25 0.0098 0.258 0.0101 25.79
60 0.23 0.0090 0.193 0.0076 20.85
80 0.13 0.0051 0.187 0.0073 34.87
100 0.10 0.0039 0.154 0.0060 36.75
100 0.08 0.0031 0.174 0.0068 46.92
120 0.09 0.0035 0.121 0.0047 33.03
120 0.08 0.0031 0.131 0.0051 38.69
120 0.07 0.0027 0.141 0.0055 44.79
120 0.06 0.0023 0.151 0.0059 51.34
120 0.05 0.0019 0.161 0.0063 58.33
150 0.06 0.0023 0.109 0.0043 41.68
150 0.065 0.0025 0.104 0.0041 37.96
165 0.063 0.0024 0.090 0.0035 34.89
165 0.06 0.0023 0.093 0.0036 37.23
165 0.05 0.0019 0.103 0.0040 45.58
180 0.05 0.0019 0.091 0.0035 41.68
200 0.05 0.0019 0.077 0.0030 36.75
200 0.04 0.0015 0.087 0.0034 46.93
250 0.04 0.0015 0.061 0.0024 36.75
300 0.04 0.0015 0.044 0.0017 27.83



2) Twill Weave Wire Mesh

Mesh Wire D Aperture L Open
openings/inch mm inch mm inch %
40 0.30 0.0118 0.335 0.0131 27.83
40 0.15 0.0059 0.485 0.0190 58.33
50 0.25 0.0098 0.258 0.0101 25.79
50 0.15 0.0059 0.358 0.0140 49.66
60 0.23 0.0090 0.193 0.0076 20.85
60 0.21 0.0082 0.213 0.0083 25.39
60 0.19 0.0074 0.233 0.0091 30.38
60 0.17 0.0066 0.253 0.0099 35.81
60 0.15 0.0059 0.273 0.0107 41.68
60 0.13 0.0051 0.293 0.0115 48.01
60 0.12 0.0047 0.303 0.0119 51.34
80 0.15 0.0059 0.167 0.0065 27.83
80 0.10 0.0039 0.217 0.0085 46.92
100 0.10 0.0039 0.154 0.0060 36.75
100 0.14 0.0055 0.114 0.0044 20.14
100 0.12 0.0047 0.134 0.0052 27.83
120 0.12 0.0047 0.091 0.0036 18.75
120 0.10 0.0039 0.111 0.0043 27.83
120 0.08 0.0031 0.131 0.0051 38.69
150 0.08 0.0031 0.089 0.0035 27.83
150 0.07 0.0027 0.099 0.0039 34.41
150 0.06 0.0023 0.109 0.0043 41.68
180 0.065 0.0026 0.076 0.0030 29.47
180 0.06 0.0023 0.081 0.0031 33.03
180 0.05 0.0019 0.091 0.0035 41.68
200 0.05 0.0019 0.077 0.0030 36.75
200 0.06 0.0023 0.067 0.0026 27.83
250 0.05 0.0019 0.051 0.0020 25.79
250 0.04 0.0015 0.061 0.0024 36.75
300 0.04 0.0015 0.044 0.0017 27.83
325 0.035 0.0013 0.043 0.0016 30.48
325 0.04 0.0015 0.038 0.0015 23.83
400 0.03 0.0011 0.033 0.0013 27.83
500 0.025 0.0009 0.025 0.0010 25.79
600 0.018 0.0007 0.024 0.0009 33.03
635 0.015 0.0005 0.025 0.0009 39.06



3) Stainless Steel Plain Dutch Weave Wire Mesh



Mesh Counts



Wire Diameter

 Aperture Size
warp×weft warp×weft (μm)
(Mesh/Inch) (mm)
7×40 0.9×0.71 347
12×64 0.56×0.4 211
14×110 0.355×.0.25 177
20×140 0.315×0.20 133
20×170 0.25×0.16 130
24×110 0.355×0.25 97
28×150 0.28×0.18 92
30×150 0.25×0.18 82
30×140 0.315×0.20 77
35×190 0.224×0.14 74
35×170 0.224×0.16 69
40×200 0.18×0.135 63
45×250 0.16×0.11 56
50×300 0.16×0.09 55
60×500 0.14×0.055 51
50×270 0.14×0.10 50
70×930 0.10×0.03 30
65×390 0.125×0.071 42
60×300 0.14×0.09 41
80×700 0.125×0.04 40



4) Stainless Steel Twilled Dutch Weave Wire Mesh

Mesh Counts Warp×Weft



Warp×Weft

 Aperture Size
(mesh/inch) (mm) (um)
20×150 0.45×0.355 101
20×200 0.355×0.28 118
20×250 0.25×0.15 120
20×270 0.25×0.20 119
24×300 0.28×0.18 110
40×430 0.18×0.125 63
40×540 0.18×0.10 70
50×500 0.14×0.11 47
50×600 0.125×0.09 51
70×600 0.14×0.09 31
80×680 0.112×0.08 28
90×850 0.10×0.063 26
100×760 0.10×0.071 20
100×850 0.10×0.063 22
150×1400 0.063×0.04 15
160×1500 0.063×0.036 15
165×1400 0.063×0.04 13
165×1500 0.063×0.036 14
250×1900 0.04×0.028 8
285×2100 0.036×0.025 7
300×2100 0.036×0.025 6
317×2100 0.036×0.025 5
325×2300 0.036×0.024 4
