Stainless Steel Woven Wire Mesh with 5Mesh

  • Stainless Steel Woven Wire Mesh with 5Mesh
Place of Origin China
Minimum Order Quantity 1 roll
Payment Terms T/T
Product Details
Sample Avaliable,According To Size,allowed Grade 304, 316, 310, 321, Etc.
Meshtype Woven Applications Filtration, Screening, Sieving, Separation
Type Weave Wire Mesh Cert ISO
Highlight

stainless steel woven wire mesh

,

5mesh stainless steel mesh

,

SS woven wire mesh with warranty
Leave a Message
Product Description

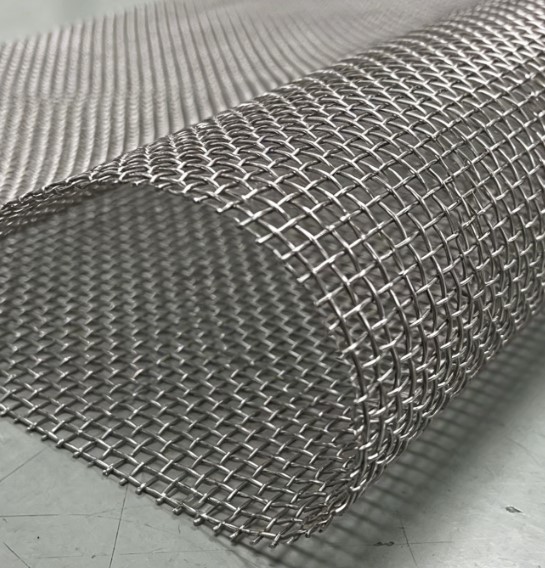

Stainless Steel Woven Wire Mesh with 5 Mesh
5 Mesh Stainless Steel Wire Mesh is a high-strength, multi-purpose industrial mesh solution engineered with 5 precise openings per linear inch for balanced material passage and structural stability.
Material Specifications: Top-grade stainless steel (201, 304, 304L, 316, 316L)
Wire Diameter: Standard 1.0mm
Aperture Size: Uniform 4.1mm
Open Area: 60% for efficient airflow and particle separation
Core Features
  • Robust Load-Bearing Capacity: Medium-gauge wire construction (0.4-2.5mm customizable range) resists deformation under heavy pressure, ideal for industrial and construction applications.
  • Superior Corrosion Resistance: Stainless steel alloy composition prevents rust, oxidation, and chemical erosion, suitable for both indoor environments and outdoor exposure.
  • Flexible Weaving Options: Available in plain weave, twilled weave, and Dutch weave to match diverse screening, filtering, and protective needs.
  • Tailored Dimensions: Standard supply includes rolls (30m length, max 2000mm width) and custom-cut sheets; special shapes can be fabricated per client drawings.
Applications
  • Industrial Processing: Sieving of medium-sized particles, machinery guards, and pipeline filtration
  • Construction & Infrastructure: Concrete slab reinforcement, temporary safety fencing, and facade decorative elements
  • Agriculture & Husbandry: Livestock fencing, crop sorting, and greenhouse ventilation covers
  • Food & Pharmaceutical: Pre-filtering of bulk raw materials (beans, grains, pharmaceutical granules)
  • Environmental Engineering: Wastewater preliminary filtration, dust control barriers, and aquaculture cage nets
