Product Details
Product Name SS Woven Wire Mesh Material Stainless Steel 304
Surface Bright Silver Aperture Shape Square
Weave Type Plain Weave, Twill Weave Roll Width 1m, 1.22m, 1.6m Stock
Standard Length 30m Properity Superior Corrosion Resistance
Application Filtration
Highlight

Plain Weave SS Woven Wire Mesh

,

Twill Weave SS Woven Wire Mesh

,

Square stainless welded wire mesh
Leave a Message
Product Description

Stainless Steel Woven Wire Mesh Square Wire Mesh Plain Weave Type And Twill Weave Type



Indtroduction:

Plain weave wire mesh is a fundamental type of woven wire mesh characterized by a simple and symmetrical crisscross pattern of wires. Here are some key features and common applications of plain weave wire mesh:



Key Features:
Simple Weave Pattern: In plain weave, each weft wire passes alternately over and under each warp wire, creating a tight and uniform mesh structure.
Even Distribution of Wires: The plain weave pattern results in an equal distribution of wire counts in the warp (longitudinal) and weft (transverse) directions, providing a balanced and stable mesh.
High Open Area: Due to its simple weave structure, plain weave wire mesh typically has a high percentage of open area, making it suitable for applications requiring good visibility or airflow.
Ease of Fabrication: Plain weave wire mesh is easy to cut, shape, and manipulate, allowing for customization to fit specific project requirements.
Versatility: Plain weave wire mesh is available in various materials, wire diameters, and mesh sizes, making it versatile for a wide range of applications.


Common Applications:
Filtration: Plain weave wire mesh is commonly used for filtration applications in industries such as food and beverage, pharmaceuticals, and water treatment. It can be used to filter solids, liquids, or gases based on the desired mesh size.
Screening and Sieving: Plain weave wire mesh is ideal for screening and sieving applications in industries like mining, agriculture, and construction. It is used to separate particles of different sizes efficiently.
Ventilation and Airflow Control: Due to its high open area, plain weave wire mesh is utilized in HVAC systems, vent covers, and air vents to control airflow while providing protection against debris and pests.
Decorative and Architectural: Plain weave wire mesh is often used in architectural and interior design for decorative purposes, such as wall panels, room dividers, and facade elements, adding a modern and stylish touch to spaces.
Safety and Security: In industrial and commercial settings, plain weave wire mesh is employed for safety barriers, machine guards, and fencing to ensure security while allowing visibility and airflow.
Crafts and DIY Projects: Plain weave wire mesh is popular for crafts, DIY projects, and hobbies like jewelry making, sculpture, and model building due to its versatility and ease of manipulation.
Plain weave wire mesh's simplicity, versatility, and reliability make it a popular choice for a wide range of applications where a balanced weave pattern and high open area are desired.

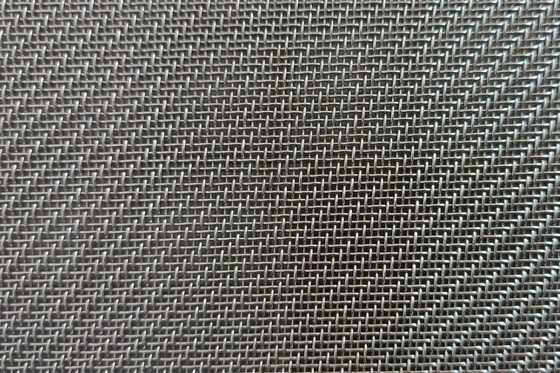

Twill weave wire mesh is another common type of woven wire mesh that features a distinctive diagonal pattern created by the interlacing of wires. Here are the key features and typical applications of twill weave wire mesh:

Key Features:
Diagonal Pattern: In twill weave, each weft wire passes over two warp wires and then under two warp wires, creating a diagonal pattern across the mesh. This results in a strong and stable mesh structure.
Tight Weave: Twill weave wire mesh typically has a tighter weave compared to plain weave, providing higher strength and durability.
Reduced Visibility: The diagonal pattern of twill weave wire mesh offers better opacity compared to plain weave, making it suitable for applications where visibility needs to be reduced.
Increased Stability: The crisscrossing of wires in a twill weave pattern enhances the stability and resistance of the mesh to bending and deformation.
Good Flow Control: Twill weave wire mesh is effective in controlling the flow of liquids, gases, and particles due to its tight weave and uniform openings.
Common Applications:
Filtration and Separation: Twill weave wire mesh is used in filtration applications where fine particles need to be separated from liquids or gases. It is commonly employed in industries such as chemical processing, oil and gas, and pharmaceuticals.
Sieving and Sifting: The tight weave and strong construction of twill weave wire mesh make it ideal for sieving and sifting applications in industries like food processing, agriculture, and mining.
High-Temperature Applications: Twill weave wire mesh is suitable for applications involving high temperatures, such as furnace screens, heat treatment processes, and aerospace components.
Decorative and Design: In architectural and interior design, twill weave wire mesh is used for decorative purposes, such as partitions, wall cladding, and facade elements, adding a unique texture and design element to spaces.
Erosion Control: Twill weave wire mesh is utilized in erosion control applications to stabilize soil, prevent sediment runoff, and promote plant growth in landscaping and construction projects.
Automotive and Aerospace: Twill weave wire mesh is used in automotive and aerospace applications for components like exhaust screens, airbag filters, and engine parts due to its strength and heat resistance.
Chemical Processing: In the chemical industry, twill weave wire mesh is employed for chemical filtration, drying, and separation processes where precise control of particle size and flow is necessary.
Twill weave wire mesh offers a balance of strength, stability, and flow control, making it a versatile choice for a wide range of industrial, commercial, and decorative applications where a more robust and specialized mesh structure is required.



Plain Weave Mesh Specifications:

Mesh Wire D Aperture L Open Area Square Meter Weight
openings/inch mm inch mm inch % kgs lbs
3 1.60 0.0629 6.866 0.2703 65.77 3.84 8.44
3 1.40 0.0551 7.066 0.2782 69.66 2.94 6.46
3 1.20 0.0472 7.266 0.2860 73.66 2.16 4.75
3 1.00 0.0393 7.466 0.2939 77.77 1.50 3.30
3 0.90 0.0354 7.566 0.2979 79.87 1.21 2.67
3 0.80 0.0314 7.666 0.3018 81.99 0.96 2.11
3 0.70 0.0275 7.766 0.3057 84.14 0.73 1.60
4 1.20 0.0472 5.15 0.2027 65.77 2.88 6.33
4 1.00 0.0393 5.35 0.2106 70.98 2.00 4.40
4 0.90 0.0354 5.45 0.2145 73.66 1.62 3.56
4 0.80 0.0314 5.55 0.2185 76.39 1.28 2.81
4 0.70 0.0275 5.65 0.2224 79.16 0.98 2.15
4 0.60 0.0236 5.75 0.2263 81.99 0.72 1.58
5 1.00 0.0393 4.08 0.1606 64.50 2.50 5.50
5 0.90 0.0354 4.18 0.1645 67.70 2.02 4.45
5 0.80 0.0314 4.28 0.1685 70.98 1.60 3.52
5 0.70 0.0275 4.38 0.1724 74.33 1.22 2.68
5 0.60 0.0236 4.48 0.1763 77.77 0.90 1.98
5 0.50 0.0196 4.58 0.1803 81.28 0.62 1.37
6 0.90 0.0354 3.333 0.1312 62.00 2.43 5.34
6 0.80 0.0314 3.433 0.1351 65.77 1.92 4.22
6 0.70 0.0275 3.533 0.1391 69.66 1.47 3.23
6 0.60 0.0236 3.633 0.1430 73.66 1.08 2.37
6 0.50 0.0196 3.733 0.1469 77.77 0.75 1.65
8 0.90 0.0354 2.275 0.0895 51.34 3.24 7.12
8 0.80 0.0314 2.375 0.0935 55.95 2.56 5.63
8 0.70 0.0275 2475 0.0974 60.76 1.96 4.31
8 0.60 0.0236 2575 0.1013 65.77 1.44 3.16
8 0.50 0.0196 2675 0.1053 70.98 1.00 2.20
10 0.90 0.0354 1.640 0.0645 41.68 4.05 8.91
10 0.80 0.0314 1.740 0.0685 46.92 3.2 7.04
10 0.70 0.0275 1.840 0.0724 52.47 2.45 5.39
10 0.60 0.0236 1.940 0.0763 58.33 1.8 3.96
10 0.50 0.0196 2.040 0.0803 64.50 1.25 2.75
10 0.40 0.0157 2.140 0.0842 70.98 0.80 1.76
12 0.80 0.0314 1.316 0.0518 38.69 3.84 8.44
12 0.70 0.0275 1.416 0.0557 44.79 2.94 6.46
12 0.60 0.0236 1.516 0.0597 51.34 2.16 4.75
12 0.50 0.0196 1.616 0.0636 58.33 1.50 3.30
12 0.40 0.0157 1.716 0.0675 65.77 0.96 2.11
12 0.30 0.0118 1.816 0.0715 73.66 0.54 1.18
14 0.70 0.0275 1.114 0.0438 37.72 3.43 7.54
14 0.60 0.0236 1.214 0.0478 44.79 2.52 5.54
14 0.50 0.0196 1.314 0.0517 52.47 1.75 3.85
14 0.40 0.0157 1.414 0.0556 60.76 1.12 2.46
14 0.35 0.0137 1.464 0.0576 65.13 0.85 1.87
14 0.30 0.0118 1.514 0.0596 69.66 0.63 1.38
14 0.27 0.0106 1.544 0.0607 72.45 0.51 1.12
14 0.25 0.0098 1.564 0.0615 74.33 0.43 0.94
14 0.23 0.0090 1.584 0.0623 76.25 0.37 0.81
14 0.21 0.0082 1.604 0.0631 78.19 0.30 0.67
14 0.19 0.0074 1.624 0.0639 80.15 0.25 0.55
16 0.60 0.0236 0.987 0.0388 38.69 2.88 6.33
16 0.50 0.0196 1.087 0.0428 46.92 2.00 4.40
16 0.40 0.0157 1.187 0.0467 55.95 1.28 2.81
16 0.35 0.0137 1.237 0.0487 60.76 0.98 2.15
16 0.30 0.0118 1.287 0.0506 65.77 0.72 1.58
16 0.27 0.0106 1.317 0.0518 68.87 0.58 1.27
16 0.25 0.0098 1.337 0.0526 70.98 0.50 1.10
16 0.23 0.0090 1.357 0.0534 73.12 0.42 0.92
16 0.21 0.0082 1.377 0.0542 75.29 0.35 0.77
16 0.19 0.0074 1.397 0.0550 77.49 0.28 0.61
18 0.50 0.0196 0.911 0.0358 41.68 2.25 4.95
18 0.40 0.0157 1.011 0.0398 51.34 1.44 3.16
18 0.35 0.0137 1.061 0.0417 56.54 1.10 2.42
18 0.30 0.0118 1.111 0.0437 62.00 0.81 1.78
18 0.27 0.0106 1.141 0.0449 65.39 0.65 1.44
18 0.25 0.0098 1.161 0.0457 67.70 0.56 1.23
18 0.23 0.0090 1.181 0.0465 70.05 0.47 1.04
18 0.21 0.0082 1.201 0.0472 72.45 0.39 0.87
18 0.19 0.0074 1.221 0.0480 74.88 0.32 0.71
18 0.17 0.0066 1.241 0.0488 77.35 0.26 0.57
18 0.15 0.0059 1.261 0.0496 79.87 0.20 0.44
20 0.50 0.0196 0.770 0.0303 36.75 2.50 5.50
20 0.45 0.0177 0.820 0.0322 41.68 2.02 4.44
20 0.40 0.0157 0.870 0.0342 46.92 1.60 3.52
20 0.35 0.0137 0.920 0.0362 52.47 1.22 2.69
20 0.30 0.0118 0.970 0.0381 58.33 0.90 1.98
20 0.27 0.0106 1.000 0.0393 62.00 0.72 1.60
20 0.25 0.0098 1.020 0.0401 64.50 0.62 1.36
20 0.23 0.0090 1.040 0.0409 67.05 0.52 1.16
20 0.21 0.0082 1.060 0.0417 69.66 0.44 0.97
20 0.19 0.0074 1.080 0.0425 72.31 0.36 0.79
20 0.17 0.0066 1.100 0.0433 75.02 0.28 0.63
20 0.15 0.0059 1.120 0.0440 77.77 0.22 0.49
22 0.40 0.0157 0.754 0.0297 42.71 1.76 3.87
22 0.35 0.0137 0.804 0.0316 48.56 1.34 2.96
22 0.30 0.0118 0.854 0.0336 54.78 0.99 2.17
22 0.27 0.0106 0.884 0.0348 58.69 0.80 1.76
22 0.25 0.0098 0.904 0.0356 61.38 0.68 1.49
22 0.23 0.0090 0.924 0.0363 64.12 0.58 1.27
22 0.21 0.0082 0.944 0.0371 66.93 0.48 1.05
22 0.19 0.0074 0.964 0.0379 69.79 0.39 0.87
22 0.17 0.0066 0.984 0.0387 72.71 0.31 0.69
22 0.15 0.0059 1.004 0.0395 75.70 0.24 0.54
24 0.35 0.0137 0.708 0.0278 44.79 1.47 3.23
24 0.30 0.0118 0.758 0.0298 51.34 1.08 2.37
24 0.27 0.0106 0.788 0.0310 55.48 0.87 1.92
24 0.25 0.0098 0.808 0.0318 58.33 0.75 1.65
24 0.23 0.0090 0.828 0.0326 61.25 0.63 1.38
24 0.21 0.0082 0.848 0.0333 64.25 0.52 1.14
24 0.19 0.0074 0.868 0.0341 67.31 0.43 0.95
24 0.17 0.0066 0.888 0.0349 70.45 0.34 0.76
24 0.15 0.0059 0.908 0.0357 73.66 0.27 0.59
24 0.13 0.0051 0.928 0.0365 76.94 0.20 0.44
24 0.12 0.0047 0.938 0.0369 78.60 0.17 0.38
30 0.35 0.0137 0.496 0.0195 34.41 1.83 4.02
30 0.30 0.0118 0.546 0.0215 41.68 1.35 2.97
30 0.27 0.0106 0.576 0.0227 46.39 1.09 2.40
30 0.25 0.0098 0.596 0.0234 49.66 0.93 2.04
30 0.23 0.0090 0.616 0.0242 53.04 0.79 1.73
30 0.21 0.0082 0.636 0.0250 56.54 0.66 1.45
30 0.19 0.0074 0.656 0.0258 60.15 0.54 1.18
30 0.17 0.0066 0.676 0.0266 63.87 0.43 0.95
30 0.15 0.0059 0.696 0.0274 67.70 0.33 0.74
30 0.13 0.0051 0.716 0.0282 71.64 0.25 0.55
30 0.12 0.0047 0.726 0.0286 73.66 0.21 0.47
32 0.28 0.0110 0.513 0.0202 41.89 1.25 2.75
32 0.25 0.0098 0.543 0.0214 46.92 1.00 2.20
32 0.23 0.0090 0.563 0.0221 50.44 0.84 1.86
32 0.21 0.0082 0.583 0.0229 54.08 0.70 1.55
32 0.19 0.0074 0.603 0.0237 57.85 0.57 1.27
32 0.17 0.0066 0.623 0.0245 61.75 0.46 1.01
32 0.15 0.0059 0.643 0.0253 65.77 0.36 0.79
35 0.30 0.0118 0.425 0.0167 34.41 1.57 3.46
35 0.28 0.0110 0.445 0.0175 37.72 1.37 3.01
35 0.25 0.0098 0.475 0.0187 42.96 1.09 2.40
35 0.23 0.0091 0.496 0.0195 46.66 0.93 2.04
35 0.21 0.0082 0.515 0.0203 50.49 0.77 1.69
35 0.19 0.0074 0.535 0.0210 54.49 0.63 1.38
35 0.17 0.0066 0.555 0.0218 58.63 0.50 1.11
35 0.15 0.0059 0.575 0.0226 62.93 0.39 0.86
40 0.30 0.0118 0.335 0.0131 27.83 1.8 3.96
40 0.27 0.0106 0.365 0.0143 33.03 1.45 3.20
40 0.25 0.0098 0.385 0.0151 36.75 1.25 2.75
40 0.23 0.0090 0.405 0.0159 40.67 1.05 2.31
40 0.21 0.0082 0.425 0.0167 44.79 0.88 1.94
40 0.19 0.0074 0.445 0.0175 49.11 0.72 1.58
40 0.17 0.0066 0.465 0.0183 53.62 0.57 1.27
40 0.15 0.0059 0.485 0.0190 58.33 0.45 0.99
40 0.13 0.0051 0.505 0.0198 63.24 0.33 0.74
40 0.12 0.0047 0.515 0.0202 65.77 0.28 0.63
50 0.25 0.0098 0.258 0.0101 25.79 1.56 3.43
50 0.23 0.0090 0.278 0.0109 29.94 1.32 2.90
50 0.21 0.0082 0.298 0.0117 34.41 1.10 2.42
50 0.19 0.0074 0.318 0.0125 39.18 0.90 1.98
50 0.18 0.0070 0.328 0.0129 41.68 0.81 1.78
50 0.17 0.0066 0.338 0.0133 44.26 0.72 1.58
50 0.15 0.0059 0.358 0.0140 49.66 0.56 1.23
50 0.13 0.0051 0.378 0.0148 55.36 0.42 0.92
50 0.12 0.0047 0.388 0.0152 58.33 0.36 0.79
60 0.23 0.0090 0.193 0.0076 20.85 1.58 3.49
60 0.21 0.0082 0.213 0.0083 25.39 1.32 2.91
60 0.19 0.0074 0.233 0.0091 30.38 1.08 2.37
60 0.17 0.0066 0.253 0.0099 35.81 0.86 1.90
60 0.15 0.0059 0.273 0.0107 41.68 0.67 1.47
60 0.13 0.0051 0.293 0.0115 48.01 0.50 1.11
60 0.12 0.0047 0.303 0.0119 51.34 0.43 0.95
80 0.13 0.0051 0.187 0.0073 34.87 0.67 1.48
80 0.12 0.0047 0.197 0.0077 38.69 0.57 1.25
80 0.10 0.0039 0.217 0.0085 46.92 0.40 0.88
80 0.09 0.0035 0.227 0.0089 51.34 0.32 0.71
100 0.10 0.0039 0.154 0.0060 36.75 0.50 1.10
100 0.08 0.0031 0.174 0.0068 46.92 0.32 0.70
120 0.09 0.0035 0.121 0.0047 33.03 0.48 1.06
120 0.08 0.0031 0.131 0.0051 38.69 0.38 0.83
120 0.07 0.0027 0.141 0.0055 44.79 0.29 0.64
120 0.06 0.0023 0.151 0.0059 51.34 0.21 0.47
120 0.05 0.0019 0.161 0.0063 58.33 0.15 0.33
150 0.06 0.0023 0.109 0.0043 41.68 0.27 0.59
150 0.065 0.0025 0.104 0.0041 37.96 0.31 0.69
165 0.063 0.0024 0.090 0.0035 34.89 0.32 0.72
165 0.06 0.0023 0.093 0.0036 37.23 0.29 0.65
165 0.05 0.0019 0.103 0.0040 45.58 0.20 0.45
180 0.05 0.0019 0.091 0.0035 41.68 0.22 0.48
200 0.05 0.0019 0.077 0.0030 36.75 0.25 0.55
200 0.04 0.0015 0.087 0.0034 46.93 0.16 0.35
250 0.04 0.0015 0.061 0.0024 36.75 0.20 0.44
300 0.04 0.0015 0.044 0.0017 27.83 0.24 0.52





Twill Weave Mesh Specifications:

Mesh Wire D Aperture L Open Area Square Meter Weight
openings/inch mm inch mm inch % kgs lbs
40 0.30 0.0118 0.335 0.0131 27.83 1.80 3.96
40 0.27 0.0106 0.365 0.0143 33.03 1.45 3.20
40 0.25 0.0098 0.385 0.0151 36.75 1.25 2.75
40 0.23 0.0090 0.405 0.0159 40.67 1.05 2.31
40 0.21 0.0082 0.425 0.0167 44.79 0.88 1.94
40 0.19 0.0074 0.445 0.0175 49.11 0.72 1.58
40 0.17 0.0066 0.465 0.0183 53.62 0.57 1.27
40 0.15 0.0059 0.485 0.0190 58.33 0.45 0.99
50 0.25 0.0098 0.258 0.0101 25.79 1.56 3.43
50 0.23 0.0090 0.278 0.0109 29.94 1.32 2.90
50 0.21 0.0082 0.298 0.0117 34.41 1.10 2.42
50 0.19 0.0074 0.318 0.0125 39.18 0.90 1.98
50 0.18 0.0070 0.328 0.0129 41.68 0.81 1.78
50 0.17 0.0066 0.338 0.0133 44.26 0.72 1.58
50 0.15 0.0059 0.358 0.0140 49.66 0.56 1.23
60 0.23 0.0090 0.193 0.0076 20.85 1.58 3.49
60 0.21 0.0082 0.213 0.0083 25.39 1.32 2.91
60 0.19 0.0074 0.233 0.0091 30.38 1.08 2.37
60 0.17 0.0066 0.253 0.0099 35.81 0.86 1.90
60 0.15 0.0059 0.273 0.0107 41.68 0.67 1.47
60 0.13 0.0051 0.293 0.0115 48.01 0.50 1.11
60 0.12 0.0047 0.303 0.0119 51.34 0.43 0.95
80 0.15 0.0059 0.167 0.0065 27.83 0.9 1.98
80 0.18 0.0070 0.137 0.0054 18.75 1.29 2.85
80 0.13 0.0051 0.187 0.0073 34.87 0.67 1.48
80 0.12 0.0047 0.197 0.0077 38.69 0.57 1.25
80 0.10 0.0039 0.217 0.0085 46.92 0.40 0.88
100 0.10 0.0039 0.154 0.0060 36.75 0.50 1.10
100 0.14 0.0055 0.114 0.0044 20.14 0.98 2.15
100 0.12 0.0047 0.134 0.0052 27.83 0.72 1.58
120 0.12 0.0047 0.091 0.0036 18.75 0.86 1.90
120 0.10 0.0039 0.111 0.0043 27.83 0.6 1.32
120 0.09 0.0035 0.121 0.0047 33.03 0.48 1.06
120 0.08 0.0031 0.131 0.0051 38.69 0.38 0.83
150 0.08 0.0031 0.089 0.0035 27.83 0.48 1.05
150 0.07 0.0027 0.099 0.0039 34.41 0.36 0.80
150 0.06 0.0023 0.109 0.0043 41.68 0.27 0.59
180 0.065 0.0026 0.076 0.0030 29.47 0.38 0.83
180 0.06 0.0023 0.081 0.0031 33.03 0.32 0.71
180 0.05 0.0019 0.091 0.0035 41.68 0.22 0.48
200 0.05 0.0019 0.077 0.0030 36.75 0.25 0.55
200 0.06 0.0023 0.067 0.0026 27.83 0.36 0.79
250 0.05 0.0019 0.051 0.0020 25.79 0.31 0.68
250 0.04 0.0015 0.061 0.0024 36.75 0.20 0.44
300 0.04 0.0015 0.044 0.0017 27.83 0.24 0.52
325 0.035 0.0013 0.043 0.0016 30.48 0.19 0.41
325 0.04 0.0015 0.038 0.0015 23.83 0.26 0.57
400 0.03 0.0011 0.033 0.0013 27.83 0.18 0.39
500 0.025 0.0009 0.025 0.0010 25.79 0.15 0.33
600 0.018 0.0007 0.024 0.0009 33.03 0.09 0.21
635 0.015 0.0005 0.025 0.0009 39.06 0.07 0.15


Other specifications according to your requirements.





Materials:



201, 304, 304L, 316, 316L

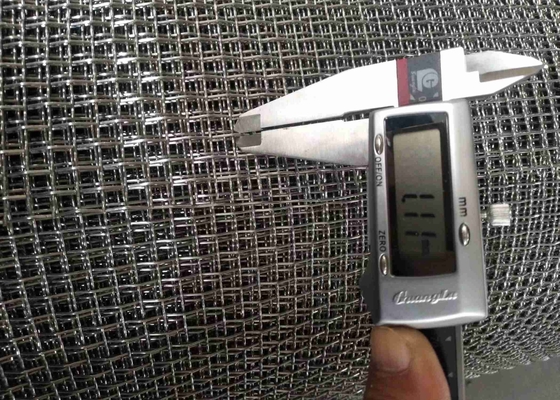

Square Stainless Welded Wire Mesh Plain Weave Type And Twill Weave Type 0





Packing:

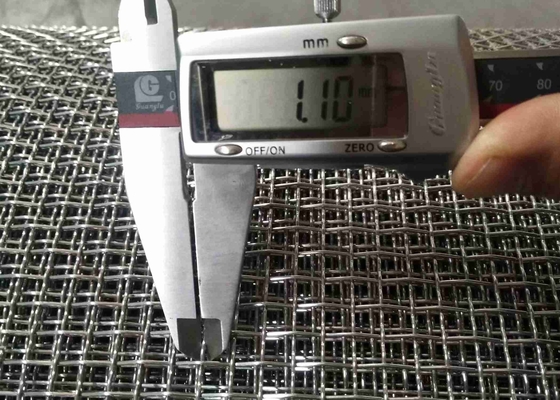

Square Stainless Welded Wire Mesh Plain Weave Type And Twill Weave Type 1

Tags:

302 SS Woven Wire Mesh

110 Mesh stainless steel wire mesh

201 SS Woven Wire Mesh
