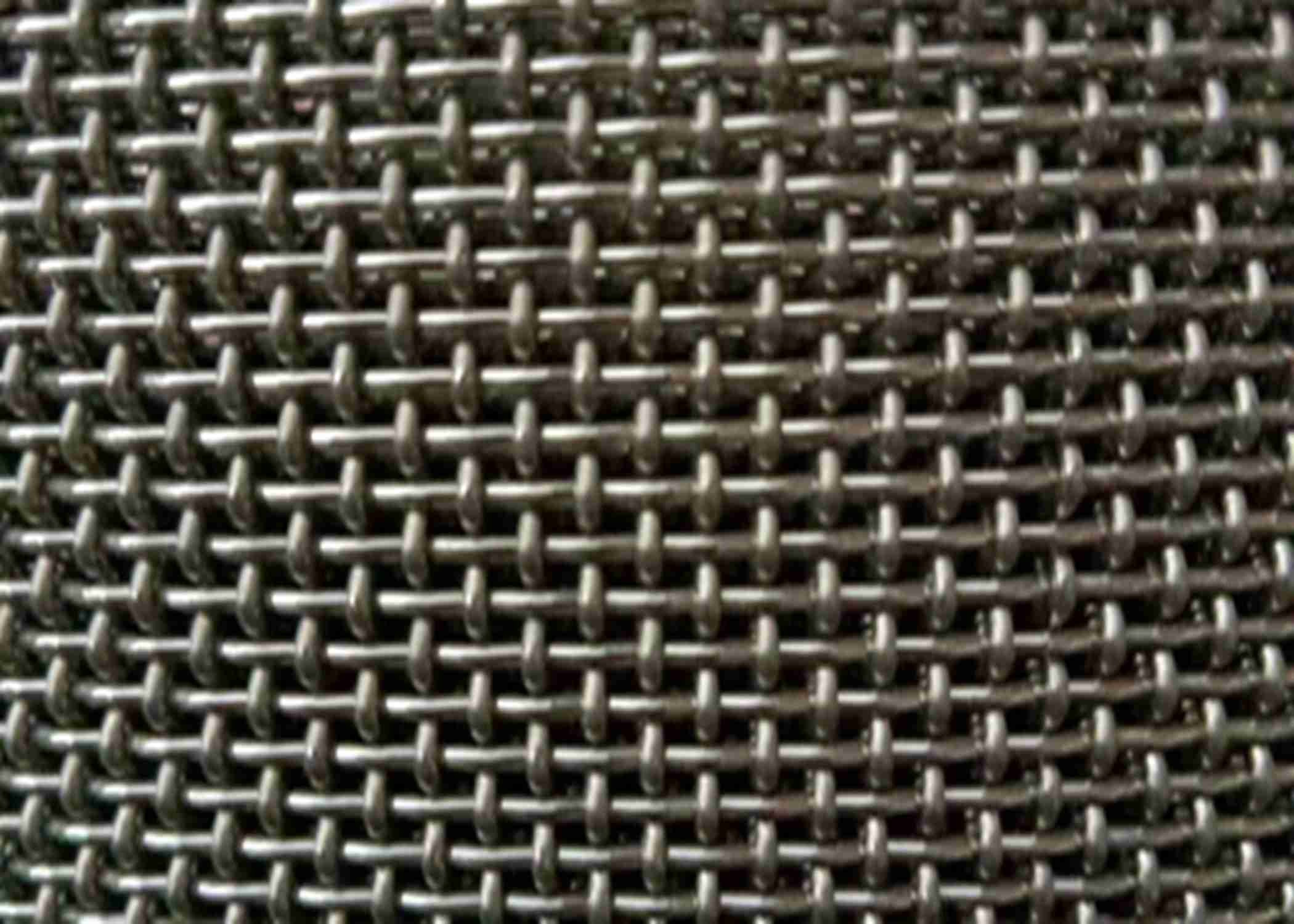

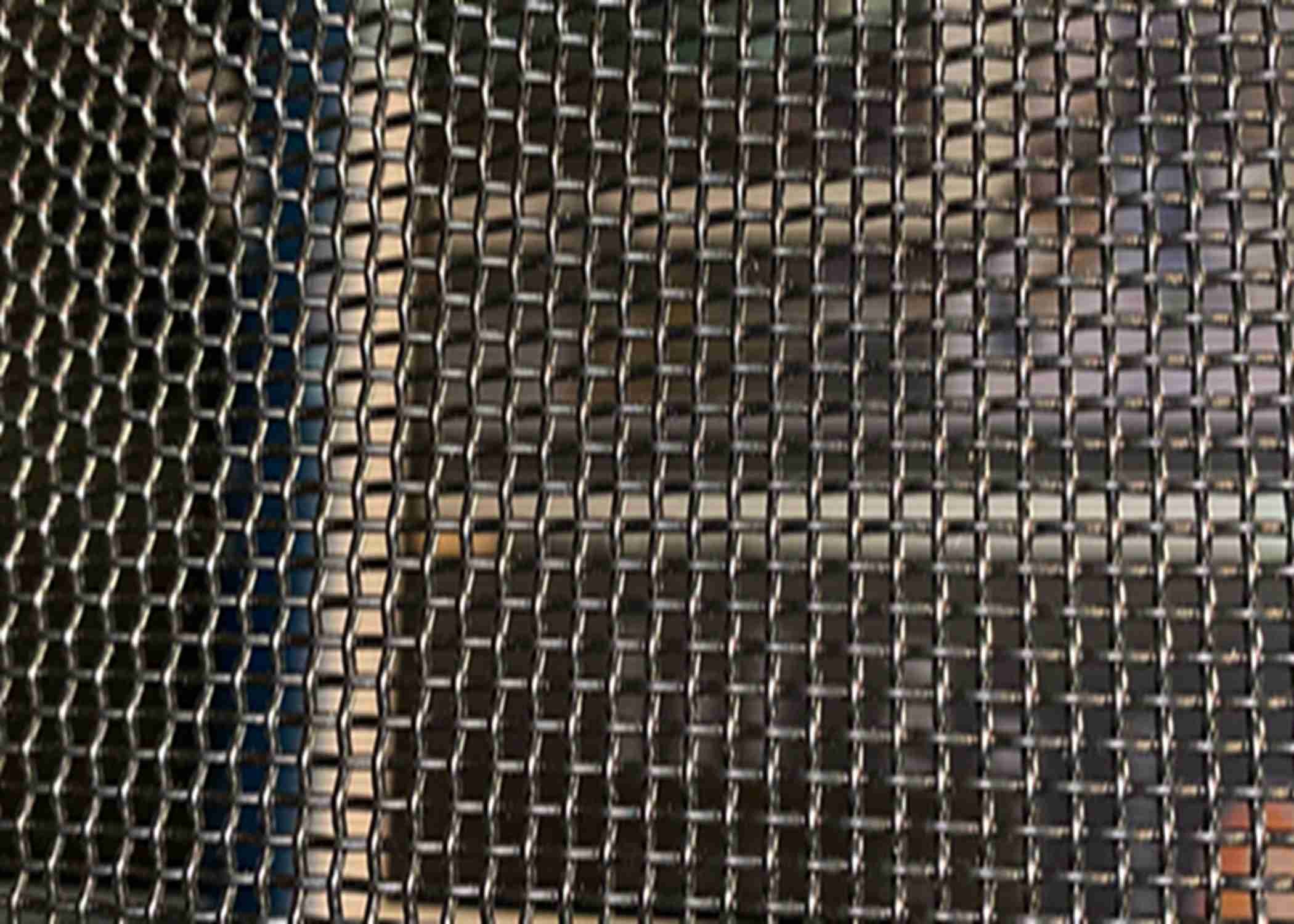

Stainless Steel 904L Woven Wire Mesh Superior Corrosion Resistance

  • Stainless Steel 904L Woven Wire Mesh Superior Corrosion Resistance
  • Stainless Steel 904L Woven Wire Mesh Superior Corrosion Resistance
  • Stainless Steel 904L Woven Wire Mesh Superior Corrosion Resistance
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5 Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time Immediately
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name SS Woven Wire Mesh Material Stainless Steel 304
Surface Bright Silver Aperture Shape Square
Mesh Counts 40 Wire Diameter 0.25mm
Roll Width 1m, 1.22m, 1.6m Stock Standard Length 30m
Properity Superior Corrosion Resistance Application Filtration
Highlight

Stainless Steel 904L Woven Wire Mesh

,

904L Woven Wire Mesh

,

Superior Corrosion Resistance Woven Wire Mesh
Leave a Message
Product Description

Stainless Steel 904L Woven Wire Mesh Offers Superior Corrosion Resistance



Indtroduction:

Stainless steel 904L is a non-stabilized austenitic stainless steel with low carbon content. It is known for its excellent resistance to a wide range of corrosive environments, particularly in aggressive chloride-containing environments. When this material is used to make wire mesh, it inherits these corrosion-resistant properties, making it suitable for demanding applications where corrosion resistance is critical.



When considering stainless steel 904L wire mesh for a specific application, it's important to evaluate the requirements for corrosion resistance, temperature exposure, and mechanical properties to ensure that it is the right material for the job. Additionally, consulting with manufacturers or suppliers who specialize in stainless steel wire mesh can provide further guidance on the suitability of this material for your application.



Plain Weave Mesh Specifications:

Mesh Wire D Aperture L Open Area Square Meter Weight
openings/inch mm inch mm inch % kgs lbs
3 1.60 0.0629 6.866 0.2703 65.77 3.84 8.44
3 1.40 0.0551 7.066 0.2782 69.66 2.94 6.46
3 1.20 0.0472 7.266 0.2860 73.66 2.16 4.75
3 1.00 0.0393 7.466 0.2939 77.77 1.50 3.30
3 0.90 0.0354 7.566 0.2979 79.87 1.21 2.67
3 0.80 0.0314 7.666 0.3018 81.99 0.96 2.11
3 0.70 0.0275 7.766 0.3057 84.14 0.73 1.60
4 1.20 0.0472 5.15 0.2027 65.77 2.88 6.33
4 1.00 0.0393 5.35 0.2106 70.98 2.00 4.40
4 0.90 0.0354 5.45 0.2145 73.66 1.62 3.56
4 0.80 0.0314 5.55 0.2185 76.39 1.28 2.81
4 0.70 0.0275 5.65 0.2224 79.16 0.98 2.15
4 0.60 0.0236 5.75 0.2263 81.99 0.72 1.58
5 1.00 0.0393 4.08 0.1606 64.50 2.50 5.50
5 0.90 0.0354 4.18 0.1645 67.70 2.02 4.45
5 0.80 0.0314 4.28 0.1685 70.98 1.60 3.52
5 0.70 0.0275 4.38 0.1724 74.33 1.22 2.68
5 0.60 0.0236 4.48 0.1763 77.77 0.90 1.98
5 0.50 0.0196 4.58 0.1803 81.28 0.62 1.37
6 0.90 0.0354 3.333 0.1312 62.00 2.43 5.34
6 0.80 0.0314 3.433 0.1351 65.77 1.92 4.22
6 0.70 0.0275 3.533 0.1391 69.66 1.47 3.23
6 0.60 0.0236 3.633 0.1430 73.66 1.08 2.37
6 0.50 0.0196 3.733 0.1469 77.77 0.75 1.65
8 0.90 0.0354 2.275 0.0895 51.34 3.24 7.12
8 0.80 0.0314 2.375 0.0935 55.95 2.56 5.63
8 0.70 0.0275 2475 0.0974 60.76 1.96 4.31
8 0.60 0.0236 2575 0.1013 65.77 1.44 3.16
8 0.50 0.0196 2675 0.1053 70.98 1.00 2.20
10 0.90 0.0354 1.640 0.0645 41.68 4.05 8.91
10 0.80 0.0314 1.740 0.0685 46.92 3.2 7.04
10 0.70 0.0275 1.840 0.0724 52.47 2.45 5.39
10 0.60 0.0236 1.940 0.0763 58.33 1.8 3.96
10 0.50 0.0196 2.040 0.0803 64.50 1.25 2.75
10 0.40 0.0157 2.140 0.0842 70.98 0.80 1.76
12 0.80 0.0314 1.316 0.0518 38.69 3.84 8.44
12 0.70 0.0275 1.416 0.0557 44.79 2.94 6.46
12 0.60 0.0236 1.516 0.0597 51.34 2.16 4.75
12 0.50 0.0196 1.616 0.0636 58.33 1.50 3.30
12 0.40 0.0157 1.716 0.0675 65.77 0.96 2.11
12 0.30 0.0118 1.816 0.0715 73.66 0.54 1.18
14 0.70 0.0275 1.114 0.0438 37.72 3.43 7.54
14 0.60 0.0236 1.214 0.0478 44.79 2.52 5.54
14 0.50 0.0196 1.314 0.0517 52.47 1.75 3.85
14 0.40 0.0157 1.414 0.0556 60.76 1.12 2.46
14 0.35 0.0137 1.464 0.0576 65.13 0.85 1.87
14 0.30 0.0118 1.514 0.0596 69.66 0.63 1.38
14 0.27 0.0106 1.544 0.0607 72.45 0.51 1.12
14 0.25 0.0098 1.564 0.0615 74.33 0.43 0.94
14 0.23 0.0090 1.584 0.0623 76.25 0.37 0.81
14 0.21 0.0082 1.604 0.0631 78.19 0.30 0.67
14 0.19 0.0074 1.624 0.0639 80.15 0.25 0.55
16 0.60 0.0236 0.987 0.0388 38.69 2.88 6.33
16 0.50 0.0196 1.087 0.0428 46.92 2.00 4.40
16 0.40 0.0157 1.187 0.0467 55.95 1.28 2.81
16 0.35 0.0137 1.237 0.0487 60.76 0.98 2.15
16 0.30 0.0118 1.287 0.0506 65.77 0.72 1.58
16 0.27 0.0106 1.317 0.0518 68.87 0.58 1.27
16 0.25 0.0098 1.337 0.0526 70.98 0.50 1.10
16 0.23 0.0090 1.357 0.0534 73.12 0.42 0.92
16 0.21 0.0082 1.377 0.0542 75.29 0.35 0.77
16 0.19 0.0074 1.397 0.0550 77.49 0.28 0.61
18 0.50 0.0196 0.911 0.0358 41.68 2.25 4.95
18 0.40 0.0157 1.011 0.0398 51.34 1.44 3.16
18 0.35 0.0137 1.061 0.0417 56.54 1.10 2.42
18 0.30 0.0118 1.111 0.0437 62.00 0.81 1.78
18 0.27 0.0106 1.141 0.0449 65.39 0.65 1.44
18 0.25 0.0098 1.161 0.0457 67.70 0.56 1.23
18 0.23 0.0090 1.181 0.0465 70.05 0.47 1.04
18 0.21 0.0082 1.201 0.0472 72.45 0.39 0.87
18 0.19 0.0074 1.221 0.0480 74.88 0.32 0.71
18 0.17 0.0066 1.241 0.0488 77.35 0.26 0.57
18 0.15 0.0059 1.261 0.0496 79.87 0.20 0.44
20 0.50 0.0196 0.770 0.0303 36.75 2.50 5.50
20 0.45 0.0177 0.820 0.0322 41.68 2.02 4.44
20 0.40 0.0157 0.870 0.0342 46.92 1.60 3.52
20 0.35 0.0137 0.920 0.0362 52.47 1.22 2.69
20 0.30 0.0118 0.970 0.0381 58.33 0.90 1.98
20 0.27 0.0106 1.000 0.0393 62.00 0.72 1.60
20 0.25 0.0098 1.020 0.0401 64.50 0.62 1.36
20 0.23 0.0090 1.040 0.0409 67.05 0.52 1.16
20 0.21 0.0082 1.060 0.0417 69.66 0.44 0.97
20 0.19 0.0074 1.080 0.0425 72.31 0.36 0.79
20 0.17 0.0066 1.100 0.0433 75.02 0.28 0.63
20 0.15 0.0059 1.120 0.0440 77.77 0.22 0.49
22 0.40 0.0157 0.754 0.0297 42.71 1.76 3.87
22 0.35 0.0137 0.804 0.0316 48.56 1.34 2.96
22 0.30 0.0118 0.854 0.0336 54.78 0.99 2.17
22 0.27 0.0106 0.884 0.0348 58.69 0.80 1.76
22 0.25 0.0098 0.904 0.0356 61.38 0.68 1.49
22 0.23 0.0090 0.924 0.0363 64.12 0.58 1.27
22 0.21 0.0082 0.944 0.0371 66.93 0.48 1.05
22 0.19 0.0074 0.964 0.0379 69.79 0.39 0.87
22 0.17 0.0066 0.984 0.0387 72.71 0.31 0.69
22 0.15 0.0059 1.004 0.0395 75.70 0.24 0.54
24 0.35 0.0137 0.708 0.0278 44.79 1.47 3.23
24 0.30 0.0118 0.758 0.0298 51.34 1.08 2.37
24 0.27 0.0106 0.788 0.0310 55.48 0.87 1.92
24 0.25 0.0098 0.808 0.0318 58.33 0.75 1.65
24 0.23 0.0090 0.828 0.0326 61.25 0.63 1.38
24 0.21 0.0082 0.848 0.0333 64.25 0.52 1.14
24 0.19 0.0074 0.868 0.0341 67.31 0.43 0.95
24 0.17 0.0066 0.888 0.0349 70.45 0.34 0.76
24 0.15 0.0059 0.908 0.0357 73.66 0.27 0.59
24 0.13 0.0051 0.928 0.0365 76.94 0.20 0.44
24 0.12 0.0047 0.938 0.0369 78.60 0.17 0.38
30 0.35 0.0137 0.496 0.0195 34.41 1.83 4.02
30 0.30 0.0118 0.546 0.0215 41.68 1.35 2.97
30 0.27 0.0106 0.576 0.0227 46.39 1.09 2.40
30 0.25 0.0098 0.596 0.0234 49.66 0.93 2.04
30 0.23 0.0090 0.616 0.0242 53.04 0.79 1.73
30 0.21 0.0082 0.636 0.0250 56.54 0.66 1.45
30 0.19 0.0074 0.656 0.0258 60.15 0.54 1.18
30 0.17 0.0066 0.676 0.0266 63.87 0.43 0.95
30 0.15 0.0059 0.696 0.0274 67.70 0.33 0.74
30 0.13 0.0051 0.716 0.0282 71.64 0.25 0.55
30 0.12 0.0047 0.726 0.0286 73.66 0.21 0.47
32 0.28 0.0110 0.513 0.0202 41.89 1.25 2.75
32 0.25 0.0098 0.543 0.0214 46.92 1.00 2.20
32 0.23 0.0090 0.563 0.0221 50.44 0.84 1.86
32 0.21 0.0082 0.583 0.0229 54.08 0.70 1.55
32 0.19 0.0074 0.603 0.0237 57.85 0.57 1.27
32 0.17 0.0066 0.623 0.0245 61.75 0.46 1.01
32 0.15 0.0059 0.643 0.0253 65.77 0.36 0.79
35 0.30 0.0118 0.425 0.0167 34.41 1.57 3.46
35 0.28 0.0110 0.445 0.0175 37.72 1.37 3.01
35 0.25 0.0098 0.475 0.0187 42.96 1.09 2.40
35 0.23 0.0091 0.496 0.0195 46.66 0.93 2.04
35 0.21 0.0082 0.515 0.0203 50.49 0.77 1.69
35 0.19 0.0074 0.535 0.0210 54.49 0.63 1.38
35 0.17 0.0066 0.555 0.0218 58.63 0.50 1.11
35 0.15 0.0059 0.575 0.0226 62.93 0.39 0.86
40 0.30 0.0118 0.335 0.0131 27.83 1.8 3.96
40 0.27 0.0106 0.365 0.0143 33.03 1.45 3.20
40 0.25 0.0098 0.385 0.0151 36.75 1.25 2.75
40 0.23 0.0090 0.405 0.0159 40.67 1.05 2.31
40 0.21 0.0082 0.425 0.0167 44.79 0.88 1.94
40 0.19 0.0074 0.445 0.0175 49.11 0.72 1.58
40 0.17 0.0066 0.465 0.0183 53.62 0.57 1.27
40 0.15 0.0059 0.485 0.0190 58.33 0.45 0.99
40 0.13 0.0051 0.505 0.0198 63.24 0.33 0.74
40 0.12 0.0047 0.515 0.0202 65.77 0.28 0.63
50 0.25 0.0098 0.258 0.0101 25.79 1.56 3.43
50 0.23 0.0090 0.278 0.0109 29.94 1.32 2.90
50 0.21 0.0082 0.298 0.0117 34.41 1.10 2.42
50 0.19 0.0074 0.318 0.0125 39.18 0.90 1.98
50 0.18 0.0070 0.328 0.0129 41.68 0.81 1.78
50 0.17 0.0066 0.338 0.0133 44.26 0.72 1.58
50 0.15 0.0059 0.358 0.0140 49.66 0.56 1.23
50 0.13 0.0051 0.378 0.0148 55.36 0.42 0.92
50 0.12 0.0047 0.388 0.0152 58.33 0.36 0.79
60 0.23 0.0090 0.193 0.0076 20.85 1.58 3.49
60 0.21 0.0082 0.213 0.0083 25.39 1.32 2.91
60 0.19 0.0074 0.233 0.0091 30.38 1.08 2.37
60 0.17 0.0066 0.253 0.0099 35.81 0.86 1.90
60 0.15 0.0059 0.273 0.0107 41.68 0.67 1.47
60 0.13 0.0051 0.293 0.0115 48.01 0.50 1.11
60 0.12 0.0047 0.303 0.0119 51.34 0.43 0.95
80 0.13 0.0051 0.187 0.0073 34.87 0.67 1.48
80 0.12 0.0047 0.197 0.0077 38.69 0.57 1.25
80 0.10 0.0039 0.217 0.0085 46.92 0.40 0.88
80 0.09 0.0035 0.227 0.0089 51.34 0.32 0.71
100 0.10 0.0039 0.154 0.0060 36.75 0.50 1.10
100 0.08 0.0031 0.174 0.0068 46.92 0.32 0.70
120 0.09 0.0035 0.121 0.0047 33.03 0.48 1.06
120 0.08 0.0031 0.131 0.0051 38.69 0.38 0.83
120 0.07 0.0027 0.141 0.0055 44.79 0.29 0.64
120 0.06 0.0023 0.151 0.0059 51.34 0.21 0.47
120 0.05 0.0019 0.161 0.0063 58.33 0.15 0.33
150 0.06 0.0023 0.109 0.0043 41.68 0.27 0.59
150 0.065 0.0025 0.104 0.0041 37.96 0.31 0.69
165 0.063 0.0024 0.090 0.0035 34.89 0.32 0.72
165 0.06 0.0023 0.093 0.0036 37.23 0.29 0.65
165 0.05 0.0019 0.103 0.0040 45.58 0.20 0.45
180 0.05 0.0019 0.091 0.0035 41.68 0.22 0.48
200 0.05 0.0019 0.077 0.0030 36.75 0.25 0.55
200 0.04 0.0015 0.087 0.0034 46.93 0.16 0.35
250 0.04 0.0015 0.061 0.0024 36.75 0.20 0.44
300 0.04 0.0015 0.044 0.0017 27.83 0.24 0.52





Twill Weave Mesh Specifications:

Mesh Wire D Aperture L Open Area Square Meter Weight
openings/inch mm inch mm inch % kgs lbs
40 0.30 0.0118 0.335 0.0131 27.83 1.80 3.96
40 0.27 0.0106 0.365 0.0143 33.03 1.45 3.20
40 0.25 0.0098 0.385 0.0151 36.75 1.25 2.75
40 0.23 0.0090 0.405 0.0159 40.67 1.05 2.31
40 0.21 0.0082 0.425 0.0167 44.79 0.88 1.94
40 0.19 0.0074 0.445 0.0175 49.11 0.72 1.58
40 0.17 0.0066 0.465 0.0183 53.62 0.57 1.27
40 0.15 0.0059 0.485 0.0190 58.33 0.45 0.99
50 0.25 0.0098 0.258 0.0101 25.79 1.56 3.43
50 0.23 0.0090 0.278 0.0109 29.94 1.32 2.90
50 0.21 0.0082 0.298 0.0117 34.41 1.10 2.42
50 0.19 0.0074 0.318 0.0125 39.18 0.90 1.98
50 0.18 0.0070 0.328 0.0129 41.68 0.81 1.78
50 0.17 0.0066 0.338 0.0133 44.26 0.72 1.58
50 0.15 0.0059 0.358 0.0140 49.66 0.56 1.23
60 0.23 0.0090 0.193 0.0076 20.85 1.58 3.49
60 0.21 0.0082 0.213 0.0083 25.39 1.32 2.91
60 0.19 0.0074 0.233 0.0091 30.38 1.08 2.37
60 0.17 0.0066 0.253 0.0099 35.81 0.86 1.90
60 0.15 0.0059 0.273 0.0107 41.68 0.67 1.47
60 0.13 0.0051 0.293 0.0115 48.01 0.50 1.11
60 0.12 0.0047 0.303 0.0119 51.34 0.43 0.95
80 0.15 0.0059 0.167 0.0065 27.83 0.9 1.98
80 0.18 0.0070 0.137 0.0054 18.75 1.29 2.85
80 0.13 0.0051 0.187 0.0073 34.87 0.67 1.48
80 0.12 0.0047 0.197 0.0077 38.69 0.57 1.25
80 0.10 0.0039 0.217 0.0085 46.92 0.40 0.88
100 0.10 0.0039 0.154 0.0060 36.75 0.50 1.10
100 0.14 0.0055 0.114 0.0044 20.14 0.98 2.15
100 0.12 0.0047 0.134 0.0052 27.83 0.72 1.58
120 0.12 0.0047 0.091 0.0036 18.75 0.86 1.90
120 0.10 0.0039 0.111 0.0043 27.83 0.6 1.32
120 0.09 0.0035 0.121 0.0047 33.03 0.48 1.06
120 0.08 0.0031 0.131 0.0051 38.69 0.38 0.83
150 0.08 0.0031 0.089 0.0035 27.83 0.48 1.05
150 0.07 0.0027 0.099 0.0039 34.41 0.36 0.80
150 0.06 0.0023 0.109 0.0043 41.68 0.27 0.59
180 0.065 0.0026 0.076 0.0030 29.47 0.38 0.83
180 0.06 0.0023 0.081 0.0031 33.03 0.32 0.71
180 0.05 0.0019 0.091 0.0035 41.68 0.22 0.48
200 0.05 0.0019 0.077 0.0030 36.75 0.25 0.55
200 0.06 0.0023 0.067 0.0026 27.83 0.36 0.79
250 0.05 0.0019 0.051 0.0020 25.79 0.31 0.68
250 0.04 0.0015 0.061 0.0024 36.75 0.20 0.44
300 0.04 0.0015 0.044 0.0017 27.83 0.24 0.52
325 0.035 0.0013 0.043 0.0016 30.48 0.19 0.41
325 0.04 0.0015 0.038 0.0015 23.83 0.26 0.57
400 0.03 0.0011 0.033 0.0013 27.83 0.18 0.39
500 0.025 0.0009 0.025 0.0010 25.79 0.15 0.33
600 0.018 0.0007 0.024 0.0009 33.03 0.09 0.21
635 0.015 0.0005 0.025 0.0009 39.06 0.07 0.15


Other specifications according to your requirements.





Stainless Steel 904L Woven Wire Mesh Superior Corrosion Resistance 0



Stainless Steel 904L Woven Wire Mesh Superior Corrosion Resistance 1





Materials:



904L

Features:

Here are some features and considerations specific to stainless steel 904L wire mesh:

Corrosion Resistance: Stainless steel 904L offers superior corrosion resistance compared to many other stainless steel grades, especially in environments containing chlorides such as seawater, acids, and other aggressive media.
High Alloy Content: Stainless steel 904L contains high levels of chromium, nickel, molybdenum, and copper, which contribute to its exceptional corrosion resistance properties.
Acid Resistance: This material is highly resistant to sulfuric acid, phosphoric acid, and other acidic solutions.
High Temperature Resistance: Stainless steel 904L can withstand high temperatures and is suitable for applications where elevated temperatures are present.
Weldability: While stainless steel 904L can be welded using common techniques, precautions need to be taken to maintain its corrosion resistance, such as using low heat input and matching filler metals.
Applications: Stainless steel 904L wire mesh is commonly used in industries such as chemical processing, petrochemical, pharmaceuticals, oil and gas, pulp and paper, and desalination plants where corrosion resistance is crucial.
Durability: Due to its high alloy content, stainless steel 904L wire mesh is durable and long-lasting, providing a reliable solution for harsh environments.
Cost: Stainless steel 904L is typically more expensive than standard austenitic stainless steels like 304 and 316 due to its higher alloy content and specialized properties.


Applications:

Widely used in stainless steel mesh screen filter and protective decorative, scope throughout the mining, petroleum, chemical, food, medicine, machinery manufacturing, construction, decoration, electronics, aerospace and other industries.



Packing:

Stainless Steel 904L Woven Wire Mesh Superior Corrosion Resistance 2

Tags:

302 SS Woven Wire Mesh

110 Mesh stainless steel wire mesh

201 SS Woven Wire Mesh
