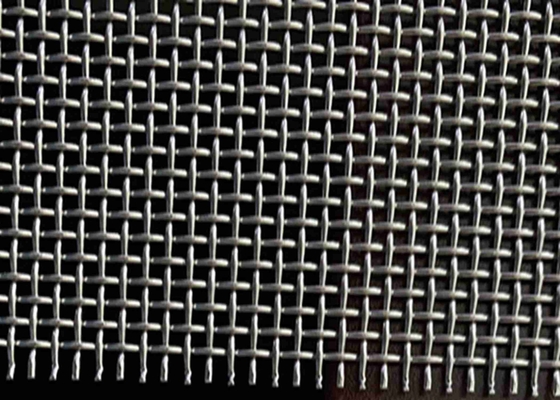

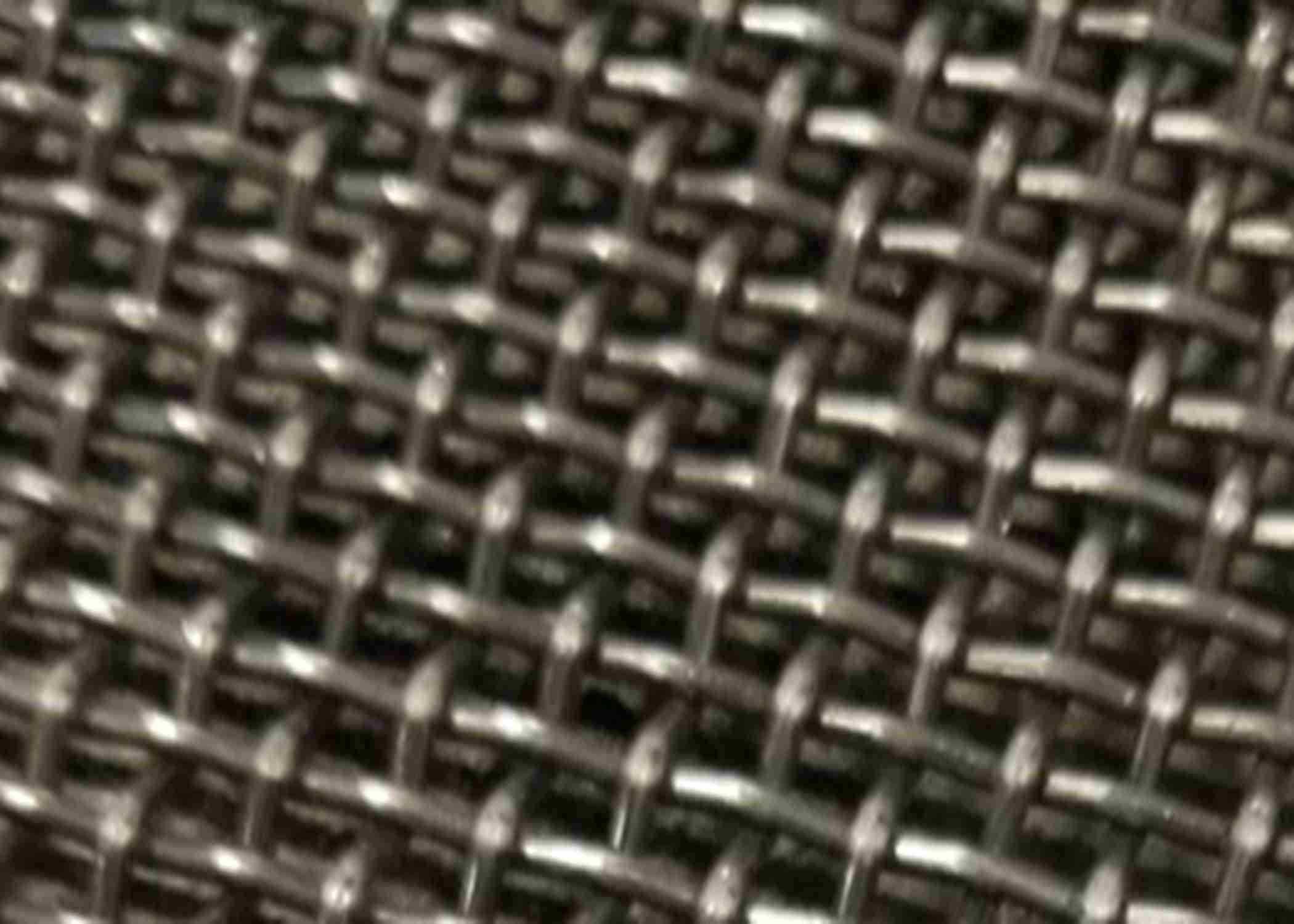

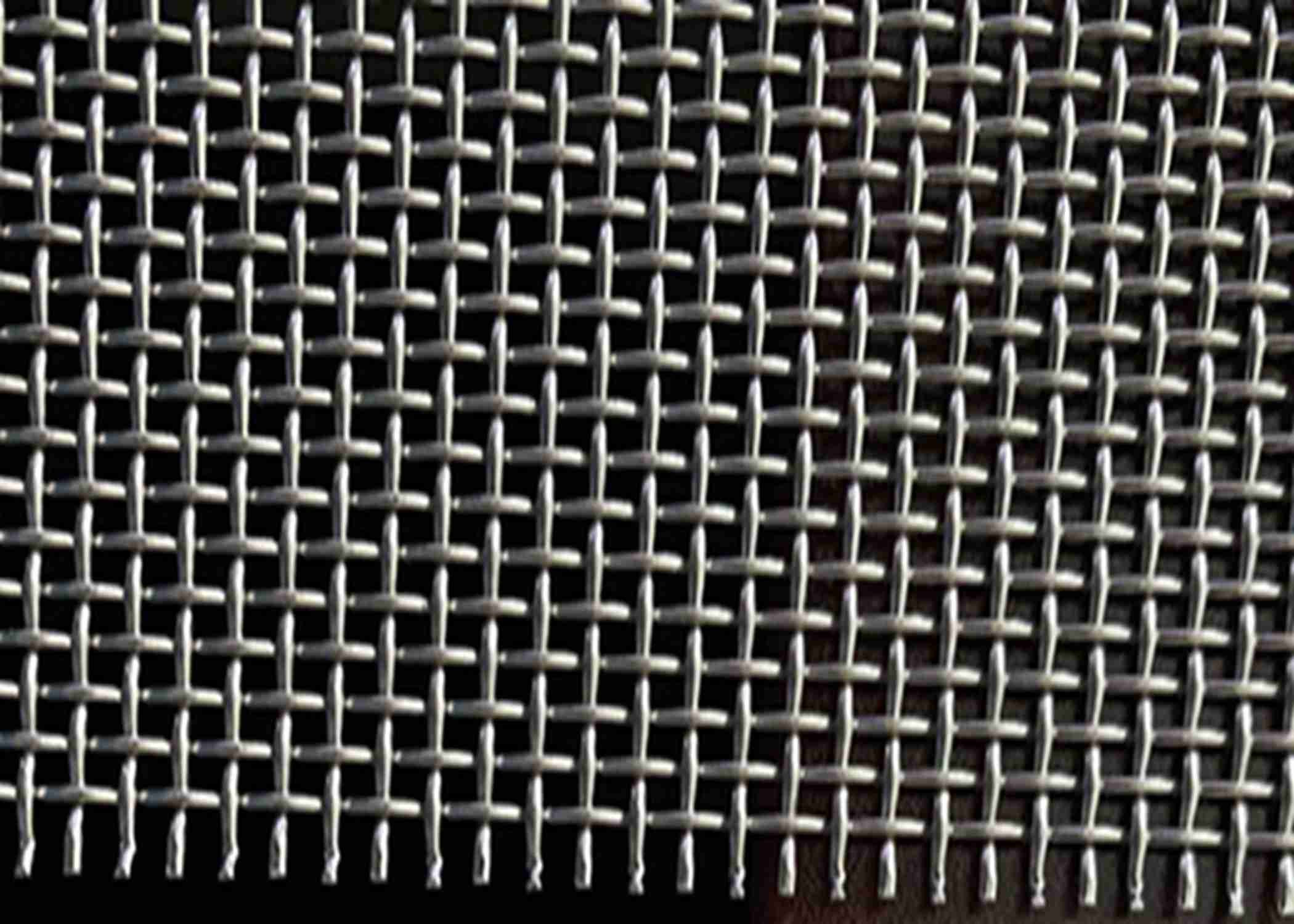

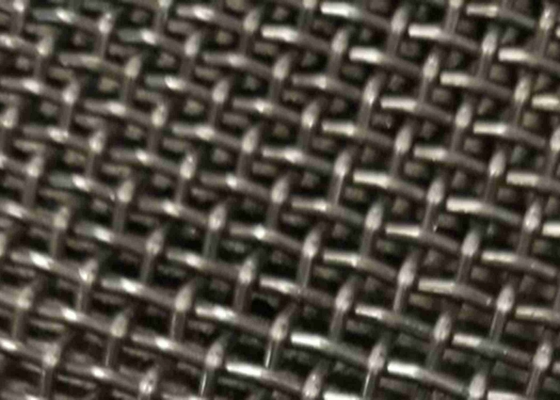

40 Mesh Counts Woven Wire Mesh Stainless Steel 304 Bulk Produce In Stock

  • 40 Mesh Counts Woven Wire Mesh Stainless Steel 304 Bulk Produce In Stock
  • 40 Mesh Counts Woven Wire Mesh Stainless Steel 304 Bulk Produce In Stock
  • 40 Mesh Counts Woven Wire Mesh Stainless Steel 304 Bulk Produce In Stock
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5 Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time Immediately
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name SS Woven Wire Mesh Material Stainless Steel 304
Surface Bright Silver Aperture Shape Square
Mesh Counts 40 Wire Diameter 0.25mm
Roll Width 1m, 1.22m, 1.6m Stock Standard Length 30m
Properity Superior Corrosion Resistance Application Filtration
Highlight

304 Stainless Steel Woven Wire Mesh

,

304 SS Woven Wire Mesh

,

40mesh Woven Wire Mesh
Leave a Message
Product Description

40mesh Counts Woven Wire Mesh Stainless Steel 304 bulk produce with instock



40mesh Plain Weave Wire Mesh:

A 40 mesh count refers to a specification used to describe wire mesh. In a 40 mesh count wire mesh, there are 40 openings (or spaces) per linear inch. The mesh count is determined by counting the number of openings or spaces between the wires in one linear inch in both the warp (vertical) and weft (horizontal) directions.

A 40 mesh count wire mesh would have 40 openings horizontally and 40 openings vertically per square inch. The size of the openings in a 40 mesh count wire mesh would be larger compared to meshes with higher mesh counts, such as 80 mesh or 120 mesh.

Mesh counts are used to specify the fineness or coarseness of a wire mesh and are important for applications where precise filtration or sieving is required. A 40 mesh count wire mesh is considered relatively coarse and might be used for applications where a moderate level of filtration or separation is needed.

The wire diameter used in a 40 mesh count wire mesh can vary depending on the material and application requirements. It's crucial to consider both the mesh count and wire diameter when selecting a wire mesh for a specific application to ensure that it meets the required specifications and performance criteria.



Mesh Specifications:

Mesh Wire D Aperture L Open Area Square Meter Weight
openings/inch mm inch mm inch % kgs lbs
40 0.30 0.0118 0.335 0.0131 27.83 1.80 3.96
40 0.27 0.0106 0.365 0.0143 33.03 1.45 3.20
40 0.25 0.0098 0.385 0.0151 36.75 1.25 2.75
40 0.23 0.0090 0.405 0.0159 40.67 1.05 2.31
40 0.21 0.0082 0.425 0.0167 44.79 0.88 1.94
40 0.19 0.0074 0.445 0.0175 49.11 0.72 1.58
40 0.17 0.0066 0.465 0.0183 53.62 0.57 1.27
40 0.15 0.0059 0.485 0.0190 58.33 0.45 0.99





Standard Specifications:

Mesh Wire D Aperture L Open Area Square Meter Weight
openings/inch mm inch mm inch % kgs lbs
3 1.60 0.0629 6.866 0.2703 65.77 3.84 8.44
3 1.40 0.0551 7.066 0.2782 69.66 2.94 6.46
3 1.20 0.0472 7.266 0.2860 73.66 2.16 4.75
3 1.00 0.0393 7.466 0.2939 77.77 1.50 3.30
3 0.90 0.0354 7.566 0.2979 79.87 1.21 2.67
3 0.80 0.0314 7.666 0.3018 81.99 0.96 2.11
3 0.70 0.0275 7.766 0.3057 84.14 0.73 1.60
4 1.20 0.0472 5.15 0.2027 65.77 2.88 6.33
4 1.00 0.0393 5.35 0.2106 70.98 2.00 4.40
4 0.90 0.0354 5.45 0.2145 73.66 1.62 3.56
4 0.80 0.0314 5.55 0.2185 76.39 1.28 2.81
4 0.70 0.0275 5.65 0.2224 79.16 0.98 2.15
4 0.60 0.0236 5.75 0.2263 81.99 0.72 1.58
5 1.00 0.0393 4.08 0.1606 64.50 2.50 5.50
5 0.90 0.0354 4.18 0.1645 67.70 2.02 4.45
5 0.80 0.0314 4.28 0.1685 70.98 1.60 3.52
5 0.70 0.0275 4.38 0.1724 74.33 1.22 2.68
5 0.60 0.0236 4.48 0.1763 77.77 0.90 1.98
5 0.50 0.0196 4.58 0.1803 81.28 0.62 1.37
6 0.90 0.0354 3.333 0.1312 62.00 2.43 5.34
6 0.80 0.0314 3.433 0.1351 65.77 1.92 4.22
6 0.70 0.0275 3.533 0.1391 69.66 1.47 3.23
6 0.60 0.0236 3.633 0.1430 73.66 1.08 2.37
6 0.50 0.0196 3.733 0.1469 77.77 0.75 1.65
8 0.90 0.0354 2.275 0.0895 51.34 3.24 7.12
8 0.80 0.0314 2.375 0.0935 55.95 2.56 5.63
8 0.70 0.0275 2475 0.0974 60.76 1.96 4.31
8 0.60 0.0236 2575 0.1013 65.77 1.44 3.16
8 0.50 0.0196 2675 0.1053 70.98 1.00 2.20
10 0.90 0.0354 1.640 0.0645 41.68 4.05 8.91
10 0.80 0.0314 1.740 0.0685 46.92 3.2 7.04
10 0.70 0.0275 1.840 0.0724 52.47 2.45 5.39
10 0.60 0.0236 1.940 0.0763 58.33 1.8 3.96
10 0.50 0.0196 2.040 0.0803 64.50 1.25 2.75
10 0.40 0.0157 2.140 0.0842 70.98 0.80 1.76
12 0.80 0.0314 1.316 0.0518 38.69 3.84 8.44
12 0.70 0.0275 1.416 0.0557 44.79 2.94 6.46
12 0.60 0.0236 1.516 0.0597 51.34 2.16 4.75
12 0.50 0.0196 1.616 0.0636 58.33 1.50 3.30
12 0.40 0.0157 1.716 0.0675 65.77 0.96 2.11
12 0.30 0.0118 1.816 0.0715 73.66 0.54 1.18
14 0.70 0.0275 1.114 0.0438 37.72 3.43 7.54
14 0.60 0.0236 1.214 0.0478 44.79 2.52 5.54
14 0.50 0.0196 1.314 0.0517 52.47 1.75 3.85
14 0.40 0.0157 1.414 0.0556 60.76 1.12 2.46
14 0.35 0.0137 1.464 0.0576 65.13 0.85 1.87
14 0.30 0.0118 1.514 0.0596 69.66 0.63 1.38
14 0.27 0.0106 1.544 0.0607 72.45 0.51 1.12
14 0.25 0.0098 1.564 0.0615 74.33 0.43 0.94
14 0.23 0.0090 1.584 0.0623 76.25 0.37 0.81
14 0.21 0.0082 1.604 0.0631 78.19 0.30 0.67
14 0.19 0.0074 1.624 0.0639 80.15 0.25 0.55
16 0.60 0.0236 0.987 0.0388 38.69 2.88 6.33
16 0.50 0.0196 1.087 0.0428 46.92 2.00 4.40
16 0.40 0.0157 1.187 0.0467 55.95 1.28 2.81
16 0.35 0.0137 1.237 0.0487 60.76 0.98 2.15
16 0.30 0.0118 1.287 0.0506 65.77 0.72 1.58
16 0.27 0.0106 1.317 0.0518 68.87 0.58 1.27
16 0.25 0.0098 1.337 0.0526 70.98 0.50 1.10
16 0.23 0.0090 1.357 0.0534 73.12 0.42 0.92
16 0.21 0.0082 1.377 0.0542 75.29 0.35 0.77
16 0.19 0.0074 1.397 0.0550 77.49 0.28 0.61
18 0.50 0.0196 0.911 0.0358 41.68 2.25 4.95
18 0.40 0.0157 1.011 0.0398 51.34 1.44 3.16
18 0.35 0.0137 1.061 0.0417 56.54 1.10 2.42
18 0.30 0.0118 1.111 0.0437 62.00 0.81 1.78
18 0.27 0.0106 1.141 0.0449 65.39 0.65 1.44
18 0.25 0.0098 1.161 0.0457 67.70 0.56 1.23
18 0.23 0.0090 1.181 0.0465 70.05 0.47 1.04
18 0.21 0.0082 1.201 0.0472 72.45 0.39 0.87
18 0.19 0.0074 1.221 0.0480 74.88 0.32 0.71
18 0.17 0.0066 1.241 0.0488 77.35 0.26 0.57
18 0.15 0.0059 1.261 0.0496 79.87 0.20 0.44
20 0.50 0.0196 0.770 0.0303 36.75 2.50 5.50
20 0.45 0.0177 0.820 0.0322 41.68 2.02 4.44
20 0.40 0.0157 0.870 0.0342 46.92 1.60 3.52
20 0.35 0.0137 0.920 0.0362 52.47 1.22 2.69
20 0.30 0.0118 0.970 0.0381 58.33 0.90 1.98
20 0.27 0.0106 1.000 0.0393 62.00 0.72 1.60
20 0.25 0.0098 1.020 0.0401 64.50 0.62 1.36
20 0.23 0.0090 1.040 0.0409 67.05 0.52 1.16
20 0.21 0.0082 1.060 0.0417 69.66 0.44 0.97
20 0.19 0.0074 1.080 0.0425 72.31 0.36 0.79
20 0.17 0.0066 1.100 0.0433 75.02 0.28 0.63
20 0.15 0.0059 1.120 0.0440 77.77 0.22 0.49
22 0.40 0.0157 0.754 0.0297 42.71 1.76 3.87
22 0.35 0.0137 0.804 0.0316 48.56 1.34 2.96
22 0.30 0.0118 0.854 0.0336 54.78 0.99 2.17
22 0.27 0.0106 0.884 0.0348 58.69 0.80 1.76
22 0.25 0.0098 0.904 0.0356 61.38 0.68 1.49
22 0.23 0.0090 0.924 0.0363 64.12 0.58 1.27
22 0.21 0.0082 0.944 0.0371 66.93 0.48 1.05
22 0.19 0.0074 0.964 0.0379 69.79 0.39 0.87
22 0.17 0.0066 0.984 0.0387 72.71 0.31 0.69
22 0.15 0.0059 1.004 0.0395 75.70 0.24 0.54
24 0.35 0.0137 0.708 0.0278 44.79 1.47 3.23
24 0.30 0.0118 0.758 0.0298 51.34 1.08 2.37
24 0.27 0.0106 0.788 0.0310 55.48 0.87 1.92
24 0.25 0.0098 0.808 0.0318 58.33 0.75 1.65
24 0.23 0.0090 0.828 0.0326 61.25 0.63 1.38
24 0.21 0.0082 0.848 0.0333 64.25 0.52 1.14
24 0.19 0.0074 0.868 0.0341 67.31 0.43 0.95
24 0.17 0.0066 0.888 0.0349 70.45 0.34 0.76
24 0.15 0.0059 0.908 0.0357 73.66 0.27 0.59
24 0.13 0.0051 0.928 0.0365 76.94 0.20 0.44
24 0.12 0.0047 0.938 0.0369 78.60 0.17 0.38
30 0.35 0.0137 0.496 0.0195 34.41 1.83 4.02
30 0.30 0.0118 0.546 0.0215 41.68 1.35 2.97
30 0.27 0.0106 0.576 0.0227 46.39 1.09 2.40
30 0.25 0.0098 0.596 0.0234 49.66 0.93 2.04
30 0.23 0.0090 0.616 0.0242 53.04 0.79 1.73
30 0.21 0.0082 0.636 0.0250 56.54 0.66 1.45
30 0.19 0.0074 0.656 0.0258 60.15 0.54 1.18
30 0.17 0.0066 0.676 0.0266 63.87 0.43 0.95
30 0.15 0.0059 0.696 0.0274 67.70 0.33 0.74
30 0.13 0.0051 0.716 0.0282 71.64 0.25 0.55
30 0.12 0.0047 0.726 0.0286 73.66 0.21 0.47
32 0.28 0.0110 0.513 0.0202 41.89 1.25 2.75
32 0.25 0.0098 0.543 0.0214 46.92 1.00 2.20
32 0.23 0.0090 0.563 0.0221 50.44 0.84 1.86
32 0.21 0.0082 0.583 0.0229 54.08 0.70 1.55
32 0.19 0.0074 0.603 0.0237 57.85 0.57 1.27
32 0.17 0.0066 0.623 0.0245 61.75 0.46 1.01
32 0.15 0.0059 0.643 0.0253 65.77 0.36 0.79
35 0.30 0.0118 0.425 0.0167 34.41 1.57 3.46
35 0.28 0.0110 0.445 0.0175 37.72 1.37 3.01
35 0.25 0.0098 0.475 0.0187 42.96 1.09 2.40
35 0.23 0.0091 0.496 0.0195 46.66 0.93 2.04
35 0.21 0.0082 0.515 0.0203 50.49 0.77 1.69
35 0.19 0.0074 0.535 0.0210 54.49 0.63 1.38
35 0.17 0.0066 0.555 0.0218 58.63 0.50 1.11
35 0.15 0.0059 0.575 0.0226 62.93 0.39 0.86
40 0.30 0.0118 0.335 0.0131 27.83 1.8 3.96
40 0.27 0.0106 0.365 0.0143 33.03 1.45 3.20
40 0.25 0.0098 0.385 0.0151 36.75 1.25 2.75
40 0.23 0.0090 0.405 0.0159 40.67 1.05 2.31
40 0.21 0.0082 0.425 0.0167 44.79 0.88 1.94
40 0.19 0.0074 0.445 0.0175 49.11 0.72 1.58
40 0.17 0.0066 0.465 0.0183 53.62 0.57 1.27
40 0.15 0.0059 0.485 0.0190 58.33 0.45 0.99
40 0.13 0.0051 0.505 0.0198 63.24 0.33 0.74
40 0.12 0.0047 0.515 0.0202 65.77 0.28 0.63
50 0.25 0.0098 0.258 0.0101 25.79 1.56 3.43
50 0.23 0.0090 0.278 0.0109 29.94 1.32 2.90
50 0.21 0.0082 0.298 0.0117 34.41 1.10 2.42
50 0.19 0.0074 0.318 0.0125 39.18 0.90 1.98
50 0.18 0.0070 0.328 0.0129 41.68 0.81 1.78
50 0.17 0.0066 0.338 0.0133 44.26 0.72 1.58
50 0.15 0.0059 0.358 0.0140 49.66 0.56 1.23
50 0.13 0.0051 0.378 0.0148 55.36 0.42 0.92
50 0.12 0.0047 0.388 0.0152 58.33 0.36 0.79
60 0.23 0.0090 0.193 0.0076 20.85 1.58 3.49
60 0.21 0.0082 0.213 0.0083 25.39 1.32 2.91
60 0.19 0.0074 0.233 0.0091 30.38 1.08 2.37
60 0.17 0.0066 0.253 0.0099 35.81 0.86 1.90
60 0.15 0.0059 0.273 0.0107 41.68 0.67 1.47
60 0.13 0.0051 0.293 0.0115 48.01 0.50 1.11
60 0.12 0.0047 0.303 0.0119 51.34 0.43 0.95
80 0.13 0.0051 0.187 0.0073 34.87 0.67 1.48
80 0.12 0.0047 0.197 0.0077 38.69 0.57 1.25
80 0.10 0.0039 0.217 0.0085 46.92 0.40 0.88
80 0.09 0.0035 0.227 0.0089 51.34 0.32 0.71
100 0.10 0.0039 0.154 0.0060 36.75 0.50 1.10
100 0.08 0.0031 0.174 0.0068 46.92 0.32 0.70
120 0.09 0.0035 0.121 0.0047 33.03 0.48 1.06
120 0.08 0.0031 0.131 0.0051 38.69 0.38 0.83
120 0.07 0.0027 0.141 0.0055 44.79 0.29 0.64
120 0.06 0.0023 0.151 0.0059 51.34 0.21 0.47
120 0.05 0.0019 0.161 0.0063 58.33 0.15 0.33
150 0.06 0.0023 0.109 0.0043 41.68 0.27 0.59
150 0.065 0.0025 0.104 0.0041 37.96 0.31 0.69
165 0.063 0.0024 0.090 0.0035 34.89 0.32 0.72
165 0.06 0.0023 0.093 0.0036 37.23 0.29 0.65
165 0.05 0.0019 0.103 0.0040 45.58 0.20 0.45
180 0.05 0.0019 0.091 0.0035 41.68 0.22 0.48
200 0.05 0.0019 0.077 0.0030 36.75 0.25 0.55
200 0.04 0.0015 0.087 0.0034 46.93 0.16 0.35
250 0.04 0.0015 0.061 0.0024 36.75 0.20 0.44
300 0.04 0.0015 0.044 0.0017 27.83 0.24 0.52




Other specifications according to your requirements.



40 Mesh Counts Woven Wire Mesh Stainless Steel 304 Bulk Produce In Stock 0





Materials:



304


Weaving Type:



Plain weave



Features:

Stainless steel 304 is one of the most commonly used grades of stainless steel due to its excellent corrosion resistance, durability, and versatility. Here are some key features and characteristics of stainless steel 304:

Corrosion Resistance: Stainless steel 304 is highly resistant to corrosion in a wide range of environments, including mildly corrosive environments and atmospheric conditions. It resists oxidation and staining, making it suitable for a variety of applications.
Strength: Stainless steel 304 exhibits good strength and toughness, making it suitable for a wide range of structural and industrial applications.
Hygiene and Cleanability: Stainless steel 304 is easy to clean and maintain, making it ideal for applications where hygiene is crucial, such as in food processing, pharmaceuticals, and healthcare.
Aesthetic Appeal: Stainless steel 304 has a bright, clean, and attractive appearance, making it a popular choice for architectural, decorative, and household applications.
High Temperature Resistance: Stainless steel 304 can withstand high temperatures without losing its mechanical properties, making it suitable for high-temperature applications.
Formability: Stainless steel 304 is easily formed into various shapes and sizes using common fabrication techniques such as welding, machining, and forming.
Non-Magnetic: Stainless steel 304 is generally non-magnetic in its annealed state, although it may become slightly magnetic after cold working.
Weldability: Stainless steel 304 is easily weldable using common welding methods, such as TIG (Tungsten Inert Gas) or MIG (Metal Inert Gas) welding.
Wide Range of Applications: Stainless steel 304 is used in a wide range of industries, including food and beverage, chemical processing, medical equipment, automotive, construction, and household appliances.
Cost-Effective: Stainless steel 304 offers a good balance of performance and cost, making it a cost-effective choice for many applications.
Overall, stainless steel 304 is a versatile and reliable material known for its excellent corrosion resistance, durability, and aesthetic appeal, making it a popular choice for a wide range of applications across various industries.


Applications:

Widely used in stainless steel mesh screen filter and protective decorative, scope throughout the mining, petroleum, chemical, food, medicine, machinery manufacturing, construction, decoration, electronics, aerospace and other industries.



Packing:

40 Mesh Counts Woven Wire Mesh Stainless Steel 304 Bulk Produce In Stock 1

Tags:

302 SS Woven Wire Mesh

110 Mesh stainless steel wire mesh

201 SS Woven Wire Mesh
