304 / 316 Stainless Steel Woven Wire Mesh 22mesh

Place of Origin ANPING OF CHINA
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5rolls
Price negotiable
Packaging Details paper core inside, warped with waterproof paper or plastic film, then in wooden cases or pallets
Delivery Time 8-14 days
Payment Terms T/T, Western Union
Supply Ability 2000rolls per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features High Density Of Mesh, Anti Mosquitoes And Other Insects. Product Name Stainless Steel Wire Mesh
Material Ss304 Ss316 Mesh Count 22
Wire Diameter 0.2mm Color Silver, Grey, White
Surface Treatment Polished, Powder Coated Width 0.6m, 1m, 1.2m, 2m, 3m, Up To 10m
Length 30m Or Customized Application Mosquito Window Screen.
Place Of Origin Henan, China Delivery Time 8-14 Days Screen Mesh Size 5 Mesh To 635 Mesh
High Light

22mesh stainless steel woven wire mesh

,

stainless steel woven wire mesh 316

,

304 woven stainless steel mesh

Leave a Message
Product Description
Mesh/Inch Wire Diameter Aperture Open Area Weight(LB) /100 Square Foot
Inch MM Inch MM
1x1 0.08 2.03 0.92 23.37 84.6 41.1
2X2 0.063 1.6 0.437 11.1 76.4 51.2
3X3 0.054 1.37 0.279 7.09 70.1 56.7
4X4 0.063 1.6 0.187 4.75 56 104.8
4X4 0.047 1.19 0.203 5.16 65.9 57.6
5X5 0.041 1.04 0.159 4.04 63.2 54.9
6X6 0.035 0.89 0.132 3.35 62.7 48.1
8X8 0.028 0.71 0.097 2.46 60.2 41.1
10X10 0.025 0.64 0.075 1.91 56.3 41.2
10X10 0.02 0.51 0.08 2.03 64 26.1
12X12 0.023 0.584 0.06 1.52 51.8 42.2
12X12 0.02 0.508 0.063 1.6 57.2 31.6
14X14 0.023 0.584 0.048 1.22 45.2 49.8
14X14 0.02 0.508 0.051 1.3 51 37.2
16X16 0.018 0.457 0.0445 1.13 50.7 34.5
18X18 0.017 0.432 0.0386 0.98 48.3 34.8
20X20 0.02 0.508 0.03 0.76 36 55.2
20X20 0.016 0.406 0.034 0.86 46.2 34.4
24X24 0.014 0.356 0.0277 0.7 44.2 31.8
30X30 0.013 0.33 0.0203 0.52 37.1 34.8
30X30 0.012 0.305 0.0213 0.54 40.8 29.4
30X30 0.009 0.229 0.0243 0.62 53.1 16.1
35X35 0.011 0.279 0.0176 0.45 37.9 29
40X40 0.01 0.254 0.015 0.38 36 27.6
50X50 0.009 0.229 0.011 0.28 30.3 28.4
50X50 0.008 0.203 0.012 0.31 36 22.1
60X60 0.0075 0.191 0.0092 0.23 30.5 23.7
60X60 0.007 0.178 0.0097 0.25 33.9 20.4
70X70 0.0065 0.165 0.0078 0.2 29.8 20.8
80X80 0.0065 0.165 0.006 0.15 23 23.2
80X80 0.0055 0.14 0.007 0.18 31.4 16.9
90X90 0.005 0.127 0.0061 0.16 30.1 15.8
100X100 0.0045 0.114 0.0055 0.14 30.3 14.2
100X100 0.004 0.102 0.006 0.15 36 11
100X100 0.0035 0.089 0.0065 0.17 42.3 8.3
110X110 0.004 0.1016 0.0051 0.1295 30.7 12.4
120X120 0.0037 0.094 0.0064 0.1168 30.7 11.6
150X150 0.0026 0.066 0.0041 0.1041 37.4 7.1
160X160 0.0025 0.0635 0.0038 0.0965 36.4 5.94
180X180 0.0023 0.0584 0.0033 0.0838 34.7 6.7
200X200 0.0021 0.0533 0.0029 0.0737 33.6 6.2
250X250 0.0016 0.0406 0.0024 0.061 36 4.4
270X270 0.0016 0.0406 0.0021 0.0533 32.2 4.7
300X300 0.0051 0.0381 0.0018 0.0457 29.7 3.04
325X325 0.0014 0.0356 0.0017 0.0432 30 4.4
400X400 0.001 0.0254 0.0015 0.37 36 3.3
500X500 0.001 0.0254 0.001 0.0254 25 3.8
635X635 0.0008 0.0203 0.0008 0.0203 25 2.63

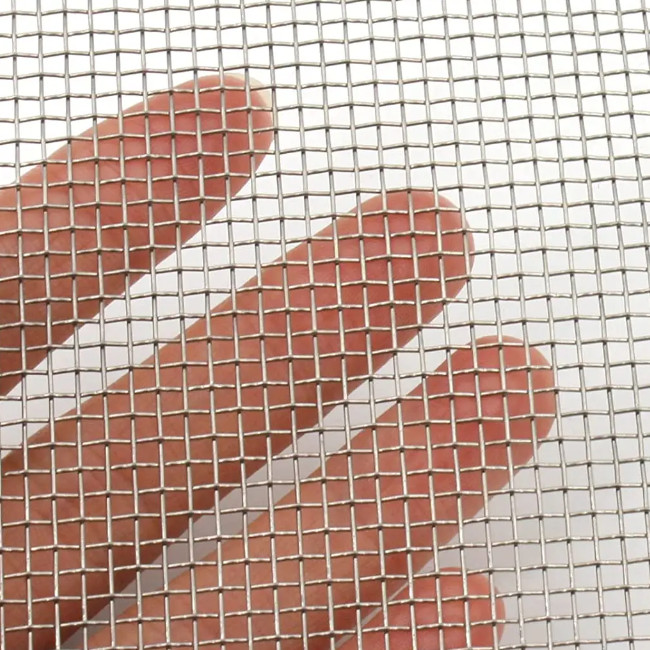

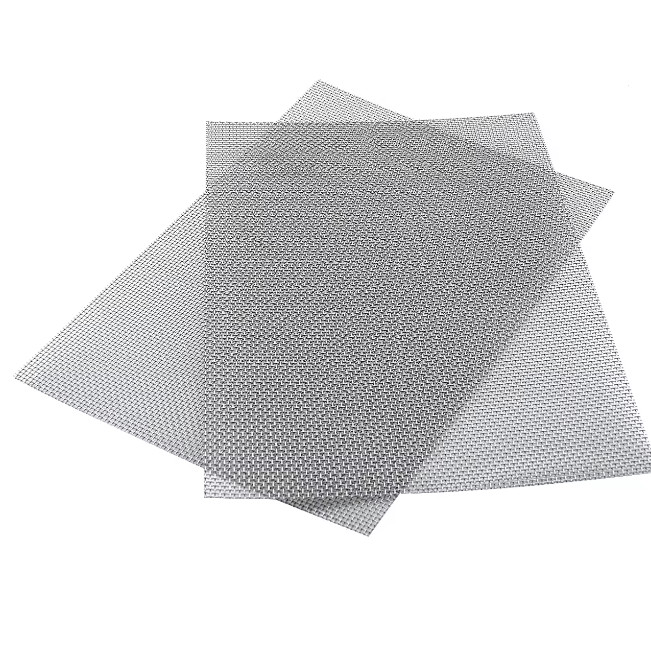

22 Mesh 0.2 Mm Wire Stainless Steel 304 Wire Mesh Invisible Window Screen



Introduction:



We have 50 weaving looms of stainless steel wire mesh and manufacture various stainless steel wire mesh for different industries, most of our stainless steel wire mesh were exported to Europe and America. The stainless steel we use for wire mesh are SS 304, 304L,304H, 316, 316L, 310, 310S, 321, 430; Duplex Stainless Steel 2101, 2205, 2507 etc. Weaving types include Plain Weave, Twill Weave, Plain Dutch Weave, Twill Dutch Weave, Twill Reverse Dutch weave, Crimped etc.



Stainless steel 304 invisible insect screen with the features of high density mesh, high transparency, high strength, corrosion and rust resistance, and clear sight from indoor to outdoor, is widely used as window fly screens, door screens or garage security screens to decorate, prevent mosquito and any other pests. And it adopts the refraction principle of light to make the sight from outdoor to indoor blurred.

Specifications:

Material: 304 stainless steel.
Surface treatment: black powder coated.
Mesh size: 5 mesh to 635 mesh
Guarantee: 10 years stainless.

Features: Acid-resisting  Alkali-resisting




Features:

High density of mesh, anti mosquitoes and other insects.
Ventilation rate, light-taking performance, and transparency achieve 85%–90%.
High strength, toughness and heat-resisting.
Corrosion, rust resistant.
Anti wet or sun exposure environment.
Cut not take off the line.
Easy to clean.
Durable and long service life.
Applications of stainless steel 304 invisible screen



Applications:

classification

filtration



304 / 316 Stainless Steel Woven Wire Mesh 22mesh 0



Packing:

304 / 316 Stainless Steel Woven Wire Mesh 22mesh 1
