Twill Weave Ss Woven Wire Mesh Corrosion And High Temperature Resistance

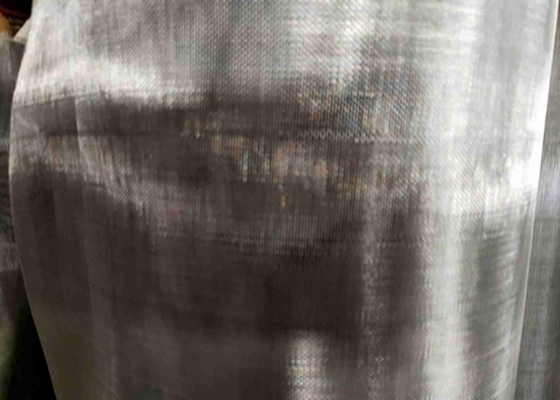

  • Twill Weave Ss Woven Wire Mesh Corrosion And High Temperature Resistance

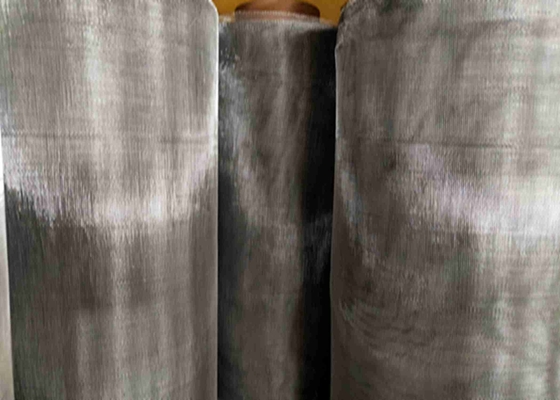

  • Twill Weave Ss Woven Wire Mesh Corrosion And High Temperature Resistance
  • Twill Weave Ss Woven Wire Mesh Corrosion And High Temperature Resistance
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 1 roll
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features High Filter Precision Product Name Stainless Steel Twill Weave Wire Mesh
Material 302, 304, 304L, 310, 316, 316L, 321, 410, 410L, 430, 904L, Super Duplex Stainless Steel, Duplex Stainless Steel Or Customized. Cert ISO
Surface Treatment Pickling And Passivation, Polishing. Weaving Type Twill Weave
Wire Diameter 0.10mm, 0.12mm, 0.13mm, 0.15mm, 0.18mm Width 0.5–1.5 M.
Length 30 M A Roll Or Could Customized. Application Serve As Filter Or Sieve
Highlight

corrosion resistance ss woven wire mesh

,

ss woven wire mesh twill weave

,

twill weave stainless woven wire mesh
Leave a Message
Product Description

Twill Weave Stainless Steel Wire Mesh Corrosion And High Temperature Resistance



Twill Weave Wire Mesh:



Twill weave stainless steel wire mesh has the processing that each weft wire passes over and under two warp wires and vice versa, forming a beautiful appearance.



Twill weave stainless steel wire mesh has corrosion and high temperature resistance. It can be made into filter or sieve element, and plays an important role in chemical, oil, mining, food processing industries.


Materials: SS304, SS304L, SS316, SS316L



AISI Chemical Composition of Several Stainless Steel Wires (%)
C Si Mn P S Ni Cr Mo
304 Max.0.08 Max.1.00 Max.2.00 Max.0.045 Max.0.030 8.00~10.50 18.00~20.00 -
304L Max.0.03 Max.1.00 Max.2.00 Max.0.045 Max.0.030 9.00~13.00 18.00~20.00 -
316 Max.0.08 Max.1.00 Max.2.00 Max.0.045 Max.0.030 10.00~14.00 16.00~18.00 2.00~3.00
316L Max.0.03 Max.1.00 Max.2.00 Max.0.045 Max.0.030 12.00~15.00 16.00~18.00 2.00~3.00




304 stainless steel: Most common stainless alloy used in wire weaving. Excellent corrosion properties and can withstand temperatures of 1100 Degrees F.

304L stainless steel: Similar properties as 304ss but lower carbon content to permit better welding.



316 stainless steel: Similar properties to 304ss but is stabilized by the addition of Molybdenum for increased resistance to chemical corrosion.

316L stainless steel: Similar properties as 316ss but lower carbon content to permit better welding.


Weaving Type: Twill weave

Characteristics:



Superior corrosion and abrasion resistance;
Can resist to rust and bad weather;
High filter precision;
Durable and high strength;
Beautiful appearance.



Applications:



Serve as filter or sieve;
Play a role in coal, glass, petroleum, textile, metallurgy industries;
Made into decoration mesh.



Specifications:



MESH Count Diameter of Wire Width of Opening Open Area Weight
% per Pounds
per Inch Inches mm Inches mm 100 Sq. Ft. per 100Sq.Ft
12 x 12 0.032 0.81 0.051 1.3 37.9 78.8
14 x 14 0.028 0.71 0.043 1.1 37 70.4
16 x 16 0.023 0.58 0.04 1 39.9 54.3
20 x 20 0.021 0.53 0.029 0.74 33.6 56.6
30 x 30 0.015 0.38 0.018 0.47 30.3 43.3
35 x 35 0.014 0.36 0.015 0.37 26 44
40 x 40 0.012 0.31 0.013 0.33 27 36.9
50 x 50 0.011 0.28 0.009 0.229 20.3 38.8
50 x 50 0.0055 0.14 0.015 0.37 52.6 9.7
60 x 60 0.011 0.28 0.0057 0.144 11.6 46.6
60 x 60 0.0045 0.114 0.012 0.31 53.3 7.8
80 x 80 0.007 0.178 0.0055 0.14 19.4 25.1
100 x 100 0.005 0.127 0.005 0.127 25 16
120 x 120 0.0042 0.107 0.0041 0.105 24.6 13.6
120 x 120 0.004 0.102 0.0043 0.11 27 12.3
150 x 150 0.003 0.076 0.0037 0.093 30.3 8.7
180 x 180 0.0025 0.064 0.0031 0.078 30.3 7.2
200 x 200 0.0025 0.064 0.0025 0.064 25 8
200 x 200 0.0023 0.058 0.0027 0.069 29.2 6.8
270 x 270 0.0016 0.041 0.0021 0.053 32.3 4.4
300 x 300 0.0015 0.038 0.0018 0.047 30.3 4.3
325 x 325 0.0014 0.036 0.0017 0.043 29.7 4.1
400 x 400 0.001 0.025 0.0015 0.038 36 2.6





Table 1: Chemical Composition of Several Stainless Steel Wires (%)
Materials C Si Mn P S Ni Cr Mo
304 = 0.08 = 1.00 = 2.00 = 0.045 = 0.030 8.0–10.50 18.00–20.00 -
316 = 0.045 = 1.00 = 2.00 = 0.045 = 0.030 10.00–14.00 10.00–18.00 2.00–3.00
316L = 0.030 = 1.00 = 2.00 = 0.045 = 0.030 12.00–15.00 16.00–18.00 2.00–3.00
321 ≤ 0.07 ≤ 1.00 ≤ 2.00 ≤ 0.035 ≤ 0.030 8.00–11.00 17.00–19.00 -
904L ≤ 0.02 ≤ 1.00 ≤ 2.00 ≤ 0.045 ≤ 0.035 23.00–28.00 19.00–23.00 4.00–5.00





Packing: Other specifications according to your requirements.







There are two twill weave stainless steel wire mesh filter discs.

Type of woven



Twill Weave Ss Woven Wire Mesh Corrosion And High Temperature Resistance 1









Twill Weave Ss Woven Wire Mesh Corrosion And High Temperature Resistance 2

Twill Weave Ss Woven Wire Mesh Corrosion And High Temperature Resistance 3





Our product range



Twill Weave Ss Woven Wire Mesh Corrosion And High Temperature Resistance 4

Stainless steel woven wire mesh packing



Twill Weave Ss Woven Wire Mesh Corrosion And High Temperature Resistance 5Twill Weave Ss Woven Wire Mesh Corrosion And High Temperature Resistance 6



In order to make an offer,please provide below specification of wire mesh



Material

Mesh size or aperture size

Wire diameter

Length per roll

Width per roll



About us



We are is a professional wire mesh company.

We are located in Anping County, Hebei Province,China.



Our product range

  • stainless steel woven wire mesh
  • welded wire mesh
  • crimped wire mesh
  • hexagonal wire mesh
  • brass wire mesh
  • wire belt
  • wire mesh filter

Twill Weave Ss Woven Wire Mesh Corrosion And High Temperature Resistance 7

We have our own woven machines,our technique is based on rich experience of woven,from production to selling we have our professional personnel to compeleted,our woven mesh now cover plain weave,twill weave,dutch weave,plain dutch weave,twill dutch weave,we keep the flat surface of woven procudure and accurate filtration technique.All mesh is manufactured from highly pick up of stainless steel wire.



We welcome your enquiry!
