Wire Screen SS 304 SS316 End Connection Plain Beveled Ends For Butt Welding Or Threaded

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 20 days
Payment Terms T/T, Western Union
Supply Ability 1000rolls per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Excellent Acid Product Name Stainless Steel Wire Mesh
Material SS304 Size 1.5", 2", 3", 4", 6", 8", 10", 12", 14".
Width 1m, 1.22m, 1.5m To 4m. Slot 0.15 Mm, 0.25 Mm, 0.50 Mm, 0.75 Mm, 1.00 Mm, 1.50 Mm, 2.00 Mm, 3.00 Mm
Grades Different Grades Suitable For Tube Well Depths Up To 300ft., 600ft., 900ft. And 1500ft. Length 6 Meters & 3 Meters.
End Connection Plain Beveled Ends For Butt Welding Or Threaded. Usage Used In Oil, Filter
High Light

ss 304 steel woven mesh

,

ss 316 steel woven mesh

Leave a Message
Product Description

Wire Screen SS 304 SS316 End Connection Plain Beveled Ends For Butt Welding Or Threaded

Products Description:

T-304 stainless steel is the most widely available of all stainless steels in the wire mesh industry. Aside from the countless combinations of mesh opening sizes and diameter wire available both from stock and through manufacturing, T-304 SS exhibits many benefits and is largely considered the standard of the industry. T-304 SS has excellent corrosion resistance in a wide range of environments and is used in a wide range of applications.



Many of the popular specifications featured here are custom manufactured. Others items are highly requested and therefore typically available from stock for immediate shipment.



These specifications are often used in numerous industrial and non-industrial applications, including general industrial use, shaker screens, heat treating, food processing, particle separation and building and construction use. Architects and commercial and residential designers also use these specifications for infill panel, ceiling panels, decorative signage, room dividers and security use. These items are also used in various fencing, caging and enclosure applications.



Features:



Excellent acid, alkali, and corrosion resistance;
Resist to high temperature and rust;
Durable and good strength and toughness;
Flat and beautiful surface and easy to clean.



Specfications:



Stainless steel wire screen with 304 type specifications and packing info:

Size: 1.5", 2", 3", 4", 6", 8", 10", 12", 14".
Slot: 0.15 mm, 0.25 mm, 0.50 mm, 0.75 mm, 1.00 mm, 1.50 mm, 2.00 mm, 3.00 mm.
Lengths: 6 meters & 3 meters.
Grades: Different grades suitable for tube well depths up to 300ft., 600ft., 900ft. and 1500ft.
Material: Stainless Steel (SS304).
End Connection: Plain beveled ends for butt welding or threaded.



Size (inch) Slot Materials
8 5/8 0.5 SS304
9 3/8 0.5 SS304
9 5/8 0.5 SS304
13 3/4 0.5 SS304
13 3/8 0.5 SS304


Stainless steel 316 wire mesh specifications:

Material: SS316.
Width: 4.5 Meter.
Diameter, Wire:
0.6mm (0.54 mm – 0.66 mm).
0.47mm (0.42 mm – 0.52 mm).
1.2mm (1.10 mm – 1.30 mm).
Size, Aperture: Mesh No: 12.
Shape, Aperture: Square.
Material, Standard: AISI 316.


Applications:



Made into filter, sieve, window screen;
Designed into fruits and vegetables basket, infill panels;
Widely used in mining, chemical fiber, petroleum, medicine industries etc.

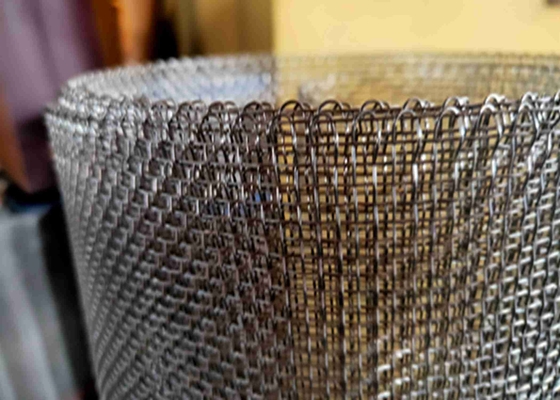

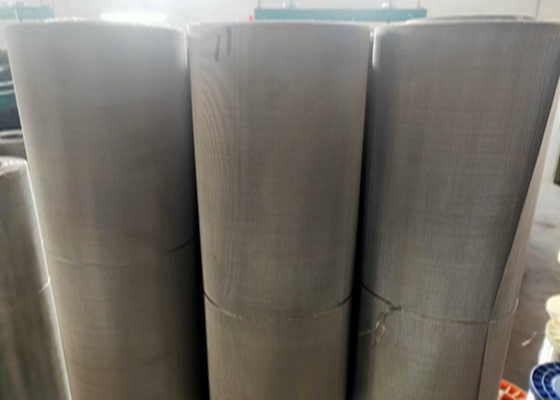

A roll of 304 stainless steel screen on the ground with wrapped edge.



A roll of plain weave 304 stainless steel screen on the gray background.



Table 1: Chemical Composition of Common Stainless Steel Wire (%)
Materials C Si Mn P S Ni Cr Mo
304 = 0.08 = 1.00 = 2.00 = 0.045 = 0.030 8.0–10.50 18.00–20.00 -
304L = 0.030 = 1.00 = 2.00 = 0.045 = 0.030 9.00–13.50 18.00–20.00 -
316 = 0.045 = 1.00 = 2.00 = 0.045 = 0.030 10.00–14.00 10.00–18.00 2.00–3.00
316L = 0.030 = 1.00 = 2.00 = 0.045 = 0.030 12.00–15.00 16.00–18.00 2.00–3.00
321 ≤ 0.07 ≤ 1.00 ≤ 2.00 ≤ 0.035 ≤ 0.030 8.00–11.00 17.00–19.00 -
