120 Mesh Ss Woven Wire Mesh Plain Weave Oil Chemical Fiber Mining

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 20 days
Payment Terms T/T, Western Union
Supply Ability 1000rolls per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Excellent Acid Product Name Stainless Steel Wire Mesh
Material SS304 SS316 Mesh Counts 120 Mesh Per Inch
Wire Diameter 0.08mm Width 1m, 1.22m, 1.5m To 4m.
Length 30m Or Customized Usage Used In Oil, Filter
High Light

120mesh ss woven wire mesh

,

ss woven wire mesh plain weave

Leave a Message
Product Description

120 Mesh Plain Weave Stainless Steel Wire Mesh Excellent Acid Used In Oil Chemical Fiber Mining

Products Description:



Plain weave stainless steel wire mesh is made of a weft wire and a warp wire with same diameter woven together. It has excellent resistance to acid, alkali, high temperature and abrasion.

Stainless steel wire cloth can be used for filter, sieve, insect screen and serve in electroplating, mining,oil, plastic, fiber, food, medicine industries.



Features:



Excellent acid, alkali, and corrosion resistance;
Resist to high temperature and rust;
Durable and good strength and toughness;
Flat and beautiful surface and easy to clean.



Specfications:



Materials: 302, 304, 304L, 310, 316, 316L, 321, 410, 410L, super duplex stainless steel, duplex stainless steel or customized.
Hole patterns: square, rectangle.
Surface treatment: pickling and passivation, polishing.
Packing:

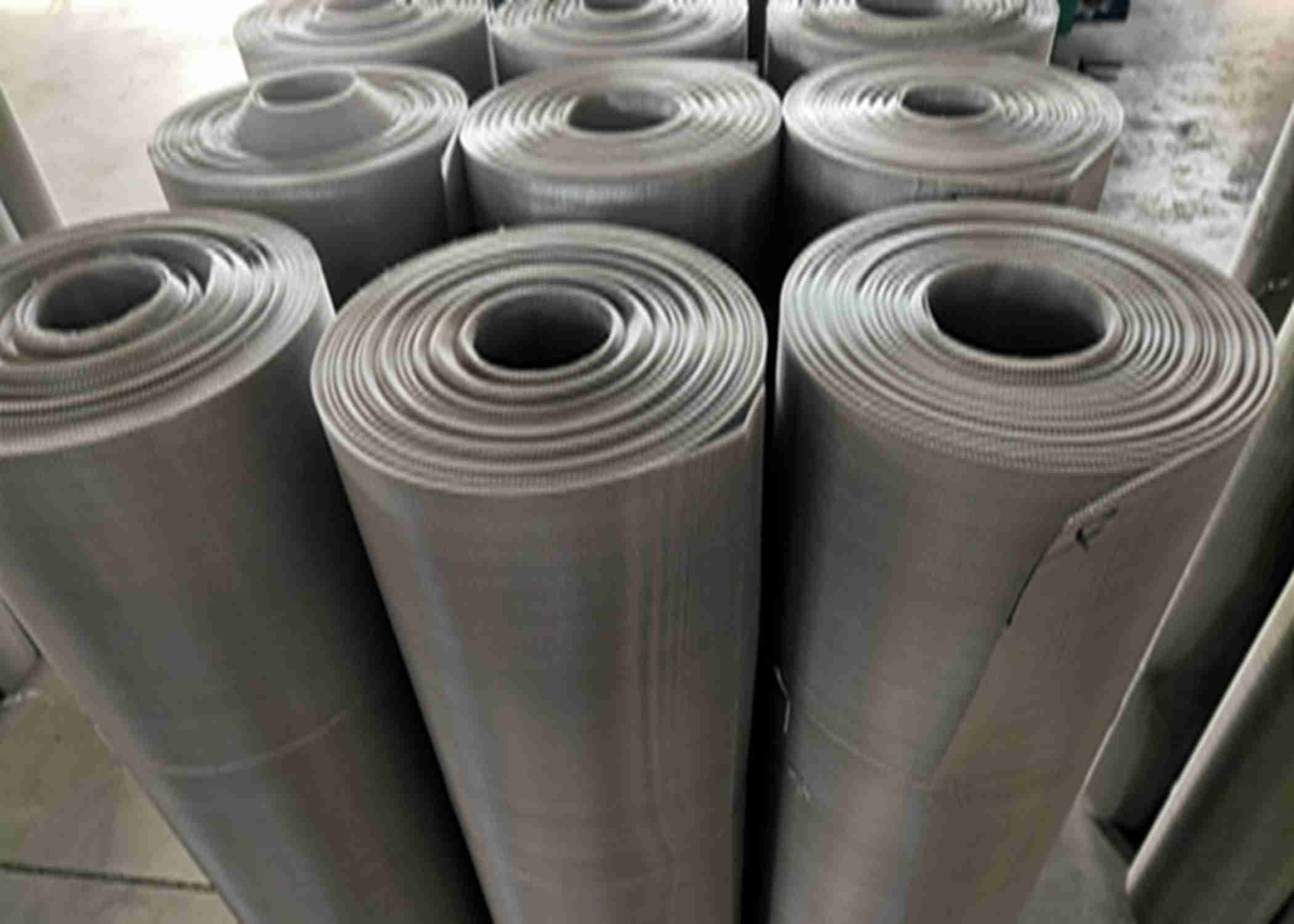

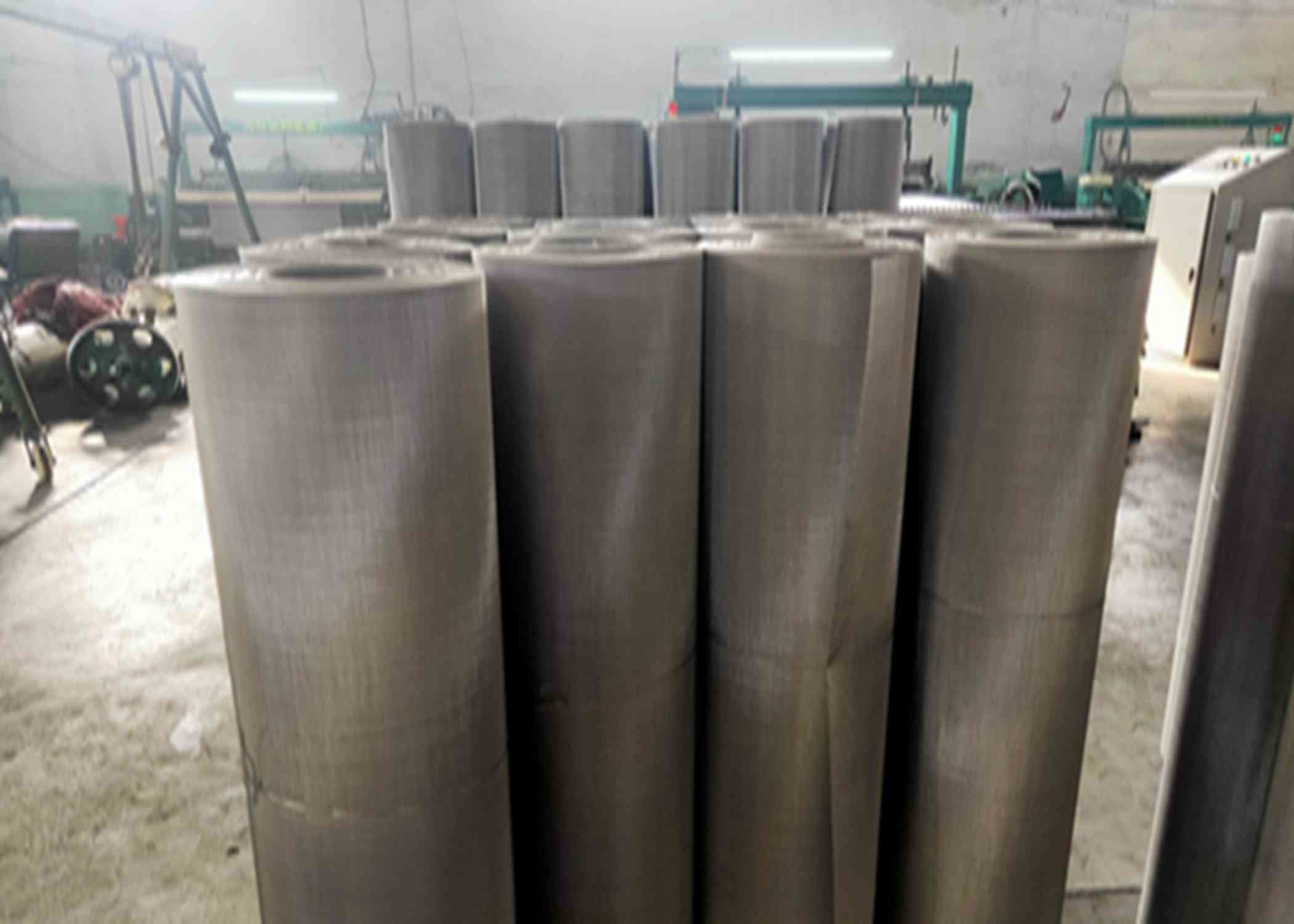

Rolls wrapped with craft paper and then put into carton or on pallet;
Sheets in wooden boxes or on pallets.



Specifications of Plain Weave Stainless Steel Wire Mesh

Mesh Wire Diameter (mm) Opening (mm) Weight (kg/m2)
1 2 23.4 2.0
2 1.5 11.2 2.25
3 1.0 7.466 1.5
4 0.9 5.45 1.62
5 0.8 4.28 1.6
6 0.7 3.53 1.47
7 0.6 3.02 1.26
8 0.5 2.675 1.0
9 0.5 2.322 1.125
10 0.8 1.74 3.2
11 0.7 1.609 2.695
12 0.6 1.516 2.16
13 0.5 1.453 1.625
14 0.4 1.414 1.12
15 0.4 1.293 1.2
16 0.35 1.237 0.98
17 0.35 1.144 1.041
18 0.35 1.061 1.10
19 0.35 0.986 1.16
20 0.4 0.97 0.97
21 0.3 0.909 0.945
22 0.3 0.854 0.99
23 0.25 0.854 0.718
24 0.25 0.858 0.48
25 0.2 0.816 0.50
26 0.2 0.076 0.52
27 0.2 0.740 0.54
28 0.3 0.607 1.26
29 0.3 0.575 1.30
30 0.3 0.546 1.35
40 0.25 0.385 1.25
50 0.2 0.308 1.0
60 0.15 0.273 0.675
70 0.14 0.222 0.686
80 0.12 0.197 0.576
90 0.11 0.172 0.544
100 0.10 0.154 0.50
120 0.08 0.131 0.384
150 0.07 0.099 0.367
380 0.02 0.046 0.076
400 0.018 0.0455 0.0648



Applications:



Made into filter, sieve, window screen;
Designed into fruits and vegetables basket, infill panels;
Widely used in mining, chemical fiber, petroleum, medicine industries etc.



There are several stainless steel filter tubes with various sizes and types.



Table 1: Chemical Composition of Common Stainless Steel Wire (%)
Materials C Si Mn P S Ni Cr Mo
304 = 0.08 = 1.00 = 2.00 = 0.045 = 0.030 8.0–10.50 18.00–20.00 -
304L = 0.030 = 1.00 = 2.00 = 0.045 = 0.030 9.00–13.50 18.00–20.00 -
316 = 0.045 = 1.00 = 2.00 = 0.045 = 0.030 10.00–14.00 10.00–18.00 2.00–3.00
316L = 0.030 = 1.00 = 2.00 = 0.045 = 0.030 12.00–15.00 16.00–18.00 2.00–3.00
321 ≤ 0.07 ≤ 1.00 ≤ 2.00 ≤ 0.035 ≤ 0.030 8.00–11.00 17.00–19.00 -
