250 Mesh Ss Woven Wire Mesh 0.05mm 0.04mm Alkali Resistance Plain Weave And Twill

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Packaging Details warp with plastic film and waterproof pater, then in pallets or wooden cases
Delivery Time 7-25 Days
Payment Terms 30% TT in advance, balance before delivery
Supply Ability 3000rolls per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Corrosion Resistance, Acid Resistance, Alkali Resistance, Heat Resistance, High Temperature Resistance Product Name Stainless Steel Wire Mesh
Material Stainless Steel Mesh Size 300mesh
Weave Type Twill Weave, Plain Weave Width 0.5-2m
Surface Treatment Polished, Electrolytic Polishing, Epoxy Coated Application Window And Doors, Filtration, Screening In Mine, Coal Factory, Construction And Other Industries
High Light

alkali resistance ss woven wire mesh

,

250 mesh ss woven wire mesh

,

0.05mm stainless steel woven wire mesh

Leave a Message
Product Description

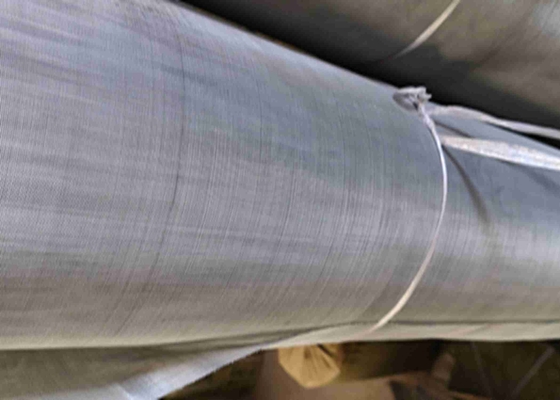

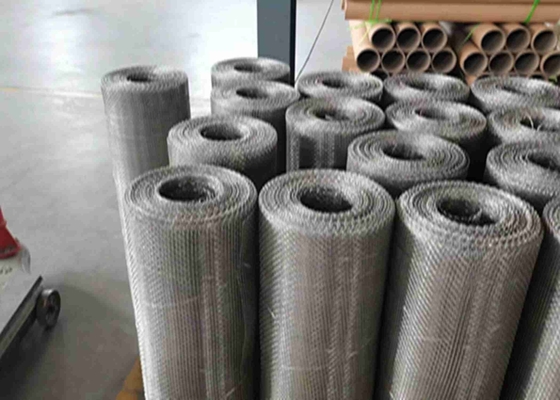

250 Mesh Alkali Resistance SS Woven Wire Mesh Plain Weave and Twill

Product Description:

250 mesh plain weave stainless steel wire mesh including 250 wires and openings of 1 inch Using 0.04mm diameter wire, by plain weaving, woven 250 mesh opening for 0.061mm liquid or gas filter.. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.



250 mesh twill weave stainless steel wire mesh including 250 wires and openings of 1 inch Using 0.04-0.05mm diameter wire, by twill weaving, woven 250 mesh opening for 0.051-0.061mm liquid or gas filter. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better



Features:

Type 304
Type 304 Often referred to as "18-8" (18% chromium, 8% nickel) T-304 is the basic stainless alloy most commonly utilized for wire cloth weaving. It withstands outdoor exposure without rusting and resists oxidation at an elevated temperature up to 1400 Degrees Fahrenheit.

Type 304 L
Stainless Steel Wire Type 304 L is very similar to T-304, the difference being the reduced carbon content for better weaving and secondary welding characteristics.

Type 316
Stainless Steel Wire Type 316 is stabilized by the addition of 2% molybdenum, T-316 is an "18-8" alloy. Type 316 has better resistance to pitting corrosion than the other chromium-nickel stainless steels where brines, sulphur-bearing water or halogen salts, such as chlorides are present. A valuable property of T-316 is high creep strength at elevated temperatures. Other mechanical properties and fabricating characteristics are similar to T-304.
Wire cloth woven of stainless steel wire T-316 has extensive use in chemical processing when better corrosion resistance is required than the regular chromium-nickel types.

Type 316 L
Type 316 L Stainless Steel Wire is very similar to T-316, the difference being the reduced carbon content for better wire cloth weaving and secondary welding characteristics.

Applications of Stainless Steel Woven Wire Mesh and Wire Cloth: Sifting and filtering in acid and alkali conditions. Slurry net in petroleum, sifting and screening mesh in chemical and chemical fiber industry, acid washing mesh in electric plating industry.

Technical Parameters:

Property Detail
Material Stainless Steel(SS304, SS316)
Wire Diameter 0.05mm 0.04mm
Length 30m
Features Corrosion Resistance, Acid Resistance, Alkali Resistance, Heat Resistance, High Temperature Resistance
Packaging Waterproof Paper, Plastic Film, Wooden Case
Weave Type Woven
Surface Treatment Polished
Color Silver, Black
Mesh Size 250mesh
Width 1-1.6m


Applications:

Fiber Spinning Mesh
Pharmaceutical Powder Preparation
Flour Machine Screening
Oil Filter
Cement and Lime Selection
Laboratories and Filters
Process Screening and Sieving
Filters
Hydraulic Filters



Customization:

QIANPU SS Woven Wire Mesh is an ideal choice for security screen, window screen, and various industrial uses. It is made of high quality material with corrosion resistance, acid resistance, alkali resistance, heat resistance, and high temperature resistance. The edge type is available in plain weave, twill weave, and Dutch weave. The length of each roll is 30m and 12mesh is the standard size. It is packed with waterproof paper, plastic film, and wooden case for extra protection. The minimum order quantity is 10 rolls and delivery time is 7-25 days. Payment terms are 30% TT in advance, balance before delivery. Our factory is capable of supplying 3000 rolls per month.



Support and Services:

SS Woven Wire Mesh offers technical support and services to ensure your product is always performing at its best. Our team of experienced technicians can provide comprehensive technical assistance, troubleshooting, and installation services for any SS Woven Wire Mesh product. We also provide ongoing maintenance and support services to ensure that your product is always running optimally. Our customer service staff is available 24/7 to answer any questions you may have about our products and services.



Packing and Shipping:

Packaging and Shipping of SS Woven Wire Mesh

SS Woven Wire Mesh will be packaged in accordance with the customer's requirements, typically wrapped in plastic film, and then packaged in wooden cases or pallets.

The shipping of SS Woven Wire Mesh is usually done by sea. We will select the most suitable shipping company according to the customer's requirements, and provide the best logistics and transportation solution.
