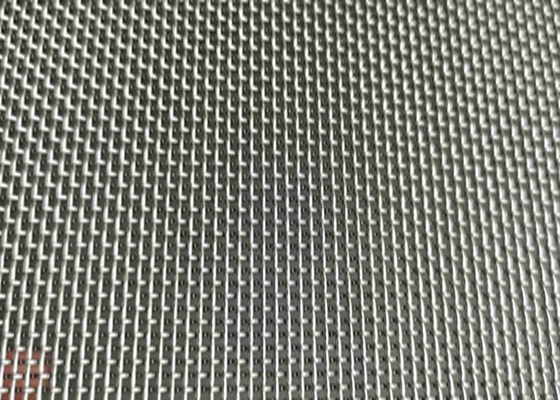

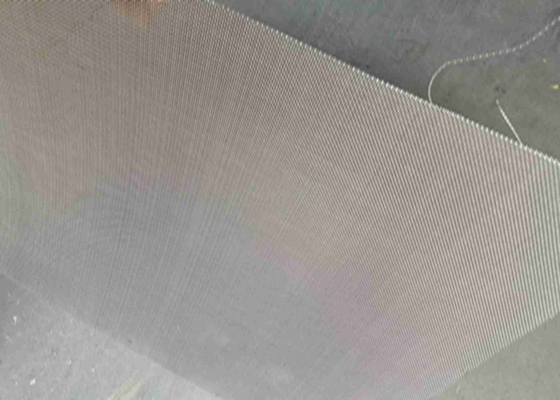

46mesh DIN1.4301 AISI304 square mesh wire netting 0.14mm Wire 55% Opening Area

  • 46mesh DIN1.4301 AISI304 square mesh wire netting 0.14mm Wire 55% Opening Area
  • 46mesh DIN1.4301 AISI304 square mesh wire netting 0.14mm Wire 55% Opening Area
  • 46mesh DIN1.4301 AISI304 square mesh wire netting 0.14mm Wire 55% Opening Area
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 1 roll
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Super Precision Product Name Stainless Steel Woven Wire Mesh
Material Stainless Steel 304 316 Cert ISO
Mesh Counts 80 Per Inch Weaving Type Twill Weave
Wire Diameter 0.10mm, 0.12mm, 0.13mm, 0.15mm, 0.18mm Width 48" (1.22m)
Length 100ft (30.5m) Application Environmental Protection, Pharmaceutical Industry, Chemical Industry, Etc.
High Light

AISI304 square mesh wire netting

,

square mesh wire netting 0.14mm

,

DIN1.4301 square mesh screen
Leave a Message
Product Description

46mesh DIN1.4301 (AISI304) Square Wire Mesh  0.14mm Wire 55% Opening Area



Wire Mesh Introduction:



Stainless steel filter mesh is among the most functional media in the field of surface filterings. The micron-leveled apertures are uniformly and precisely dispersed, offering Stainless steel filter mesh higher precision , and can be made use of to filter the tiniest bits on the planet consisting of a plethora of markets and applications like plastic & rubber improvement.



46mesh/Inch, 0.0055 inch wire diameter, 0.0162 inch aperture, 55% opening area, estimated weight 0.09lb/sq ft or 0.041kg/sq m, mainly with 36" & 48" roll width and 100ft length per roll. Stainless steel grade AISI304 as following sheet show.



Specifications US Metric
Mesh Size 46/Inch 46/2.54cm
Wire Diameter 0.0055” 0.140mm
Width 36", 48” 0.914m, 1.22m
Length 100ft 30.5m
Packing: Water-proof paper first then plastic film, in wooden case or pallets.
Nearest Port: Tianjin(By Sea); Beijing(By Air).







Material: AISI304.



AISI304 CHEMICAL COMPOSITIONS (WT%)
ITEMS C Si Mn P S Ni Cr
SPEC. <0.08 <1.00 <2.00 <0.045 <0.03 8-10.5 18-20



Other stainless steel grades please keep me informed. Materials available with plain steel, aluminum, copper/brass, nickel and so on with pure metal or alloy metal.


Weaving Type: Twill weave

Characteristics:



In atmospheric conditions stainless steel DIN1.4301 has excellent resistance in rusting even with the presence of acids like nitric acid. The material has excellent resistance in alkaline solutions as well as organic and inorganic salts. In general this material is highly resistant to corrosion in atmosphere while in high salt spray like marine environment it might develop superficial staining which might be prevented with cleaning.

Applications:



Square Stainless Steel Mesh is widely used in industries and constructions to sieve grain powder, filter liquid and gas, for other purposes like e guards on machinery enclosures. Besides, it is widely applied for the substitute of wood strips in making wall and ceiling.



Specifications:



MESH Count Diameter of Wire Width of Opening Open Area Weight
% per Pounds
per Inch Inches mm Inches mm 100 Sq. Ft. per 100Sq.Ft
12 x 12 0.032 0.81 0.051 1.3 37.9 78.8
14 x 14 0.028 0.71 0.043 1.1 37 70.4
16 x 16 0.023 0.58 0.04 1 39.9 54.3
20 x 20 0.021 0.53 0.029 0.74 33.6 56.6
30 x 30 0.015 0.38 0.018 0.47 30.3 43.3
35 x 35 0.014 0.36 0.015 0.37 26 44
40 x 40 0.012 0.31 0.013 0.33 27 36.9
50 x 50 0.011 0.28 0.009 0.229 20.3 38.8
50 x 50 0.0055 0.14 0.015 0.37 52.6 9.7
60 x 60 0.011 0.28 0.0057 0.144 11.6 46.6
60 x 60 0.0045 0.114 0.012 0.31 53.3 7.8
80 x 80 0.007 0.178 0.0055 0.14 19.4 25.1
100 x 100 0.005 0.127 0.005 0.127 25 16
120 x 120 0.0042 0.107 0.0041 0.105 24.6 13.6
120 x 120 0.004 0.102 0.0043 0.11 27 12.3
150 x 150 0.003 0.076 0.0037 0.093 30.3 8.7
180 x 180 0.0025 0.064 0.0031 0.078 30.3 7.2
200 x 200 0.0025 0.064 0.0025 0.064 25 8
200 x 200 0.0023 0.058 0.0027 0.069 29.2 6.8
270 x 270 0.0016 0.041 0.0021 0.053 32.3 4.4
300 x 300 0.0015 0.038 0.0018 0.047 30.3 4.3
325 x 325 0.0014 0.036 0.0017 0.043 29.7 4.1
400 x 400 0.001 0.025 0.0015 0.038 36 2.6







Packing: Other specifications according to your requirements.







Fine Stainless Steel 316 316L Wire Cloth, 400Mesh Plain Weave 0.001" Wire 48" Wide

Type of woven



46mesh DIN1.4301 AISI304 square mesh wire netting 0.14mm Wire 55% Opening Area 1









46mesh DIN1.4301 AISI304 square mesh wire netting 0.14mm Wire 55% Opening Area 2

46mesh DIN1.4301 AISI304 square mesh wire netting 0.14mm Wire 55% Opening Area 3





Our product range



46mesh DIN1.4301 AISI304 square mesh wire netting 0.14mm Wire 55% Opening Area 4

Stainless steel woven wire mesh packing



46mesh DIN1.4301 AISI304 square mesh wire netting 0.14mm Wire 55% Opening Area 546mesh DIN1.4301 AISI304 square mesh wire netting 0.14mm Wire 55% Opening Area 6



In order to make an offer,please provide below specification of wire mesh



Material

Mesh size or aperture size

Wire diameter

Length per roll

Width per roll



About us



We are a professional wire mesh company.

We are located in Anping County, Hebei Province,China.



Our product range

  • stainless steel woven wire mesh
  • welded wire mesh
  • crimped wire mesh
  • hexagonal wire mesh
  • brass wire mesh
  • wire belt
  • wire mesh filter

46mesh DIN1.4301 AISI304 square mesh wire netting 0.14mm Wire 55% Opening Area 7

We have our own woven machines,our technique is based on rich experience of woven,from production to selling we have our professional personnel to compeleted,our woven mesh now cover plain weave,twill weave,dutch weave,plain dutch weave,twill dutch weave,we keep the flat surface of woven procudure and accurate filtration technique.All mesh is manufactured from highly pick up of stainless steel wire.



We welcome your enquiry!
