40mesh SS304 Plain Weave Wire Mesh 0.12mm To 0.3mm Wire High Strength

  • 40mesh SS304 Plain Weave Wire Mesh 0.12mm To 0.3mm Wire High Strength
  • 40mesh SS304 Plain Weave Wire Mesh 0.12mm To 0.3mm Wire High Strength
  • 40mesh SS304 Plain Weave Wire Mesh 0.12mm To 0.3mm Wire High Strength
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5 Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Wear-resistant, High Strength And Long Service Life Product Name SS Woven Wire Mesh
Material Stainless Steel 304 Surface Bright Silver
Aperture Shape Square Mesh Counts 40
Weaving Type Plain Weave Extra Width Up To 12m
Standard Length 30m Application Filtration
High Light

Plain Weave Wire Mesh 0.12mm

,

40mesh Plain Weave Wire Mesh

,

plain woven wire mesh 0.12mm
Leave a Message
Product Description

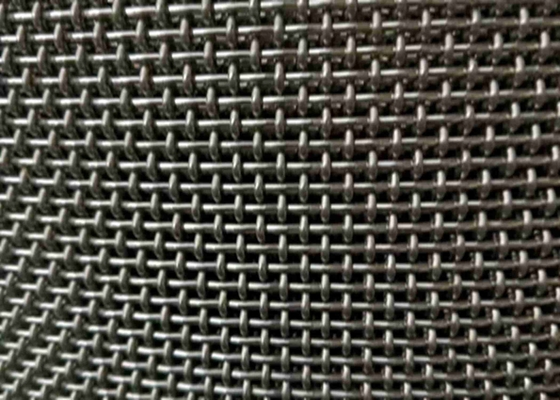

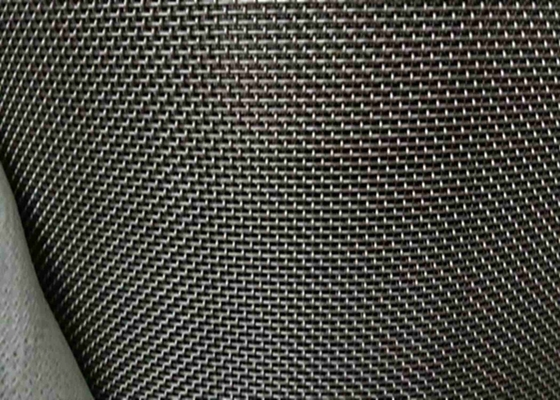

40mesh Stainless Steel 304 Plain Weave Wire Mesh 0.12mm To 0.3mm Wire



Introduction



Stainless Steel Woven Wire Mesh made of stainless steel wire, Stainless steel square wire mesh made of selected plain steel wire offers precise construction and uniform opening. Generally with American standard AISI, or as your required.



AISI304 plain weave 40 mesh wire cloth including 40 wires and openings of 1 inch. Using 0.010" diameter wire, by plain weaving, it can also be used as a liquid or gas fine filter material. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. It can be used in petroleum industry.


Materials:



SS201, SS202; SS301, SS302, SS304, SS304L, SS309, SS309S, SS310, SS310S, SS316, SS316L, SS321; SS410, SS420, SS430.



Weaving Type: Plain weave.




Characteristics:




Square Wire Mesh made of selected plain steel wire offers precise construction, uniform opening, excellent corrosion and rust resistance.

Square aperture, high flow through and relative high open area,as result less pressure drop during filtration.

Meantime stainless steel square mesh also has the features of acid resistance, alkaline-resisting property, heat-resisting feature, wear-resistant and high temperature property.



Applications:


Can be used in acid, alkali, high temperature environment, used in petroleum, chemical, food, medicine, machinery manufacturing and other industries.

40Mesh Specifications:



Mesh Wire Diameter Aperture Open Area Rate Weight/㎡
mm Inch mm Inch % Kgs Lbs
40 0.30 0.0118 0.335 0.00131 27.83 1.80 3.96
0.28 0.0110 0.365 0.0143 33.03 1.45 3.20
0.25 0.0098 0.385 0.0151 36.75 1.25 2.75
0.23 0.0090 0.405 0.0159 40.67 1.05 2.31
0.21 0.0082 0.425 0.0167 44.79 0.88 1.94
0.19 0.0074 0.445 0.0175 49.11 0.72 1.58
0.17 0.0066 0.465 0.0183 53.62 0.57 1.27
0.15 0.0059 0.485 0.0190 58.33 0.45 0.99
0.13 0.0051 0.505 0.0198 63.24 0.33 0.74
0.12 0.0047 0.515 0.202 65.77 0.28 0.63
Roll Width: Max 8.0m

Other specifications according to your requirements.






Extra Wide Stainless Steel Wire Mesh, 20mesh, 0.97mm Wire, 3.5m Width
