SS316L Twill Weave Wire Mesh Cloth 500Mesh 0.001" Wire 25um Opening

  • SS316L Twill Weave Wire Mesh Cloth 500Mesh 0.001" Wire 25um Opening
  • SS316L Twill Weave Wire Mesh Cloth 500Mesh 0.001" Wire 25um Opening
  • SS316L Twill Weave Wire Mesh Cloth 500Mesh 0.001" Wire 25um Opening
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5 Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Wear-resistant, High Strength And Long Service Life Product Name SS Woven Wire Mesh
Material SS316L Surface Bright Silver
Aperture Shape Square Mesh Counts 500 Mesh Per Inch
Wire Diameter 0.001" Aperture 25um
Weaving Type Twill Weave Application Filtration
High Light

SS316L Twill Weave Wire Mesh

,

Twill Weave Wire Mesh 500Mesh

,

Wire Mesh Cloth 500Mesh
Leave a Message
Product Description

SS316L Twilled Weave Wire Cloth 500Mesh 0.001" Wire 25um Opening



Stainless Steel Twill Weave Square Wire Cloth Introduction:



Twill Weave Mesh is fabricated by passing every shute wire alternately up and down of two warp wires. The pattern is staggered on following warp wires, providing a parallel diagonal lines appearance. Twill Weave Wire Mesh permits the use of relatively heavier wires in the specific mesh count than is feasible in the plain weave mesh. This mesh has broad application tendency of supporting larger loads and finer filtrations.



500 mesh twill weave stainless steel wire mesh including 500 wires and openings per inch. Using 0.001" diameter wire, by twill weaving, woven 500 mesh opening for 0.025mm liquid or gas filter. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.





Mesh Weave Pattern Wire Diameter Aperture Open Area Rate
mm Inch mm Inch %
500 Twilled Weave 0.025 0.001 0.025 0.001 25

1) Roll Size

Roll Width: 36”, 48”, 1.0m

Roll Length: 100ft, 30m

2) Cut in Pieces

Rectangle shape, square shape, round shape and other required shapes and sizes.




Materials:



SS304, SS304L, SS316, SS316L and Other Stainless Steel Alloy. Aluminum, Brass, Nickel, Hastelloy and other metal are available.



Specifications:



Standard Roll Width: 1m or 48";

Standard Roll Length: 30m or 100ft.

Twill Weave Wire Mesh
Mesh Mesh Opening Wire Diameter Open Area
Inch MM Inch MM (%)
4 0.215 5.460 0.0350 0.890 74.00%
8 0.105 2.667 0.0200 0.508 70.60%
12 0.065 1.651 0.0180 0.457 60.80%
14 0.062 1.585 0.0090 0.228 76.40%
35 0.017 0.422 0.0120 0.305 33.60%
40 0.017 0.419 0.0085 0.216 43.60%
45 0.013 0.324 0.0095 0.241 32.80%
58 0.013 0.324 0.0045 0.114 54.60%
66 0.011 0.269 0.0045 0.114 49.40%
70 0.008 0.198 0.0065 0.165 29.70%
90 0.006 0.155 0.0050 0.127 30.30%
100 0.006 0.140 0.0045 0.114 30.30%
100 0.005 0.127 0.0050 0.127 25.00%
110 0.005 0.117 0.0045 0.114 25.50%
120 0.004 0.109 0.0040 0.102 26.80%
130 0.004 0.109 0.0034 0.086 31.10%
130 0.004 0.099 0.0038 0.097 25.60%
140 0.004 0.097 0.0033 0.084 28.60%
160 0.004 0.097 0.0024 0.061 37.90%
180 0.004 0.095 0.0018 0.045 45.70%
170 0.004 0.089 0.0024 0.061 35.10%
180 0.003 0.086 0.0023 0.058 34.70%
180 0.003 0.079 0.0025 0.063 30.60%
200 0.003 0.074 0.0021 0.053 33.60%
200 0.003 0.069 0.0023 0.058 29.20%
270 0.002 0.053 0.0016 0.040 32.20%
325 0.002 0.043 0.0014 0.036 29.70%
400 0.033 0.0013 0.030 0.0011 27.83%
500 0.025 0.0010 0.025 0.0009 25.79%
600 0.024 0.0009 0.018 0.0007 33.03%
635 0.025 0.0009 0.015 0.0005 39.06%

Other specifications according to your requirements.

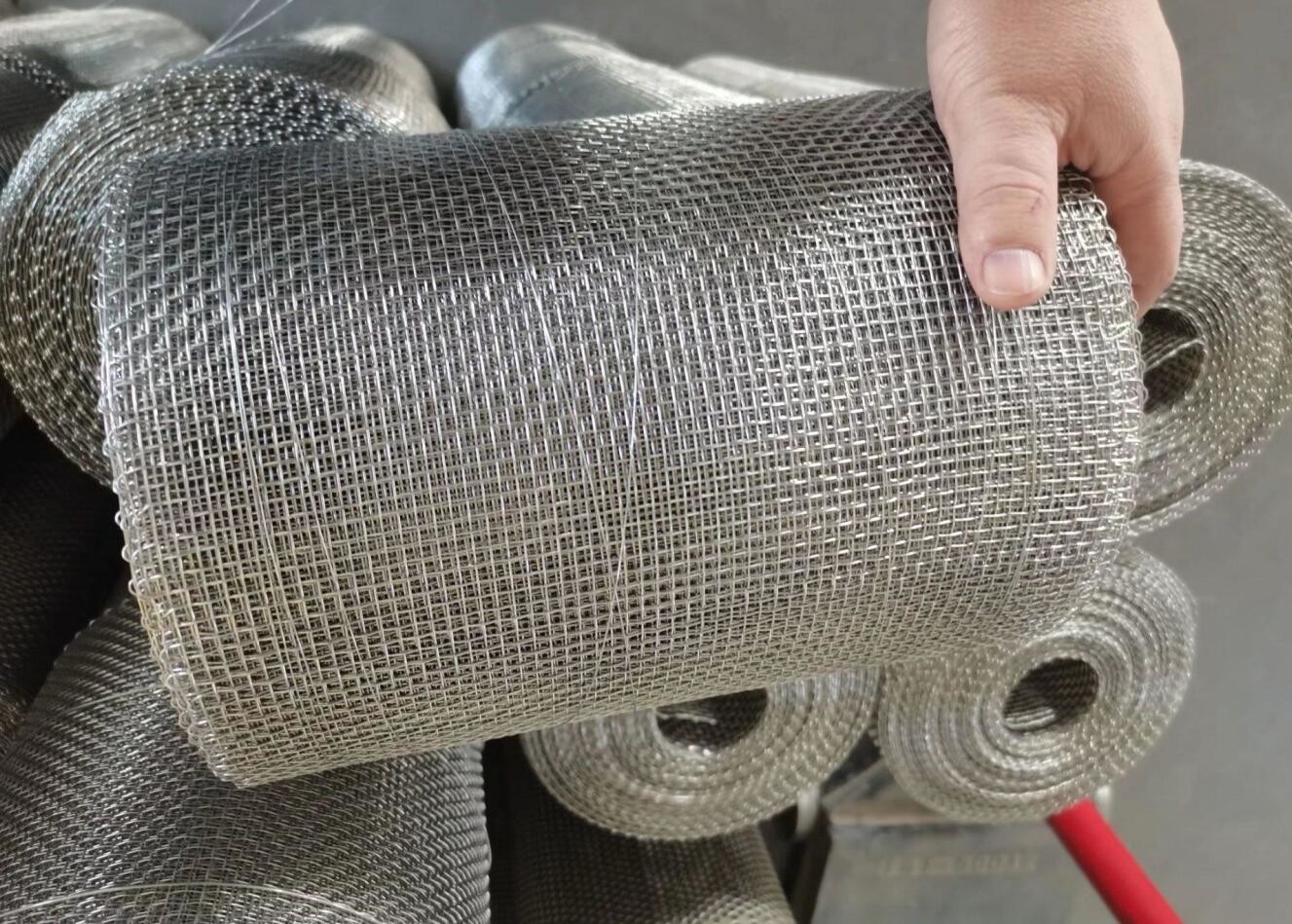

SS316L Twill Weave Wire Mesh Cloth 500Mesh 0.001" Wire 25um Opening 0



Weaving Type: Twill Weave



Standard Type of Stainless Steel Twilled Weave Square Hole Wire Mesh



Twilled weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.


Features:



Durability with good abrasion resistance.
Smooth surface.
Square mesh.
Good chemical resistance, especially against solvents.
Excellent mechanical strength.
Easy to cut to size with wire cutters, tin snips or metal shears.


Applications:



Filters and Laboratories
Electronic Ciggaretts for Wicking Material
Seiving and Straining of the Fines Powders
Injection Powders
Dusts Selection
Screening Chemical Additives
Oil Fine Filter
Gas Flow Control



Packing:

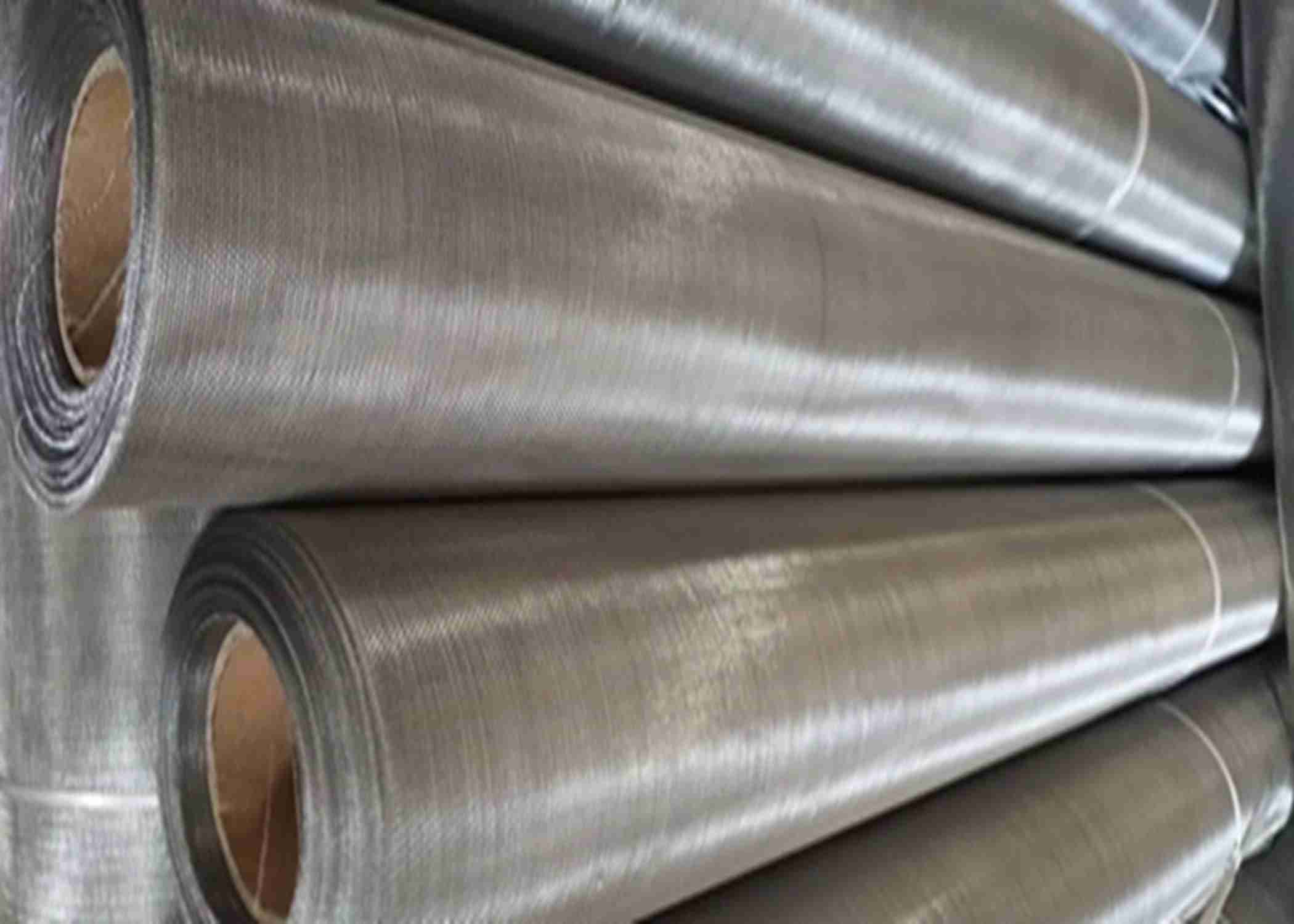

SS316L Twill Weave Wire Mesh Cloth 500Mesh 0.001" Wire 25um Opening 2
