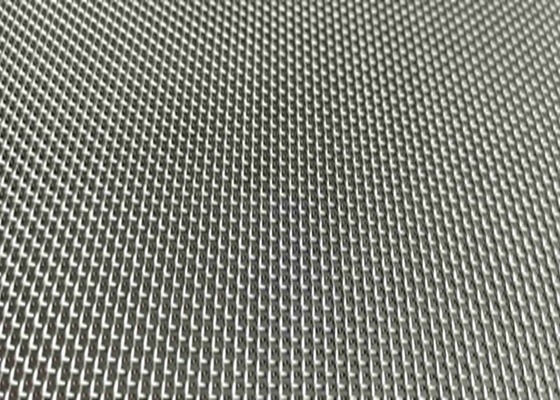

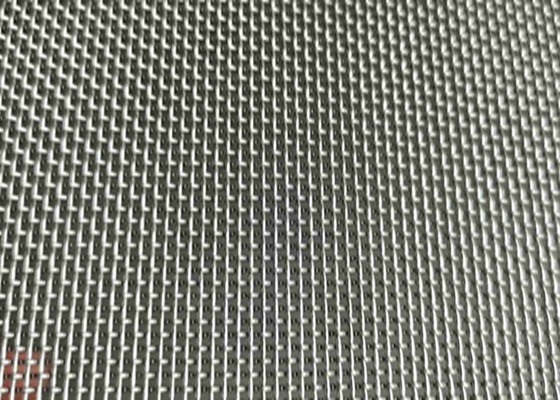

80Mesh Twill Weave SS Woven Wire Mesh Cloth 1.0m to 8.0m Width

  • 80Mesh Twill Weave SS Woven Wire Mesh Cloth 1.0m to 8.0m Width
  • 80Mesh Twill Weave SS Woven Wire Mesh Cloth 1.0m to 8.0m Width
  • 80Mesh Twill Weave SS Woven Wire Mesh Cloth 1.0m to 8.0m Width
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 1 roll
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Super Precision Product Name Stainless Steel Woven Wire Mesh
Material Stainless Steel 304 316 Cert ISO
Mesh Counts 80 Per Inch Weaving Type Twill Weave
Wire Diameter 0.10mm, 0.12mm, 0.13mm, 0.15mm, 0.18mm Width 48" (1.22m)
Length 100ft (30.5m) Application Environmental Protection, Pharmaceutical Industry, Chemical Industry, Etc.
High Light

SS Woven Wire Mesh Cloth 8.0m

,

Woven Wire Mesh Cloth 8.0m

,

80Mesh Woven Wire Mesh Cloth
Leave a Message
Product Description

80Mesh Twill Weave Wire Cloth With 0.10 to 0.18mm Wire 1.0 to 8.0m Width



Twill Weave Wire Mesh:



Each weft wire passes alternately over two, and then under two successive warp wires and each warp wire passes alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.



80 wires per inch. Material can easily bend by hand and cut with scissors and laser. Commonly used for laboratories, screen printing, and filters. This market grade mesh is woven from a standard wire diameter which is heavier than the wire used to weave bolting cloth.





Mesh Weave Pattern Wire Diameter Aperture Open Area Rate
mm Inch mm Inch %
80 Twilled Weave 0.18 0.0070 0.137 0.0054 18.75
0.15 0.0059 0.167 0.0065 27.83
0.13 0.0051 0.187 0.0073 34.87
0.12 0.0047 0.197 0.0077 38.69
0.10 0.0039 0.217 0.0085 46.92

1) Roll Size

Roll Width: 36”, 48”, 1.0m

Roll Length: 100ft, 30m

2) Cut in Pieces

Rectangle shape, square shape, round shape and other required shapes and sizes.




Materials: SS304, SS304L, SS316, SS316L



AISI Chemical Composition of Several Stainless Steel Wires (%)
C Si Mn P S Ni Cr Mo
304 Max.0.08 Max.1.00 Max.2.00 Max.0.045 Max.0.030 8.00~10.50 18.00~20.00 -
304L Max.0.03 Max.1.00 Max.2.00 Max.0.045 Max.0.030 9.00~13.00 18.00~20.00 -
316 Max.0.08 Max.1.00 Max.2.00 Max.0.045 Max.0.030 10.00~14.00 16.00~18.00 2.00~3.00
316L Max.0.03 Max.1.00 Max.2.00 Max.0.045 Max.0.030 12.00~15.00 16.00~18.00 2.00~3.00




304 stainless steel: Most common stainless alloy used in wire weaving. Excellent corrosion properties and can withstand temperatures of 1100 Degrees F.

304L stainless steel: Similar properties as 304ss but lower carbon content to permit better welding.



316 stainless steel: Similar properties to 304ss but is stabilized by the addition of Molybdenum for increased resistance to chemical corrosion.

316L stainless steel: Similar properties as 316ss but lower carbon content to permit better welding.


Weaving Type: Twill weave

Characteristics:



Superior corrosion and abrasion resistance;
Can resist to rust and bad weather;
High filter precision;
Durable and high strength;
Beautiful appearance, etc.



Applications:



Particle Filter

Shielding Mesh

Battery Mesh

Grinding Material Mesh

Quartz Sand Paper Material Selection

Sifting Powders

Laboratories and Filters

Strainers

Sifting and Mixing Chemicals

Sieves

EMI and RFI shielding



Specifications:



MESH Count Diameter of Wire Width of Opening Open Area Weight
% per Pounds
per Inch Inches mm Inches mm 100 Sq. Ft. per 100Sq.Ft
12 x 12 0.032 0.81 0.051 1.3 37.9 78.8
14 x 14 0.028 0.71 0.043 1.1 37 70.4
16 x 16 0.023 0.58 0.04 1 39.9 54.3
20 x 20 0.021 0.53 0.029 0.74 33.6 56.6
30 x 30 0.015 0.38 0.018 0.47 30.3 43.3
35 x 35 0.014 0.36 0.015 0.37 26 44
40 x 40 0.012 0.31 0.013 0.33 27 36.9
50 x 50 0.011 0.28 0.009 0.229 20.3 38.8
50 x 50 0.0055 0.14 0.015 0.37 52.6 9.7
60 x 60 0.011 0.28 0.0057 0.144 11.6 46.6
60 x 60 0.0045 0.114 0.012 0.31 53.3 7.8
80 x 80 0.007 0.178 0.0055 0.14 19.4 25.1
100 x 100 0.005 0.127 0.005 0.127 25 16
120 x 120 0.0042 0.107 0.0041 0.105 24.6 13.6
120 x 120 0.004 0.102 0.0043 0.11 27 12.3
150 x 150 0.003 0.076 0.0037 0.093 30.3 8.7
180 x 180 0.0025 0.064 0.0031 0.078 30.3 7.2
200 x 200 0.0025 0.064 0.0025 0.064 25 8
200 x 200 0.0023 0.058 0.0027 0.069 29.2 6.8
270 x 270 0.0016 0.041 0.0021 0.053 32.3 4.4
300 x 300 0.0015 0.038 0.0018 0.047 30.3 4.3
325 x 325 0.0014 0.036 0.0017 0.043 29.7 4.1
400 x 400 0.001 0.025 0.0015 0.038 36 2.6







Packing: Other specifications according to your requirements.







Fine Stainless Steel 316 316L Wire Cloth, 400Mesh Plain Weave 0.001" Wire 48" Wide

Type of woven



80Mesh Twill Weave SS Woven Wire Mesh Cloth 1.0m to 8.0m Width 1









80Mesh Twill Weave SS Woven Wire Mesh Cloth 1.0m to 8.0m Width 2

80Mesh Twill Weave SS Woven Wire Mesh Cloth 1.0m to 8.0m Width 3





Our product range



80Mesh Twill Weave SS Woven Wire Mesh Cloth 1.0m to 8.0m Width 4

Stainless steel woven wire mesh packing



80Mesh Twill Weave SS Woven Wire Mesh Cloth 1.0m to 8.0m Width 580Mesh Twill Weave SS Woven Wire Mesh Cloth 1.0m to 8.0m Width 6



In order to make an offer,please provide below specification of wire mesh



Material

Mesh size or aperture size

Wire diameter

Length per roll

Width per roll



About us



We are is a professional wire mesh company.

We are located in Anping County, Hebei Province,China.



Our product range

  • stainless steel woven wire mesh
  • welded wire mesh
  • crimped wire mesh
  • hexagonal wire mesh
  • brass wire mesh
  • wire belt
  • wire mesh filter

80Mesh Twill Weave SS Woven Wire Mesh Cloth 1.0m to 8.0m Width 7

We have our own woven machines,our technique is based on rich experience of woven,from production to selling we have our professional personnel to compeleted,our woven mesh now cover plain weave,twill weave,dutch weave,plain dutch weave,twill dutch weave,we keep the flat surface of woven procudure and accurate filtration technique.All mesh is manufactured from highly pick up of stainless steel wire.
