230Mesh Twill Weave SS Woven Wire Mesh Cloth 0.036mm Wire 0.074mm Aperture SS304

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 1 roll
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Super Precision Product Name Stainless Steel Woven Wire Mesh
Material Stainless Steel 304 316 Mesh Counts 230 Per Inch
Weaving Type Twill Weave Wire Diameter 0.036mm
Opening 0.074mm Width 48" (1.22m)
Length 100ft (30.5m) Application Environmental Protection, Pharmaceutical Industry, Chemical Industry, Etc.
High Light

230Mesh SS Woven Wire Mesh

,

Woven Wire Mesh Cloth 0.036mm

,

Twill Weave Wire Mesh 0.036mm

Leave a Message
Product Description

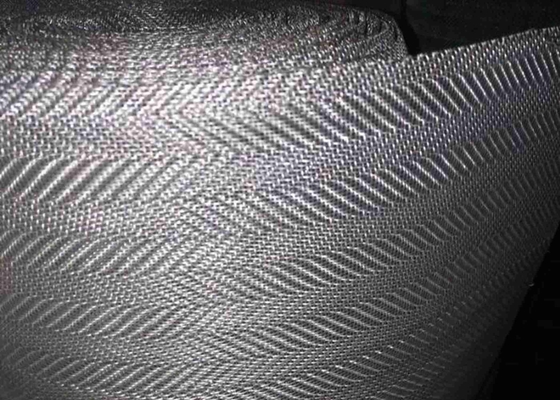

230Mesh Twill Weave Wire Cloth 0.036mm Wire 0.074mm Aperture SS304



Introduction:

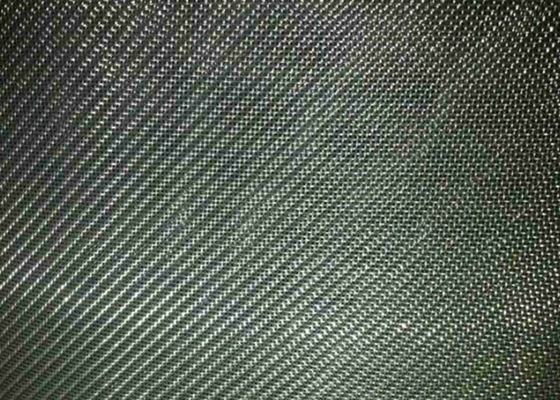

Twill Weave Wire Mesh: In the Twilled Woven Wire Mesh, the wires of the weft and the warp intercross two above and two below, inverting the intersections of the warp wire at an established distance, obtaining a rigid, stable and robust type of wire mesh fabric. The pattern is staggered on successive warp wires, giving the appearance of parallel diagonal lines.



230 mesh twill weve stainless steel wire mesh including 230 wires and openings of 1 inch. Using 0.036mm diameter wire, by twill weaving, woven 230 mesh opening for 0.074mm liquid or gas filter. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better. Material can easily bend by hand and cut with scissors and laser. Commonly used for laboratories, screen printing, and filters. This market grade mesh is woven from a standard wire diameter which is heavier than the wire used to weave bolting cloth.





Mesh Weave Pattern Wire Diameter Aperture Open Area Rate
mm Inch mm Inch %
230 Twilled Weave 0.036 0.0014 0.074 0.0029 45

1) Roll Size

Roll Width: 36”, 48”, 1.0m

Roll Length: 100ft, 30m



2) Cut in Pieces

Rectangle shape, square shape, round shape and other required shapes and sizes.


Materials:

AISI Chemical Composition of Several Stainless Steel Wires (%)
C Si Mn P S Ni Cr Mo
304 Max.0.08 Max.1.00 Max.2.00 Max.0.045 Max.0.030 8.00~10.50 18.00~20.00 -
304L Max.0.03 Max.1.00 Max.2.00 Max.0.045 Max.0.030 9.00~13.00 18.00~20.00 -
316 Max.0.08 Max.1.00 Max.2.00 Max.0.045 Max.0.030 10.00~14.00 16.00~18.00 2.00~3.00
316L Max.0.03 Max.1.00 Max.2.00 Max.0.045 Max.0.030 12.00~15.00 16.00~18.00 2.00~3.00



304 stainless steel: Most common stainless alloy used in wire weaving. Excellent corrosion properties and can withstand temperatures of 1100 Degrees F.

304L stainless steel: Similar properties as 304ss but lower carbon content to permit better welding.



316 stainless steel: Similar properties to 304ss but is stabilized by the addition of Molybdenum for increased resistance to chemical corrosion.

316L stainless steel: Similar properties as 316ss but lower carbon content to permit better welding.


Weaving Type: Twill weave



Features:



Superior corrosion and abrasion resistance;
Can resist to rust and bad weather;
High filter precision;
Durable and high strength;
Beautiful appearance.


Characteristics:



High tension, much higher tension than common polyester mesh,and this property is very suitable.

Super precision: uniform wire diameter and aperture with extremely low difference.

Low elongation: very small elongation of wire mesh at high tension.

High flexibility: the wire mesh will not lose elasticity at extreme tension.

High corrosion resistance: the excellent corronsion resistance of stainless steel wire exceeds polyester fiber.

Non-electrostatic: to avoid affects of nonelectrostatic for printing and ensure the safety of priting.

Good heat melting resistance:special features of steel wire mesh suitable for heta-melting ink.

Good solvent resistance: to avoid the affects of any solvents to wire mesh.


Applications:

Crossed twilled wire mesh are basic components in the production of filters, colanders for aliments, chemicals products, shielding, mosquito nets, etc.

This weave allows the use of proportionately heavier wires in a particular mesh count(number of openings per lineal inch) than is possible in plain weave.

This cloth has a wide application capable of supporting greater loads and finer filtrations.

Specifications:




Standard Specifications:



Mesh/Inch Wire Diameter Aperture Open Area Weight(LB) /100 Square Foot
Inch MM Inch MM
90X90 0.005 0.127 0.0061 0.16 30.1 15.8
100X100 0.0045 0.114 0.0055 0.14 30.3 14.2
100X100 0.004 0.102 0.006 0.15 36 11
100X100 0.0035 0.089 0.0065 0.17 42.3 8.3
110X110 0.004 0.1016 0.0051 0.1295 30.7 12.4
120X120 0.0037 0.094 0.0064 0.1168 30.7 11.6
150X150 0.0026 0.066 0.0041 0.1041 37.4 7.1
160X160 0.0025 0.0635 0.0038 0.0965 36.4 5.94
180X180 0.0023 0.0584 0.0033 0.0838 34.7 6.7
200X200 0.0021 0.0533 0.0029 0.0737 33.6 6.2
250X250 0.0016 0.0406 0.0024 0.061 36 4.4
270X270 0.0016 0.0406 0.0021 0.0533 32.2 4.7
300X300 0.0051 0.0381 0.0018 0.0457 29.7 3.04
325X325 0.0014 0.0356 0.0017 0.0432 30 4.4
400X400 0.001 0.0254 0.0015 0.37 36 3.3
500X500 0.001 0.0254 0.001 0.0254 25 3.8
635X635 0.0008 0.0203 0.0008 0.0203 25 2.63



Other specifications according to your requirements.



Fine Stainless Steel 316 316L Wire Cloth, 400Mesh Plain Weave 0.001" Wire 48" Wide

Type of woven



230Mesh Twill Weave SS Woven Wire Mesh Cloth 0.036mm Wire 0.074mm Aperture SS304 1









230Mesh Twill Weave SS Woven Wire Mesh Cloth 0.036mm Wire 0.074mm Aperture SS304 2

230Mesh Twill Weave SS Woven Wire Mesh Cloth 0.036mm Wire 0.074mm Aperture SS304 3





Our product range



230Mesh Twill Weave SS Woven Wire Mesh Cloth 0.036mm Wire 0.074mm Aperture SS304 4

Stainless steel woven wire mesh packing



230Mesh Twill Weave SS Woven Wire Mesh Cloth 0.036mm Wire 0.074mm Aperture SS304 5230Mesh Twill Weave SS Woven Wire Mesh Cloth 0.036mm Wire 0.074mm Aperture SS304 6



In order to make an offer,please provide below specification of wire mesh



Material

Mesh size or aperture size

Wire diameter

Length per roll

Width per roll



About us



We are a professional wire mesh company.

We are located in Anping County, Hebei Province,China.



Our product range

  • stainless steel woven wire mesh
  • welded wire mesh
  • crimped wire mesh
  • hexagonal wire mesh
  • brass wire mesh
  • wire belt
  • wire mesh filter

230Mesh Twill Weave SS Woven Wire Mesh Cloth 0.036mm Wire 0.074mm Aperture SS304 7

We have our own woven machines,our technique is based on rich experience of woven,from production to selling we have our professional personnel to compeleted,our woven mesh now cover plain weave,twill weave,dutch weave,plain dutch weave,twill dutch weave,we keep the flat surface of woven procudure and accurate filtration technique.All mesh is manufactured from highly pick up of stainless steel wire.



We welcome your enquiry!
