Micro Opening 304 Stainless Steel Wire Mesh Cloth Bright Silver

  • Micro Opening 304 Stainless Steel Wire Mesh Cloth Bright Silver
  • Micro Opening 304 Stainless Steel Wire Mesh Cloth Bright Silver
  • Micro Opening 304 Stainless Steel Wire Mesh Cloth Bright Silver
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5 Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Good Chemical Resistance, Especially Against Solvents Product Name Micro Opening Stainless Steel Cloth
Material SS304, SS316, Etc Surface Bright Silver
Aperture Shape Square Weaving Type Plain Weave
Mesh Counts 40, 50, 100, 150, 200, 250, 300 And 400 Mes Application Useful For Sorting, Screening, Filtration, Separation And Immersion Applications For Sample Preparation And Laboratory Applications.
High Light

bright stainless steel wire mesh cloth

,

304 stainless steel wire mesh cloth

,

micro opening stainless steel wire cloth
Leave a Message
Product Description

Micro Opening Stainless Steel Cloth Using Micro-Tec With Accuracy Of Weave Features



Introduction



Winner offers the comprehensive range of micron wire cloths, ranging to ultra fine options and manufactured from stainless steel and all metallic materials and alloys. All wire cloth is manufactured using the most modern production equipment under clean conditions.



Our woven wire filter cloths are ideally suited to surface filtration applications, and have proved their worth in many different environments and situations.



Micro-Tec stainless steel woven wire cloths are useful for sorting, screening, filtration, separation and immersion applications for sample preparation and laboratory applications. They are made from AISI 304 stainless steel wire and feature:

durability with good abrasion resistance
smooth surface
mesh
good chemical resistance, especially against solvents
excellent mechanical strength
easy to cut to size with wire cutters, tin snips or metal shears

Standard Specifications:



Mesh/Inch Wire Diameter Aperture Open Area Weight(LB) /100 Square Foot
Inch MM Inch MM
90X90 0.005 0.127 0.0061 0.16 30.1 15.8
100X100 0.0045 0.114 0.0055 0.14 30.3 14.2
100X100 0.004 0.102 0.006 0.15 36 11
100X100 0.0035 0.089 0.0065 0.17 42.3 8.3
110X110 0.004 0.1016 0.0051 0.1295 30.7 12.4
120X120 0.0037 0.094 0.0064 0.1168 30.7 11.6
150X150 0.0026 0.066 0.0041 0.1041 37.4 7.1
160X160 0.0025 0.0635 0.0038 0.0965 36.4 5.94
180X180 0.0023 0.0584 0.0033 0.0838 34.7 6.7
200X200 0.0021 0.0533 0.0029 0.0737 33.6 6.2
250X250 0.0016 0.0406 0.0024 0.061 36 4.4
270X270 0.0016 0.0406 0.0021 0.0533 32.2 4.7
300X300 0.0051 0.0381 0.0018 0.0457 29.7 3.04
325X325 0.0014 0.0356 0.0017 0.0432 30 4.4
400X400 0.001 0.0254 0.0015 0.37 36 3.3
500X500 0.001 0.0254 0.001 0.0254 25 3.8
635X635 0.0008 0.0203 0.0008 0.0203 25 2.63

Other specifications according to your requirements.

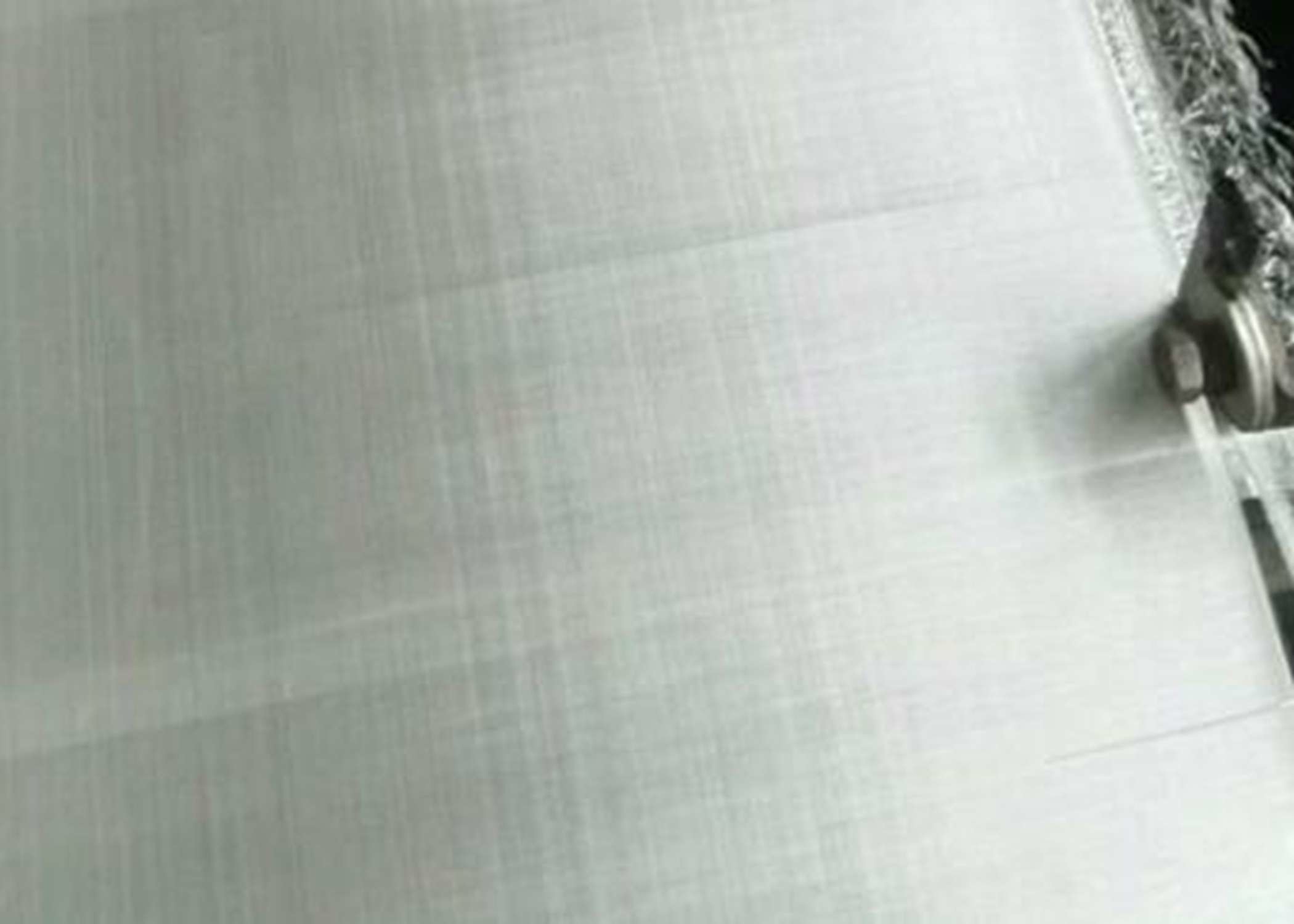

Micro Opening 304 Stainless Steel Wire Mesh Cloth Bright Silver 0


Features:



Optimum flow rates.
Narrow pore size distribution.
Precise alignment of filter pores.
Stability.
Rigidity.
Excellent resistance to abrasion.
No particle dissolution.
Easy to clean.
Excellent levels of plasticity.
Chemical and thermal resistance.
Smooth surface structure.
High levels of reliability.



Properties:



Microbic Wire Cloths are used worldwide for their high performance properties:
Accuracy of weave.
Regularity.
High stability.
Rigidity.
Corrosion resistance.
Thermal resistance.
Resistance to moisture.
No static loading.
Ease of fabrication.


Applications:

Pressure filters for fine filtration in hydraulic steering equipment.
Oil and fuel filters.
Pressure and vacuum filters.
As porous media for fluid beds.
Filter candles.
Medical science.
Food and beverage industry.
Plastics industry.



Packing:



Water-proof paper first then plastic film, in wooden case or pallets.

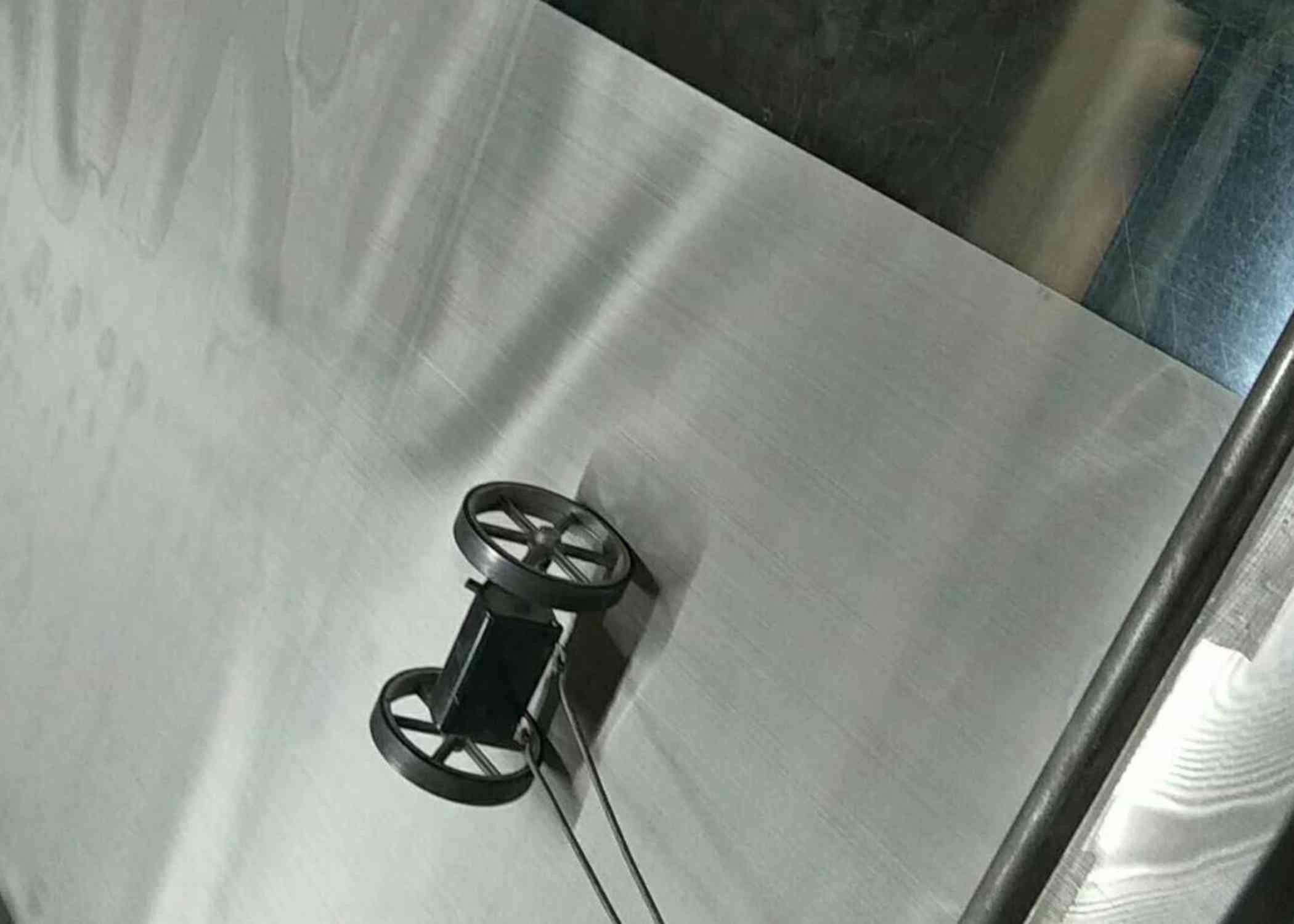

Micro Opening 304 Stainless Steel Wire Mesh Cloth Bright Silver 1
