Closed Edge Ss Woven Wire Mesh With Selvage Style

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5 Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Selvage Edge Will Increase The Stability Of A Mesh And Provide A Safety Edge For Handling Product Name Closed Edge Wire Mesh
Material Stainless Steel, Galvanized Surface Bright Silver
Hole Shape Square Hole Mesh Counts Mainly 1 To 30 Per Inch
Edge Type Selvaged Edge Width 36", 48", Etc
Length 100' Usage Food Industry, Filtration Industry
High Light

closed edge ss woven wire mesh

,

selvage style ss woven wire mesh

,

304 stainless steel woven wire mesh

Leave a Message
Product Description

Closed Edge Wire Mesh With Selvage Style: Welded Selvage Closed Selvage Returned Selvage And Flash



Brief introduction

Stainless steel woven wire mesh is made stainless steel wire and then woven together to form a square opening or oblong opening. Stainless steel woven wire mesh has characteristics of resistance to the rust, corrosion, acid, alkali, heat and chemical, high strength and durability. Stainless steel woven wire cloth has widely applications in the industries, architecture, residences and other places.



Generally speaking, the way to deal with the edge of the woven mesh is raw edge and the closed edge. So whenever we need to buy the woven mesh, we always look blank and don’t know what to choose.



In fact, they are easy to distinguish. Between the two edges of the metal mesh if the two adjacent metal wires are connected they are a closed edge if not they are a raw edge. The benefit of the closed edge is not easy to fall off, sturdy structure and there is no need to worry about it will pierce your hand for the practice have proved it is very safe.



Although its cost is relatively high, its advantages are unique. Therefore, if the budget is plentiful, I still recommend that you choose a woven mesh with a closed edge.



Materials: SS304 316, 304L, 316L, etc.

Standard: AISI, SUS, EN.
Weaving: plain woven wire cloth.


Specification:



Mesh/Inch

Wire Diameter Aperture

Open Area
(%)

Weight
(kg /Square meter)

Inch MM Inch MM
4X4 .047 1.19 .203 5.16 81.2 2.7
5X5 .041 1.04 .159 4.04 79.5 2.6
6x6 .035 0.89 .145 3.68   2.1
8 x 8 .32 0.81 .113 2.88   2.6
10X10 .025 .64 .075 1.91 74.9 2.0
12X12 .020 .508 .063 1.60 75.9 1.5
14X14 .020 .508 .051 1.30 71.9 1.8
16X16 .018 .457 .0445 1.13 71.2 1.6
18X18 .017 .432 .0386 .98 69.4 1.6
20X20 .020 .240 .0300 .76 76.0 .56
20X20 .016 .330 .0340 .86 72.2 1.1
30X30 .0120 .305 .0213 .54 63.9 1.4
30X30 .0094 .240 .0243 .62 72.1 .84

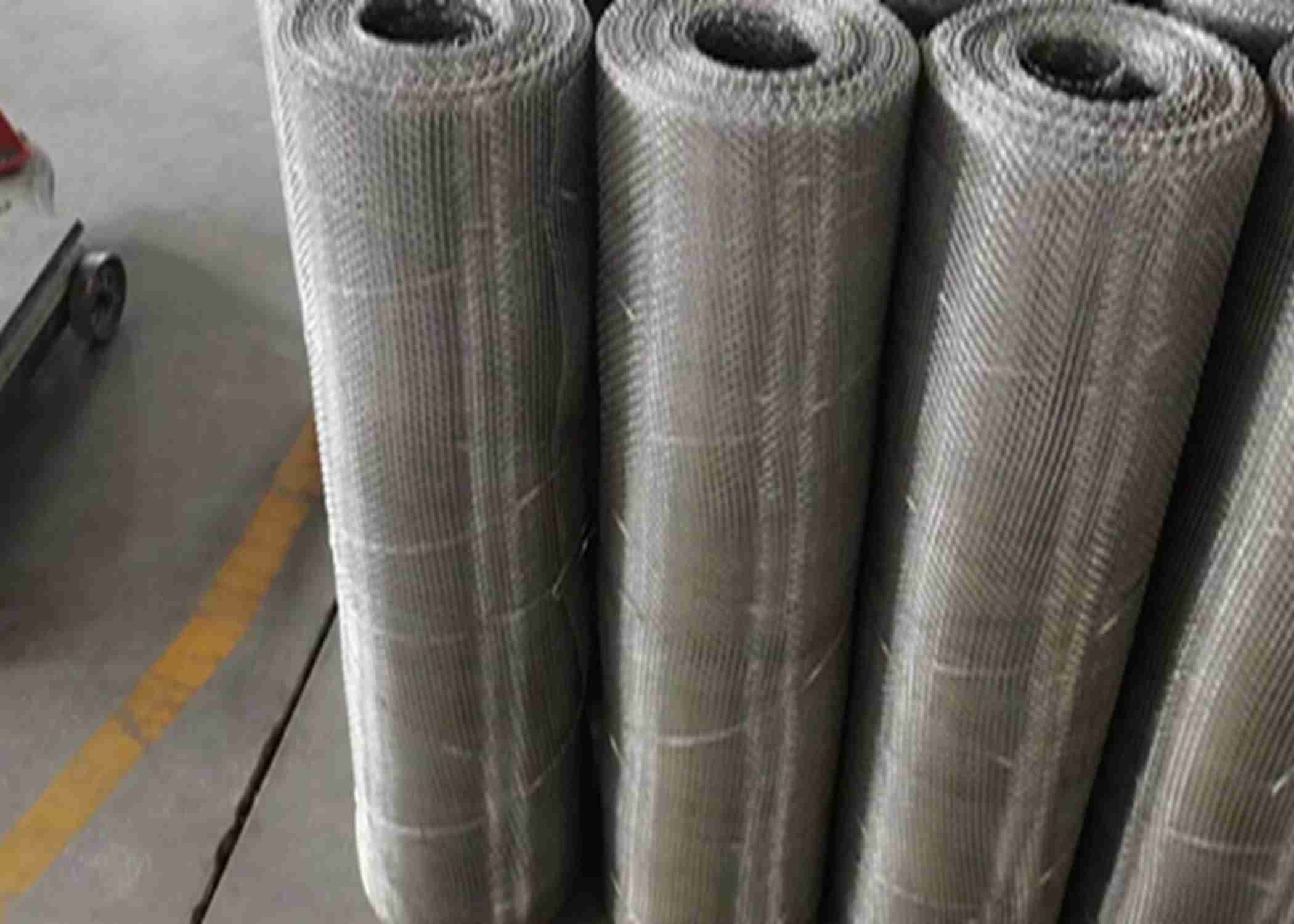

Closed Edge Ss Woven Wire Mesh With Selvage Style 0



Edge Type:

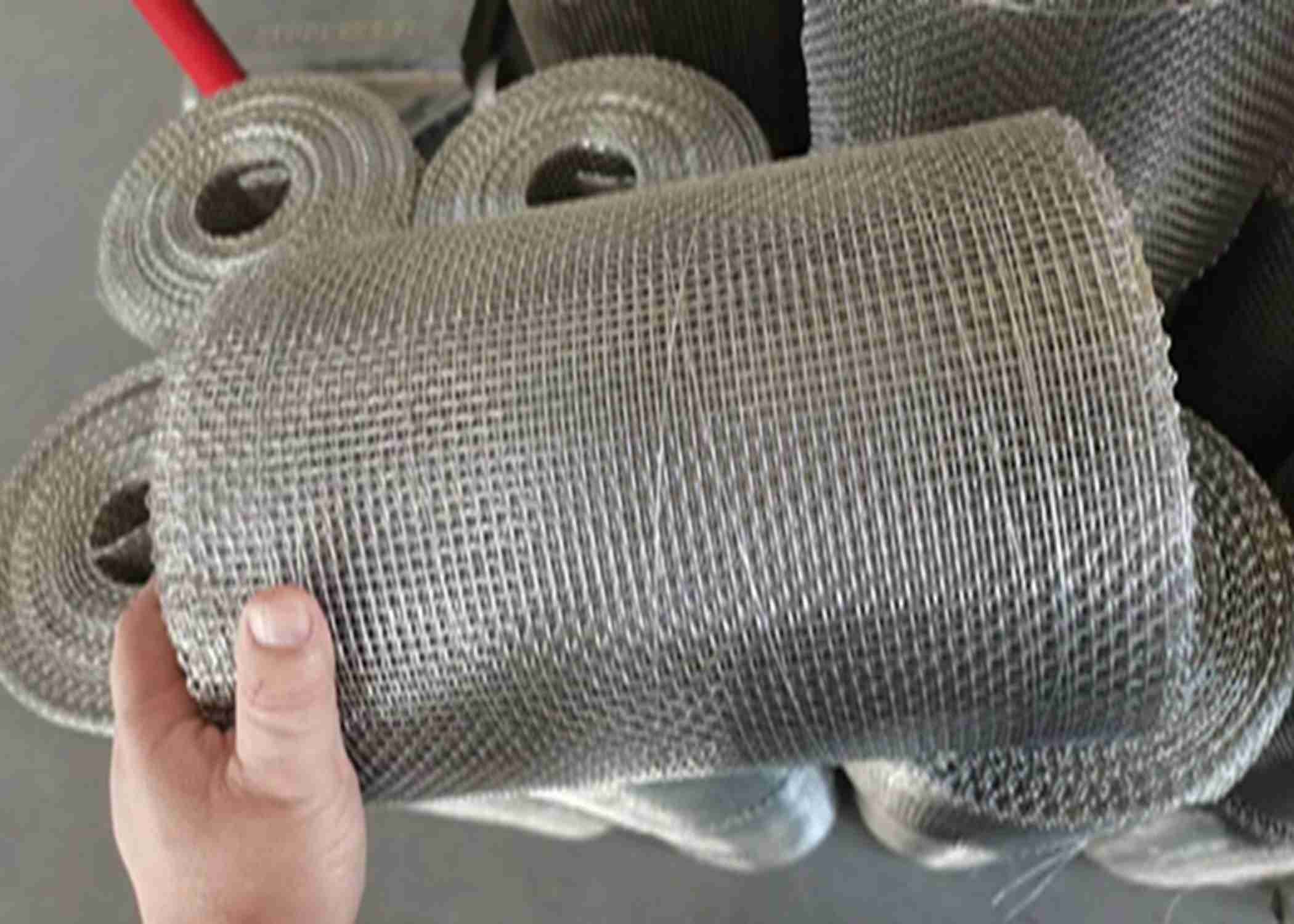

Closed Edge Ss Woven Wire Mesh With Selvage Style 1

Characteristics and usage:


stainless steel wire mesh is heat-resisting, acid-resisting and corrosion-resisting. This kind of wire mesh is widely used in mining, chemicals, food products and others.


Application:



Used for screen in mine, coal factory, industry, architecture, filter a sand grain, filter the liquid and air, also can be used in the security in machiney fittings.


It can be processed into filter discs of various sizes
It can be cut into size panels in all shapes including, squares, rectangles and circles in all materials and mesh sizes
Black wire cloth is mainly used in filtration mesh of rubber, plastic, petroleum and grains industry

Closed Edge Ss Woven Wire Mesh With Selvage Style 2
Closed Edge

Closed Edge Ss Woven Wire Mesh With Selvage Style 3

Raw Edge

Packing:

Closed Edge Ss Woven Wire Mesh With Selvage Style 4

Company Information

Anping Qianpu Wire Mesh Products Co., Ltd. is located in Anping County, Hebei Province, the famous Chinese industry base and the township of wire mesh. Its west is Beijing-Guangzhou Railway and Beijing- Shenzhen Expressway, the east is the Beijing-Kowloon Railway and the Beijing-Shanghai Expressway, and the south is Shihuang Expressway. Inside the city, there is a large logistics center of railway and highway, so the transportation is so developed.
